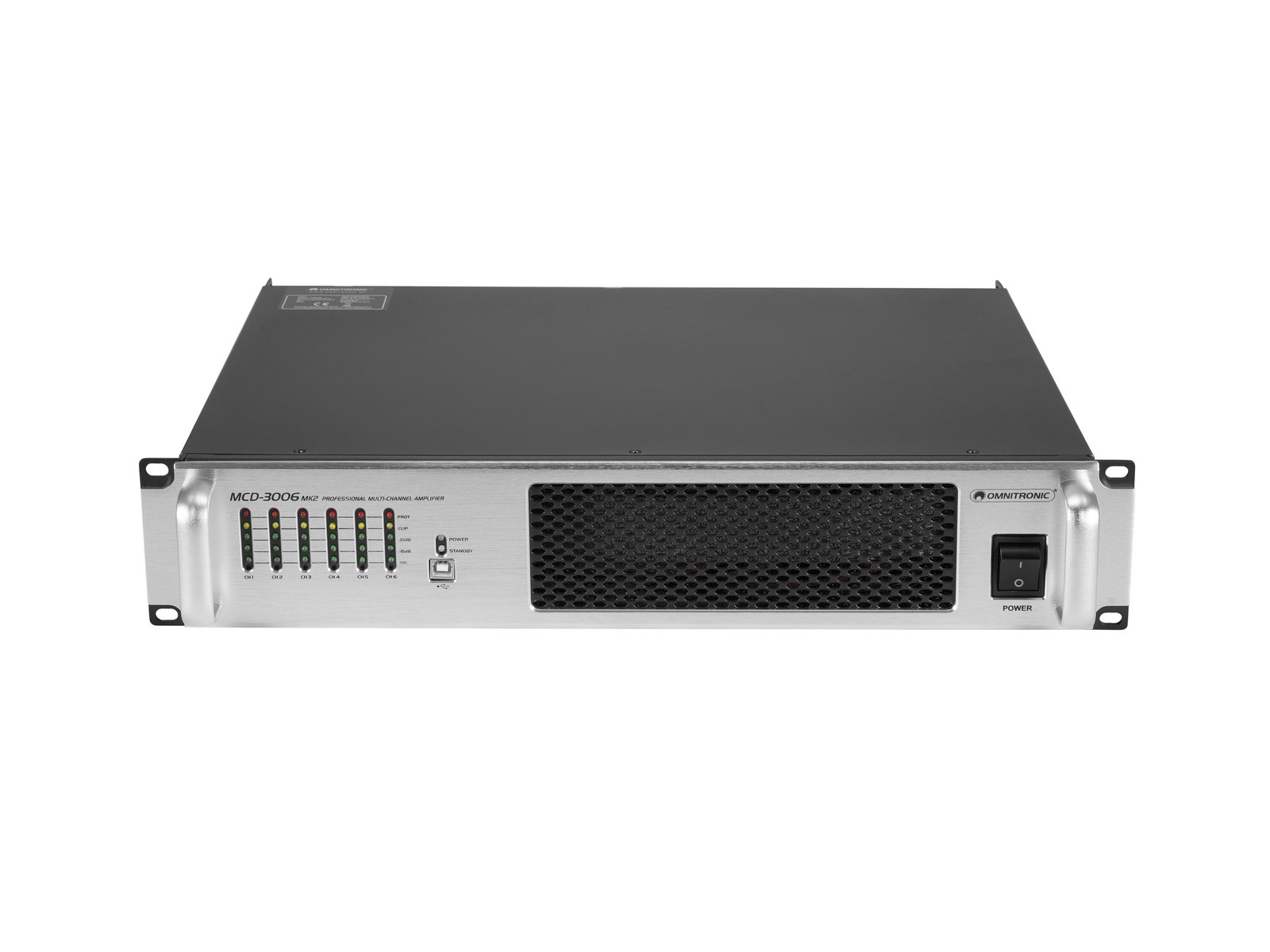

Omnitronic MCD-3006 Mk2

PA Amplifier with 6 Channels with SMPS

6-channel PA amplifier with SMPS, delivering 6 x 500 W at 4 ohms and 6 x 250 W at 8 ohms.
integrated limiter for multi-zone applications and balanced XLR inputs.
robust steel chassis with an aluminium front panel and efficient airflow design.
includes a power cable, terminal screws, feet, and user manual.
compact 2U rack-mountable design with a weight of 9.05 kg.

730⁷⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

3677 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Omnitronic MCD-3006 Mk2 Add to cart: 730⁷⁷ €

PA amplifier with 6 channels with SMPS, 4 ohms: 6 x 500 W, 8 ohms: 6 x 250 W

Package contents

1 x amplifier, 1 x power cable, 6 x terminal with screw, 4 x foot, 4 x screw, 1 x user manual

Power supply:	230 V AC, 50 Hz
Power consumption:	525 W 1/8 power
Output power:	6 x 500 W RMS (4 ohms) 6 x 250 W RMS (8 ohms)
Power connection:	Network input via P-Con (blue), power cable mounting version with safety plug (provided)
Frequency range:	22 - 25000 Hz
S/N ratio:	>120 dB
THD:	<0.003 % at 1 kHz
Cooling:	2 x cooling fan, airflow from front to back
Impedance:	Input: 22 kOhm, bal. Input: 12 kOhm, unbal.
Gain:	26 dB
Circuits:	Class D
Slew rate:	>10 V/μs
Damping factor:	>500
Control elements:	Power switch, level control per channel
Controls:	Softstart; short circuit; overheating; overload; DC voltage; transient on/off
Status LED:	Power, level meter, clip, protect, standby
Connections:	Input: line via 6 x 3-pin XLR Input: line via 6 x screw terminals Link: speaker via 6 x screw terminals
Max. level:	Input: +2 V
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48.3 cm Depth: 38.8 cm Height: 8.9 cm
Weight:	9.05 kg
