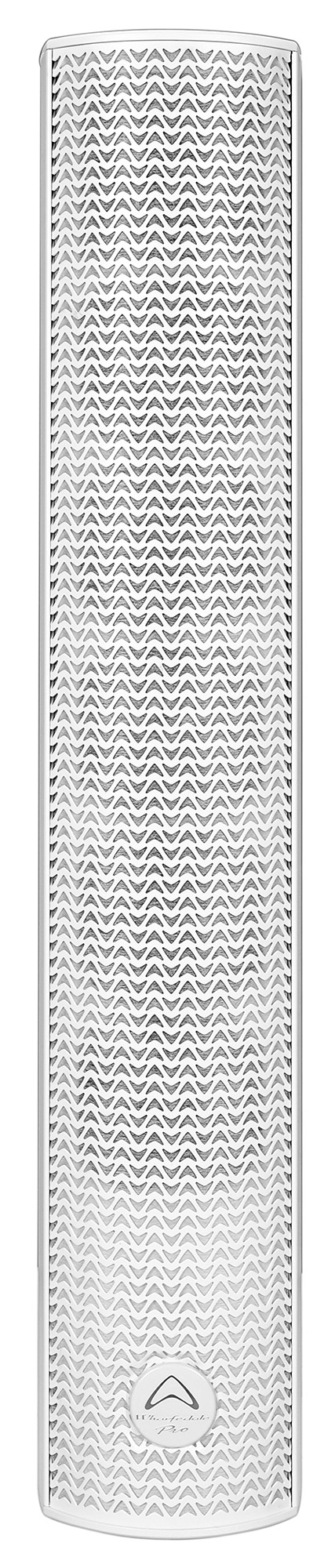

Wharfedale Pro SIGMA-XV5 White

Sound Column

passive 2-way speaker system with 5 x 3" LF drivers and 1 x 1" HF driver.
frequency response of 160 Hz – 18 KHz (+/-3 dB) and 150 Hz – 20 KHz (-10 dB).
maximum sound pressure level of 123 dB and sensitivity of 95 dB.
power handling of 180 W RMS, 360 W program, and 720 W peak.
compact dimensions of 126 x 720 x 145 mm and lightweight at 6.8 kg.

Variants:

351²⁹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

1769 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Wharfedale Pro SIGMA-XV5 White Add to cart: 351²⁹ €

Wharfedale Pro Sigma-XV5, passive speaker for installations, vertical array system with 5 x 3" drivers and 1 x 1" high-frequency driver with Evo-Fold waveguide. This mini EVO-Fold design provides consistent dispersion coverage both horizontally and vertically, with sound radiating from a single, singular, and coherent source.

2-way passive system
frequency response:
- +/-3 dB: 160 Hz – 18 KHz
- -10 dB: 150 Hz – 20 KHz
sensitivity: 95 dB
maximum sound pressure level: 123 dB
system impedance: 8 Ohms
LF drivers:
- 5 x 75 mm / 3"
- 33 mm / 1.3" voice coils
HF driver:
- 1 x 1" driver
- 25.4 mm / 1" voice coil
- exit diameter: 25.4 mm / 1"
- PEI diaphragm
- Mini EVO-Fold waveguide
coverage: 120° x 30°
power handling:
- 180 W RMS
- 360 W program
- 720 W peak
crossover frequency: 2.5 kHz
connections:
- 1 x speakON
- 1 x terminal block
U mounting bracket included
aluminium cabinet
dimensions: 126 x 720 x 145 mm
weight: 6.8 kg
colour: white
