Cameo SB 6T RDM

SB 6T RDM - Designed for professional applications and supporting bidirectional communication, the Cameo SB 6T RDM is a DMX / RDM splitter with 6 outputs, two inputs, and two parallel thru outputs. It sends the incoming DMX / RDM signal to six separate output ports that are electronically and optically isolated.

Each output channel has its own driver to boost the DMX / RDM signal to the original level. All inputs and outputs are equipped with Neutrik connectors with 3-pin and 5-pin options for maximum flexibility and reliability.

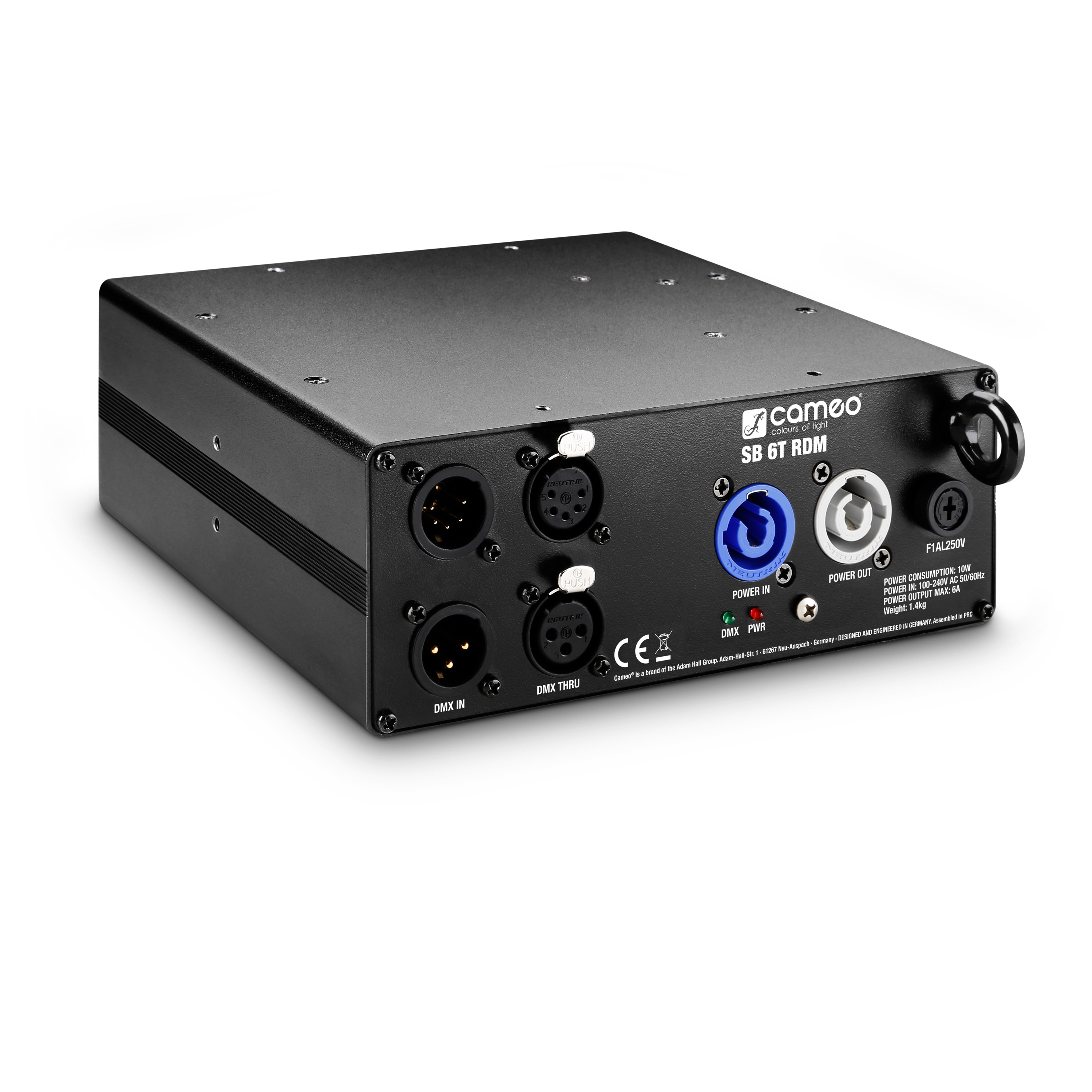

The LEDs on the front and rear panels indicate power and DMX status, while three M10 female threaded inserts facilitate mounting with screws. The Cameo SB 6T RDM comes with a powerCON type power cable.

• DMX Inputs: 2 (in parallel) with 3-pin and 5-pin XLR connectors
• DMX Thru Outputs: 2 (in parallel) with 3-pin and 5-pin XLR connectors
• DMX Outputs: 6 with 3-pin and 5-pin XLR connectors
• Indicators: 2x power LED, 2x signal LED
• Main Connectors: Powercon
• Power Supply: 100 V AC - 240 V AC, 50 - 60 Hz
• Power Consumption: 10 W
• Fuse: F1AL / 250V
• Dimensions: 185 x 77 x 170 mm
• Weight: 1.3 kg
