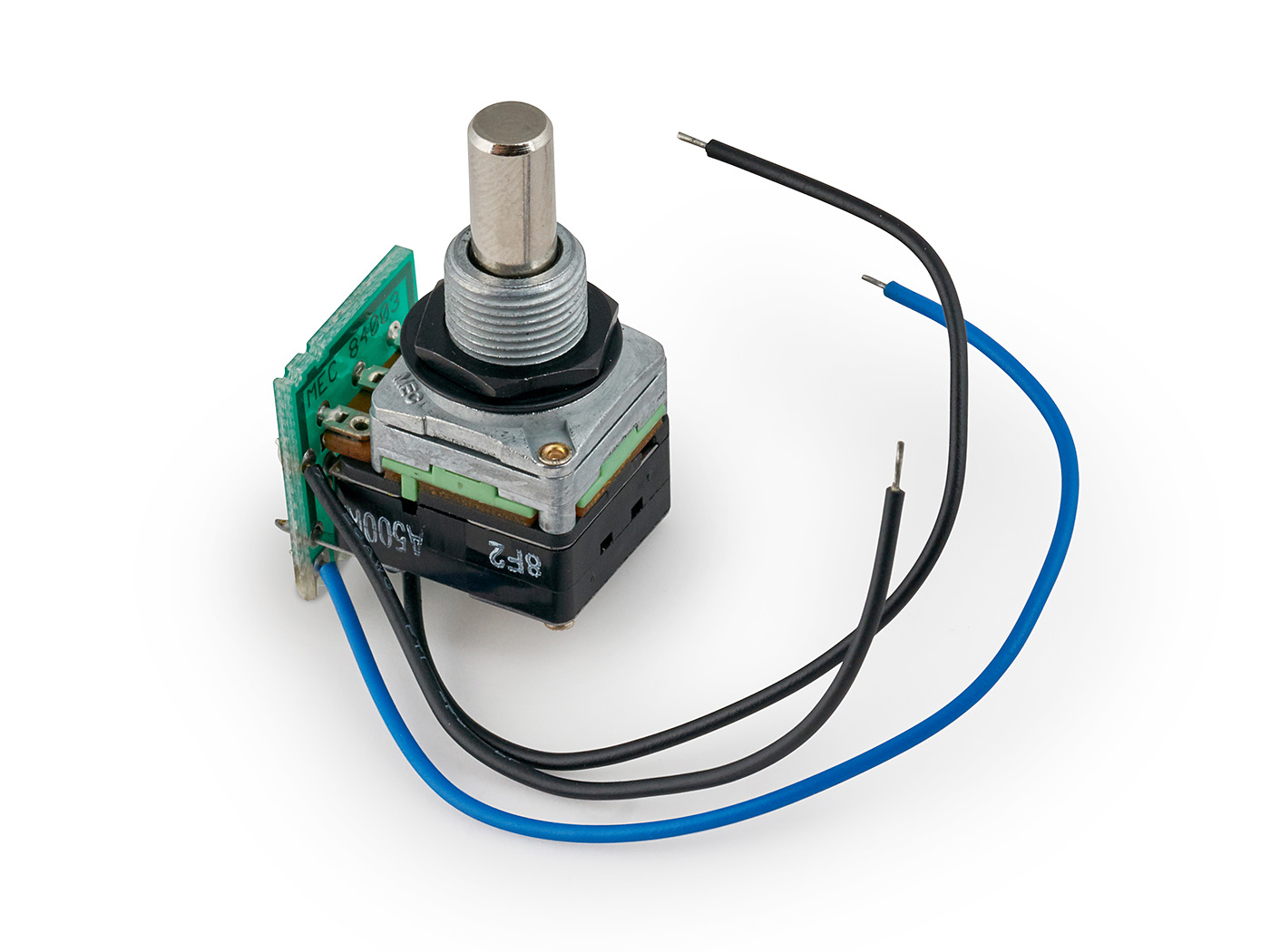

MEC Pickups Tone Pot Module, A500K, w/ PCB, Lefthand

Potentiometer

mono potentiometer with solid shaft for left-handed instruments.
A500K logarithmic resistance (500 kOhm) for tone control.
equipped with MEC M 84003 PCB module.
includes nut and washer; mounting diameter of 10 mm.
dimensions: 24 x 18 x 22 mm including terminals.

Variants:

40⁶⁰ €

On order – delivery date confirmed after ordering Request details

Add to cart

also deliverable via

205 points of loyalty

Shipping 18.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Tone Pot Module, A500K, w/ PCB, Lefthand Add to cart: 40⁶⁰ €

- Mono potentiometer
- Solid shaft
- A500K (resistance 500 kOhm, (A) logarithmic)
- For left-handed instruments
- On/On DPDT
- Equipped with MEC M 84003 PCB module
- Suitable for tone control for passive pickups
- Thread M10 x 0.75 mm
- Mounting diameter 10 mm
- Thread length 9 mm
- Solid shaft
- Shaft length 11 mm
- Shaft diameter 6 mm
- Includes nut and washer
- Dimensions incl. terminals (L x W x H) 24 x 18 x 22 mm

- Note: The return and refund policy does not apply to electronic components if their wires have been cut or soldered, if they show signs of use, if they have already been installed, or if other damages affecting the condition of the goods are present.
