Allen&Heath QU-5

Digital Mixer

38 input channels (32 mono, 2 stereo and USB) for versatile mixing.
7" capacitive touchscreen for intuitive control.
16 combo microphone/line inputs and 2 stereo line inputs.
USB recording/playback capabilities and SD card support.
compact design with optional 19" rack mounting.

Variants:

1 938⁴⁴ €

On order – delivery date confirmed after ordering Request details

Add to cart

9923 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Allen&Heath QU-5 Add to cart: 1 938⁴⁴ €

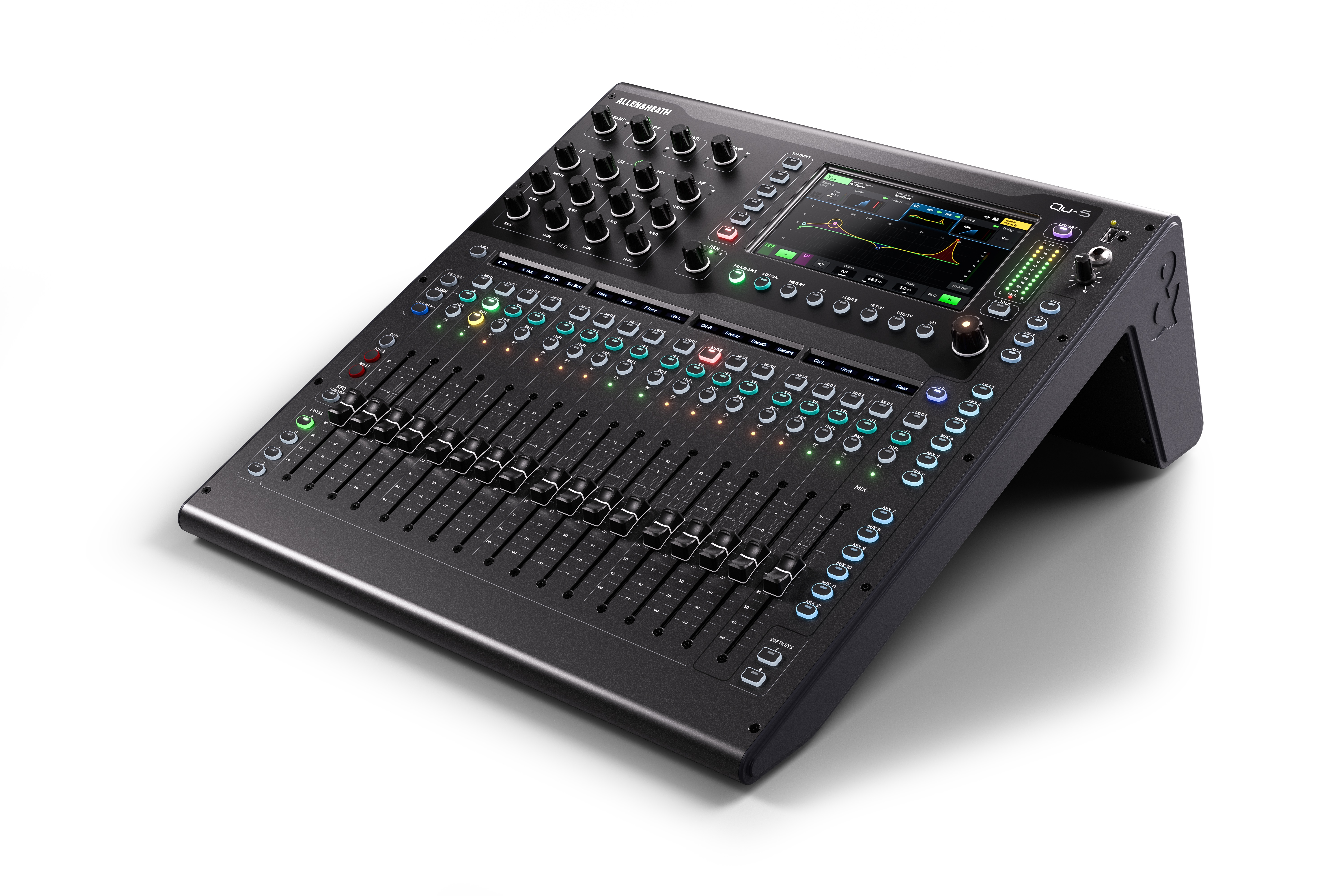

Allen & Heath QU-5 - digital mixer with 38 input channels, designed for live sound applications and audio production. It includes a 7" touchscreen, motorised faders, effects processors, and options for recording and playback via USB and SD card.

Digital mixer
Input channels for mixing: 38 (32 mono, 2 stereo and USB)
Microphone/line inputs: 16 combo
Stereo line inputs: 2
Screen: capacitive touchscreen, 7"
Motorised faders: 17
Outputs: 12 × XLR, 2 × TRS, 1 × AES3
Mix buses: 12 (6 mono aux/group and 6 stereo aux/group)
Matrix buses: 4
Effects processors: 6
Audio processing: XCVI Core, 96 kHz
Audio network port: SLink
USB-A: stereo recording and playback
USB-C interface: 32 × 32 channels
Recording/playback on SD card: 16 × 16 channels at 96 kHz or 32 × 32 channels at 48 kHz
Remote control: Qu MixPad and Qu-4You apps
Other controls: 4 channel strip levels, 8 configurable buttons
19" rack mountable: optional, kit not included
Dimensions (W × D × H): 440 × 476 × 211 mm
Weight: 10 kg

Product code: QU-5

Unit of sale: piece

Specifications:

Channels:	38 de canale de intrare pentru mixaj (32 mono, 2 stereo și USB)
AD/DA conversion:	24-bit / 96 kHz
Frequency response:	20 - 20 000 Hz
Display:	Ecran tactil capacitiv de 7"
DSP processing:	da, 96 kHz XCVI Core
Phantom power:	+48V
