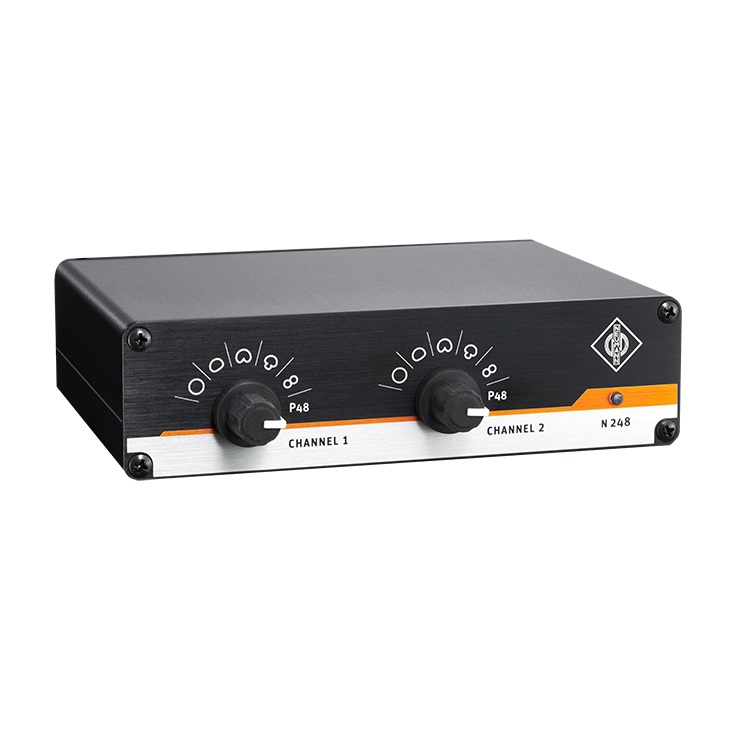

Neumann N 248

Power Supply

controls a stereo microphone or two mono condenser microphones with 48 V phantom power.
remote control with rotary knobs for adjusting the TLM 170 R's directional patterns.
supports cable lengths up to 300 m for standard operation.
dC voltage input range: 5-15 V, with a power consumption of 3 VA.
compact dimensions of 143 x 38 x 103 mm and a weight of 415 g.

757⁵⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

3812 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Neumann N 248 Add to cart: 757⁵⁵ €

Neumann N 248 controls a stereo microphone or two mono condenser microphones with phantom power of 48 V (P48). All connectors are XLR 3 type. The audio signal outputs are DC-free. The 5 directional patterns of the TLM 170 R can be controlled remotely with the rotary knobs.

The remote control operates by varying the nominal phantom voltage of 48 V over a range of ± 3 V (patented). As in standard operation, cable lengths of up to 300 m are permissible. Set to P48, all conventional microphones can also be used.

A mixed operation is even possible, with one channel controlling a TLM 170 R while the second output controls a conventional microphone.

DC voltage input: 5-15 V
Power consumption: 3 VA
DC voltage output: 48 V +/- 3 V per channel
Maximum output current: 5 mA each channel
Dimensions: 143 x 38 x 103 mm
Weight: 415 g
