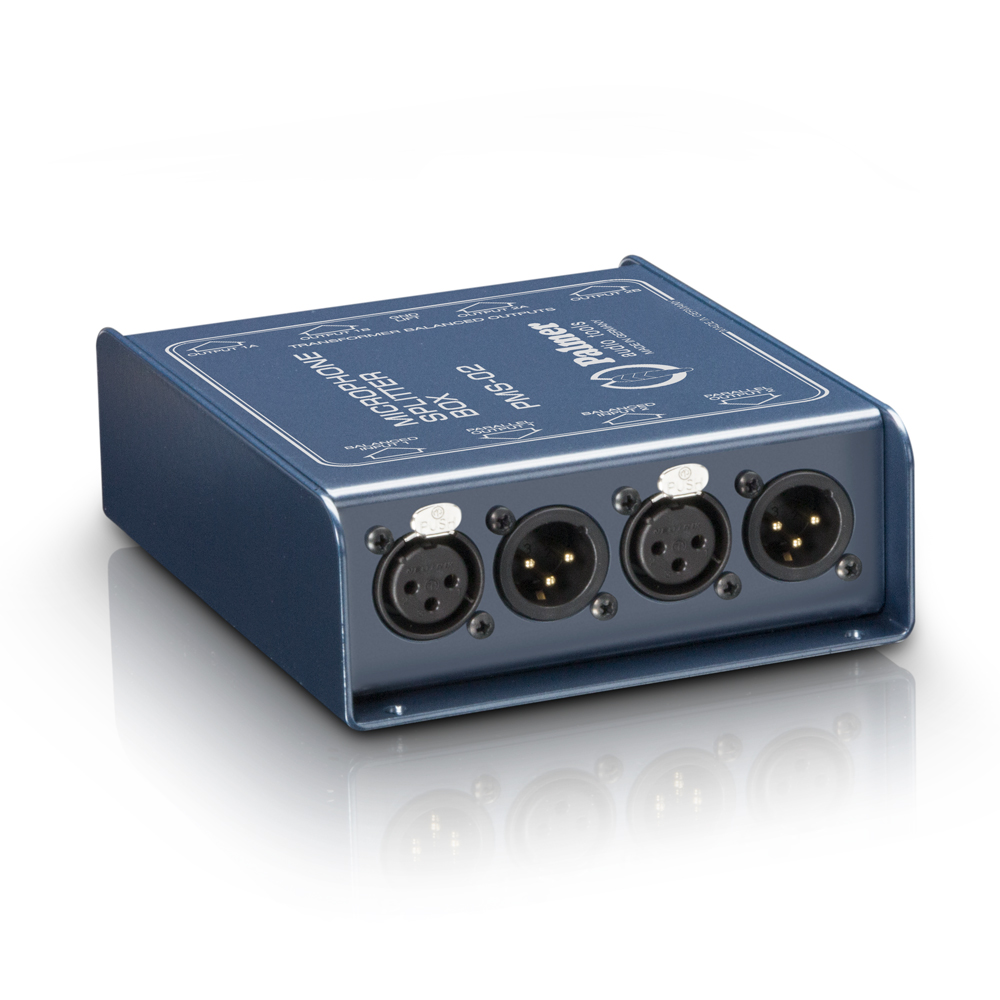

Palmer PMS-02

Microphone signal splitter

1 in 3 microphone signal splitter with 2 channels.
splits microphone signal to 3 different inputs.
converts unbalanced signal to balanced signal and vice versa.
weight: 0.8 kg; Dimensions: 70 x 85 x 58 mm.
features ground lift switch and 200 Ohm impedance.

195⁵⁹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

982 points of loyalty

Shipping 18.00 €

Warranty 24 months

Returns 14 days

request details

Palmer PMS-02 Add to cart: 195⁵⁹ €

Palmer Pro PMS-02 - microphone signal splitter (1 in 3) with 2 channels. Ideal for splitting a microphone signal to 3 different inputs (PA mixing console, monitoring console, recording console), or for converting unbalanced signal to balanced signal, and vice versa. Weight 0.8 kg, dimensions 70 x 85 x 58 mm.

Each channel provides:

Input: parallel female XLR and male XLR
Outputs: isolated male XLR for transformer output
Transformation ratio 1:1
Nominal level 0 dB
Maximum level +20 dB,
Nominal input/output impedance: 200 Ohms
Ground lift switch

Product code: PMS02

Unit of sale: piece
