Audio-Technica AT-VM510xCB

Pickup Cartridge

ideal cartridge for vinyl enthusiasts seeking detailed and realistic playback.
0.6 mil conical stylus for precise tracking and high durability.
easy installation with threaded inserts and V-guided stylus protector.
output voltage of 5.0 mV and channel separation of 24 dB at 1 kHz.
recommended tracking force of 2.0 g and frequency response of 20 – 20,000 Hz.

117¹⁰ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

589 points of loyalty

Shipping 18.00 €

Warranty 24 months

Returns 14 days

request details

Audio-Technica AT-VM510xCB Add to cart: 117¹⁰ €

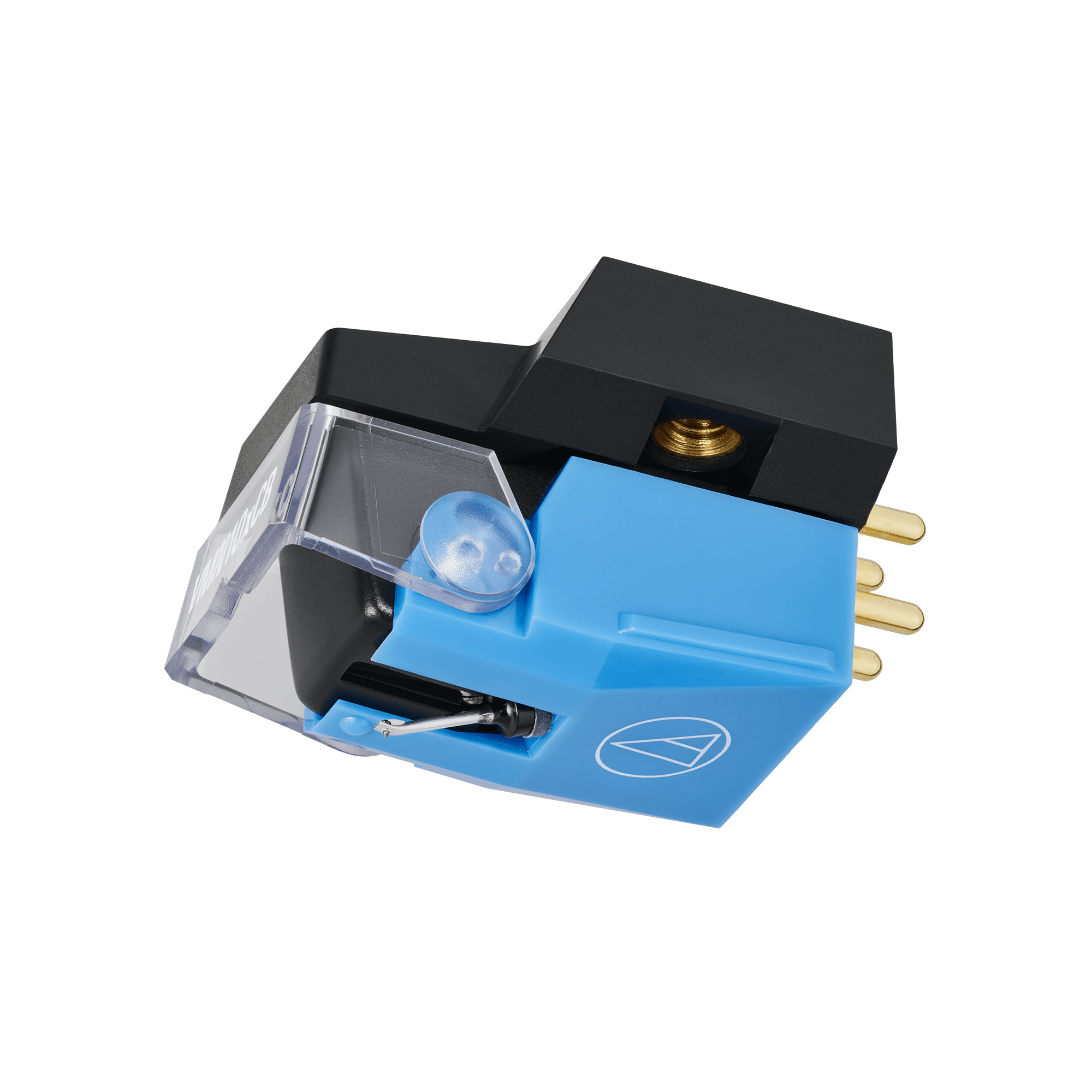

Audio-Technica AT-VM510xCB - A cartridge ideal for vinyl enthusiasts seeking detailed, balanced, and realistic playback. The design with two stacked coils for each channel enhances stereo separation and reduces crosstalk for a clear sound image.

The 0.6 mil conical stylus precisely follows the groove of the vinyl, ensuring durability and consistent performance. Additionally, installation is facilitated by threaded inserts, and the stylus protector features a V-guidance for easy positioning.

Main Features:

Cartridge for DJ turntable
Type: Dual Moving Magnet (MM)
0.6 mil conical stylus – offers precise tracking and high durability
Tubular aluminium cantilever
Output voltage: 5.0 mV
Channel separation: 24 dB at 1 kHz
Frequency response: 20 – 20,000 Hz
Recommended tracking force: 2.0 g
Easy mounting – threaded inserts + stylus protector with V-guidance
Replacement stylus: AT-VMN10xCB (sold separately)

Technical Specifications:

Coil impedance: 3.2 kΩ
Coil inductance: 480 mH
DC resistance: 750 Ω
Recommended load impedance: 47 kΩ
Recommended load capacitance: 150 – 250 pF
Tracking angle: 20°
Dimensions: 28 × 18.3 × 17.6 mm

Product code: QN-AT-VM510xCB

Unit of sale: piece
