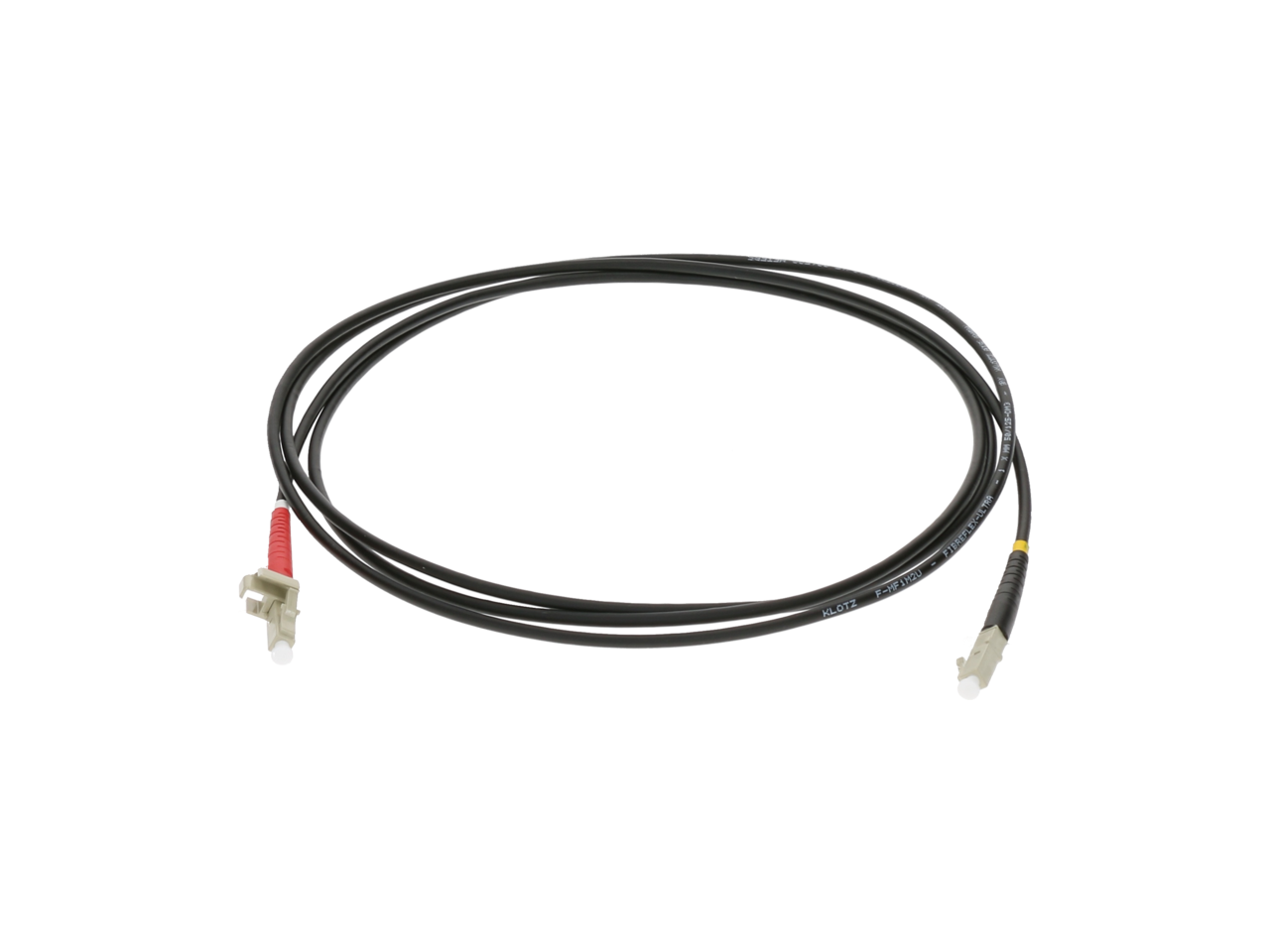

Klotz LC simplex patch cable - highly flexiblefiber optic - multimode - 2 m

• the ideal choice for patching needs in fiber optic environments
• 500 μm primary coating, extra thick acrylate layer protecting and separating the optical fibres
• 900 µm tight buffered fiber, larger fiber crossection, highly flexible and rugged
• FiberFlex ULTRA cable - 1 fiber 50/125 µm, multimode OM3
• PUR jacket (abrasion- and UV-resistant)
• loss-proof dust protector caps

Our new Simplex patch cable FO-PMCC is the ideal choice for patching needs in FO environments. Developed for maximum flexibility with 500 μm primary coating and 900 µm tight buffered fiber layers, the cable protects the conductor from external influences while also keeping bending radius to a minimum. Patch panels are often connected using duplex cables although only one conductor is needed. The redundant conductor only takes up space and impairs clarity. Now help is at hand! Our Simplex FO-PMCC with single conductor (50/125 µm, fibre rating OM 3) restores order to patch panels. The ultra-rugged PUR outer jacket has a diameter of only 2.9 mm and can handle the rigours of outdoor operation; winding is child’s play even at the most extreme temperatures. No need to waste time hunting down dust protector caps, either; the Simplex FO-PMCC is fitted with loss-proof dust protector caps. Available in a range of lengths from 0.3 to 10 m, it can master any situation – from ring installations in large-scale MADI applications to single path connections such as recording backups. SC connectors are used as standard, with LC connectors also available as alternatives.

cable

fiber: multimode OM3

connectors

connector 1: LC

connector 2: LC

Caracteristici

length	2 m
fiber category	Multimode OM3
cable color	black
