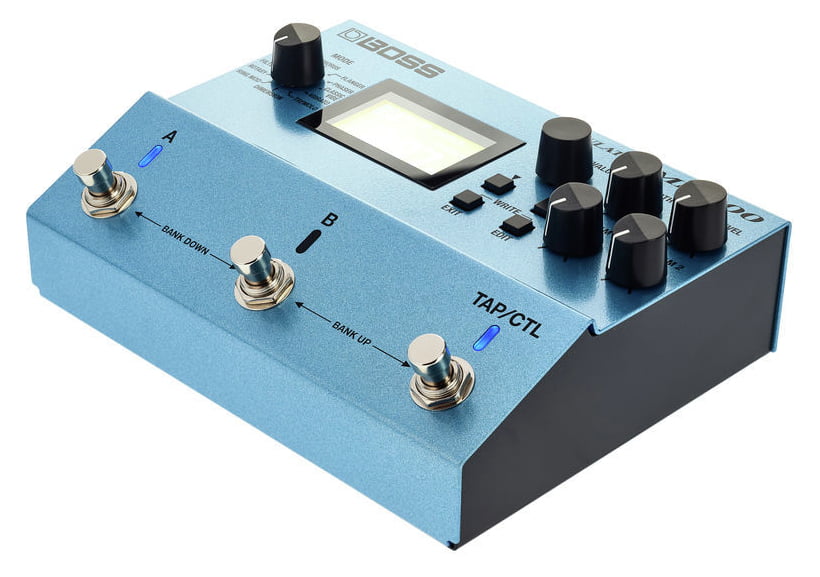

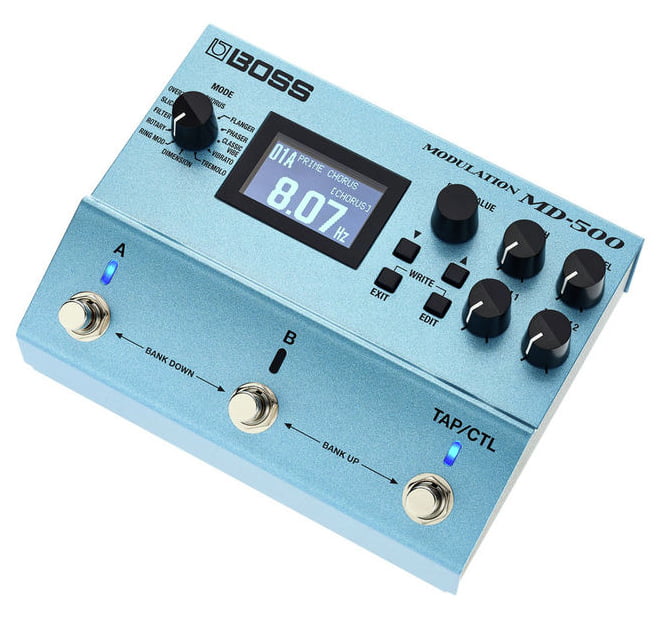

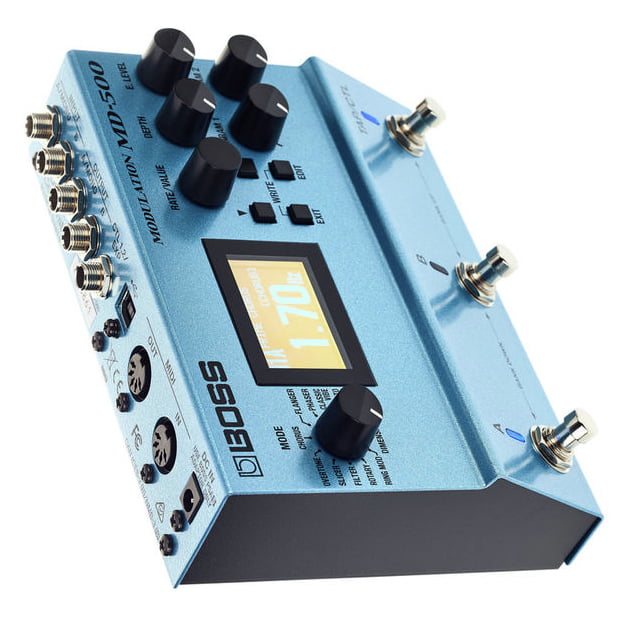

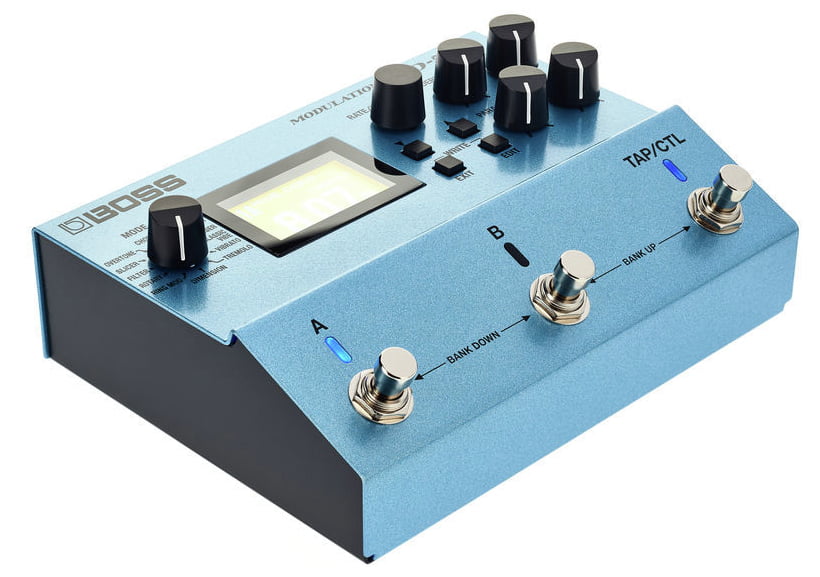

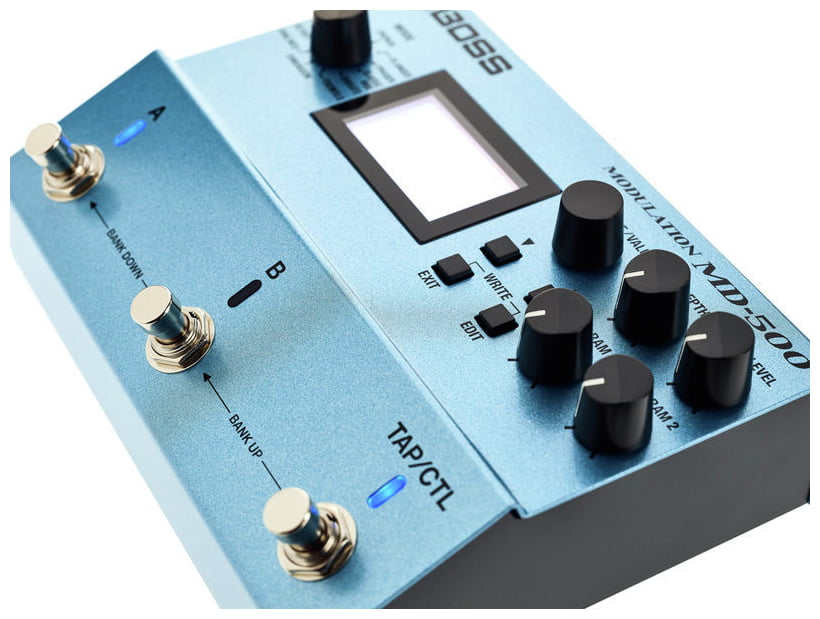

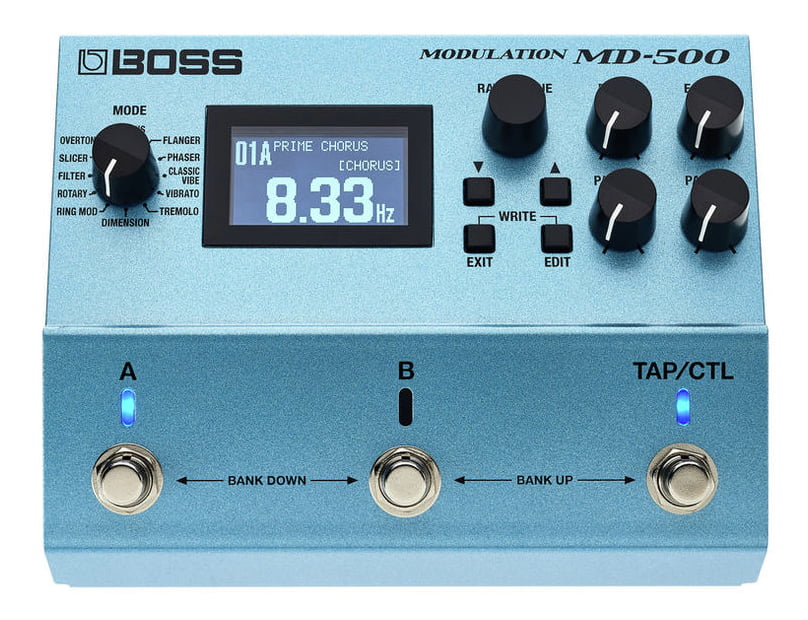

Boss MD-500 Modulation - a multi-effect modulation unit for electric guitar, offering almost any type of modulation effect a musician could desire. It includes 28 different algorithms with intensive programming parameters, providing an almost limitless sound palette for you to create. It features high-class 32-bit AD/DA conversion, 32-bit floating point processing, and a sampling rate of 96 kHz, delivering studio-quality sound.
The effects in the MD-500 include numerous new top-tier models, as well as authentic sonic recreations of vintage classics such as the CE-1 Chorus Ensemble, Roland Dimension D, ‘70s script phaser, ‘80s tri-chorus, and many more. With the ability to use two patches simultaneously with the A/B Simul mode, the MD-500 can likely cover all your modulation needs with a single convenient pedal, and by introducing drive pedals into the flexible external loop of the MD-500, it’s easy to place modulation effects before, after, or around the loop as needed to achieve the best sound.
Technical specifications:
Sampling frequency: 96 kHz
AD/DA conversion: 32 bits
Processing: 32-bit floating point
Modes:
CHORUS
FLANGER
PHASER
CLASSIC VIBE
VIBRATO
TREMOLO
DIMENSION
RING MOD
ROTARY
FILTER
SLICER
OVERTONE
Memory: 198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])
Nominal input level A/MONO, B: -10 dBu
Maximum input level A/MONO, B: +8 dBu
Input impedance A/MONO, B: 1 M ohm
Nominal output level A/MONO, B: -10 dBu
Maximum output level A/MONO, B: +8 dBu
Output impedance A/MONO, B: 2 k ohms
Recommended load impedance output A/MONO, B: 20 k ohms or greater
Bypass: Buffered bypass or True bypass (with relays)

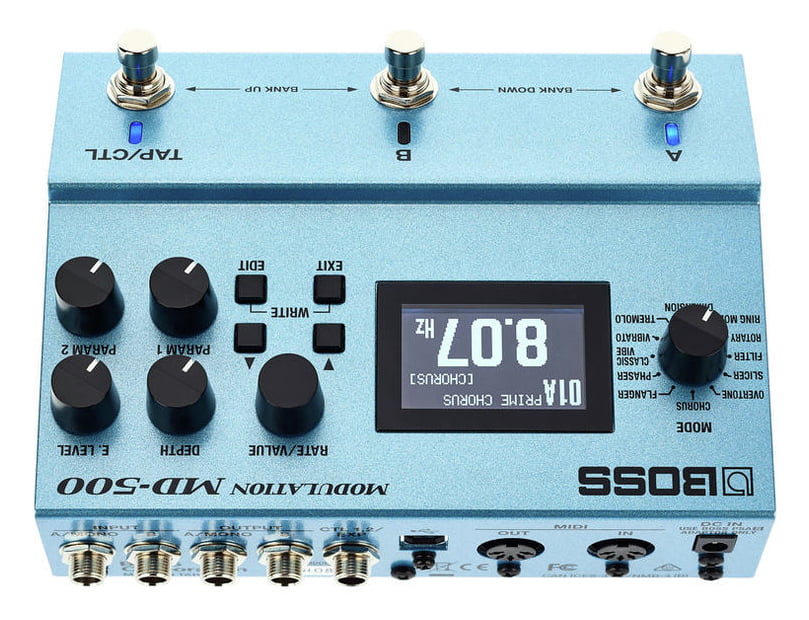

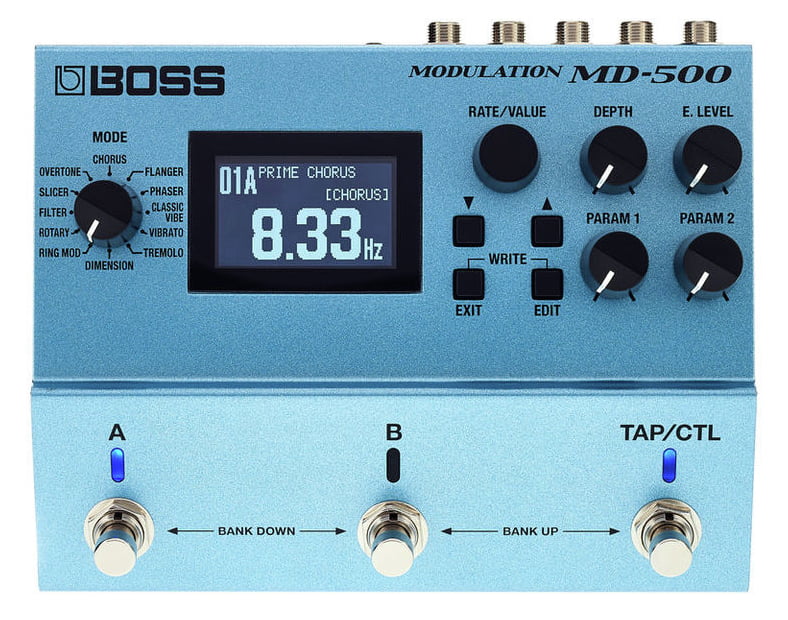

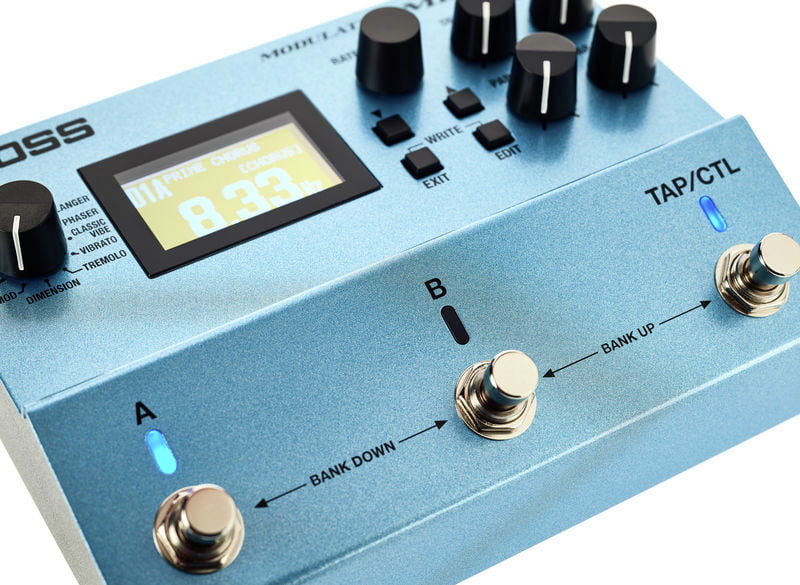

Controls:
Switch A
Switch B
Switch TAP/CTL
Button DOWN
Button UP
Button EXIT
Button EDIT
Potentiometer MODE
Potentiometer RATE/VALUE
Potentiometer DEPTH
Potentiometer E.LEVEL
Potentiometer PARAM 1
Potentiometer PARAM 2
Display: Graphic LCD (128 x 64 dots, backlit LCD)

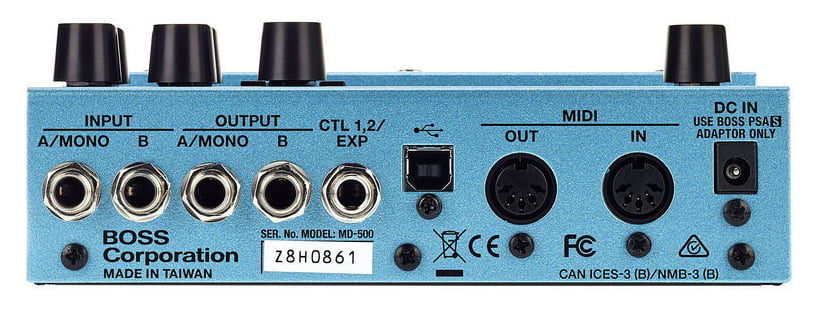

Connectors:
INPUT (A/MONO, B): 1/4-inch jack
OUTPUT (A/MONO, B): 1/4-inch jack
CTL 1,2/EXP: 1/4-inch TSR jack
USB COMPUTER Port: USB type B
MIDI (IN, OUT)
DC IN
Power supply: 4 alkaline batteries (AA, LR6), AC adapter (sold separately)
Current consumption: 225 mA
Battery life: approximately 4.5 hours
Included accessories: user manual, safety instructions, 6x alkaline batteries
Optional accessories (sold separately):
AC adapter: PSA-S series
Footswitch: FS-5U, FS-5L
Dual Footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
