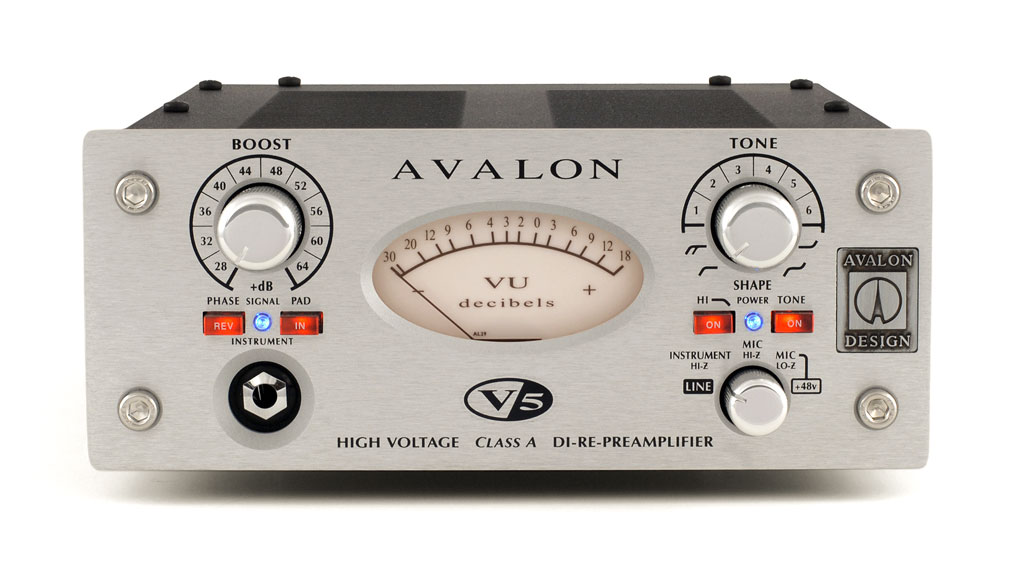

Avalon Design V5 Mono DI-RE-Mic Preamplifier - Silver

Avalon V5 - Pure Class A preamplifier for studio microphones that can serve as a DI for musical instruments or as a Re-Amping input. It features a polarity selector, separate XLR microphone inputs, XLR line, TRS line jack, and 1/4" Hi-Z jack inputs for optimal input impedance. The selectable input pad offers adjustable attenuation, depending on the type of input required. Instead of just providing a low cut filter, Avalon has included a Tone Bank that contains 10 EQ curves.

Additionally, to eliminate noise produced by high frequencies from instrument pickups, a High-Cut filter from -3dB to 3.7kHz is provided, which can be activated as needed. The output section offers options such as XLR and TRS jack outputs, as well as RE-AMP/thru outputs. Alongside all this, there is a headphone output with a 1/4" jack connector, allowing you to quietly record through the DI input, guitar or bass tracks, for subsequent re-amping.

Technical Specifications:

• Inputs:
  • Balanced XLR microphone input x1
  • Balanced XLR line input x1
  • Balanced 1/4" TRS line input x1
  • Unbalanced 1/4" jack instrument input x1
• Input Impedance:
  • Microphone: 6,600 ohms or 1,800 ohms, selectable
  • Line: 9,000 ohms
  • Hi-Z: 10,000,000 ohms
• Gain Range: Gain selected in 2 dB steps, +/-0.2 dB
  • Hi-Z Microphone: +20 to +60 dB
  • Low-Z Microphone: +26dB to +66 dB
  • Line: -2 to +38 dB
  • Instrument: +2 to +42 dB
• Input Pad Switch:
  • Microphone: -15 dB
  • Line: -13 dB
  • Instrument: -10 dB
• Phantom Power: +48V regulated, 10 mA

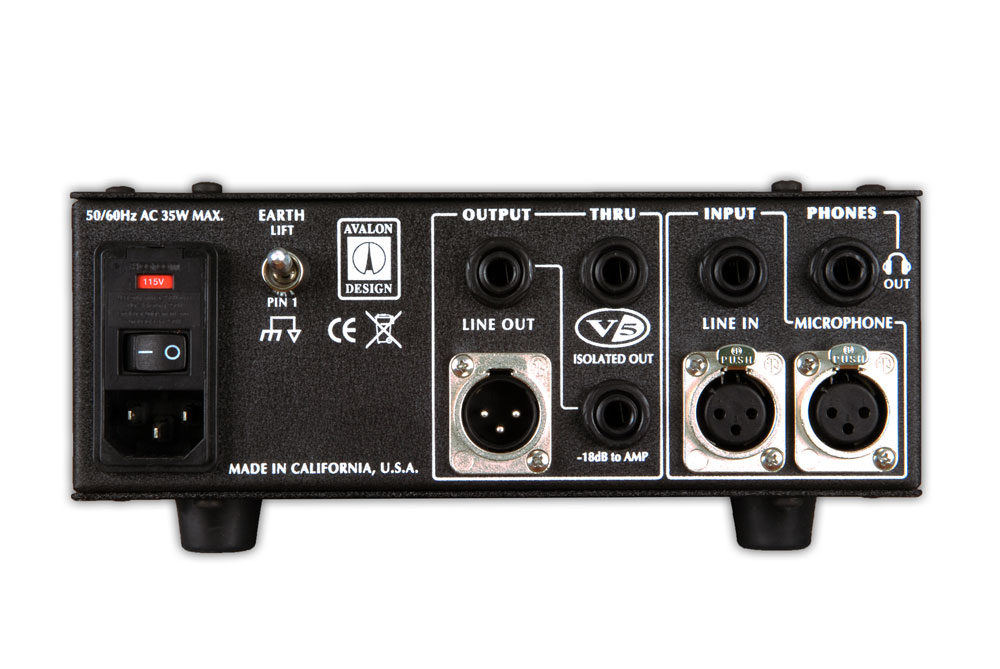

• Outputs:
  • Balanced XLR output x1
  • Balanced 1/4" TRS output x1
  • Buffered Instrument THRU output with 1/4" jack x1
  • Unbalanced 1/4" jack output for RE-AMP x1
• Output Impedance: 600 ohms
• Maximum Output Level:
  • Line: +30 dBu
  • RE-AMP: +12dBu
• Polarity: with selectable reverse, all outputs with relay
• VU Meter: professional, wide range -30 dB to +18 dB
• LED Indicator:
  • blue 0 dB
  • red +20 dB
• Frequency Response: 2 to 20,000 Hz, +/-0.5 dB
• High Cut Filter: -3 dB at 3.7 kHz, minimum phase design
• Noise: 22 - 22,000 Hz, unweighted: -98 dBu typical, minimum gain (-128 dB EIN)
• THD:
  • 0.05% at +10 dBu
  • 0.5% at +30 dBu
• Headphone Output: 1/4" TRS jack x1, 0.5 W, 600 ohm load
• Power Supply: 230V - 50/60Hz
• Fuse: selectable, 50/60Hz, 0.5A, 35w max
• Dimensions (W x H x D): 215 x 889 x 304 mm
• Weight: 4.5 kg
