This product is no longer manufactured or available in our offer.

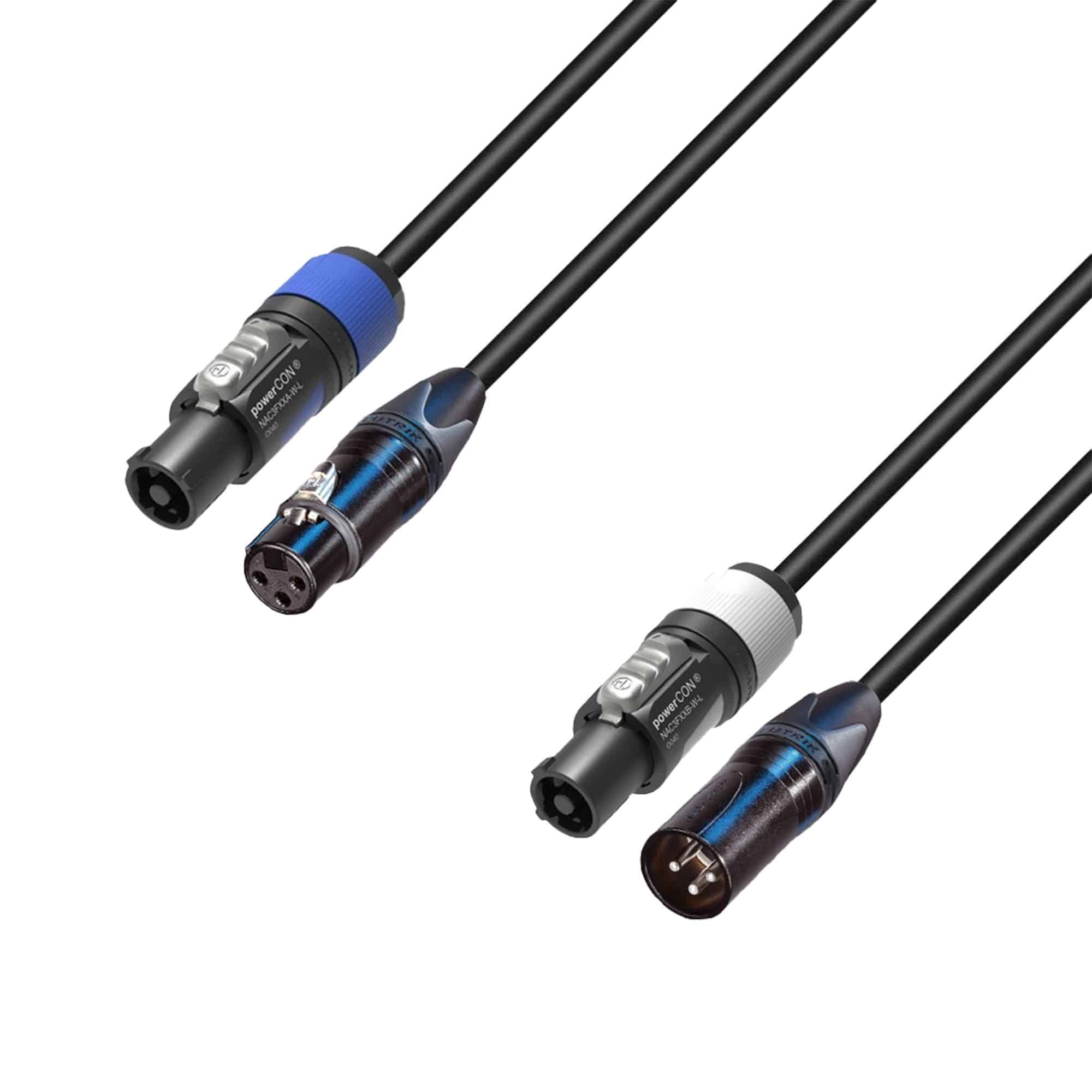

Adam Hall 5 STAR H PCON D 0500
Hybrid Cable
this Hybrid Cable for simultaneous tranmission of power and DMX signals from our 5 STAR SERIES is manufactured in the EU
for this cable we only use original Neutrik® connectors. For a long-life plugging-cycle and superior transmission quality we use XLR with silver-plated contacts for the DMX line, and the power line will be provided by the Neutrik powerCON® connectors
the powerCON® plugs are pluggable under load, and are therefore compliant to the highest standards for the event industry
the line with 0.22 mm² DMX & 2.5 mm² power inner-conductor cross-section is engineered by our Adam Hall Cables® crew in Germany
it comes with a PVC jacket made of a special soft-PVC compound for the highest flexibility values
Elevate your lighting setup with our cutting-edge Hybrid DMX & Power cable from our 5 STAR SERIES. Designed for professional lighting engineers, this versatile cable allows for simultaneous transmission of DMX signals and power, streamlining your rig and ensures a seamless performance.
Efficient and clutter free setups require this smart cable, fitted with original Neutrik® premium connectors, renowned for their durability and superior signal transmission values, minimizing signal loss and power drop.
Whether you are setting up for a concert, theater production, or any event requiring sophisticated lighting control, our Hybrid DMX and Power transmission cable is the ultimate solution for efficiency and reliability. Trust in its European craftmanship and quality to keep your show running smoothly.
Specifications:
Cable length: 5 m
Split end length: 40 cm
Cable jacket: PVC (Polyvinyl chloride)
Cable diameter: 10 mm
Cable colour: Black
Connector type plug 1: XLR 3-pole female
Model name plug 1: Neutrik NC3FXX-BAG
Contact material plug 1: Silver plated
Connector type plug 2: XLR 3-pole male
Model name plug 2: Neutrik NC3MXX-BAG
Contact material plug 2: Silver plated
Conductor material: OFC (Oxygen-free copper)
Conductor cross-section: 3 x 2,5 mm²
AWG: 13
Capacity/m: 55 pF
Conductor impedance/km: 85 Ohm
Wave impedance: 110 Ω
Shielding: Spiral copper shielding
Plug type connector 1: Mains plug indoor power in female & powerCON®
Model name connector 1: Neutrik NAC3FXXA-W-L
Plug type connector 2: Mains plug indoor power out female & powerCON®
