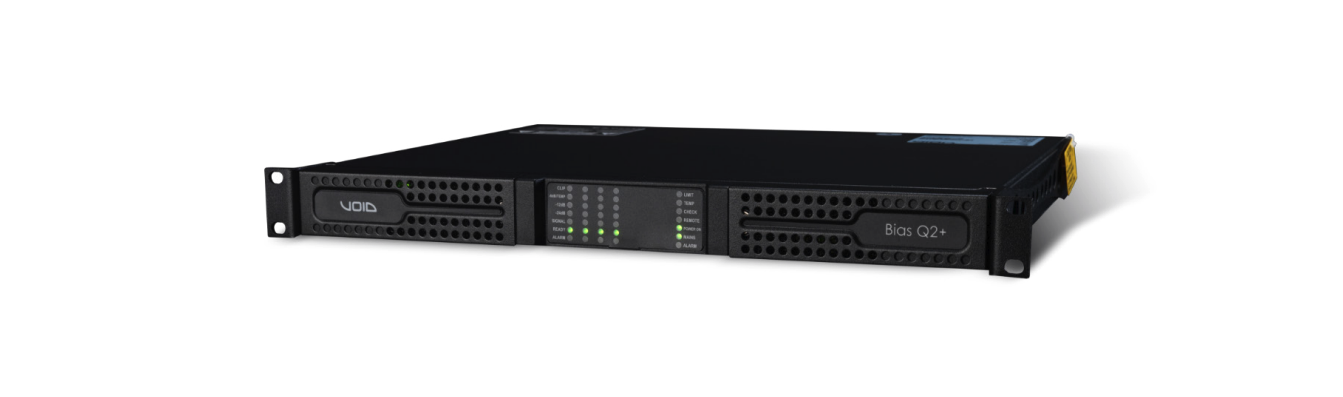

VOID Acoustics Bias Q2+ - Flexible power amplifier of 4800 W/4 channels with DSP and AES67. Power 4 x 1200 W at 8Ω. It offers a complete suite of DSP tools through the ArmoníaPlus control software. Delay, E.Q, Input trim, Gain, and Polarity, in addition to our product presets with FIR filters and limiters.
The patented SRM (Smart Rails Management) technology maximises system efficiency and drastically reduces power consumption under any load and usage conditions. The polarised amplifiers have extremely low dissipation, reducing the need for external cooling devices.
Bias Q2+ is designed to work with Lo-Z distributed lines (from 2 Ω) and 70V/100V or any combination of the two. Bias Q2+ is rated IP-20.
Applications:
- Medium and large venues
- Bar, club, lounge
- Indoor and outdoor dance events
- Gyms and fitness rooms
- Places of worship
- Live music venues
- Hotels and resorts
- Corporate and AV
- Amusement parks
- Cruise ships
Features:
- Smaller dimensions and reduced weight in just 1 RU
- Impressive sound quality and reliability
- Extremely efficient power supply, microprocessor-controlled, with built-in PFC (Power Factor Correction) for flawless operation worldwide, with any AC mains voltage in the range of 85-275 VAC, tolerant to peaks of up to 400 V.
- Patented SRM (Smart Rails Management) technology
- Responsive under any operating conditions
- Works with lo-Z (from 2 Ω) and with 70V/100V distributed lines, allowing for any mixed load configuration with low and high impedance output
- DSP+ versions extend signal routing capabilities with the integration of the AES67 digital audio network architecture
Specifications:
- Number of channels: 4
- Power: 1500 W @ 2 Ω, 1200 W @ 4 Ω, 1200 W @ 8 Ω
- Bridged output: 3000 W @ 4 Ω, 2400 W @ 8 Ω
- Height: 44.5 mm (1.75")
- Width: 483 mm (19")
- Depth: 358 mm (14.1")
- Weight: 7 kg (15.4 lb)
- IP rating: IP-20
