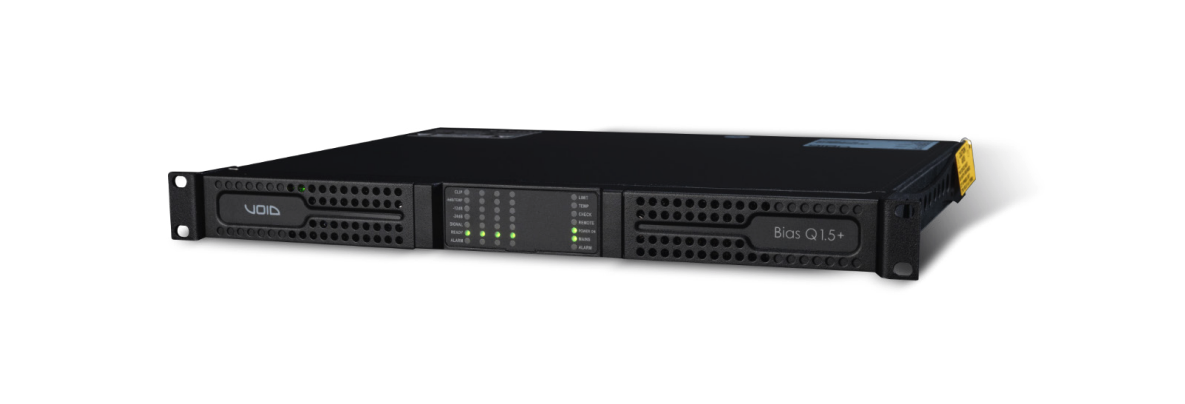

VOID Acoustics Bias Q1.5+ - A flexible 2400 W power amplifier with 4 channels, integrated DSP and AES67. Power 4 x 600 W at 8Ω. It offers a complete suite of DSP tools through the ArmoníaPlus control software. Delay, E.Q, Input trim, Gain and Polarity, along with our product presets with FIR filters and limiters.
The patented SRM (Smart Rails Management) technology maximises system efficiency and drastically reduces power consumption under any load and usage conditions. The bias amplifiers have extremely low dissipation, reducing the need for external cooling devices.
Bias Q1.5+ is designed to operate with Lo-Z distributed lines (from 2 Ω) and 70V/100V or any combination of the two. Bias Q1.5+ is rated IP-20.
Applications:
- Small to large venues
- Bar, club, lounge
- Indoor and outdoor dance events
- Gyms and fitness rooms
- Places of worship
- Live music venues
- Hotels and resorts
- Corporate and AV
- Amusement parks
- Cruise ships
Features:
- Smaller dimensions and reduced weight, occupying only one rack unit
- Impressive sound quality and reliability
- Extremely efficient power supply, microprocessor controlled, with built-in PFC (Power Factor Correction) for flawless operation worldwide, with any AC mains voltage in the range of 85-275 VAC, tolerant to peaks up to 400 V
- Patented SRM (Smart Rails Management) technology
- Responsive under any operating conditions
- Operates with lo-Z (from 2 Ω) and with 70V/100V distributed lines, allowing any mixed output load configuration with low and high impedance
- DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio network architecture
Specifications:
- Number of channels: 4
- Output power: 800 W @ 2 Ω, 600 W @ 4 Ω, 600 W @ 8 Ω
- Bridged output: 1200 W @ 8 Ω, 1600 W @ 4 Ω
- Height: 44.5 mm (1.75")
- Width: 483 mm (19")
- Depth: 358 mm (14.1")
- Weight: 7 kg (15.4 lb)
- IP rating: IP-20
