Stereo receiver with internet radio, DAB+, Bluetooth, 2 x 460 W / 4 ohmsWith the flat stereo receiver DJP-900NET, you receive high-quality internet radio from thousands of free radio stations around the world. The DJP-900NET also supports digital DAB+ radio with all its advantages compared to the old FM radio. This new sustainable standard for radio broadcasting in digital quality is not only loud and independent of the internet but also eliminates the tedious search for frequencies. Simply connect the device to the WiFi network to provide clear radio reception for your shop, restaurant, or gym. If you prefer to listen to your own playlist, you can also use the Bluetooth function of the receiver to stream music wirelessly from any Bluetooth device. Additionally, the DJP-900NET complies with the DLNA standard and streams your library from the WiFi network. Simply select the audio files via the adjustable TFT display and play the music through the receiver. The integrated high-power class D amplifier delivers 2 x 460 watts at 4 ohms or 2 x 240 watts at 8 ohms and can play and control music from various analog and digital sources. For double output power, switching to bridge mode is possible. Then 900 watts are provided. The screw terminals can be connected to low-impedance speakers (4 to 16 ohms) and 100-volt PA speakers. Additionally, the DJP-900NET is equipped with Toslink and coaxial connectors for various other terminal devices. The DJP-900NET can be easily controlled via the large jog button or the included remote control. Favourite radio stations can be conveniently organised through a web interface. The sound can be adjusted according to your expectations and your speakers using various equalisation effects. An alarm and a sleep timer are also integrated. The robust metal housing features an aluminium front panel and mounting strips for rack installation. The package contents include an English manual, a WiFi stick antenna, a cable FM and DAB antenna, and a remote control.
Compact stereo receiver with internet radio, DAB+, Bluetooth, 2 x 460 W / 4 ohms
- Internet radio with DAB+ and FM tuner, Bluetooth support, and UPnP/DLNA
- Highly efficient class D amplifier with 2 x 460 watts
- Wide range of streaming options via WLAN, LAN socket, and Bluetooth

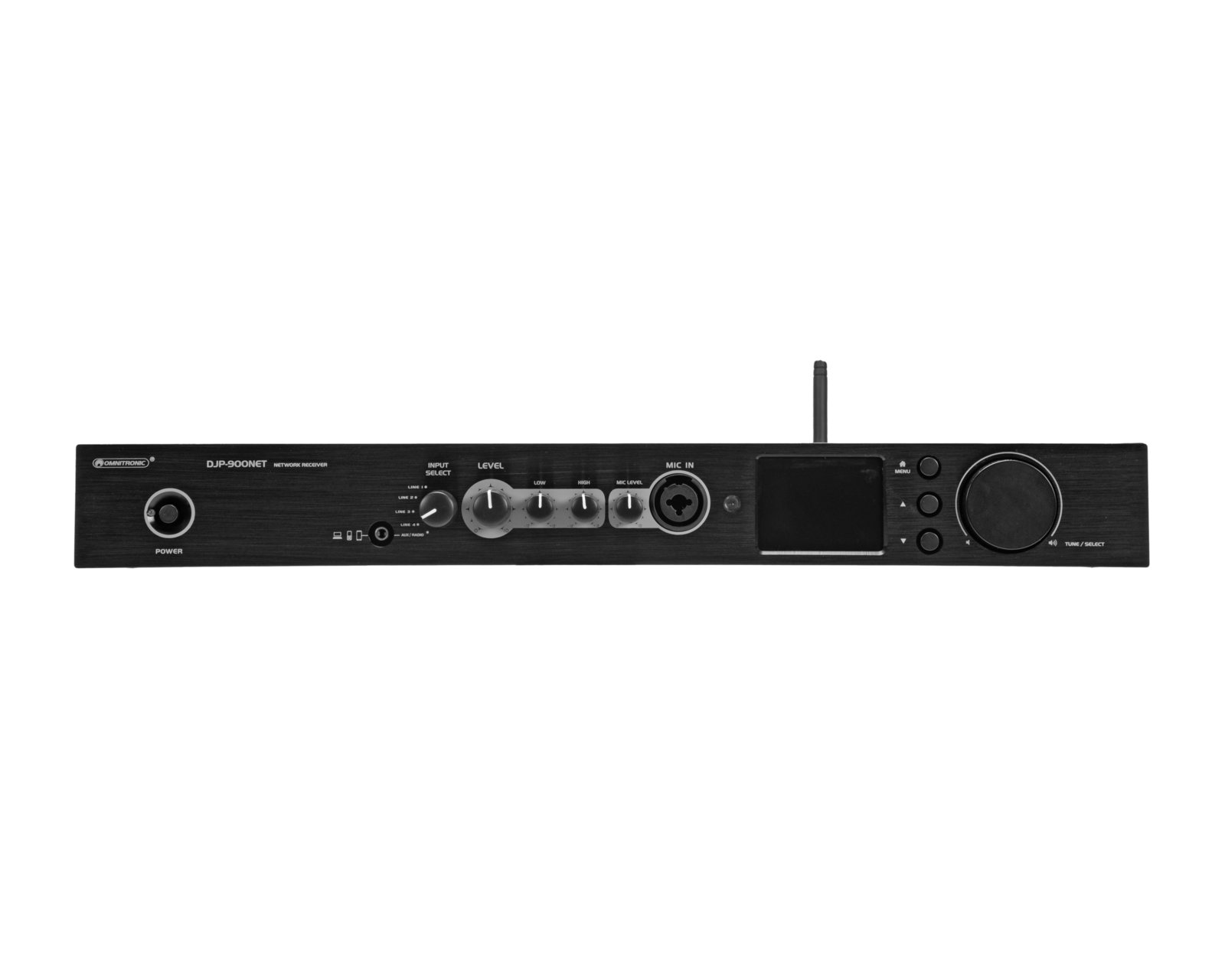

- Large 2.4-inch colour TFT display, easy jog button operation, equaliser presets, sleep timer, and alarm function
- Access to thousands of radio stations from around the world
- Station scanning by genre, station name, location
- 4 stereo line inputs (RCA) on the rear panel
- 3.5 mm AUX input on the front panel
- 1 combo microphone input with volume control on the front panel
- Audio source selector
- Controls for volume, bass, and treble
- Digital and analogue audio outputs (Toslink, coaxial, RCA)
- 2 operating modes can be selected (stereo or bridge/100V)
- Extremely low weight and height due to the integrated switch-mode power supply
- Robust steel chassis with aluminium front panel
- The device is cooled by a cooling fan
- Control via Bluetooth; W-Lan; IR remote control
- Multicolour TFT display
- 2.4 GHz license-free worldwide
- Bluetooth: operating range up to 20 m
- Desktop console housing
- (19") 48.3 cm rack installation possible
Package contents

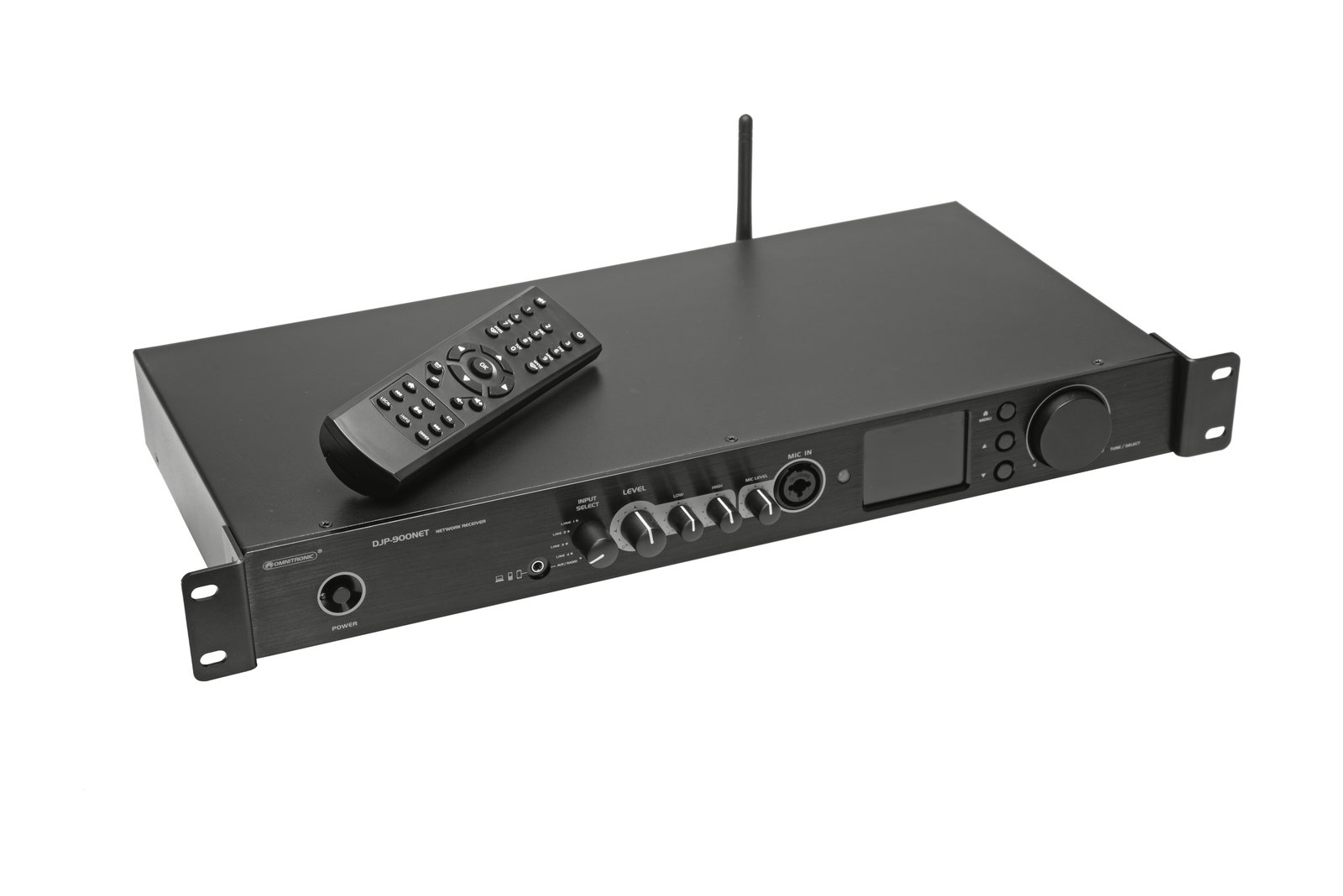

- 1 x device, 1 x power cable, 2 x antennas, 1 x remote control, 1 x user manual, 1 x declaration of conformity
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 96 W 1/8 power |
| Output power: | 2 x 460 W RMS (4 ohms)
2 x 240 W RMS (8 ohms)
Max. 900 W in bridge (8 ohms)
Max. 260 W in bridge (100 V) |
| Power connection: | Network input via IEC (M) connector version of power cable mount with safety plug (supplied) |
| Frequency range: | 20 - 20,000 Hz |
| S/N ratio: | >100 dB |
| Wifi: | Standard: IEEE 802.11 b/g/n
Security protocol: WEP/WPA/WPA2 |
| Network connection: | Protocol: Ethernet TCP/IP via RJ-45 (F) mounting version, 10/100 Mbit/s |
| Cooling: | Cooling fan |
| Impedance: | 4 ohms; 8 ohms; 16 ohms; 100V sound systems |
| Impedance: | Input: 20 kOhm, balanced
Input: 10 kOhm, unbalanced. |
| Control: | Bluetooth; W-Lan; IR remote control |
| Bluetooth: | Version: 4.2 + EDR |
| Radio: | FM tuner + internet radio + BT + DAB+, |
| Chassis colour: | Black |
| Circuits: | Class D |
| Display type: | Multicolour TFT display |
| Tuner frequency range: | FM 87-108 MHz, DAB(+) 174.928-239.200 MHz |
| Control elements: | Power switch, source selector, level control, tone control, mode switch (stereo / bridge/100V); menu, navigation buttons, encoder |
| controls: | Softstart; short circuit; overheating; overload; VHF; DC voltage |
| Status LED: | Power |

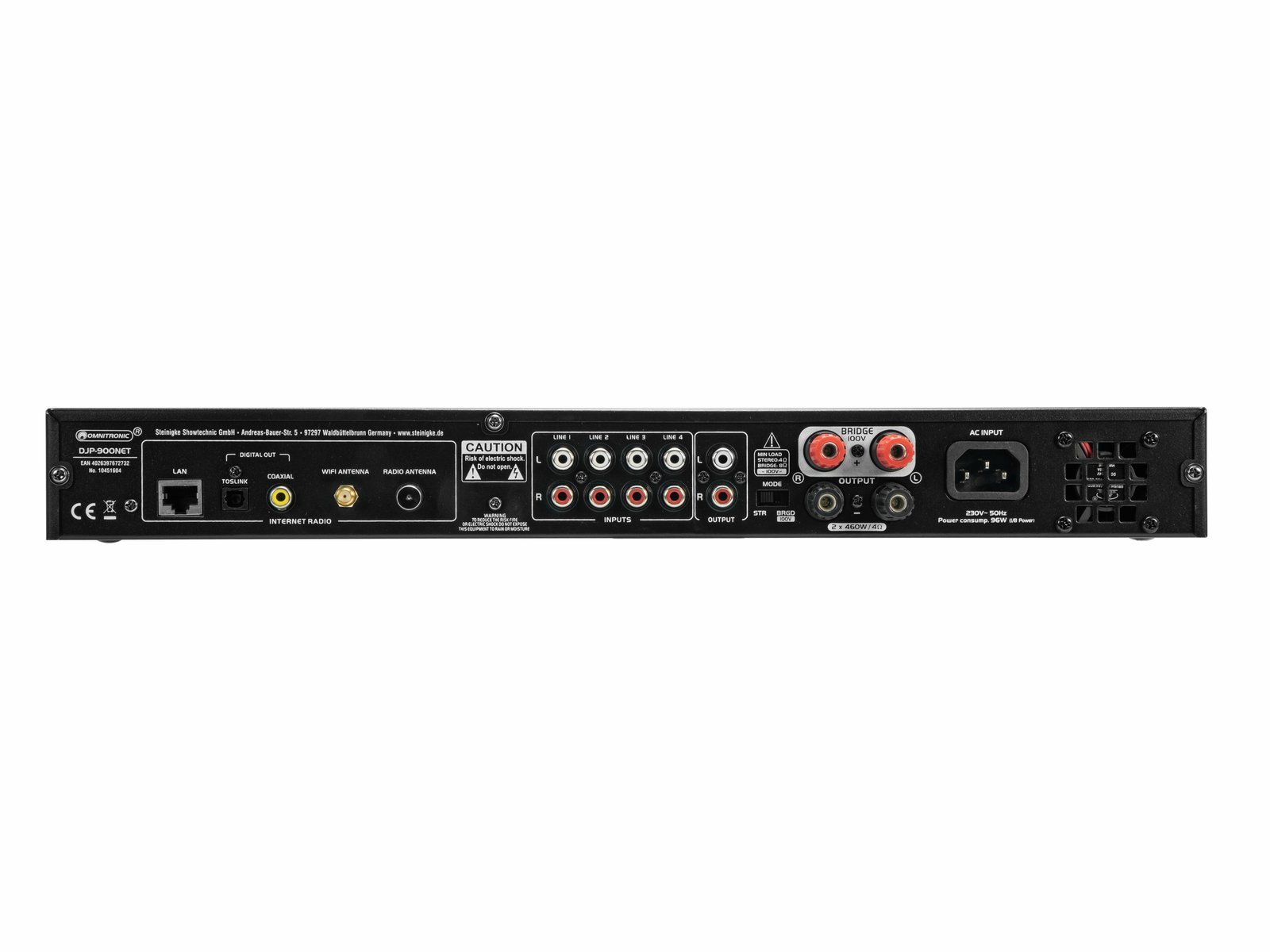

| Connections: | Antenna via 1 x SMA (F) mounting version.
Network connection via 1 x RJ-45 (F) mounting version.
Input: antenna via 1 x Belling-Lee (F) mounting version.
Input: line via 4 x RCA stereo
Input: AUX via 1 x 6.3 mm (stereo) jack
Input: microphone via 1 x combo XLR/6.35 mm (F) connector with 3 pins (mounting version)
Output: line via 1 x RCA stereo
Output: optical via 1 x toslink
Output: coaxial (S/PDIF) via 1 x RCA (F) mounting version.
Output: speaker via screw terminal |
| Channels: | Master output: , EQ for tone control with 2 bands
Microphone channel: 1 x mono via combo jack (XLR/jack), channel control via rotary selector |
| Equaliser: | 2-band mono tone control |
| Music format: | MP3, AAC/AAC+; FLAC |
| Frequency band: | 2.4 GHz |
| Range: | Bluetooth: operating range up to 20 m |
| Material: | Metal |
| Chassis design: | Desktop console housing
(19") 48.3 cm rack installation possible |
| Dimensions: | Width: 43 cm
Depth: 25 cm
Height: 4.4 cm |
| Weight: | 3.50 kg |
| Remote control |
| Power supply: | 3 V DC |
| Battery: | 2 x Micro (AAA) (not included) |
