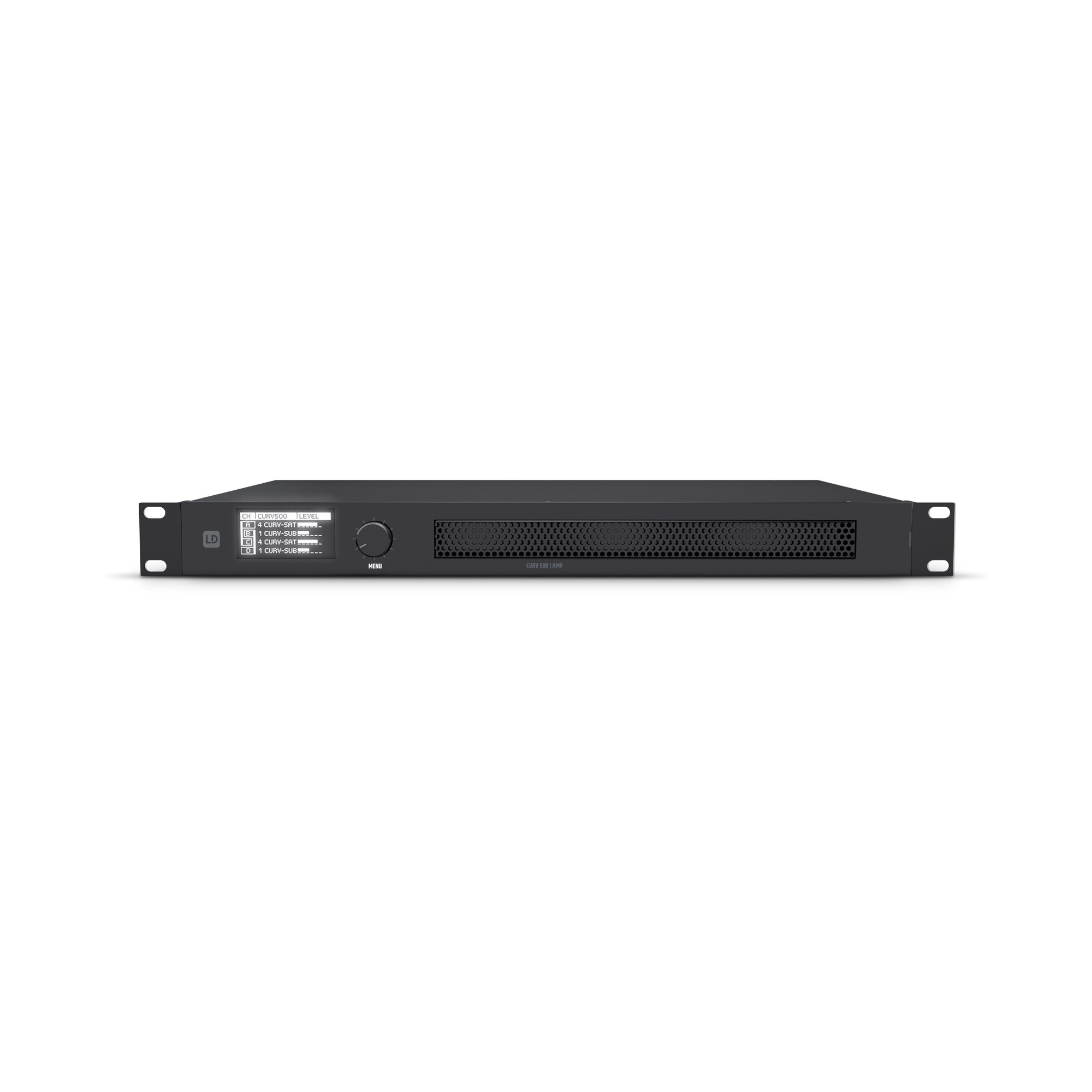

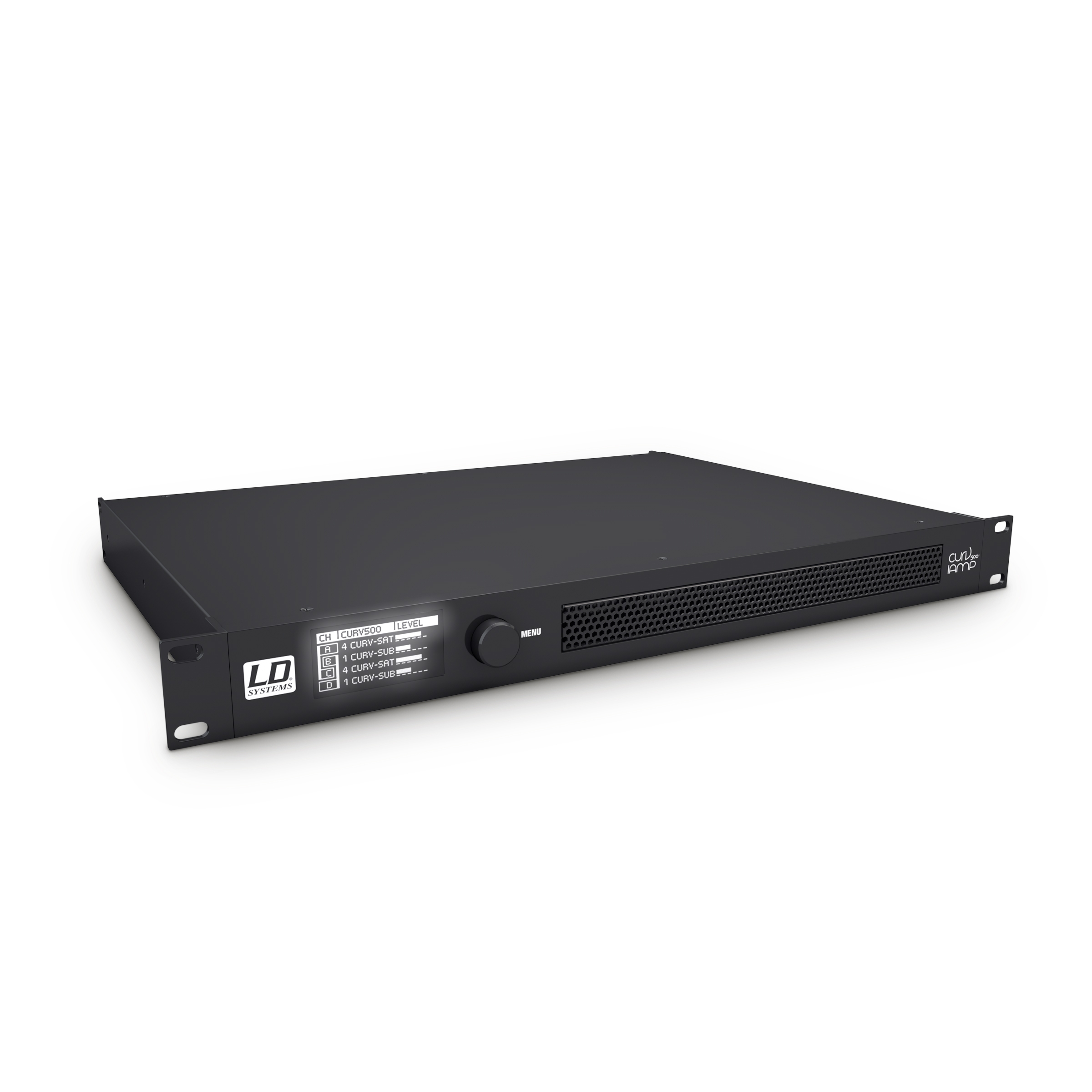

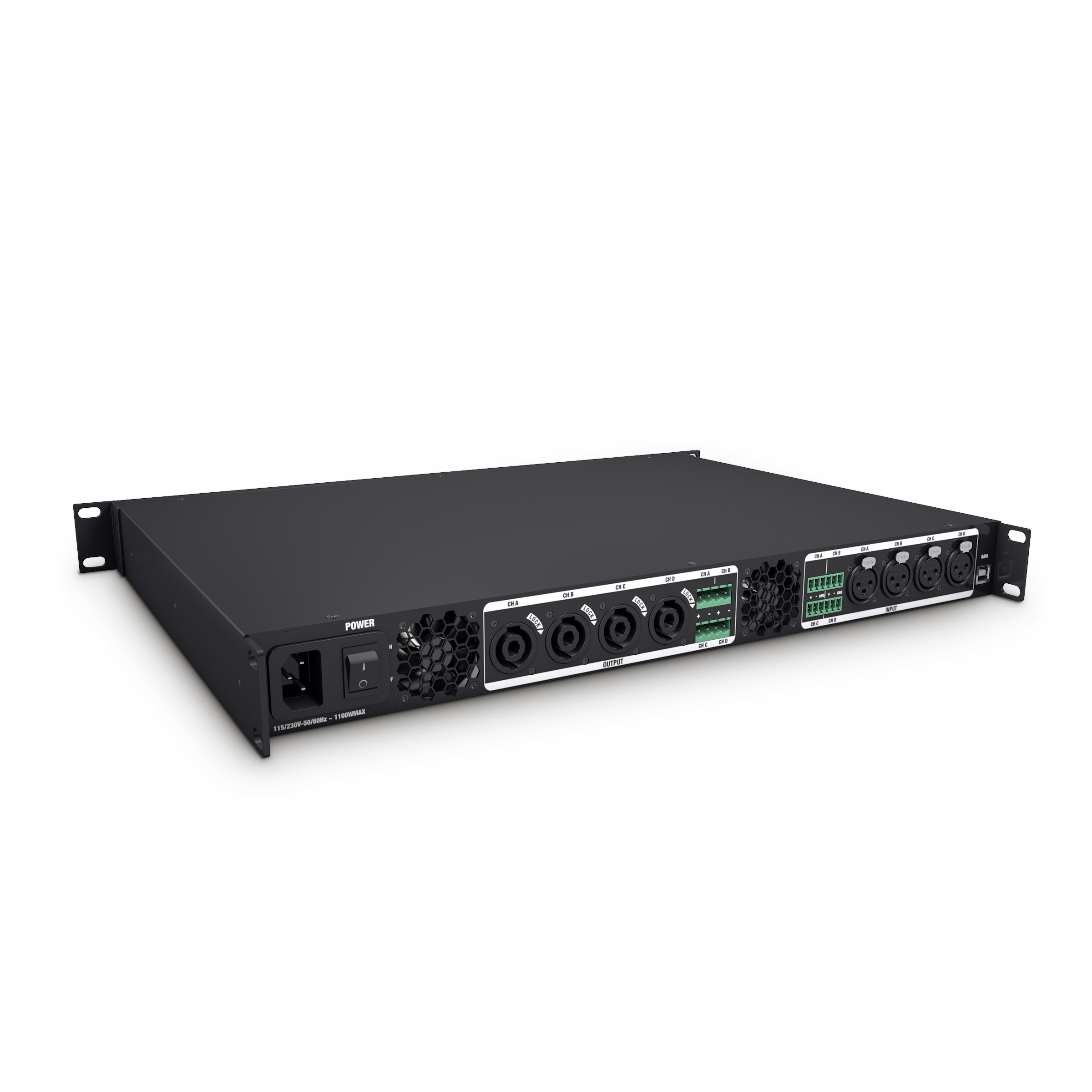

LD Systems CURV 500 iAMP

Amplifier for installations for CURV 500 systems, Class D topology and switch mode power supply:

• 4 channels with control DSPs
• DSP with presets for different satellite/subwoofer configurations - delay and parametric EQ on each channel
• can power a maximum of 6 CURV 500 satellites or one CURV 500 subwoofer per channel
• power:
  • 4 x 240W at 2.7 Ohms and 4 Ohms,
  • 4 x 120W at 8 Ohms,
  • 4 x 60W at 16 Ohms
• frequency response: 10 Hz - 22 kHz
• THD: less than 0.01 %
• protection circuits: DC, over-current, short-circuit, soft start, overheating

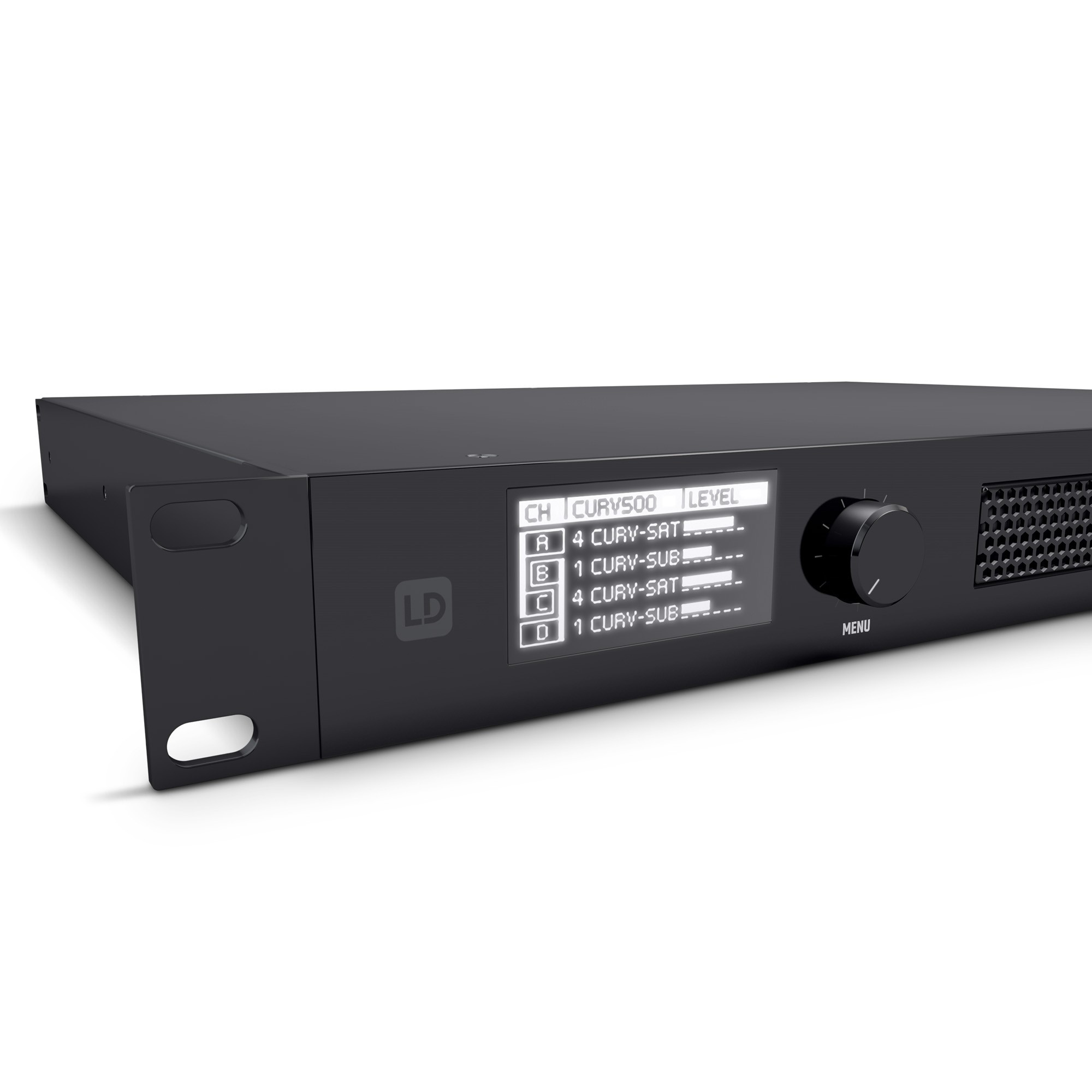

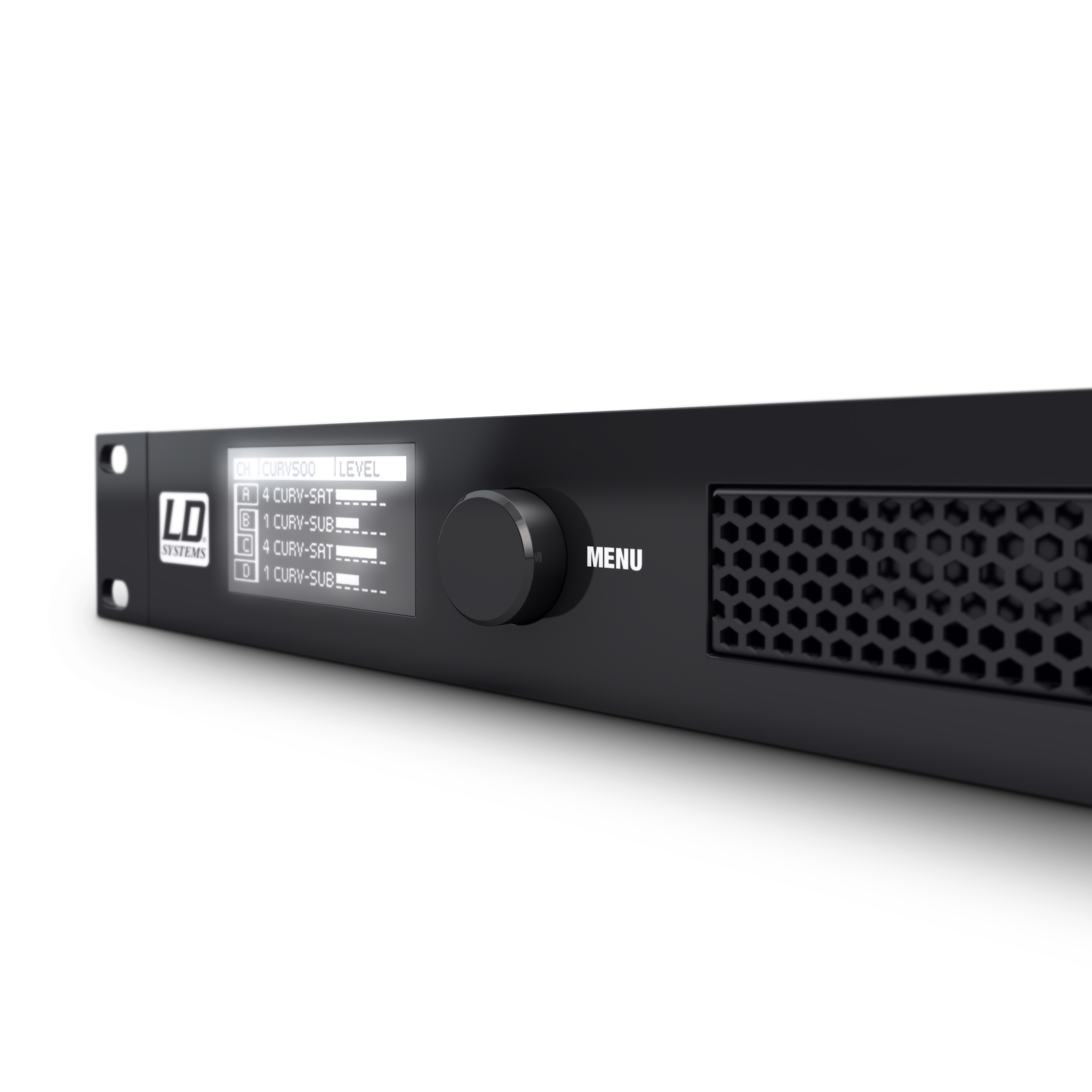

• OLED display, control via push encoder

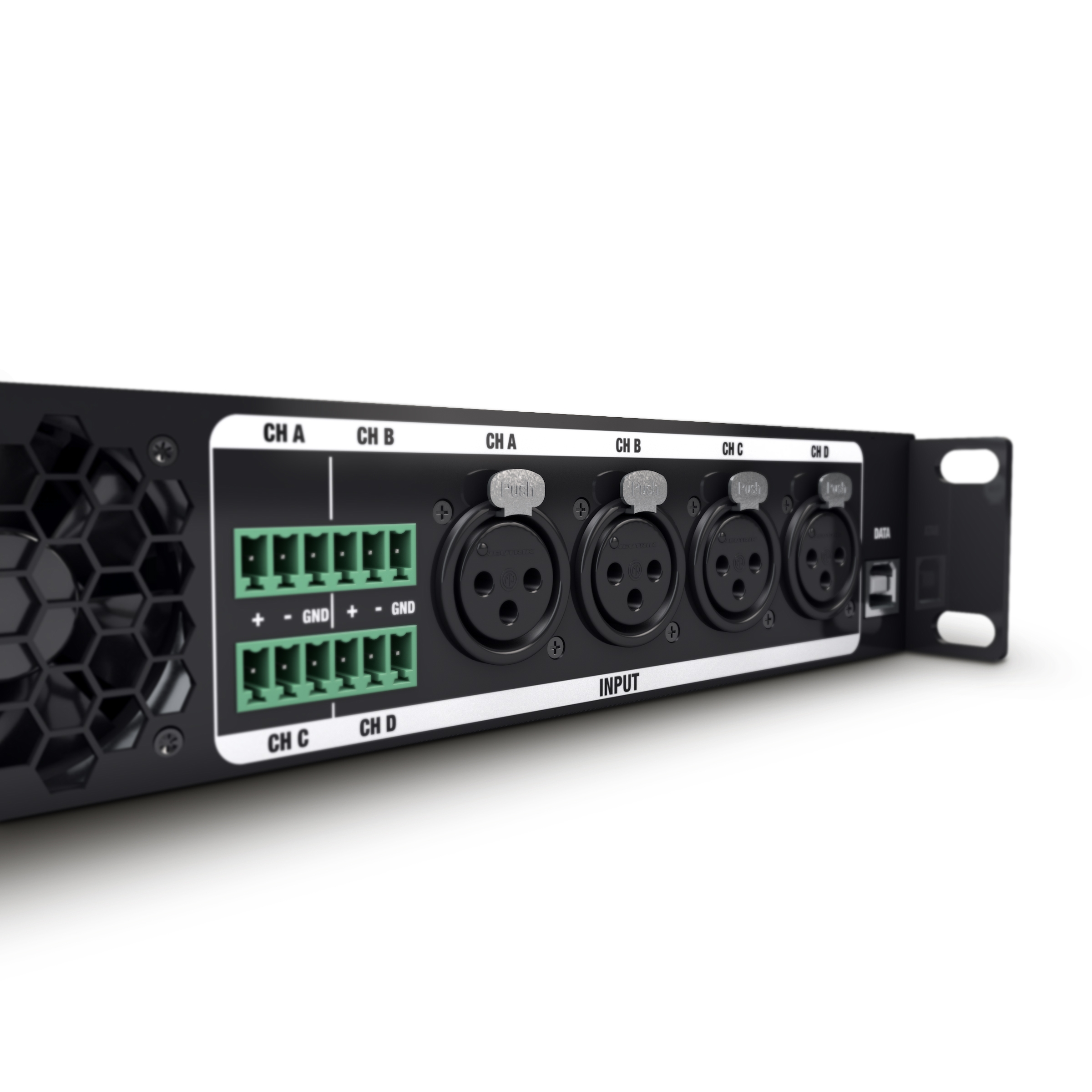

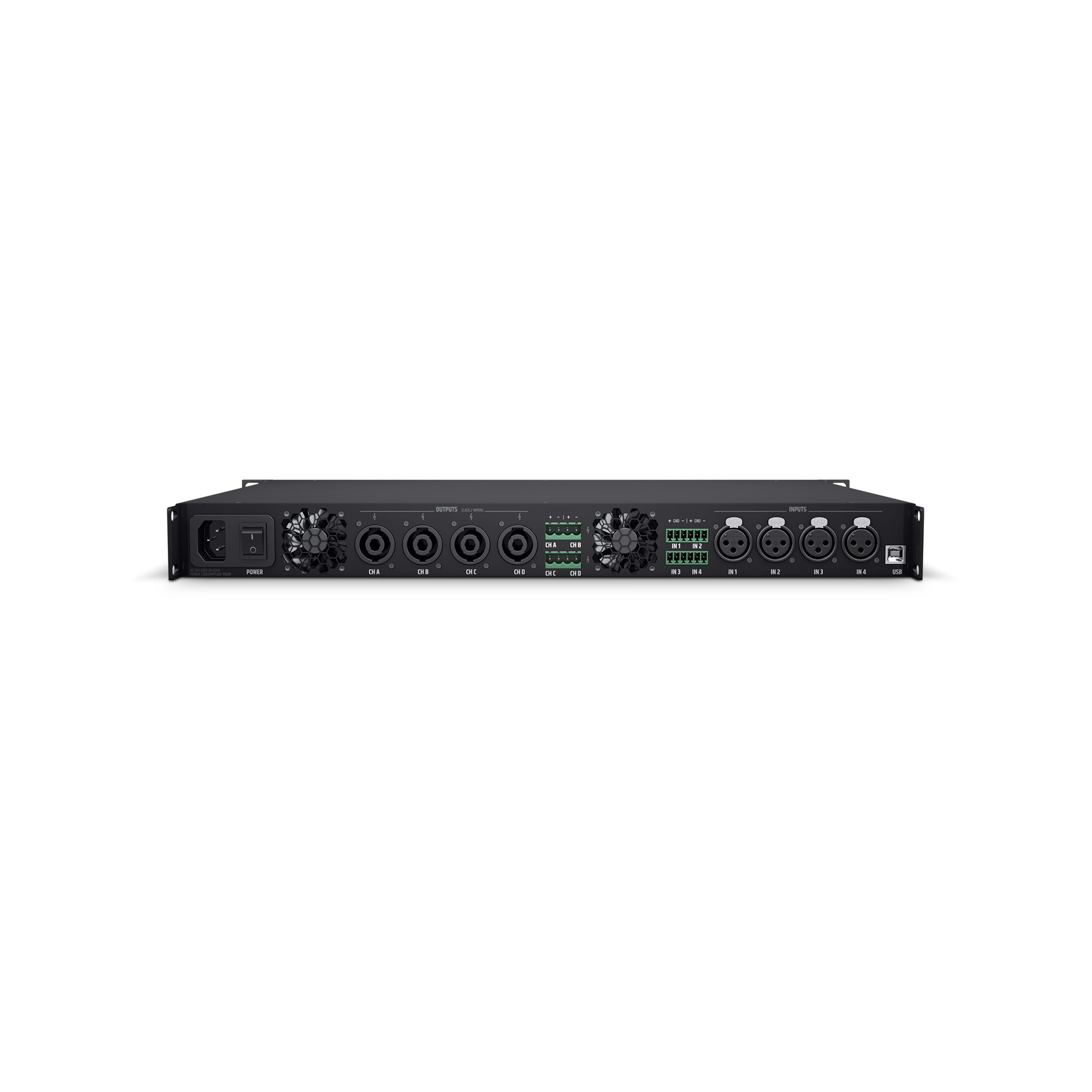

• 4 x line inputs: XLR and terminal blocks

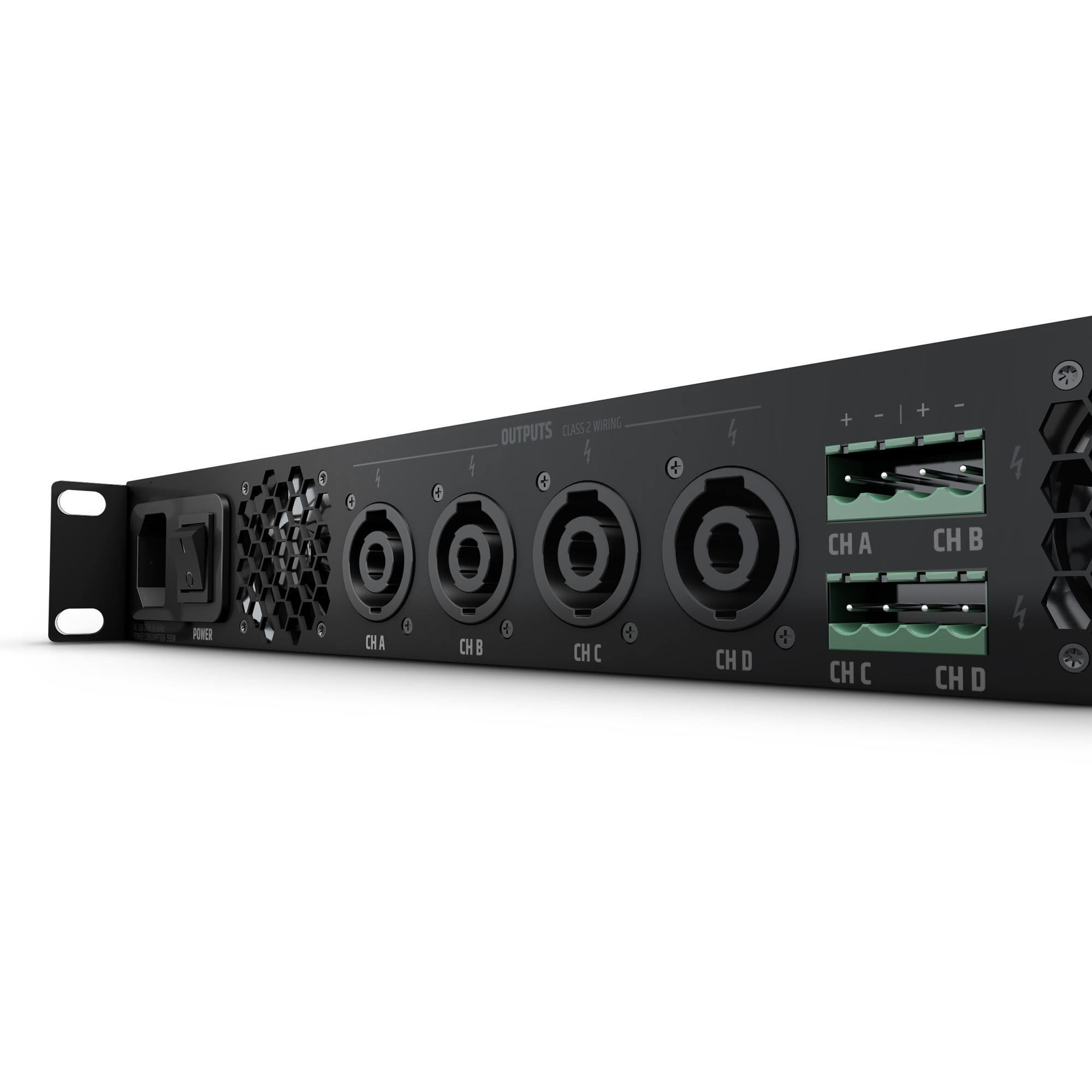

• 4 x outputs: Speakon and terminal blocks
• dimensions: 482 x 44 x 420 mm
• weight: 6.8 kg
