LD Systems AMP 205

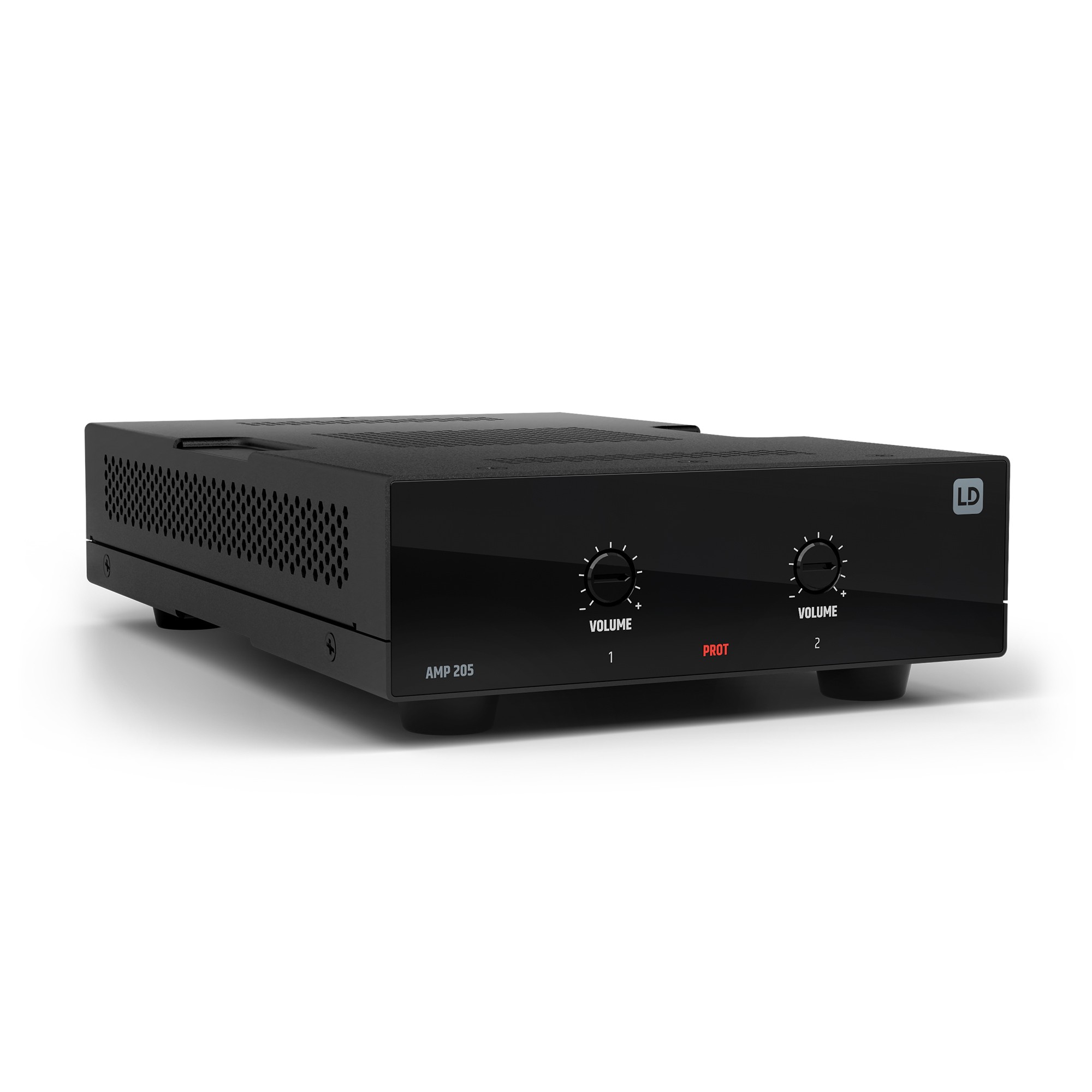

LD Systems AMP 205 - Power amplifier with 2 channels, Class D, power of 2x50W at 4 Ohm, featuring passive cooling and high efficiency. The front panel offers LEDs for signal, clip, and protection, while a gain switch allows compatibility with various audio sources.

With an ultra-compact format and included mounting plates, it can be discreetly installed under tables or behind screens. It can also be mounted in a 1/3 19” rack, and with an optional tray, up to four products from the TICA® series can be combined.

It has remote control for integration with external control systems: volume adjustment on each channel or activation of standby mode. The optional auto-standby function reduces power consumption in the absence of audio signal.

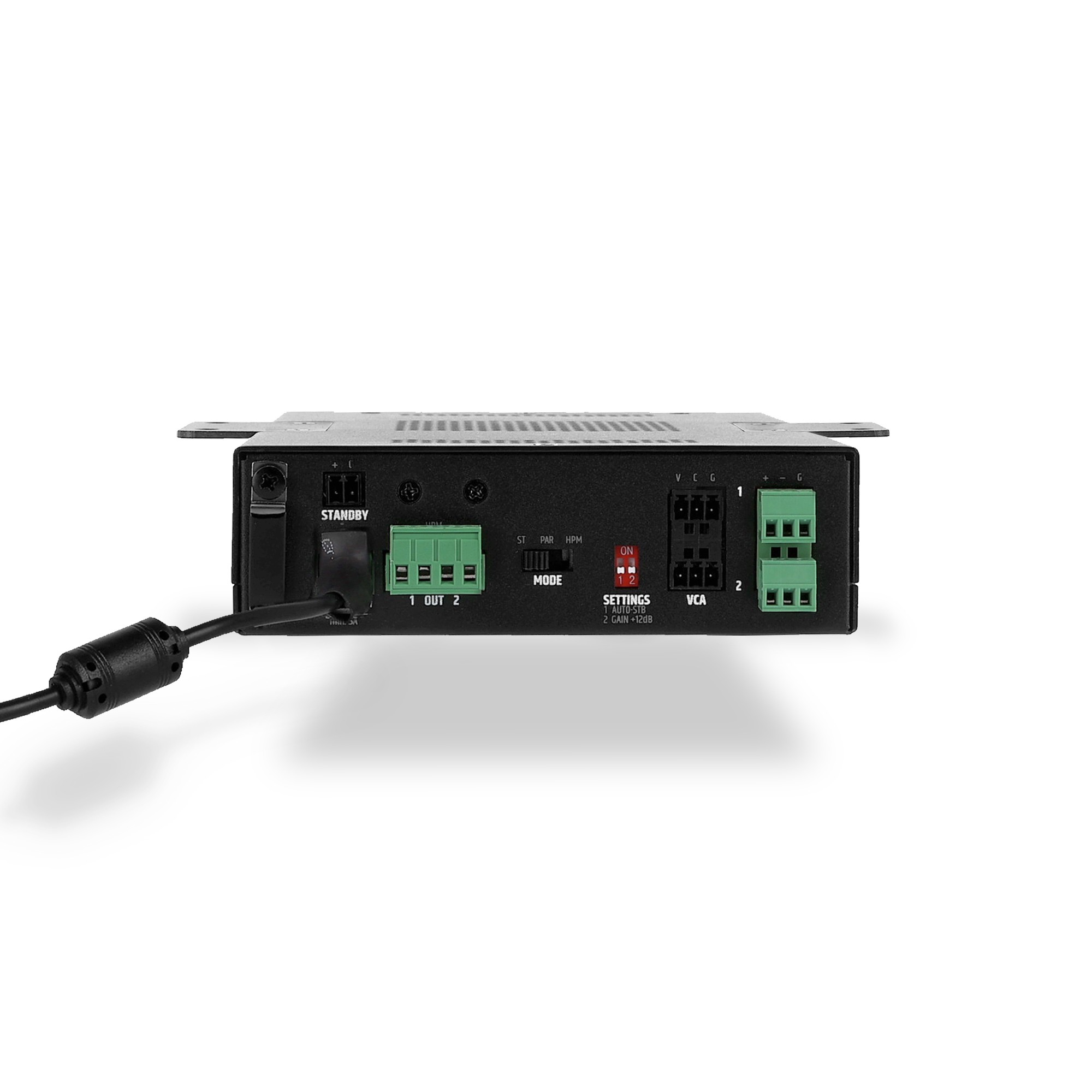

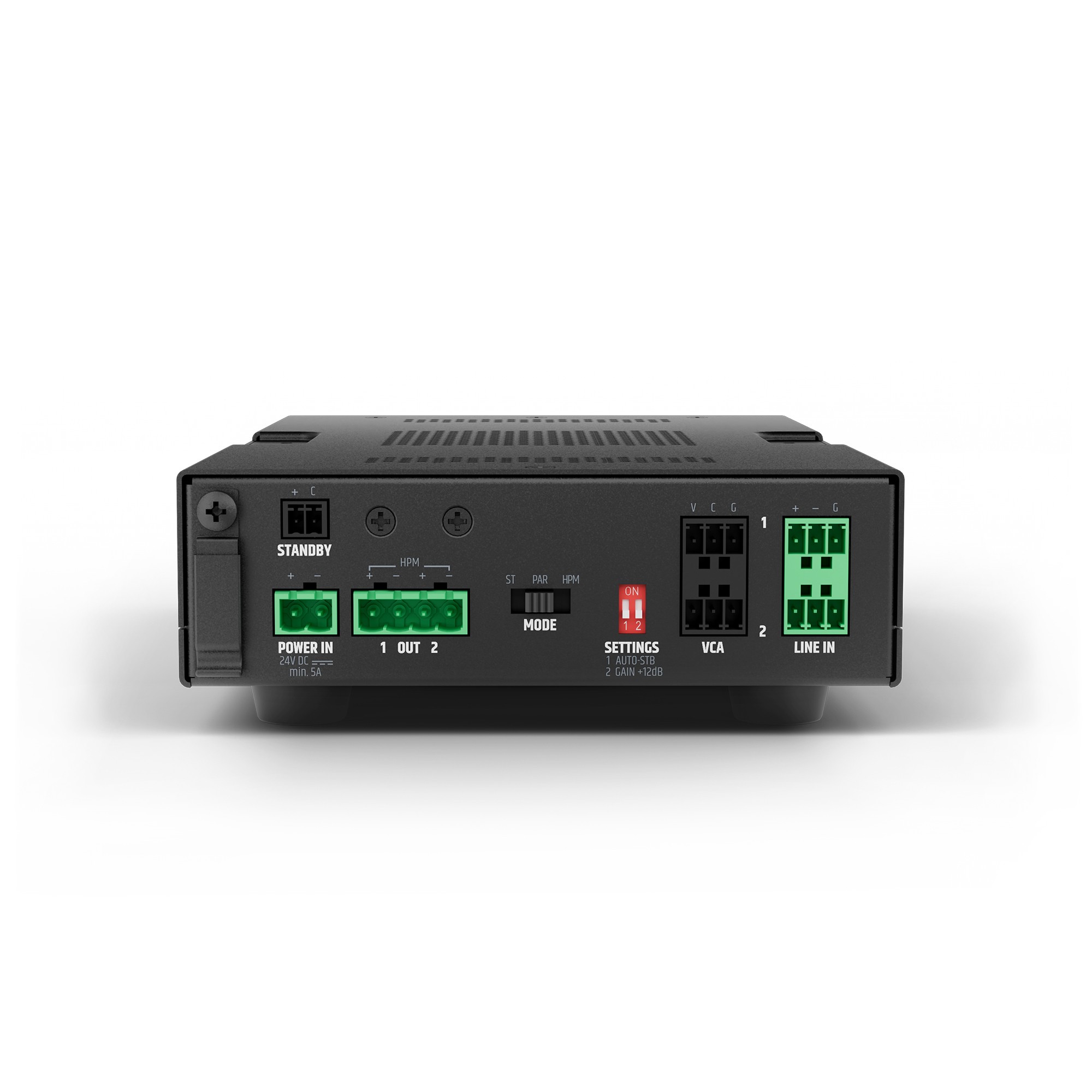

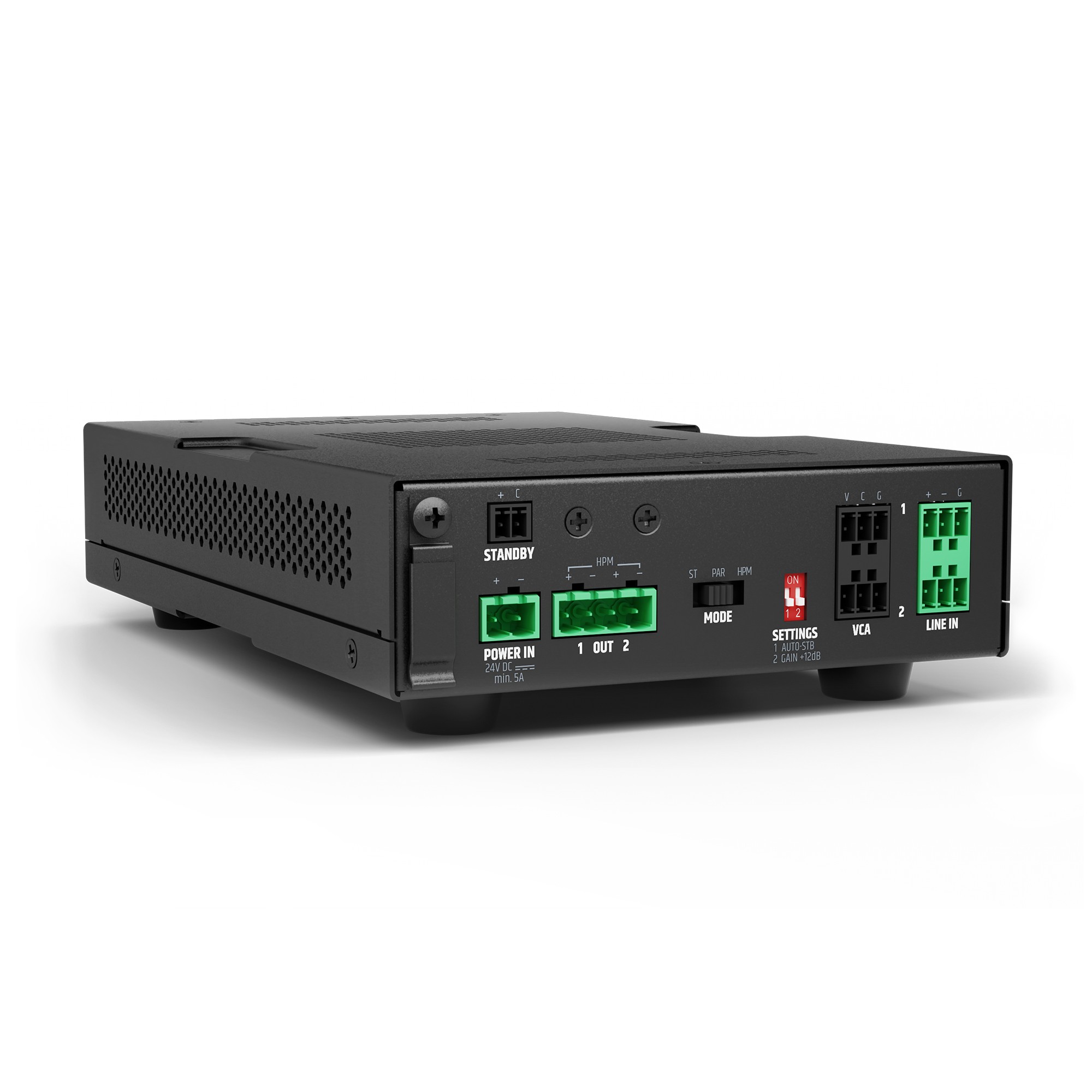

Connections are easily made via terminals for balanced line inputs and outputs for speakers, making this amplifier an ideal solution for professional audio installations.

Features:

• Class D amplifier, 2 x 50W with low impedance outputs
• Compact format, 1/3 rack of 19", 1U
• Silent operation through passive cooling
• Connection to external control systems for standby and remote volume control
• External power supply 100–240V
• Mounting plates for flexible and discreet installation, including above false ceilings
• Automatic standby for energy saving
• Balanced line input and speaker output on terminals

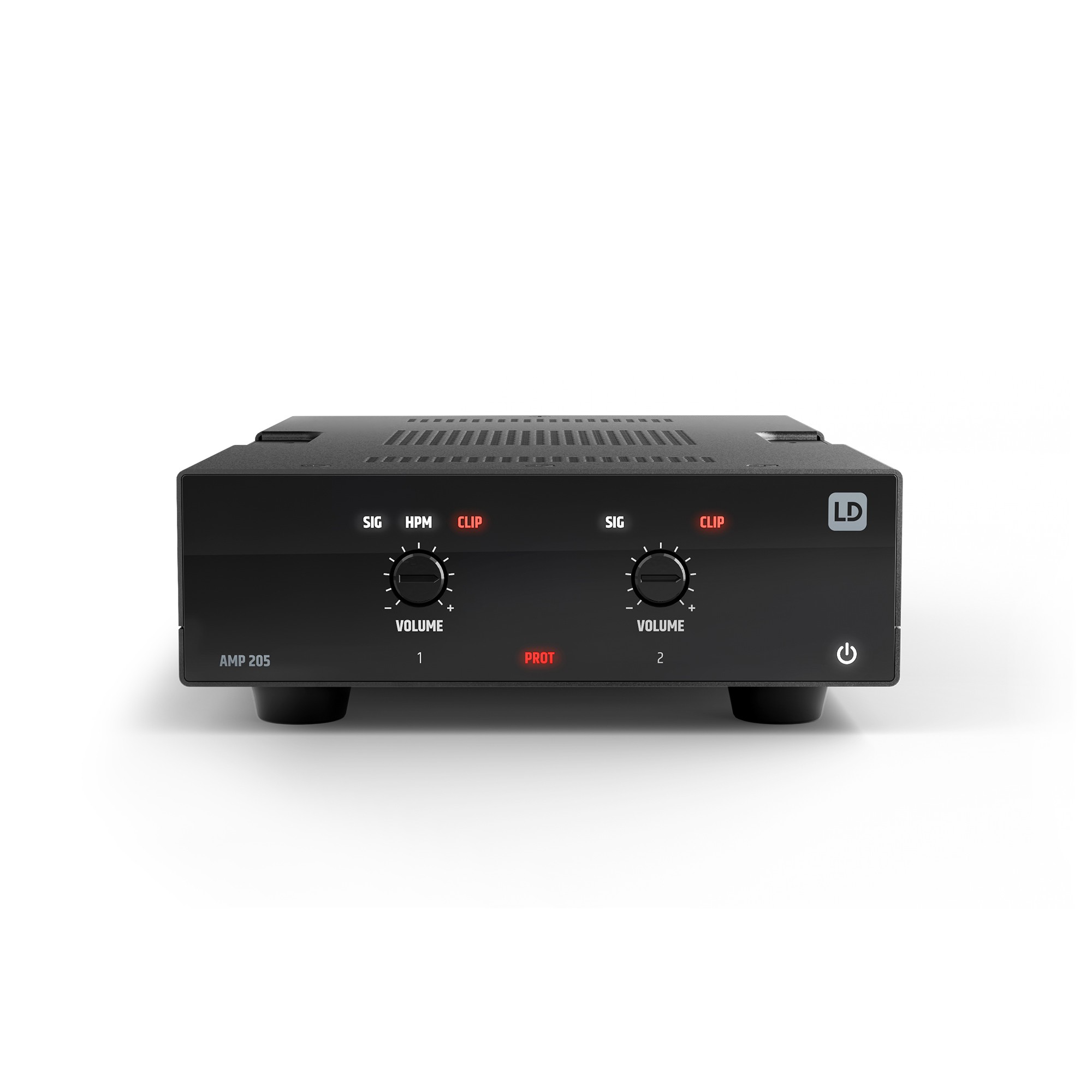

• Intuitive front panel with LEDs for signal, clip, and protection
• Optional rack tray for combination with other products from the TICA® series

Specifications:

• Power amplifier for installations
• Line inputs: 2
• Line input connectors: 2 balanced line inputs, terminal block with 3.81 mm pitch (3 pins)
• Amplified outputs: 2, with mode selector (stereo / parallel / high power)
• Cooling: Convection (fanless)
• Priority levels: 1

Input Area:

• Nominal input sensitivity: 14 dBu / 2 dBu (Gain switch +12 dB)
• Nominal clipping level at input: 18 dBu (1 kHz sine signal, gain 0 dB)
• Input connector: 2 x terminal block 3 pins, 3.81 mm pitch
• Standby activation threshold: 2.5 seconds

Output Area:

• Type: Class D amplifier
• Output modes: High Power Mode (ST/HPM), Parallel, Stereo
• Amplifier outputs:
  • 2 channels (ST, PAR)
  • 1 channel (HPM)
• Output connector: Terminal block with 4 pins (5.08 mm pitch)
• RMS power:
  • 1 x 100 W @ 2 Ω (1 kHz sine signal, 10 seconds)
  • 2 x 50 W @ 4 Ω (ST)
• Peak power:
  • 1 x 110 W @ 2 Ω;
  • 2 x 55 W @ 4 Ω (ST, PAR)
• Minimum load impedance:
  • 2 Ω (HPM)
  • 4 Ω (ST)
• Frequency range: 15 Hz – 20 kHz (±0.5 dB)
• Protection circuits: DC protection, overcurrent, short circuit, overtemperature, undervoltage

Power Supply:

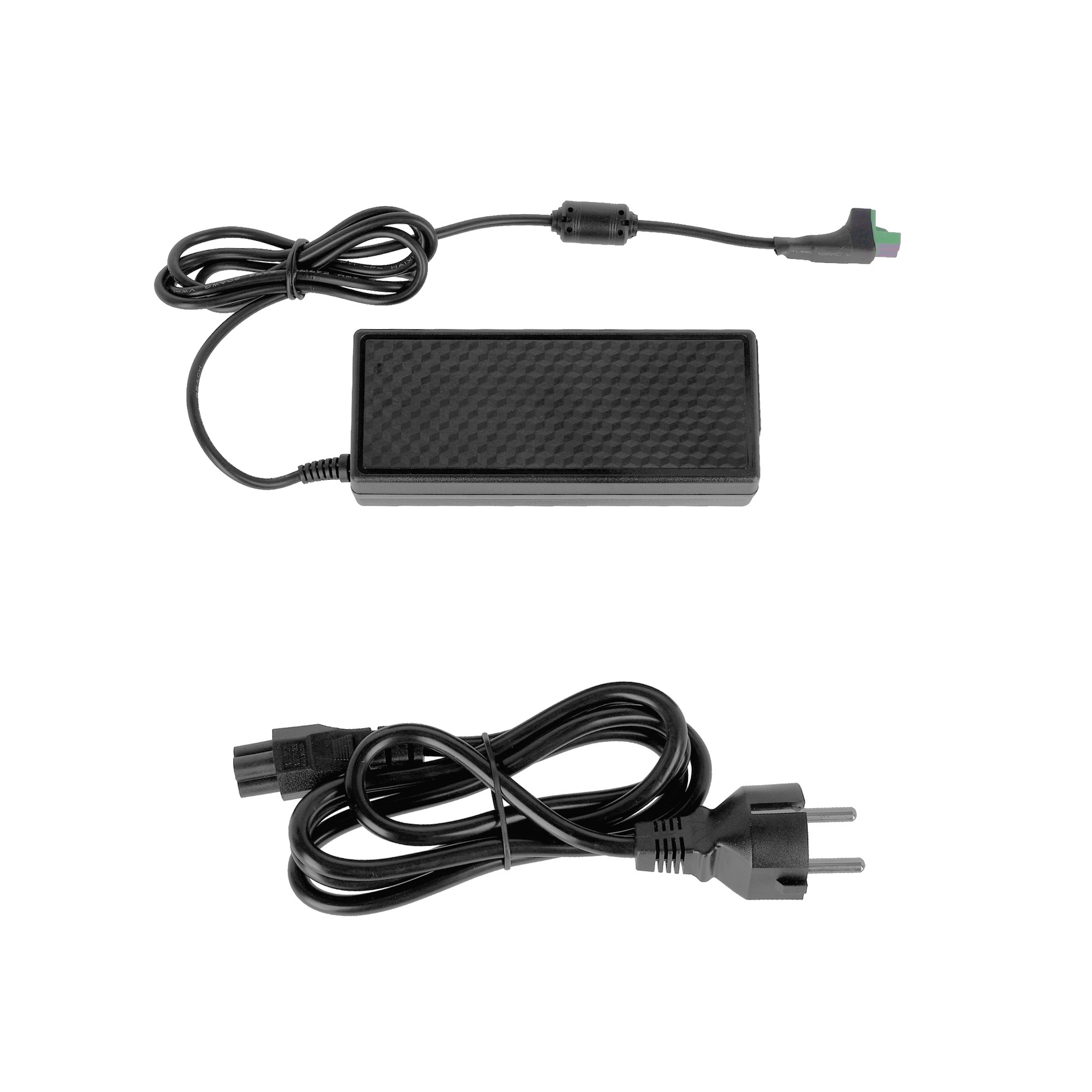

• Power supply type: External switch mode power supplies (SMPS)
• Operating voltage: 100 – 240 V AC, 50 – 60 Hz
• Secondary voltage: 24 V DC
• Secondary current: 3.5 A
• Secondary connector: Terminal block 2 pins, 5.08 mm pitch
• Primary connector: IEC
• Safety class: 1
• Maximum power consumption: 105 W (sine signal, 1 kHz, 4 Ω load)
• No-load consumption: 2 W (without signal)
• Standby consumption: < 1 W
• Operating temperature (without condensation): 0°C – 40°C; < 85% humidity

Physical Parameters:

• Auto-standby activation time: 20 minutes
• Dimensions (L x H x D, with feet): 142 x 53 x 222 mm

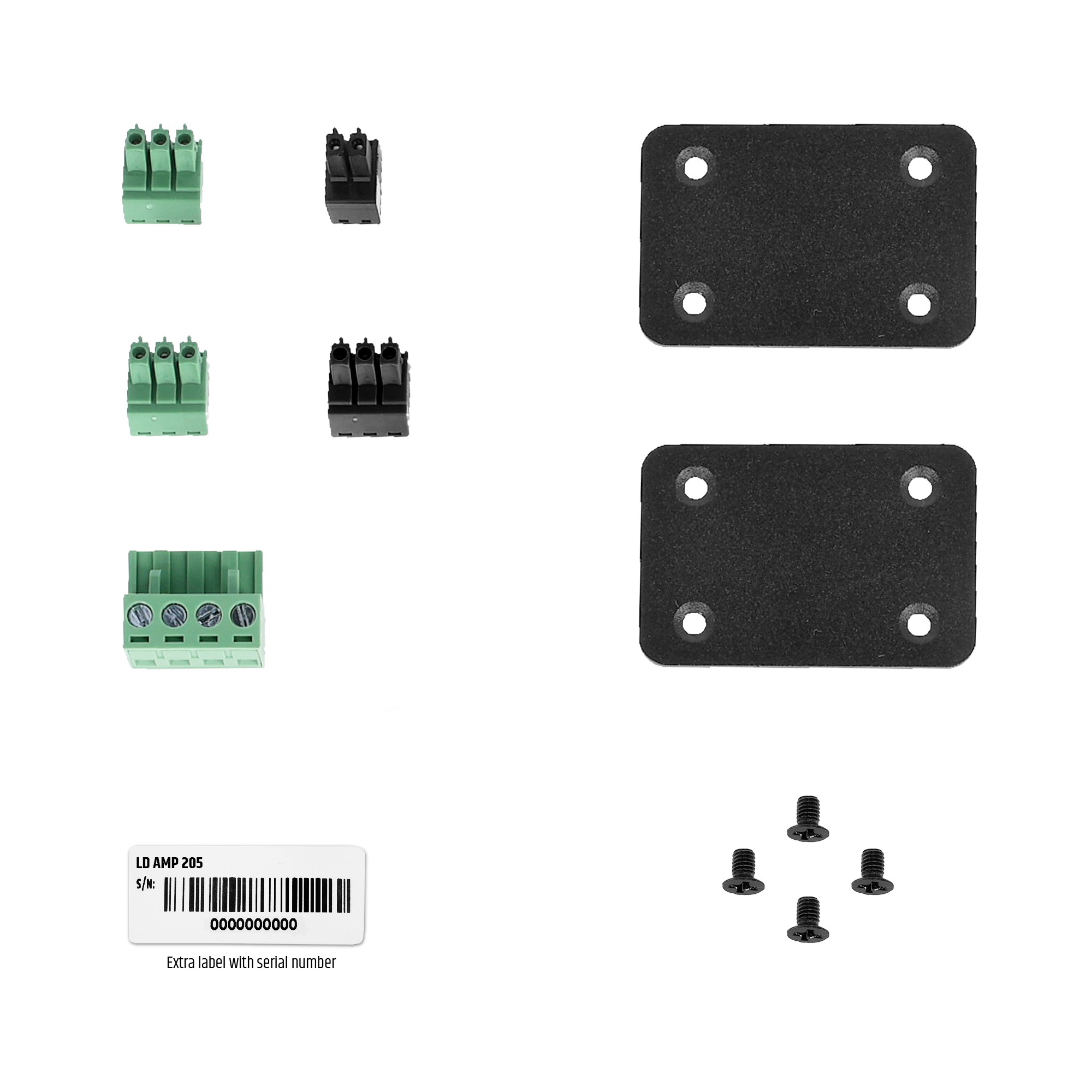

• Included accessories:
  • External power supply
  • Mounting plates for installation on surfaces
  • Terminal blocks for electrical connections
• Weight: 1 kg
