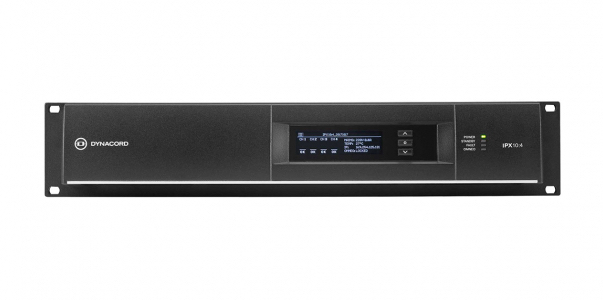

Dynacord IPX10:4

Dynacord IPX10:4 - The Dynacord IPX 10:4 is a high-performance multi-channel amplifier designed to deliver seemingly unlimited power and exceptional audio quality. With its OMNEO IP network architecture, advanced audio processing, and Dynacord Variable Load Drive (VLD) technology, this amplifier is ideal for fixed installation applications such as stadiums, arenas, places of worship, concert halls, and more.

• Multi-channel amplifier with integrated DSP of 4 x 2500W with digitally controlled PFC power supply
• High-resolution DSP processing at 96 kHz and FIR unit
• Dante and OCA integration via OMNEO for extended connectivity
• Operating modes in bridge and parallel with support for 70 / 100V / 140V / 200V and low impedance operation
• High-efficiency Eco Rail technology for reduced operating costs
• Output power in normal mode (all channels):

  • 4 x 2600W @ 2Ω
  • 4 x 3000W @ 2.7Ω
  • 4 x 2500W @ 4Ω
  • 4 x 1250W @ 8Ω
• Output power in Bridge mode:

  • 2 x 5200W @ 4Ω
  • 2 x 5000W @ 8Ω
• Output power in Parallel mode:

  • 2 x 5000W @ 2Ω
  • 2 x 4000W @ 2.7Ω
  • 2 x 2500W @ 4Ω
  • 2 x 1250W @ 8Ω
• Output power in Parallel-Bridged mode:

  • 10400W @ 2Ω
  • 12000W @ 2.7Ω
  • 5000W @ 4Ω
  • 5000W @ 8Ω
• User interface with OLED display 256 x 64
• Euroblock connectors for audio inputs and outputs
• Network connectors 2 x Neutrik EtherCON / RJ45 with integrated switch
• Connectors for GPIO control inputs/outputs
• Multiple protections, including audio limiters, high-temperature protection, and more
• Compact and robust design
• Operating temperature from +5°C to +40°C
• Power supply: 100 V to 240 V, 50 Hz to 60 Hz AC
• Nominal power consumption: 1200 W
• Nominal power consumption in idle mode (without input signal): 75 W
• Nominal power consumption in standby mode:
• Dimensions: 483 x 88.1 x 514.2 mm
• Weight: 17.2 kg
• Colour: Black

The Dynacord IPX 10:4 provides a powerful and efficient solution for sound amplification in a variety of professional environments and applications, ensuring exceptional audio performance and long-term reliability.
