Audac SMQ-750

Audac SMQ 750, amplifier with 4 channels I/O and integrated DSP, designed for installed or mobile audio systems. The advanced features and power delivered provide flexibility for numerous applications. The WaveDynamics™ DSP processor combined with the 2.5” LCD screen offers easy and intuitive control for the user.

Acoustics can be optimized through Butterworth, Bessel, and Linkwitz-Riley filters with selectable rolloff that can be configured as low-pass/high-pass & band, a 7-band equalizer with adjustable frequencies and Q-factor, delay settings, and dynamic bass boost.

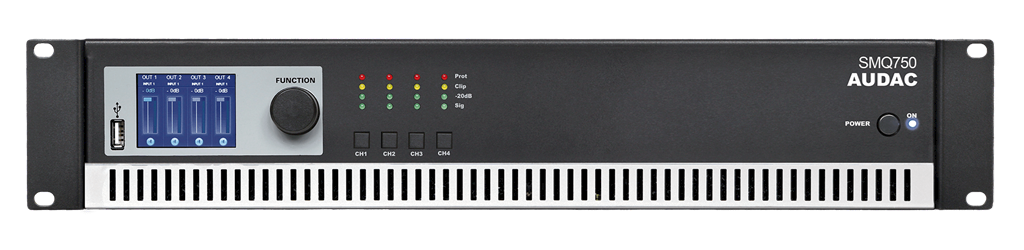

These functions can be controlled from the front panel, with 2 access levels (user & administrator). Speaker protection is ensured by a limiter that can be configured with different power levels on different channels.

Configuration is straightforward, through presets and system configurations that can be selected from a library and loaded into the amplifier via USB. For distributed applications, the amplifier can be expanded with a Dante interface.

• signal-to-noise ratio: greater than 95 dB
• THD: less than 0.05%
• Class D topology
• temperature-controlled fan cooling
• power: 4 x 750 W at 4 Ohms - 4 x 380W at 8 Ohms
• bridge power: 2 x 1500W at 8 Ohms
• frequency range: 20 Hz - 20 kHz
• integrated protections: DC short, overheating, overload, signal limiter, power limiter
• dimensions: 482 x 88 x 420 mm, 2 RU
• weight: 8.4 kg
