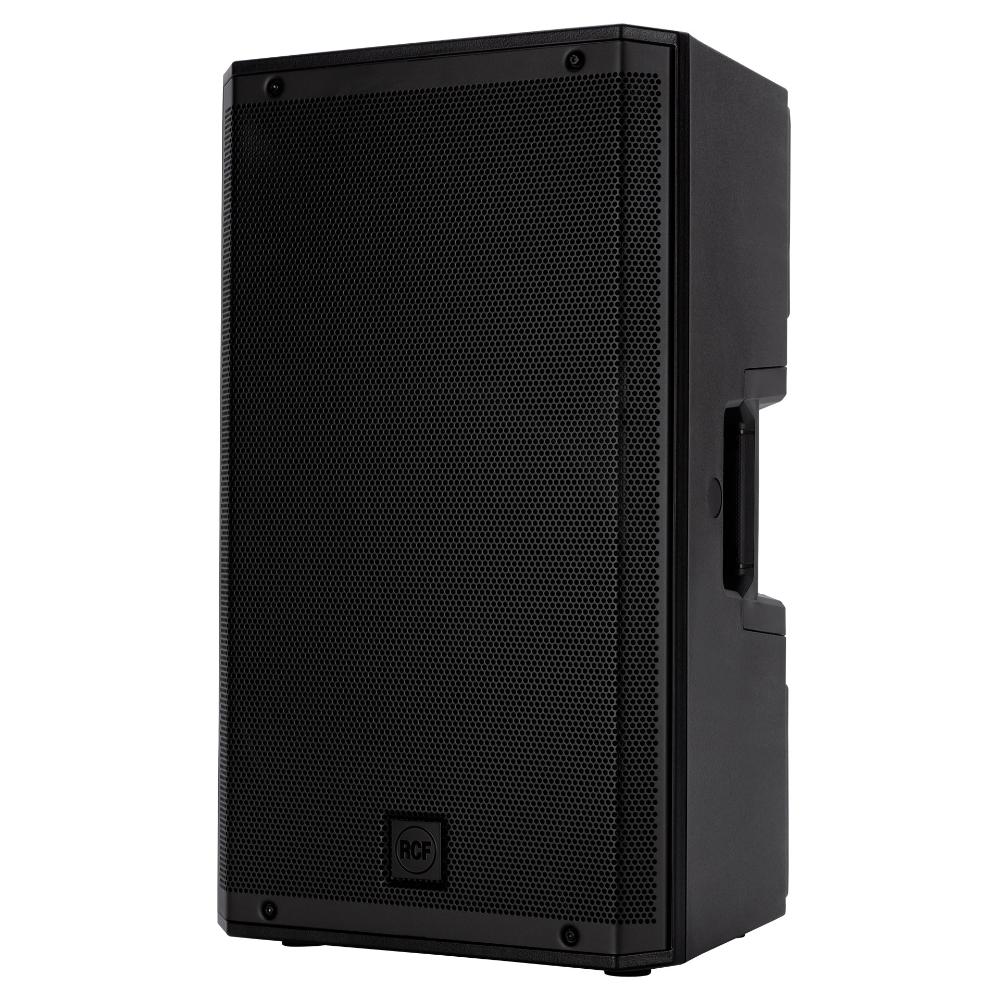

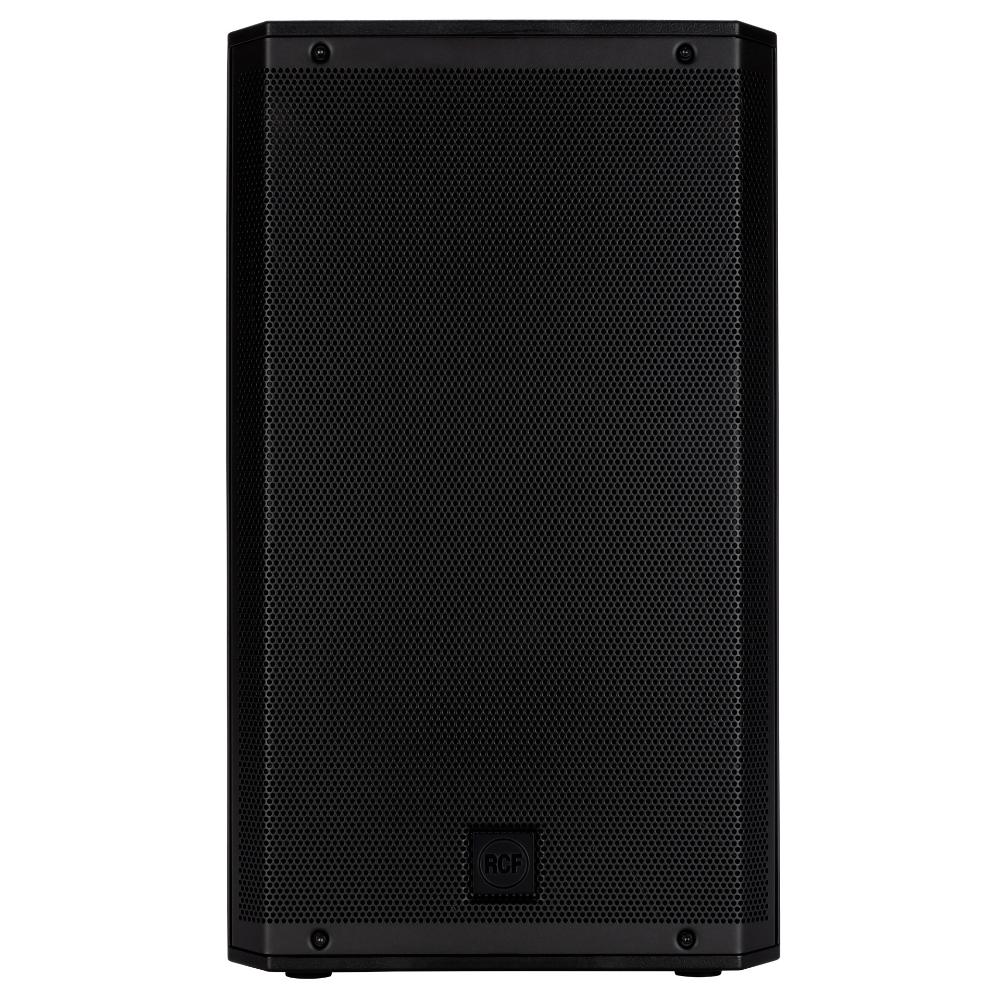

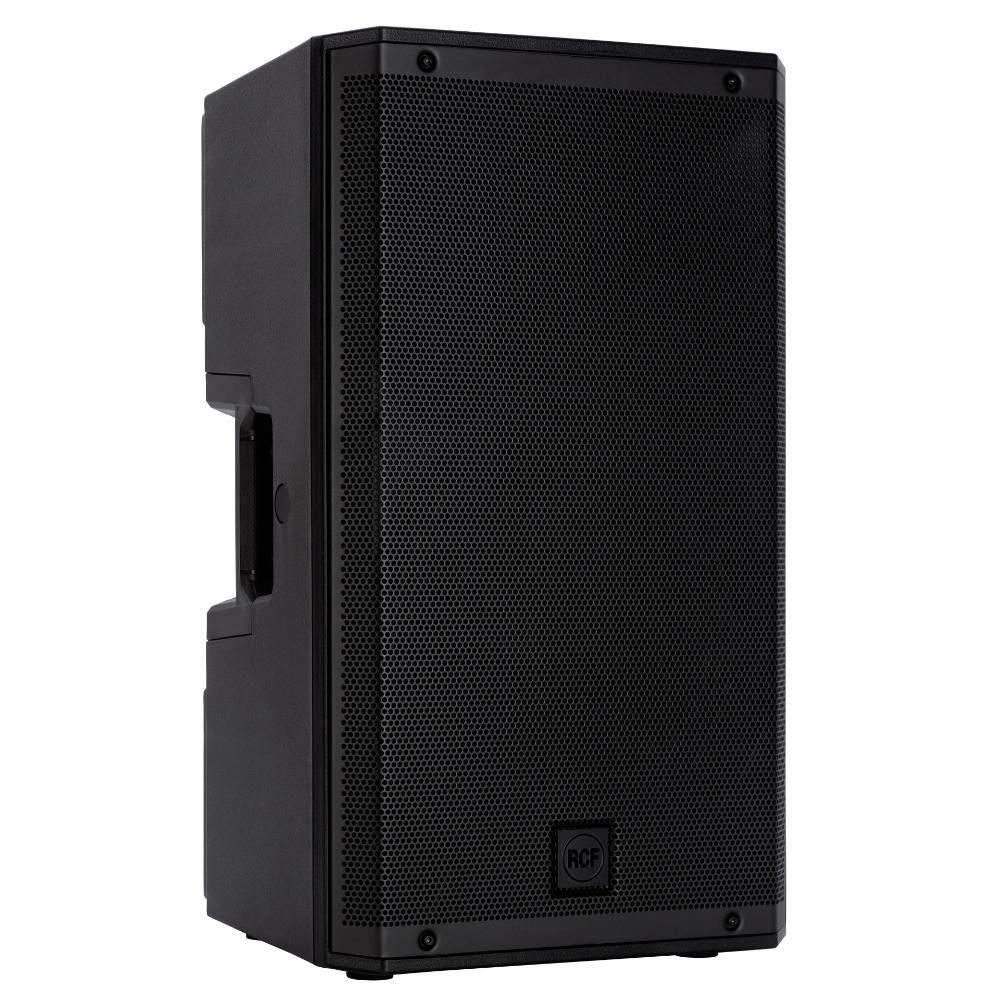

RCF COMPACT A-12

RCF COMPACT A-12, passive speaker, multifunctional, suitable for live sound, stage monitoring and installed systems. The combination of a 1.75-inch compression driver, a 12-inch woofer, and the True Resistive waveguide with constant directivity produces a coherent coverage of 100° x 60° for high SPL listening areas, delivering sound without distortion. The sleek and lightweight cabinet uses a special composite polypropylene material, with internal M-brace reinforcement, making it easy to transport and securely mount on a pole, wall, or truss, using multiple mounting points and available accessories.

Features:

• Handling power 400 W
• Sound pressure level up to 129 dB
• Linear frequency response 55 - 20,000 Hz
• 1.75" compression driver
• High-power 12" woofer
• Robust composite cabinet
• Front grille made of steel
• Optional mounting accessories
• 2 x SPEAKON connectors

Technical Specifications:

• Frequency response: 55 - 20,000 Hz
• Max SPL at 1 m: 129 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 60°
• System sensitivity: 97 dB
• Amplification: Full Range
• Nominal impedance: 8 ohms
• Handling power:
  • 400W RMS
  • 800W program
  • 1600W peak
• Recommended amplifier: 800 W
• Protection: Dynamic active Mosfet
• Crossover frequencies: 1200 Hz
• Compression driver: 1.0'', 1.75'' v.c
• Woofer: 12'', 2.5'' v.c

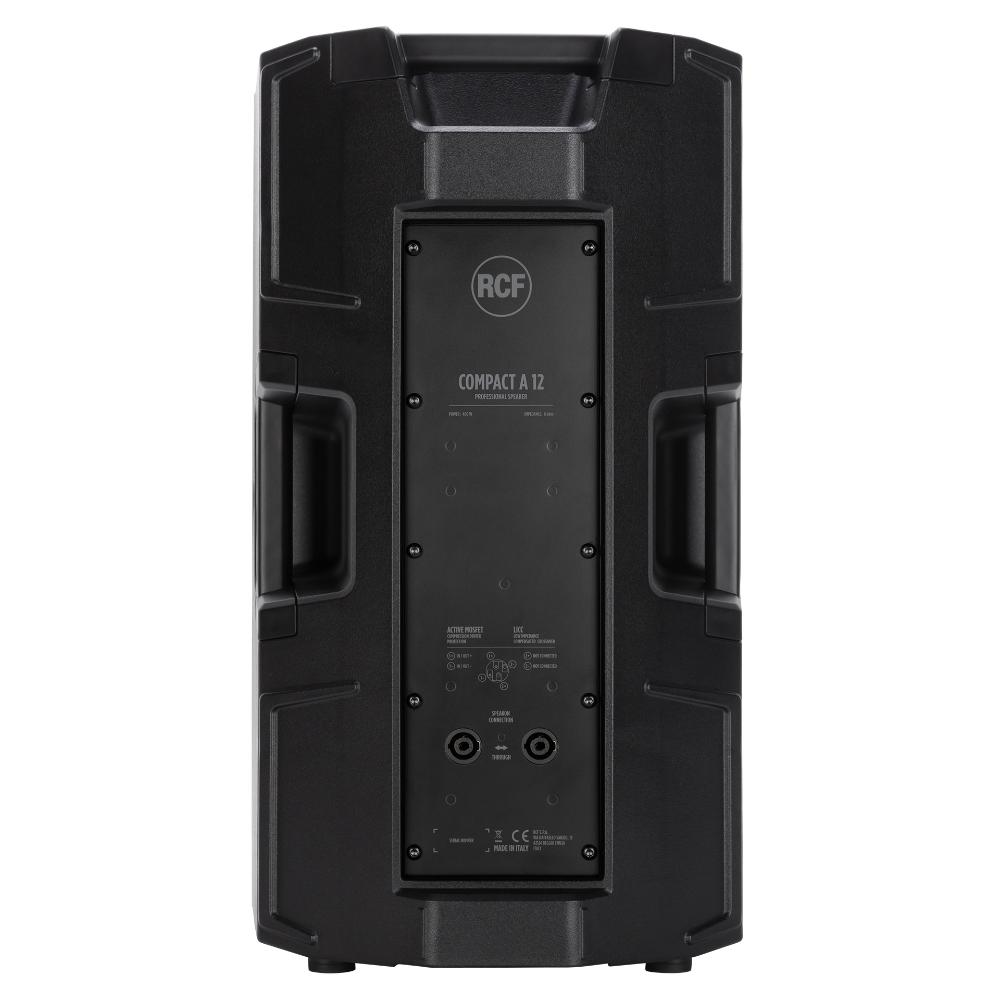

• Input connectors: Speakon
• Output connectors: Speakon
• Cabinet/enclosure material: PP composite
• Hardware: 1 x M10 top, 1 x M10 on each side

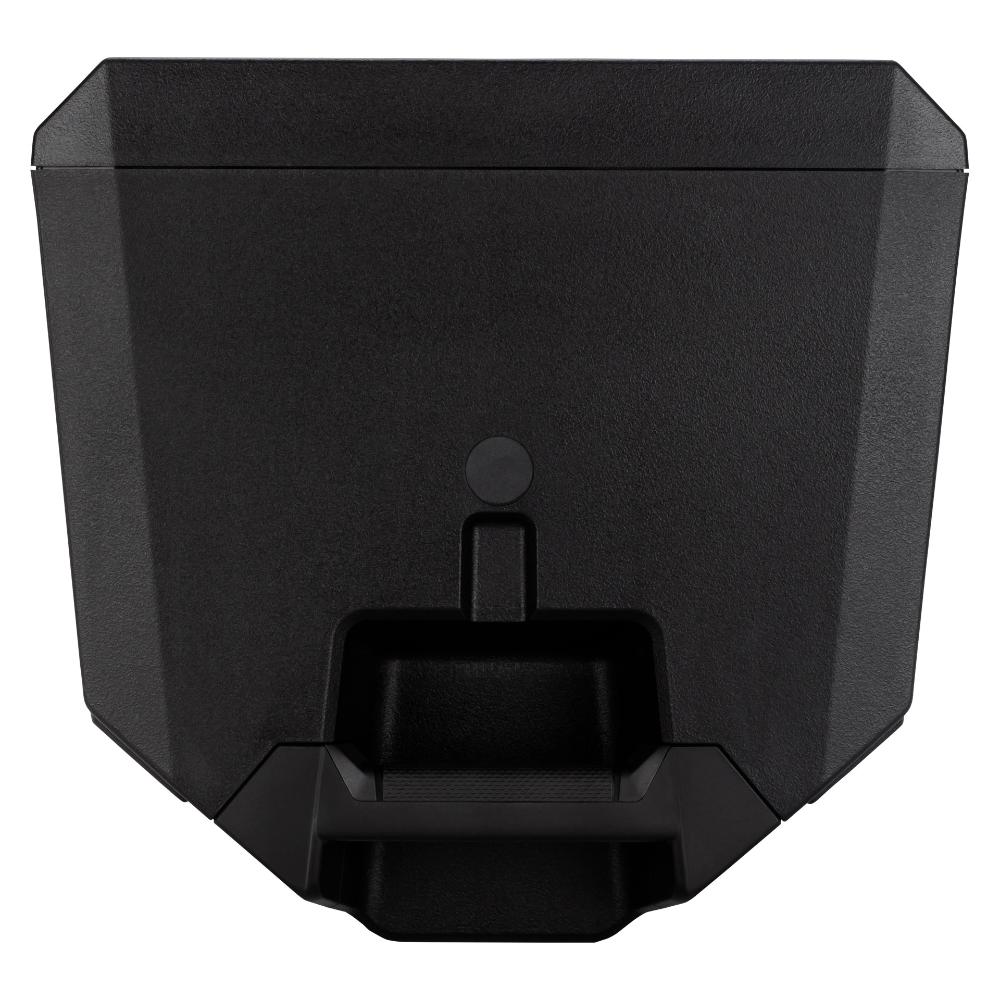

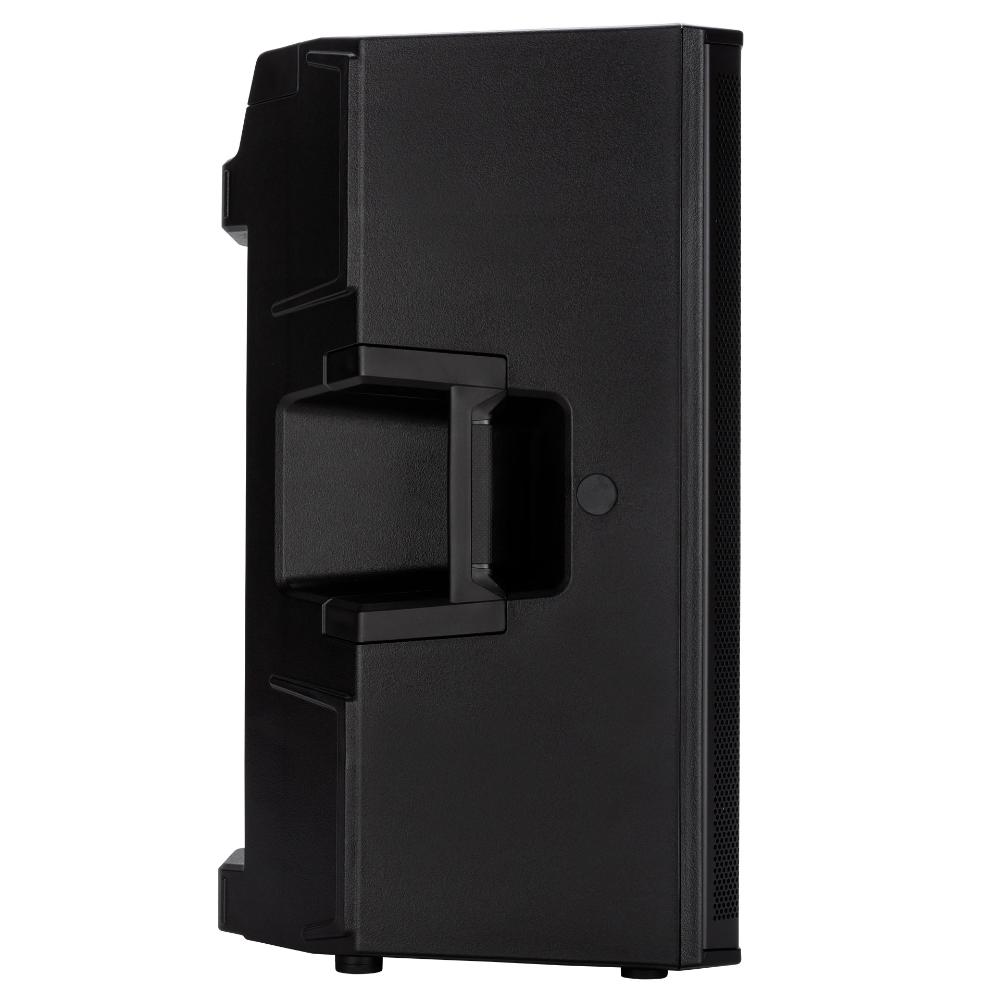

• Handles: 1 top, 1 on each side

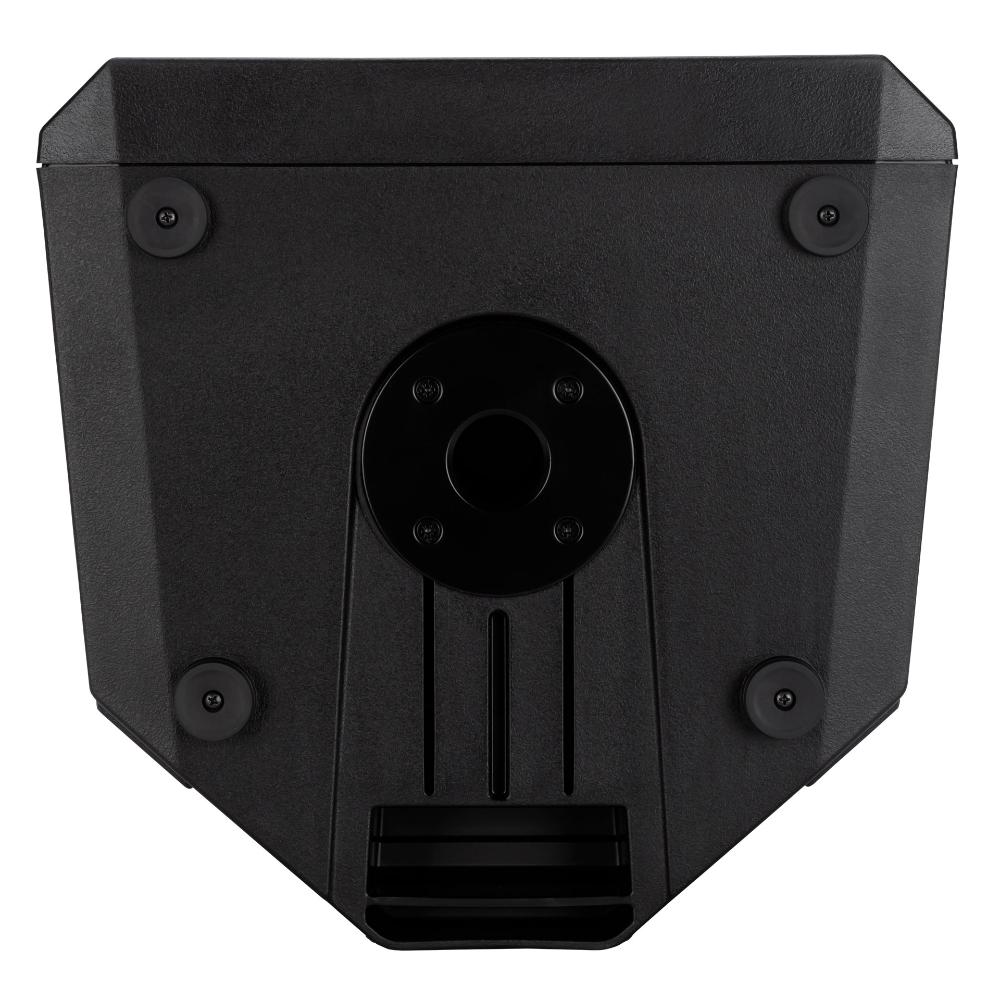

• Pole mount: Yes
• Grille: Steel
• Colour: Black
• Dimensions: 641.6 x 369.9 x 363 mm
• Weight: 18.8 kg
• Delivery dimensions: 685 x 430 x 423 mm
• Delivery weight: 21.4 kg
