RCF COMPACT A-10


Passive Speaker

  • power handling of 350 W RMS, 700 W program, and 1400 W peak.
  • high sound pressure level up to 128 dB for powerful audio output.
  • linear frequency response from 60 Hz to 20 kHz for versatile applications.
  • robust composite cabinet with steel grille for durability and protection.
  • multiple mounting options for easy installation on poles or walls.
RCF
45179
Currently unavailable. Request details
Central warehouse: 0
Add to cart
2340 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

RCF COMPACT A-10, passive speaker, multifunctional, suitable for live sound, stage monitoring and installed systems. The combination of a 1.75-inch compression driver, a 10-inch woofer and the True Resistive waveguide with constant directivity produces a coherent coverage of 100° x 60° for the listening area with high SPL, distortion-free sound. The sleek and lightweight cabinet uses a special composite polypropylene material, with internal M-brace reinforcement, making it easy to transport and securely mount on a pole, wall or truss, using multiple mounting points and available accessories.

Features:

  • Power handling:
    • 350 W RMS
    • 700W program
    • 1400W peak
  • Sound pressure level up to 128 dB
  • Linear frequency response 60 - 20,000 Hz
  • 1.75" compression driver
  • High power 10" woofer
  • Robust composite material cabinet
  • Front grille made of steel
  • Optional mounting accessories
  • 2 x SPEAKON connectors

Technical Specifications:

  • Frequency response: 60 - 20,000 Hz
  • Max SPL at 1 m: 128 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 60°
  • System sensitivity: 97 dB
  • Amplification: Full Range
  • Nominal impedance: 8 ohms
  • Power handling:
    • 350 W RMS
    • 700W program
    • 1400W peak
  • Recommended amplification: 700 W
  • Protection: Dynamic active Mosfet
  • Crossover frequency: 1400 Hz
  • Compression driver: 1.0'', 1.75'' v.c
  • Woofer: 10'', 2.5'' v.c

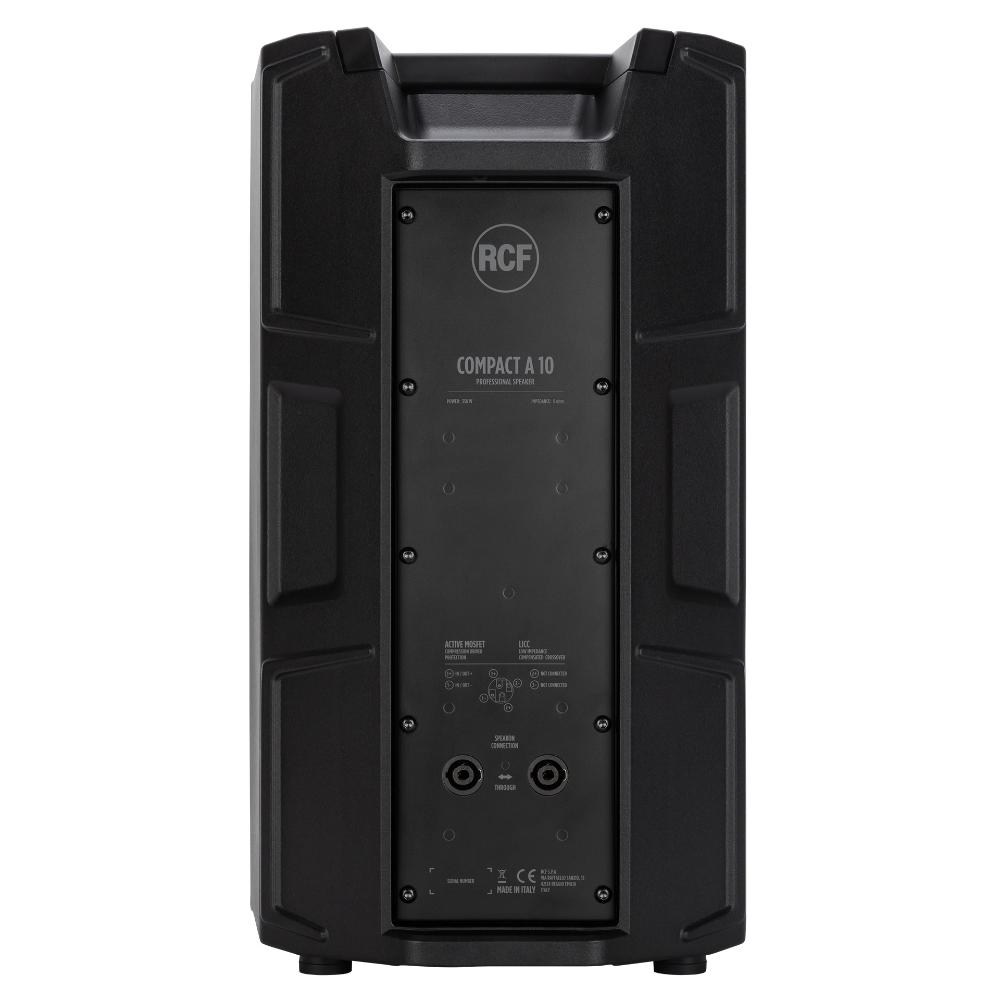

  • Input connectors: Speakon
  • Output connectors: Speakon
  • Cabinet/enclosure material: PP composite

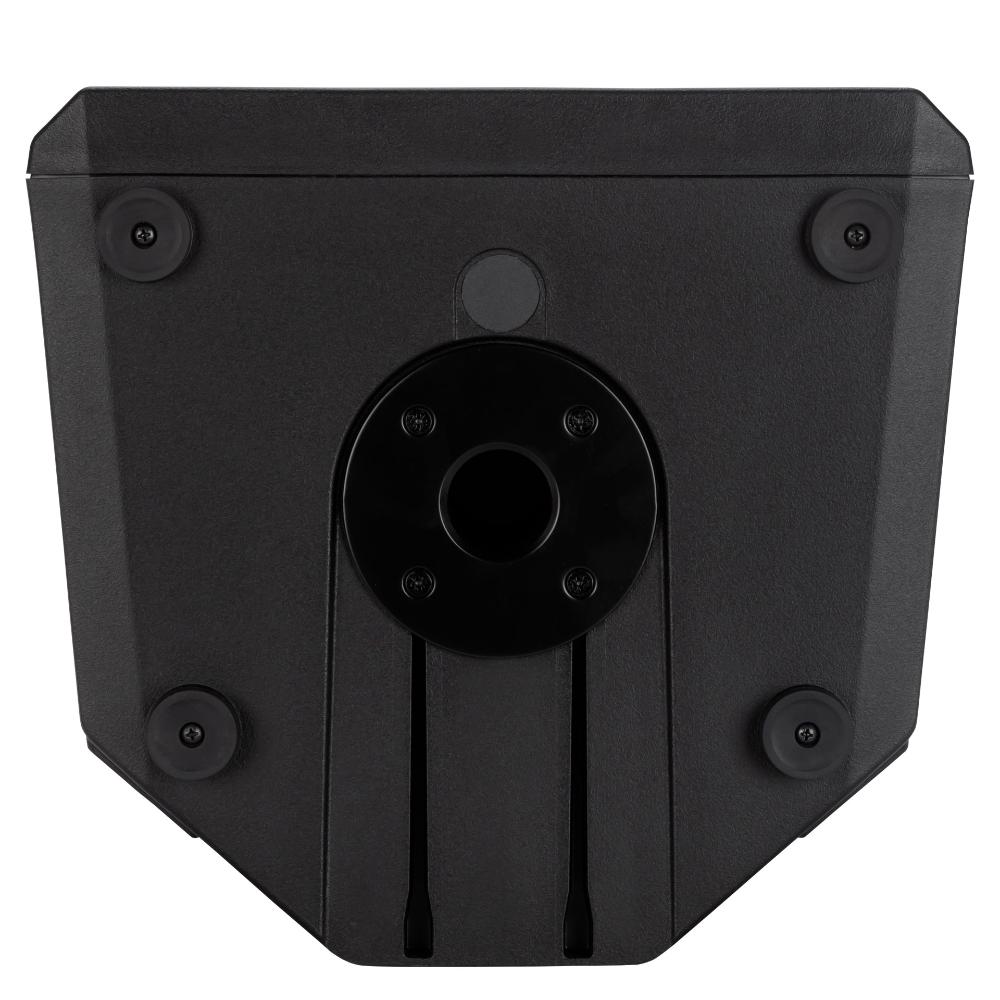

  • Hardware: 1 x M10 top, 1 x M10 bottom
  • Handles: 1 top
  • Pole mount: Yes
  • Grille: Steel
  • Colour: Black
  • Dimensions: 572.1 x 329.9 x 310 mm
  • Weight: 16.2 kg
  • Shipping dimensions: 616 x 370 x 390 mm
  • Shipping weight: 18.2 kg

Product code: 13000738

Unit of sale: piece

Specifications:
Impedance: 8 Ohmi
Enclosure: plastic
RMS manageable power: 350 W
Mid-bass speaker: 10"
