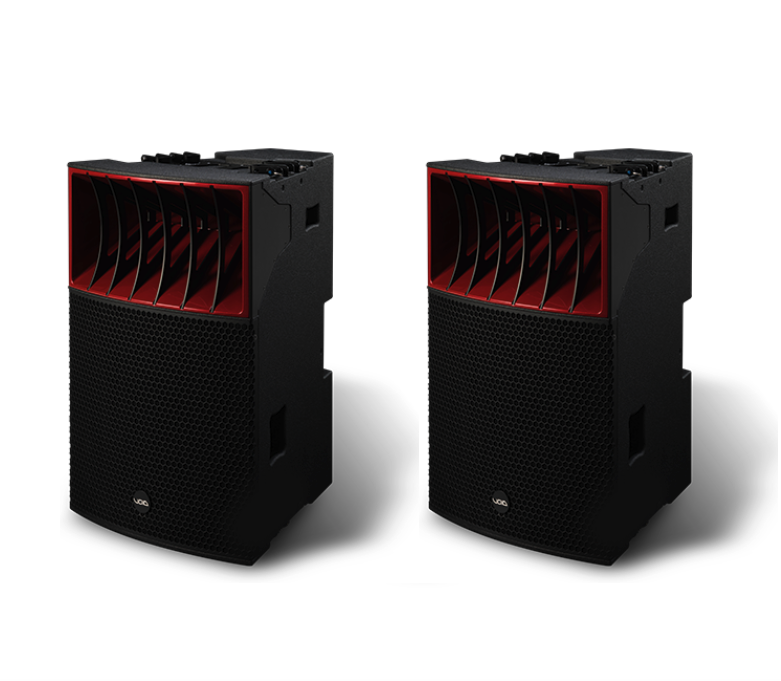

VOID Acoustics Arclite - 2 pieces w/ rigging w/ flightcase – A pair of speakers, usable in horizontal or vertical Array configurations, designed to be paired with the Arcline 218 and 118 subwoofers.
Arclite operates as an active two-way and three-way point source driver. A true point source alternative to the Arcline 8, providing scalability with maximum efficiency and coherence.
Specifically designed for audio integrators and sound engineers, with a focus on touring, it guarantees predictable behaviour in the most challenging applications. The dispersion of an array and sound pressure levels can be precisely configured to best meet any requirements.
- Set consisting of 2 speakers, Array mounts & transport case
- Active system, 3-way architecture
- Can be used for horizontal / vertical Array configurations (see guide HERE)
- INCLUDES:

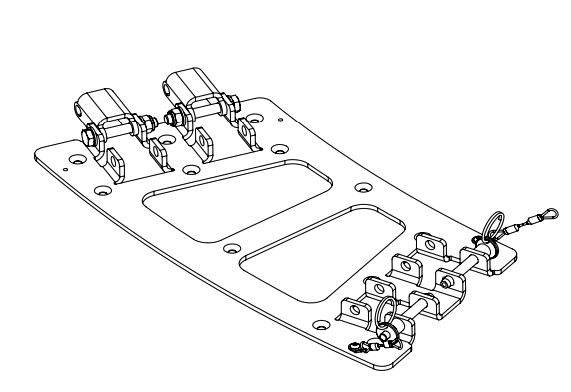

- Mounts for horizontal Array configurations
- Solid transport case with metal edges & shock-resistant construction
- Blank plate for use without mounting
- Frequency response: 45 Hz - 18 kHz ±3 dB
- Efficiency:
- Mid-high frequencies: 113 dB 1 W / 1 m
- Low frequencies: 98 dB 1 W / 1 m
- Nominal impedance:
- Low Frequencies: 8 Ω
- Mid-high Frequencies: 16 Ω
- Power handling:
- Low Frequencies: 1000 W
- Mid-high Frequencies: 190 W
- Maximum power:
- 133 dB Continuous
- 139 dB Peak
- Driver configuration:
- 1 x 15 woofer
- 1 x 4” mid driver
- 1 x 2.5” high driver
- Dispersion: 35° H x 60° V (25° up - 35° down)
- Connectors:
- 2 x speakON™ NL4 with 4 poles
- Enclosure: 15 mm birch plywood
- Mounting: Ground or suspended
- Finish: Textured “TourCoat” polyurethane
- Weight per piece: 44 kg
