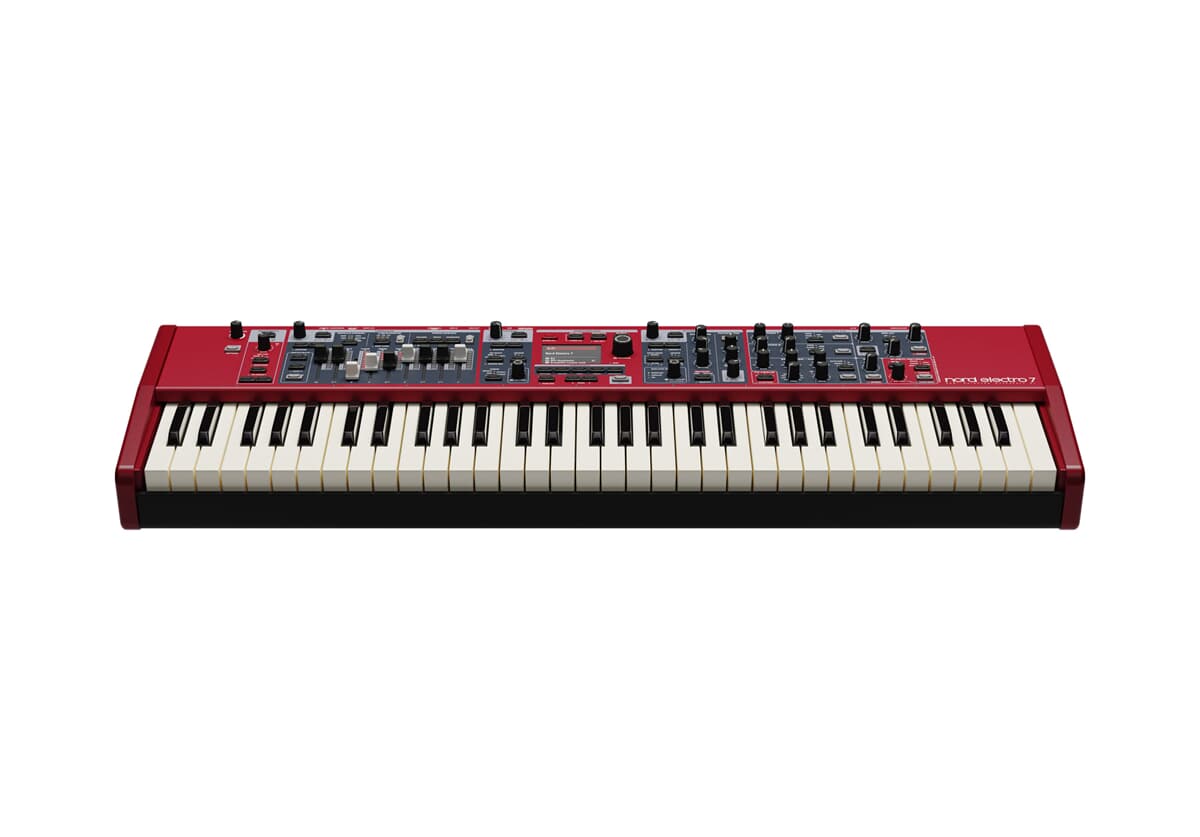

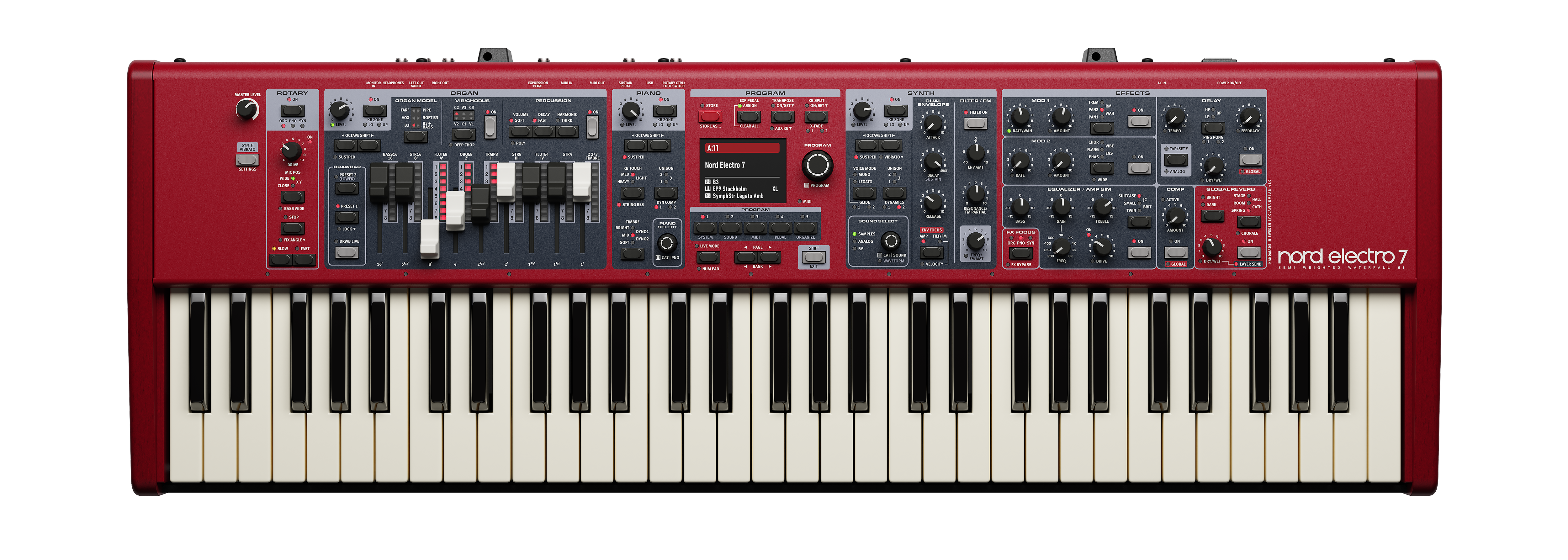

Nord Keyboards Electro 7 - 61

Nord Keyboards Electro 7 – 61 - Professional stage organ with semi-weighted waterfall keyboard, dedicated to musicians seeking authentic organ, piano and synthesizer sounds in a single compact instrument, quick to set up and extremely expressive in every way. With physical drawbars, a new colour screen and organ engine taken from the Nord Organ 3, the Electro 7 is a modern standard for stage and studio.

• 61 semi-weighted keys waterfall keyboard

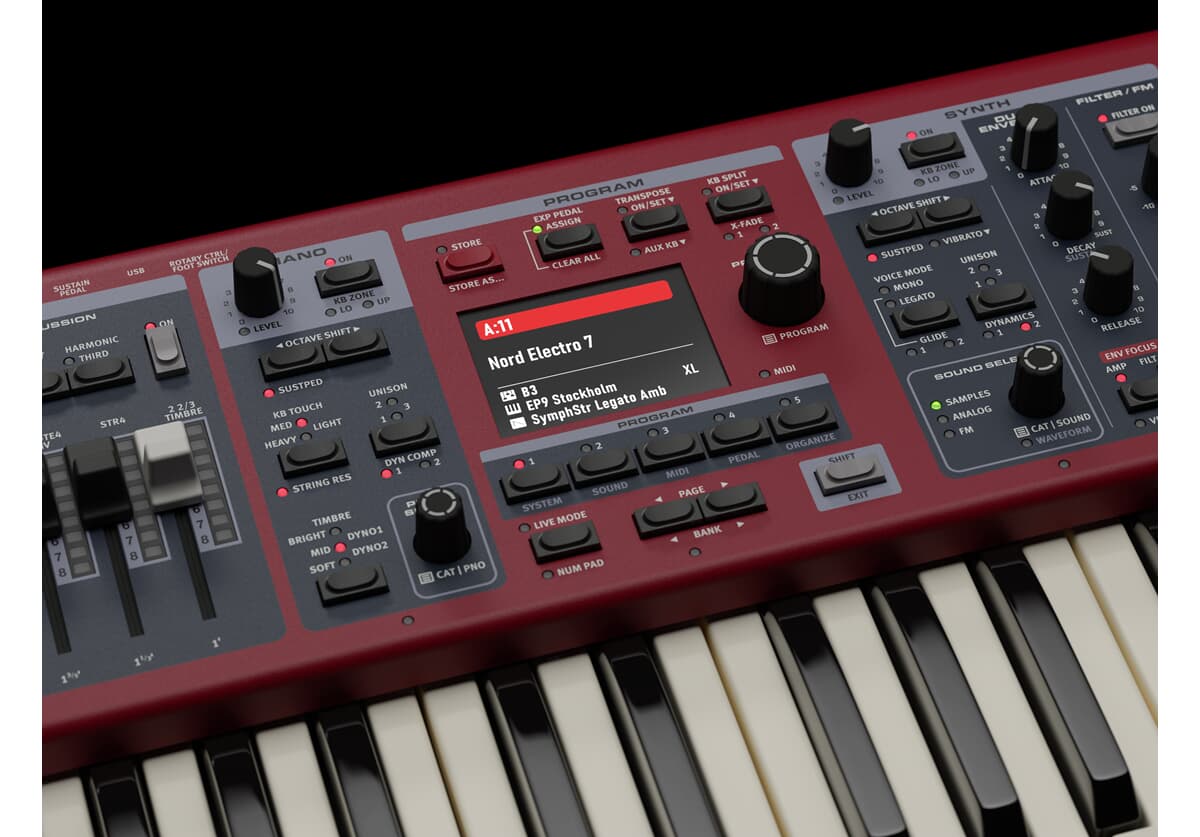

• New panel design with large, clear and easy-to-read colour screen
• Fast and intuitive interface, optimised for live use
• Physical drawbars with LEDs for authentic organ control
• Nord Organ 3 engine with B3, Vox, Farfisa and Pipe models
• Advanced Rotary Speaker emulation with multiple microphone positions
• Piano sounds from the Nord Piano Library, with realistic dynamic response
• Dynamic Compression, Unison and Timbre for enhanced expressiveness
• New Synth section with Analog, FM and Sample sounds
• Mono, Legato and Glide modes for expressive control
• Low-Pass filter with resonance and dedicated envelope
• Dedicated effects for organ, piano and synth
• New reverb, delay, modulation and amplifier simulations
• Assignable Expression Pedal for synth parameters and effects
• Fluid transitions between sounds, without interruptions
• Splits and layers with crossfade
• Semi-weighted waterfall keyboard (61 keys) for comfort and speed
• Lightweight and portable construction, ideal for stage and studio
• Complete connectivity: audio, MIDI, USB
• 500 memory programs + Live Mode
• Made in Sweden, Nord professional standard

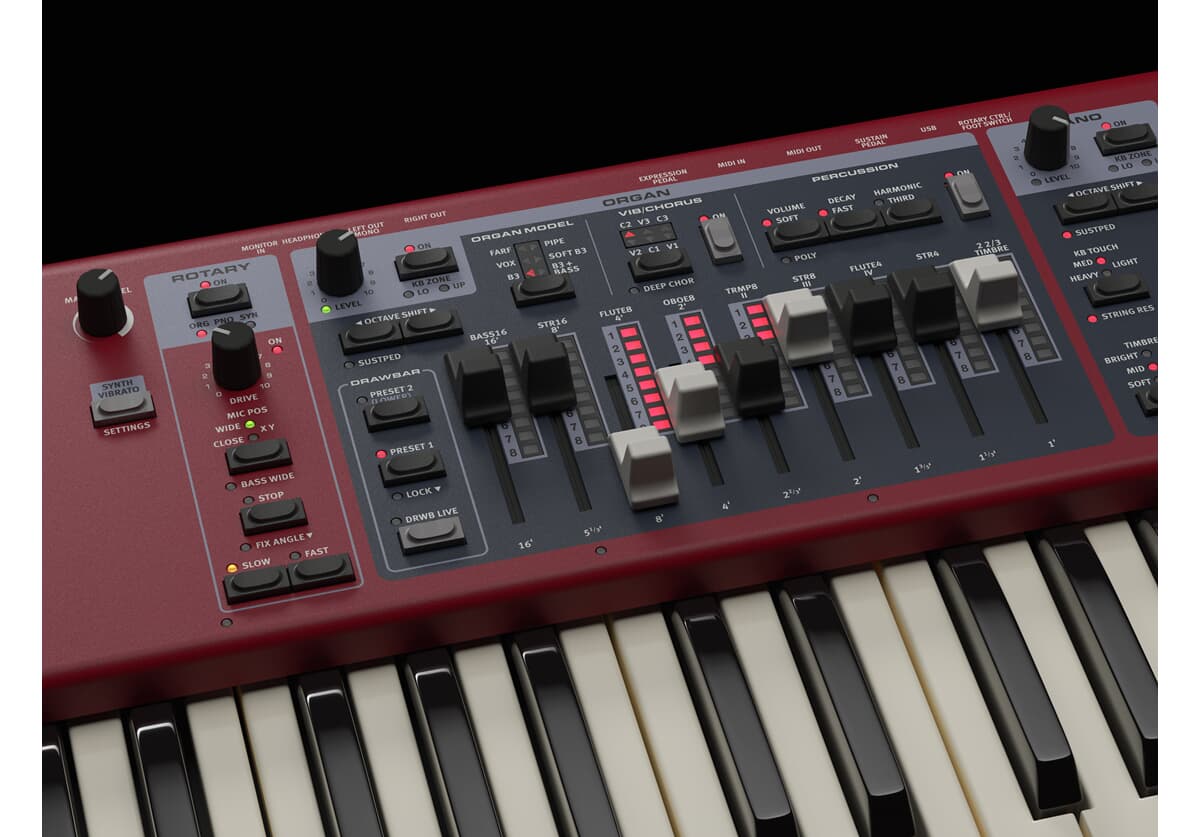

Organ Section

• Models: B3, B3 + Bass, Soft B3, Vox, Farfisa, Pipe
• Organ engine from Nord Organ 3
• Nord Organ 3 Rotary Speaker emulation
• 3 microphone positions: Close, Wide, XY
• Vibrato/Chorus with B3 Deep mode
• Adjustable control for percussion (level and decay)
• 3 tonewheel modes (vintage level)
• Physical drawbars + manual presets
• Mounting for Half-Moon Switch

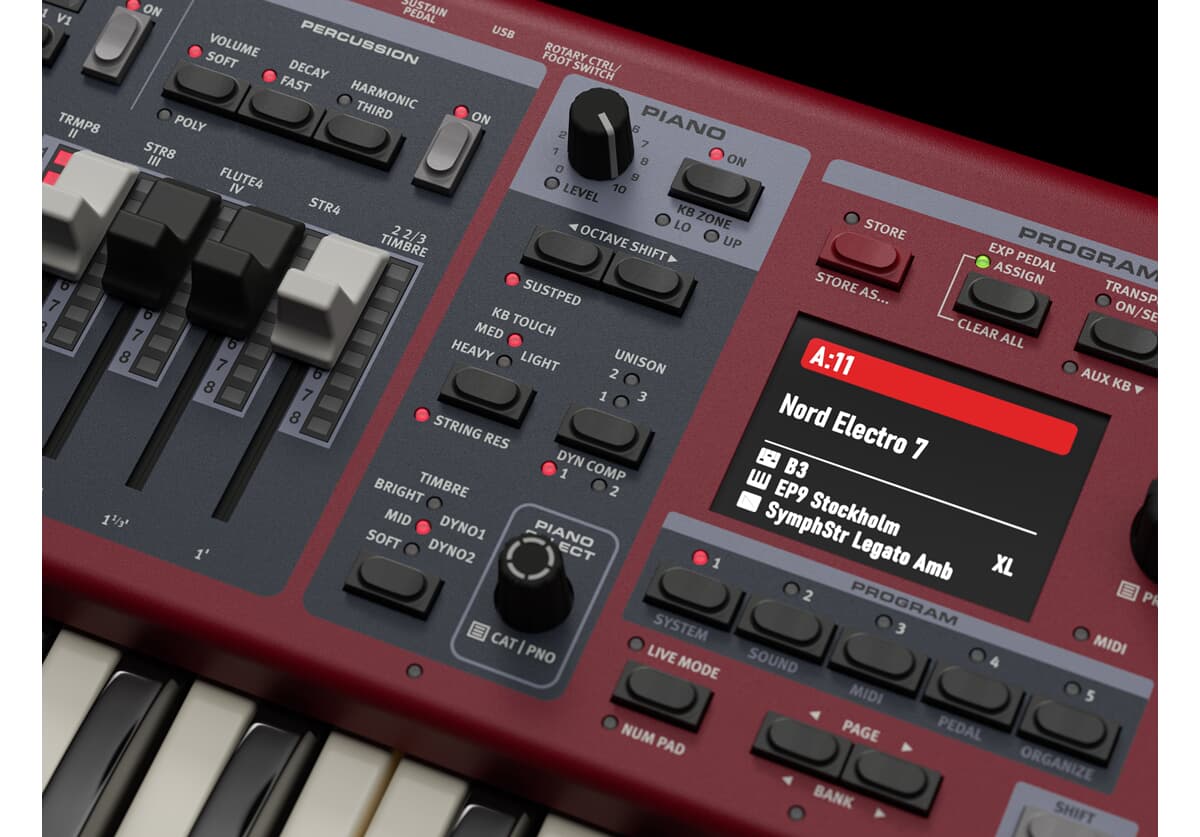

Piano Section

• Compatible with Nord Piano Library
• Categories: Grand, Upright, Electric, Digital/Layer, Clav, Harpsichord, Mallet
• 120 voices polyphony
• String Resonance
• Dedicated timbres for each type of piano
• Dynamic Compression
• Unison (3 levels)
• 3 KB Touch settings

Synth Section

• Synthesis: Sample, Analog, FM
• Compatible with Nord Sample Library
• 30+ voices polyphony
• Low-pass filter with resonance
• Dual Envelope for Amp and Filter/FM
• FM Partial & FM Amount
• Mono, Legato, Glide
• Vibrato with rate, intensity and adjustable delay
• Unison (3 levels)

Effects

• Dedicated effects for each section (Organ / Piano / Synth)
• Modulation FX with Rate & Amount control
• New Spring Reverb (placed before Rotary)
• Amp simulations: Twin, Small, Suitcase, JC, Brit
• 3-band EQ with sweepable mids
• Delay with Tap Tempo, Ping-Pong, Analog mode
• Global Compressor mode
• Global reverb: Spring, Room, Stage, Hall, Cathedral
• Separate reverb control per layer

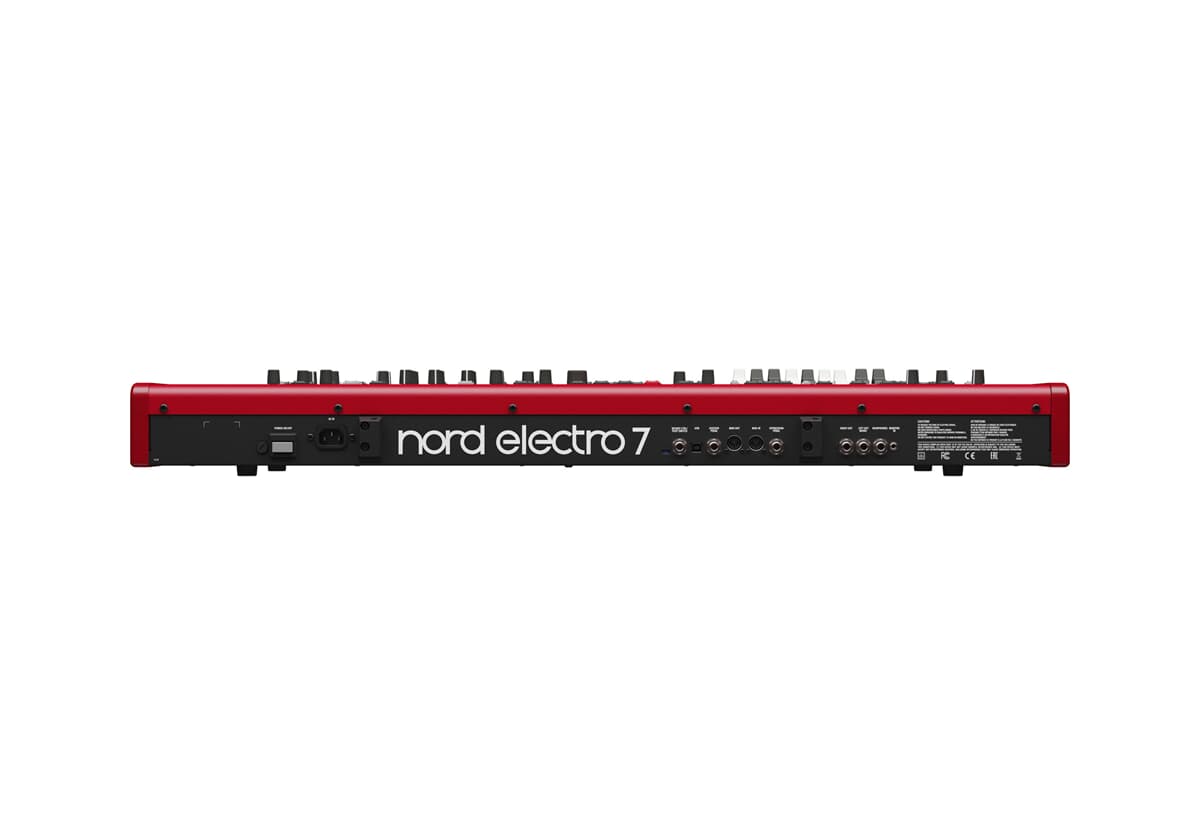

Connectivity

• Audio L/R outputs – 6.35 mm jack (unbalanced)
• Headphone output – 6.35 mm jack
• Monitor input – 3.5 mm stereo jack
• Expression pedal input – 6.35 mm TRS jack
• Sustain input – 6.35 mm jack
• Footswitch / rotary control input – 6.35 mm jack
• MIDI In / Out – 5-pin DIN
• USB Type-B (MIDI, update, sound transfer)
• IEC C14 power supply

Memory & Control

• 20 banks × 25 programs = 500 locations
• Live Mode: 5 live programs
• Global transpose ±6 semitones
• Fine tune ±50 cents
• Aux Keyboard (external keyboard)

Dimensions & Weight

• Product dimensions: 901 × 104 × 307 mm
• Weight: 8.4 kg

Included Accessories

• User manual
• Power cable
