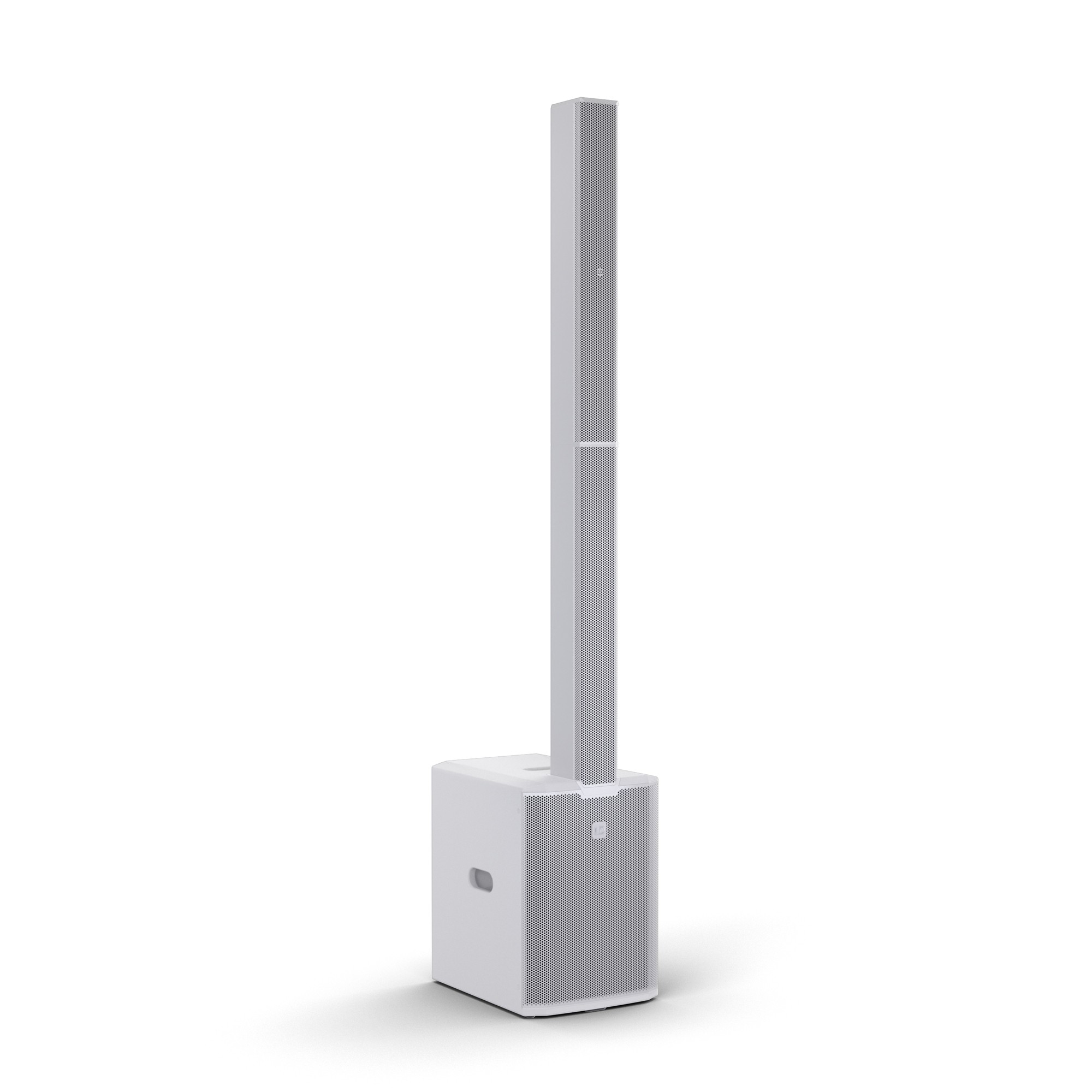

LD Systems MAUI 28 G3 MIX W

LD Systems MAUI 28 G3 MIX W – Compact PA system that is easy to install, offering a digital mixer with 6 channels and integrated effects, perfect for events of various sizes. With a power of 1030 W RMS and 2060 W peak, the system ensures a maximum SPL of 127 dB and an extended frequency range from 37 Hz to 20,000 Hz.

Its wide dispersion of 120° x 30° and cardioid column ensure uniform and controlled coverage, while DynX DSP technology (2nd Generation) guarantees clear reproduction, even at high volumes. Wireless streaming is possible via Bluetooth 5.0, and settings are automatically detected for easy operation.

Additionally, assembly is quick and does not require special supports, while the robust birch multiplex housing and lightweight aluminium poles provide excellent durability.

• PA system with subwoofer & column, integrated 6-channel mixer
• Power: 1030 W RMS, 2060 W peak
• Max SPL: 127 dB
• Frequency range: 37 - 20,000 Hz
• Dispersion (H x V): 120° x 30°
• Cardioid column
• Speakers:
  • 12” woofer
  • 12 x 3.5” full-range speakers
  • 2 x 1” high-frequency drivers
• Optimised bass reflex design
• Optimised BEM HF waveguide and phase plugs
• Protection circuits:
  • short circuit
  • multiband limiter
  • DC current protection
  • overheating protection
• DynX DSP (Gen.2) for distortion-free playback at high volumes
• Connections:
  • Mic/Line/Hi-Z input: 2 x combo XLR/jack
  • Stereo line input: 2 x combo XLR/jack
  • Sub and System output: XLR
  • Monitor output: 2 x XLR
• Wireless streaming via Bluetooth 5.0 with AAC encoding
• Digital mixer with 6 channels, integrated effects, with footswitch input
• Can be combined with a second MAUI 28 G3 subwoofer for extended subwoofer configuration
• Subwoofer housing made of birch multiplex, finished with polyurethane
• Lightweight aluminium poles
• Dimensions
  • subwoofer: 370 x 527 x 472 mm
  • column: 103 x 1540 x 135 mm
• Weight:
  • subwoofer: 23.6 kg
  • column: 12.6 kg
• Total weight: 36.2 kg
• Colour: white
