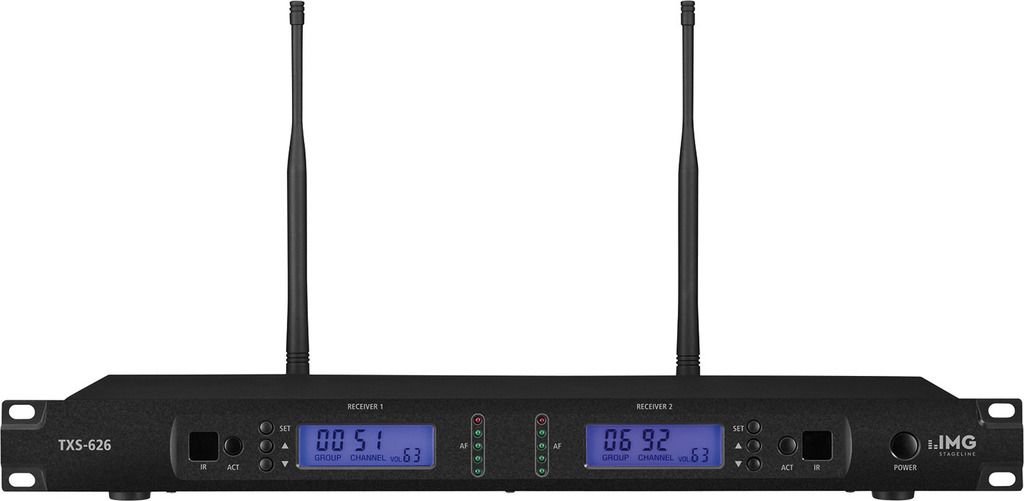

img Stage Line TXS-626

StageLine TXS-626, wireless receiver with 2 channels and multiple frequencies, UHF PLL technology:

• 1000 selectable UHF frequencies (672.000-696.975MHz) for each channel (10 groups with 100 frequencies)
• ACT function for transmitting the selected frequency via infrared to the pocket transmitter TXS-606LT and microphone TXS-606HT
• automatic frequency scanning
• true diversity system with detachable antennas (BNC connection)
• adjustable volume and squelch for each channel
• individual LCD displays
• XLR outputs for each channel (balanced)
• 6.3mm jack output for mixed signal
• robust metal housing
• included power supply
• RF S/N ratio: 105 dB
• audio frequency range: 30 Hz - 18 kHz
• THD: < 0.5%
• dynamic range: 120 dB
• audio output: 350mV/600Ω (jack); 25mV/600Ω (XLR, bal.)
• dimensions: 482 x 45 x 195 mm, 1 RS
• weight: 1.8 kg
