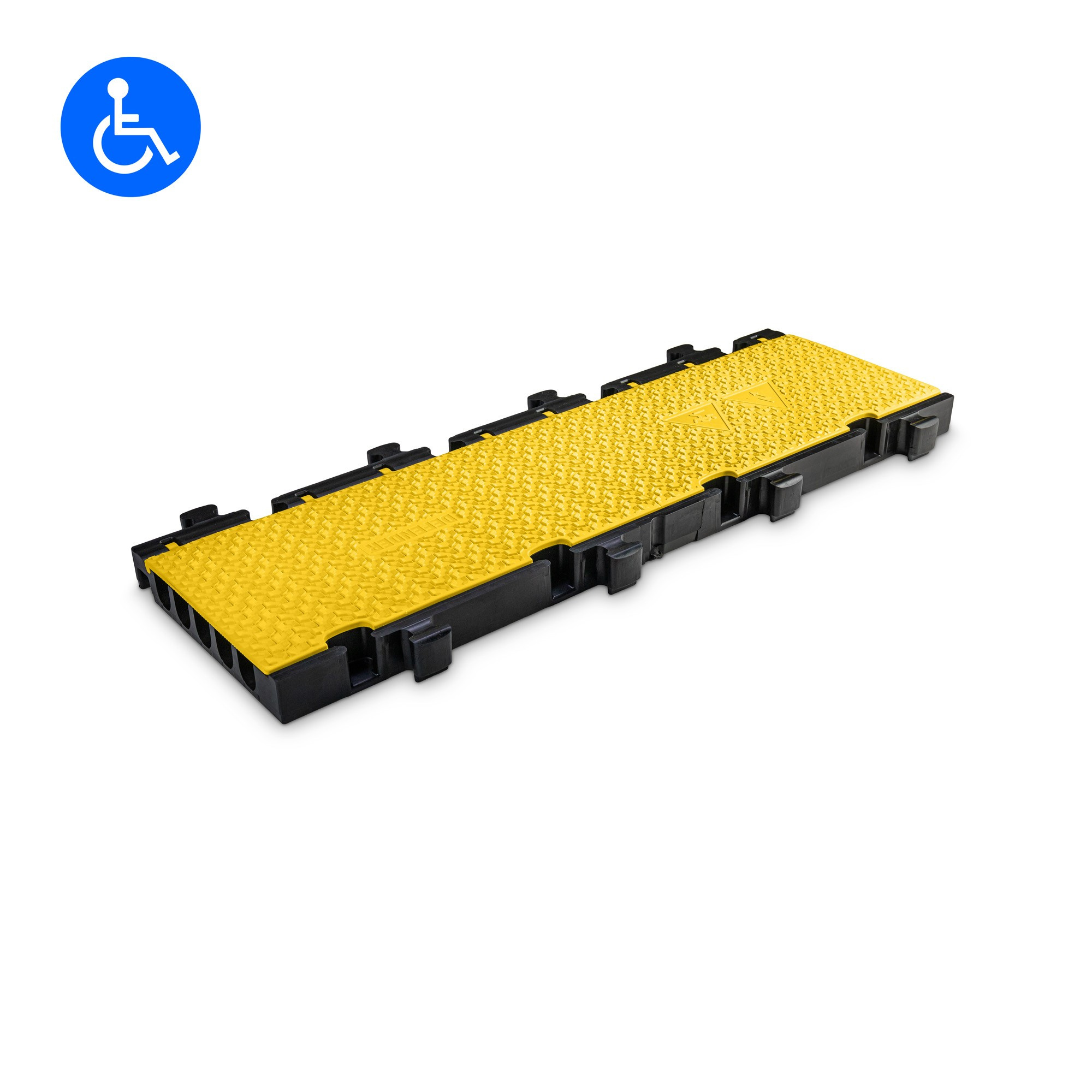

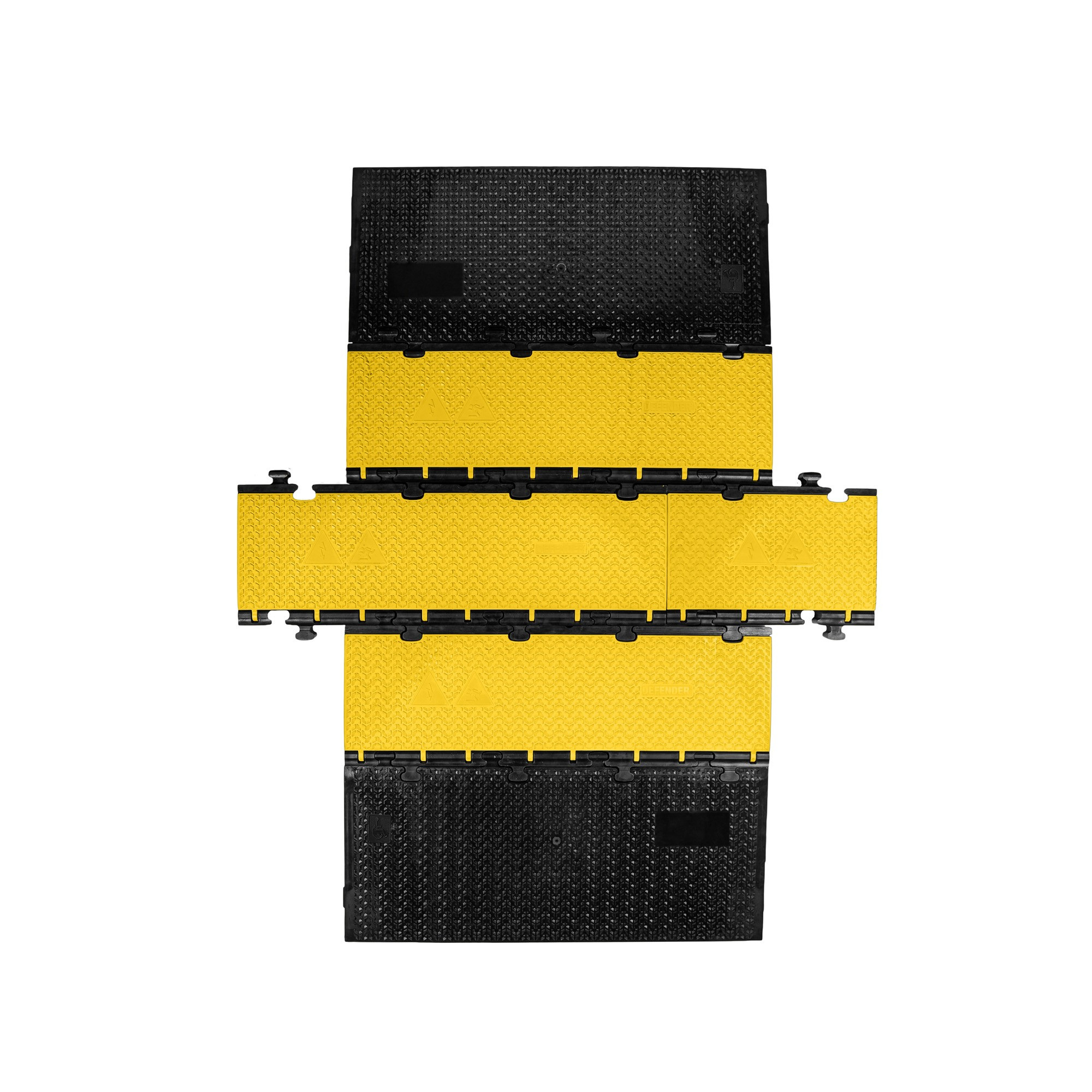

Defender MIDI 5 2D MID SECTION


5-channel modular system

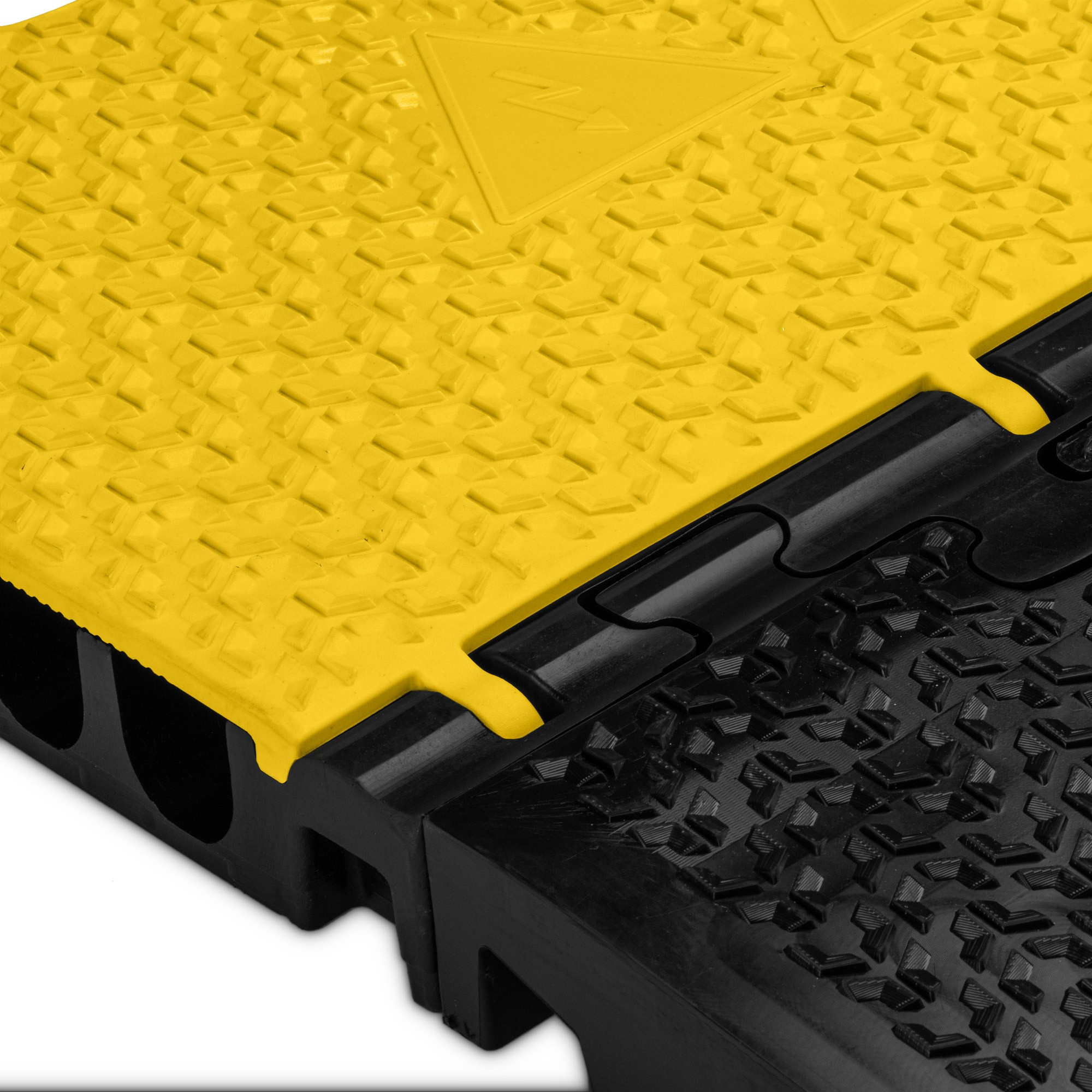

  • heavy-duty all-round cable protector with 3-D Lasergrip anti-slip surface made out of black, recycled polyurethane

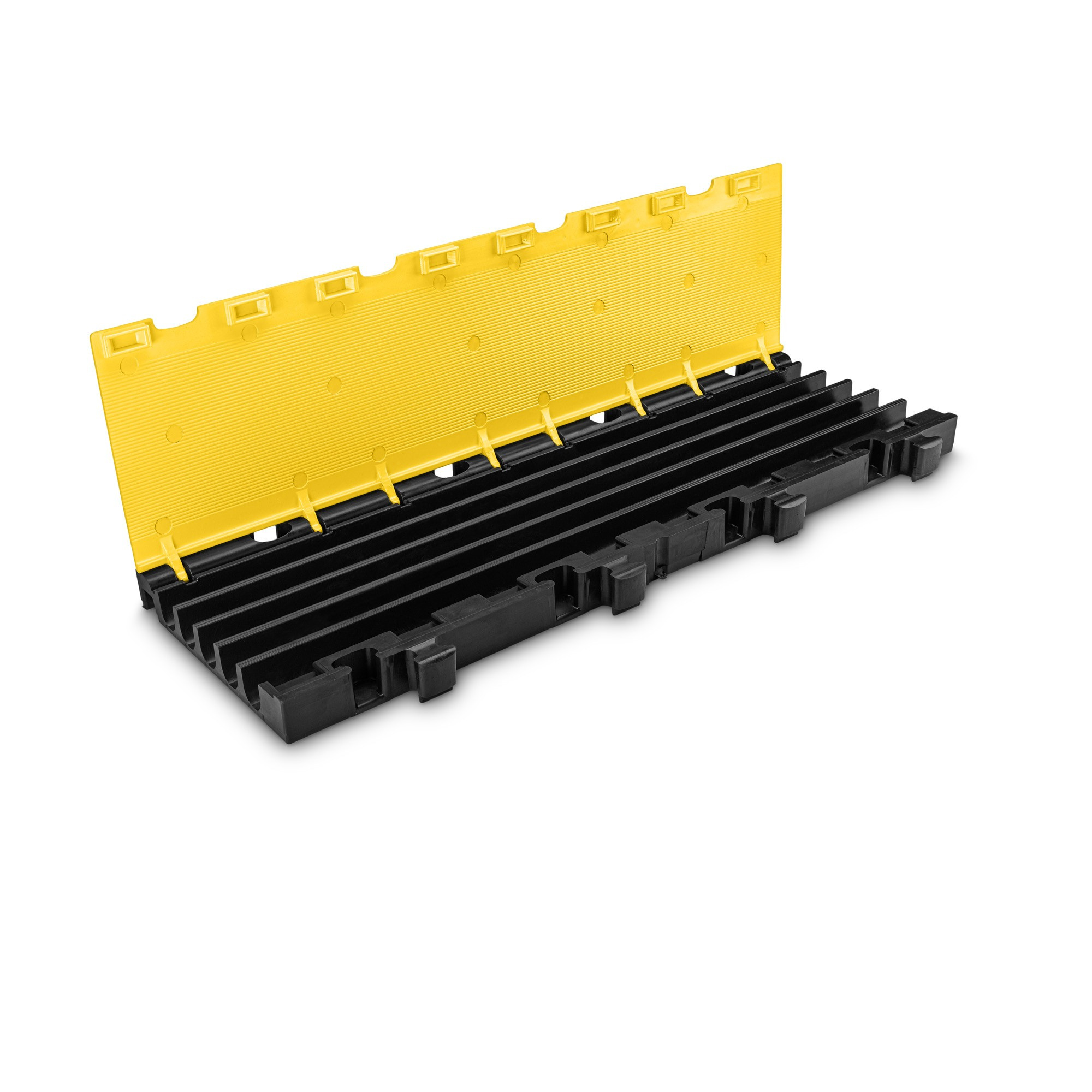

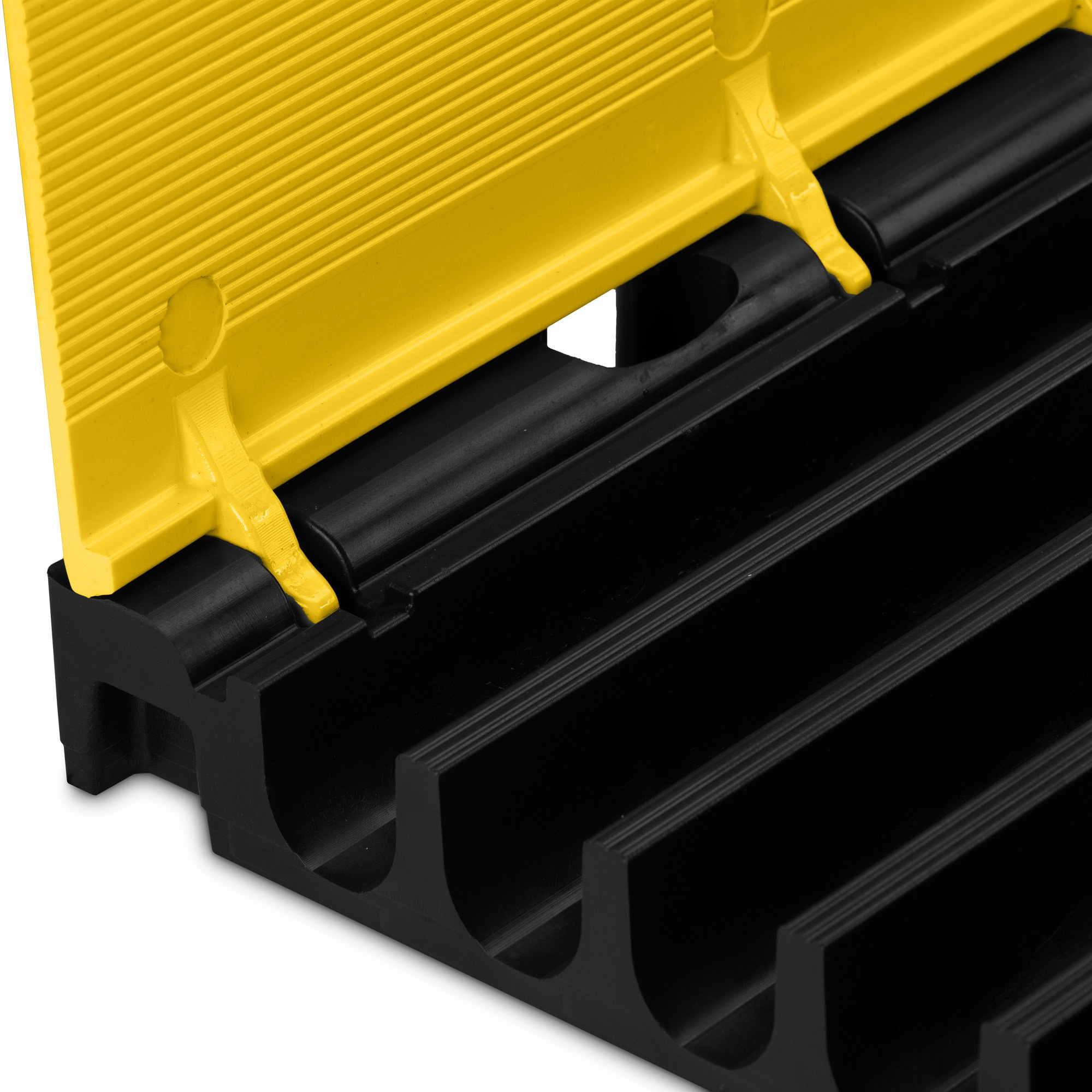

  • yellow, recyclable polyurethane lid with high visibility, secure locking mechanism, self-cleaning system and lid hinge
  • simple, multidirectional modular structure with unlimited expandability in width and length
  • fully compatible with DEFENDER® MIDI cable protectors

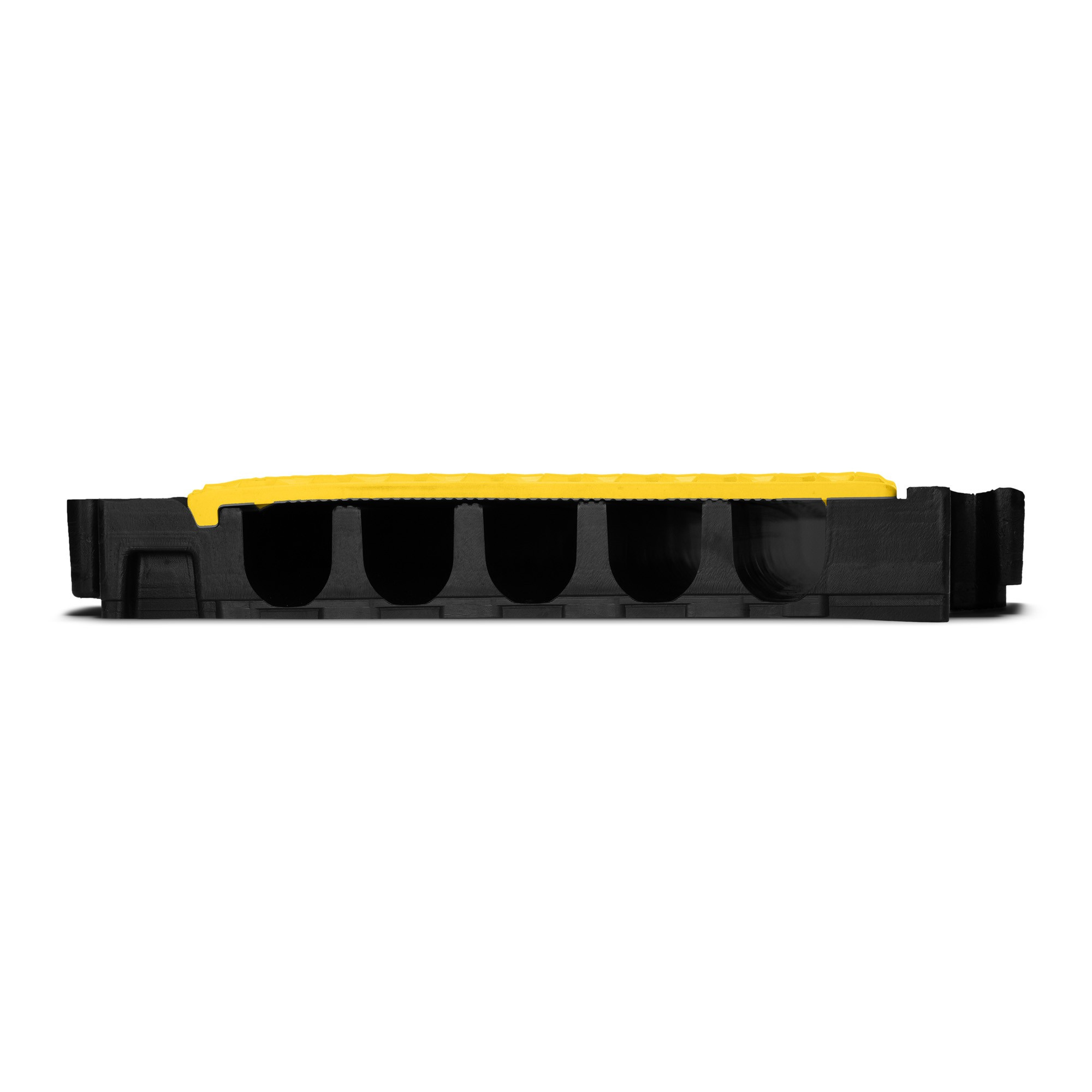

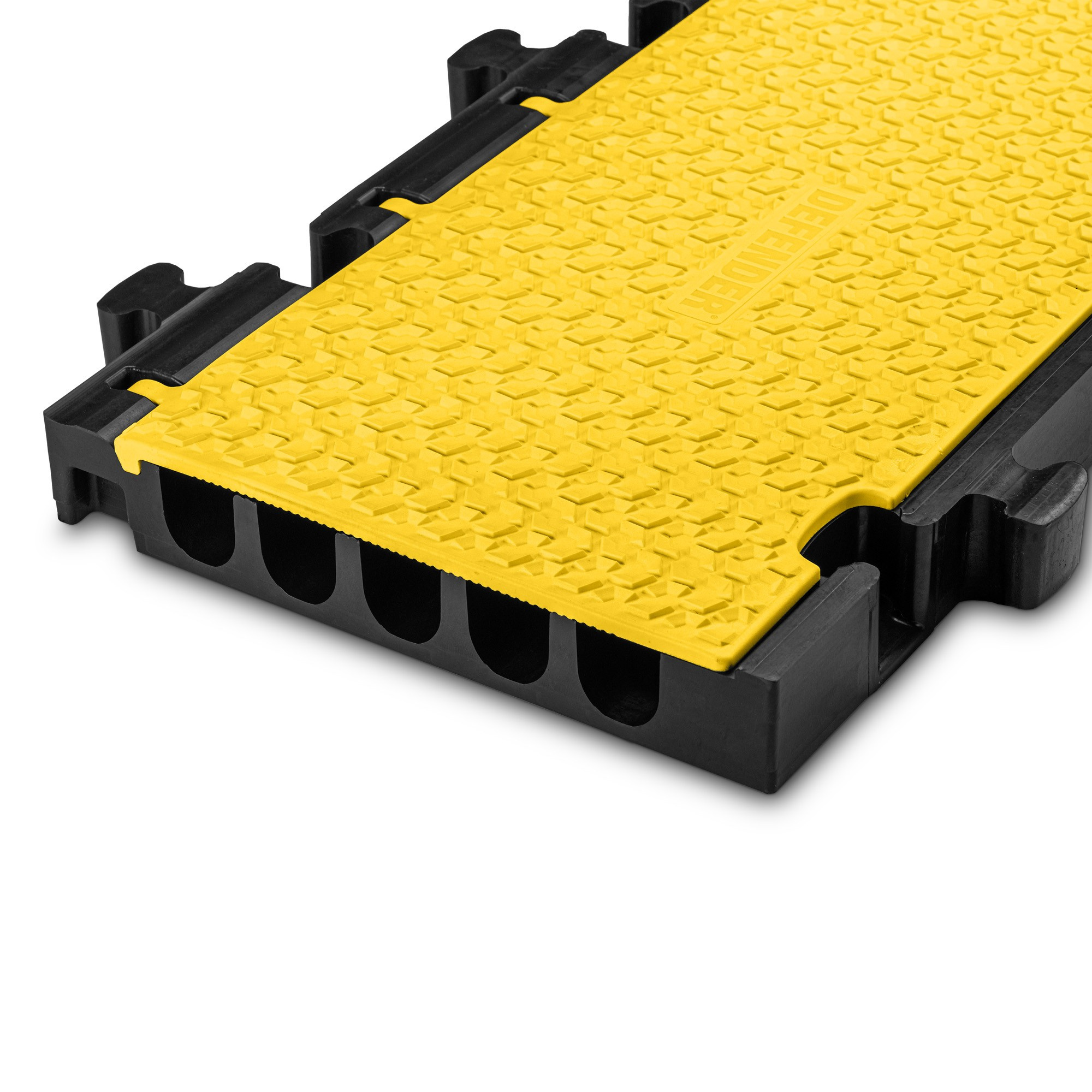

  • five 34,5 × 38,6 mm channels
Defender
Variante:
MIDI 5 2D HALF MID SECTION
MIDI 5 2D HALF MID SECTION
MIDI 5 2D & 3 2D LID | YELLOW
MIDI 5 2D & 3 2D LID | YELLOW
MIDI 5 2D Adapter to MIDI 5 female
MIDI 5 2D Adapter to MIDI 5 female
MIDI 5 2D Adapter to MIDI 5 male
MIDI 5 2D Adapter to MIDI 5 male
MIDI 5 to MINI Adapter male
MIDI 5 to MINI Adapter male
MIDI C BLK
MIDI C BLK
MIDI 5 to MINI Adapter female
MIDI 5 to MINI Adapter female
MIDI 4
MIDI 4
Midi 5 Curve 45
Midi 5 Curve 45
Midi 5 End Ramp
Midi 5 End Ramp
24970
Currently unavailable. Request details
Central warehouse: 0
Add to cart
1304 points of loyalty
Shipping free
Warranty 5 years
Returns 14 days
DEFENDER® 2D M modular systems for wheelchair accessibility

In order to ensure the greatest level of accessibility, the modular DEFENDER® 2D M cable protector was inspired by our popular DEFENDER® MIDI cable protector. The modular system comprises a MIDI-compatible middle section and a flat ramp, which can be expanded and combined as needed, both in terms of length and width. Plus, it's also extremely easy to handle.

Middle section

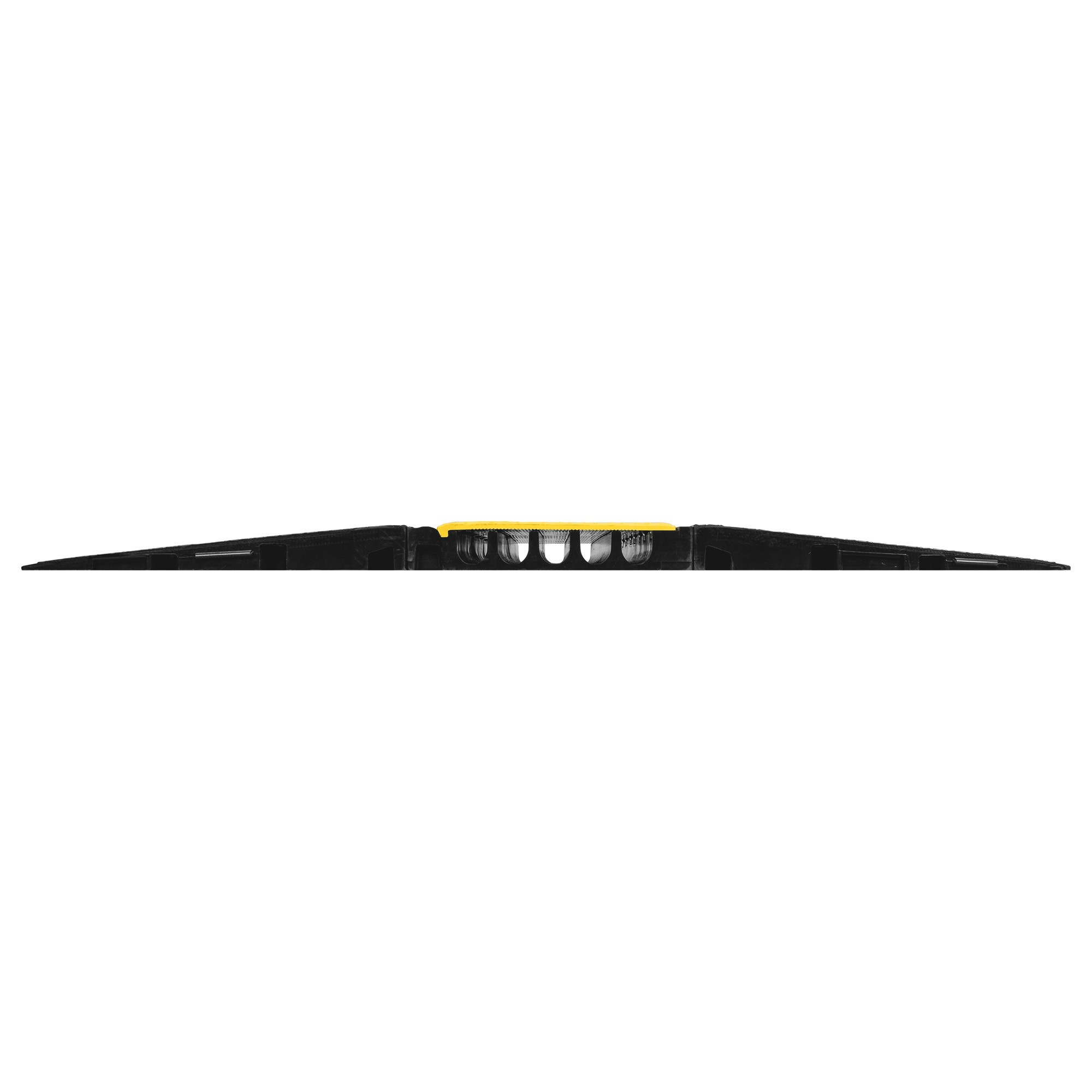

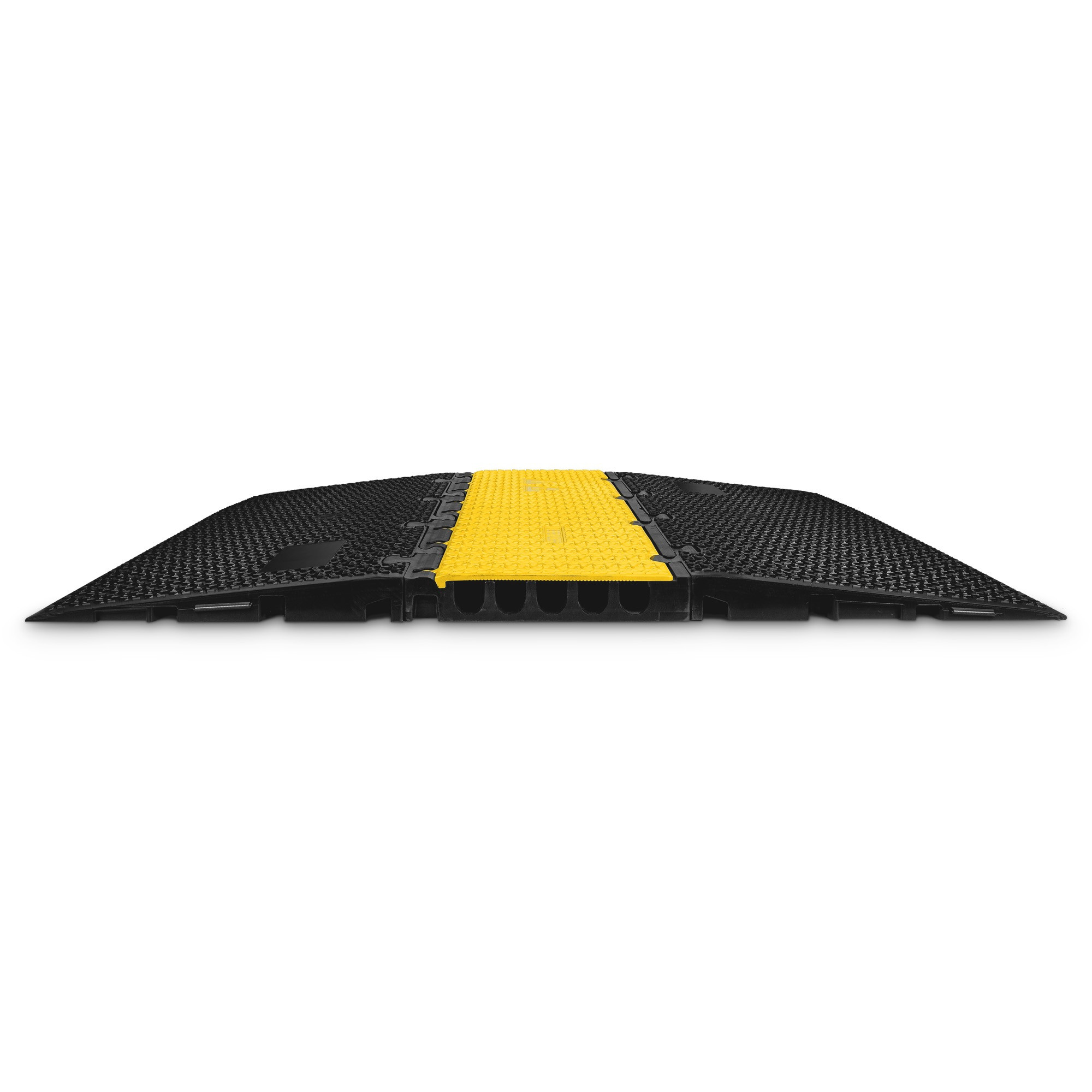

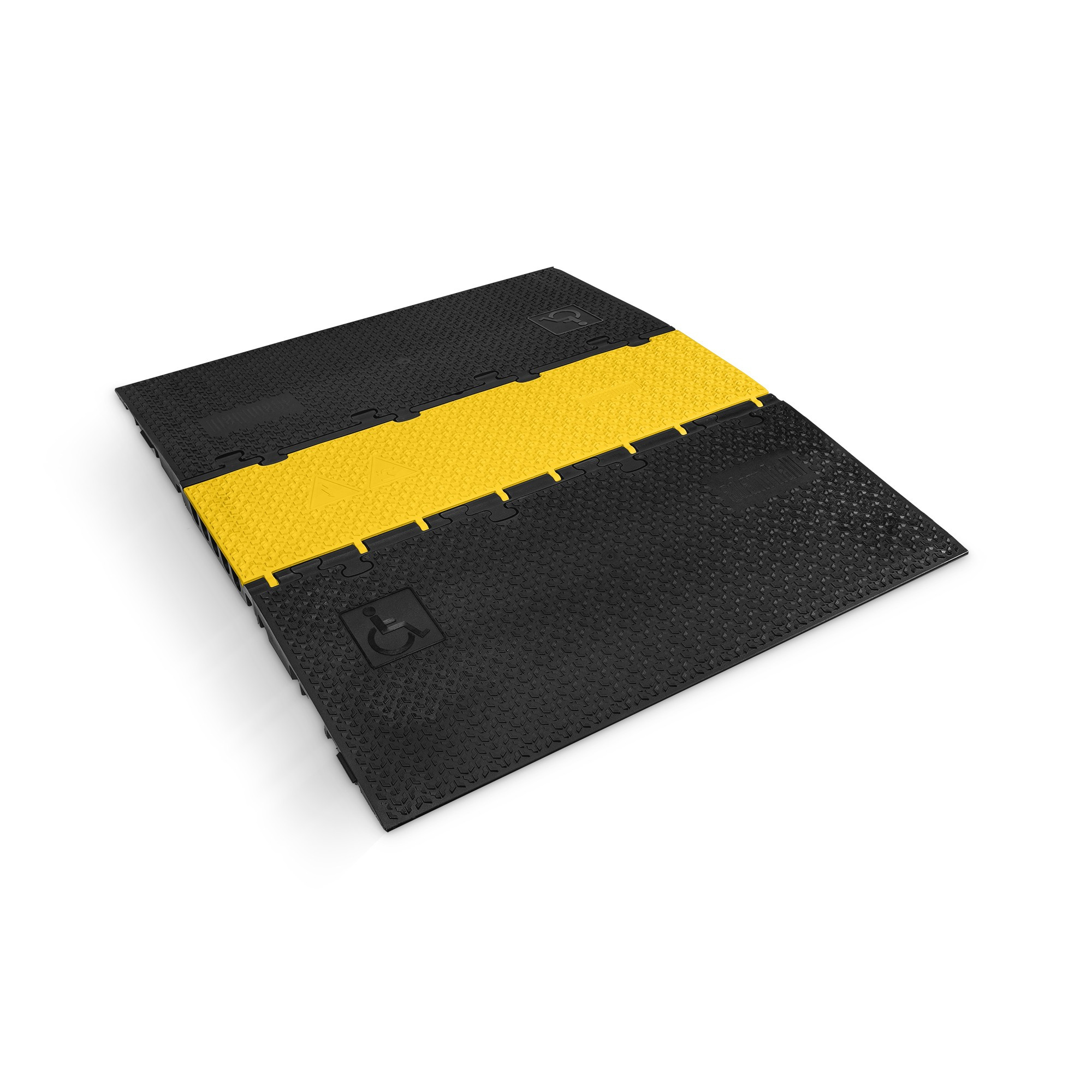

'Accessibility' has become a topic of mounting concern for both public authorities and event organizers over the past few years. With most common cable protector systems, a compromise usually has to be made between wheelchair accessibility and trafficability. But this is not the case with the new DEFENDER® 2D M: each middle section can be equipped with a 6° inclined, wheelchair accessible ramp that can be driven over completely without any problems. The flat incline makes it easy for wheelchair users to roll over the protectors with no trouble at all. They're also so stable that even forklifts and trucks can drive over them.

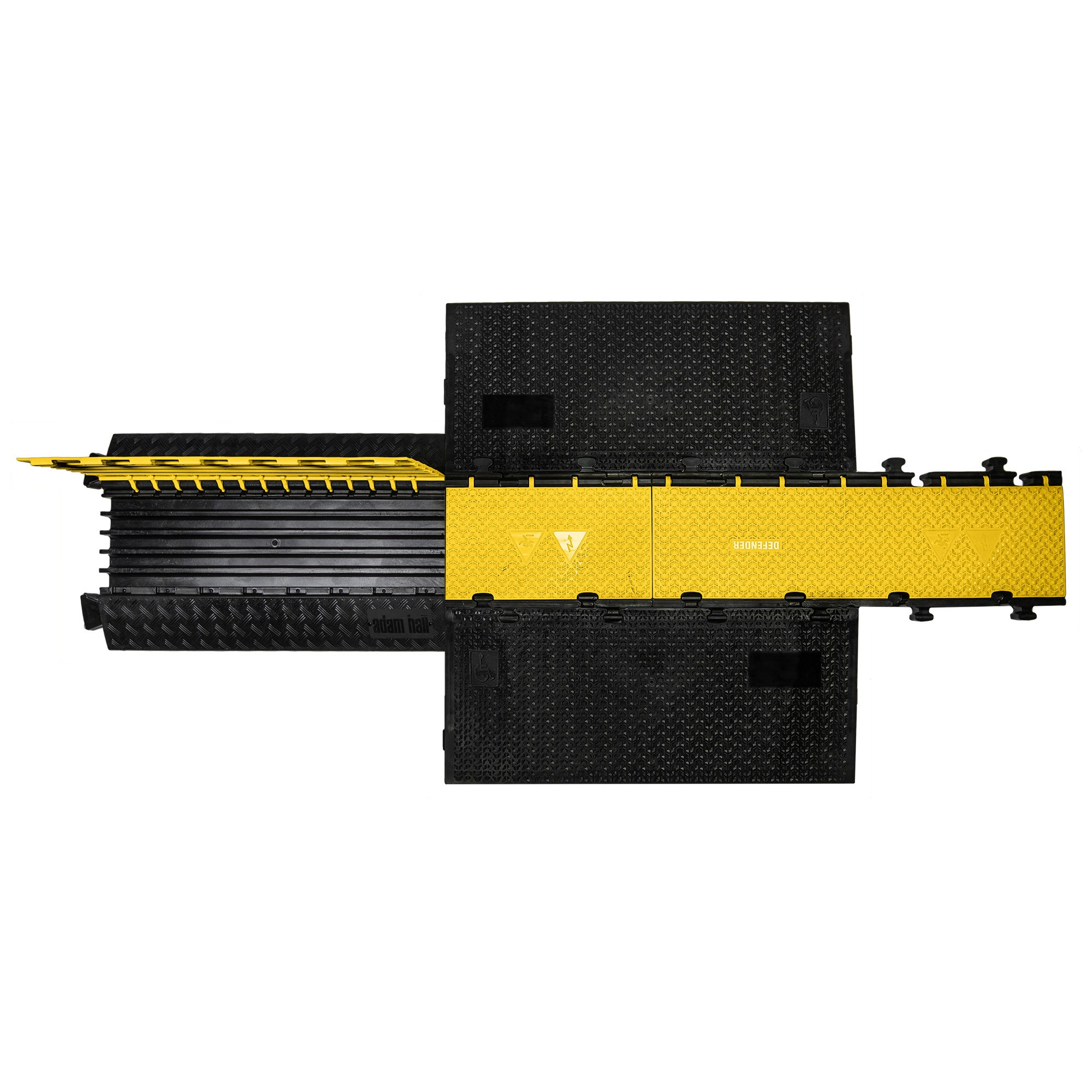

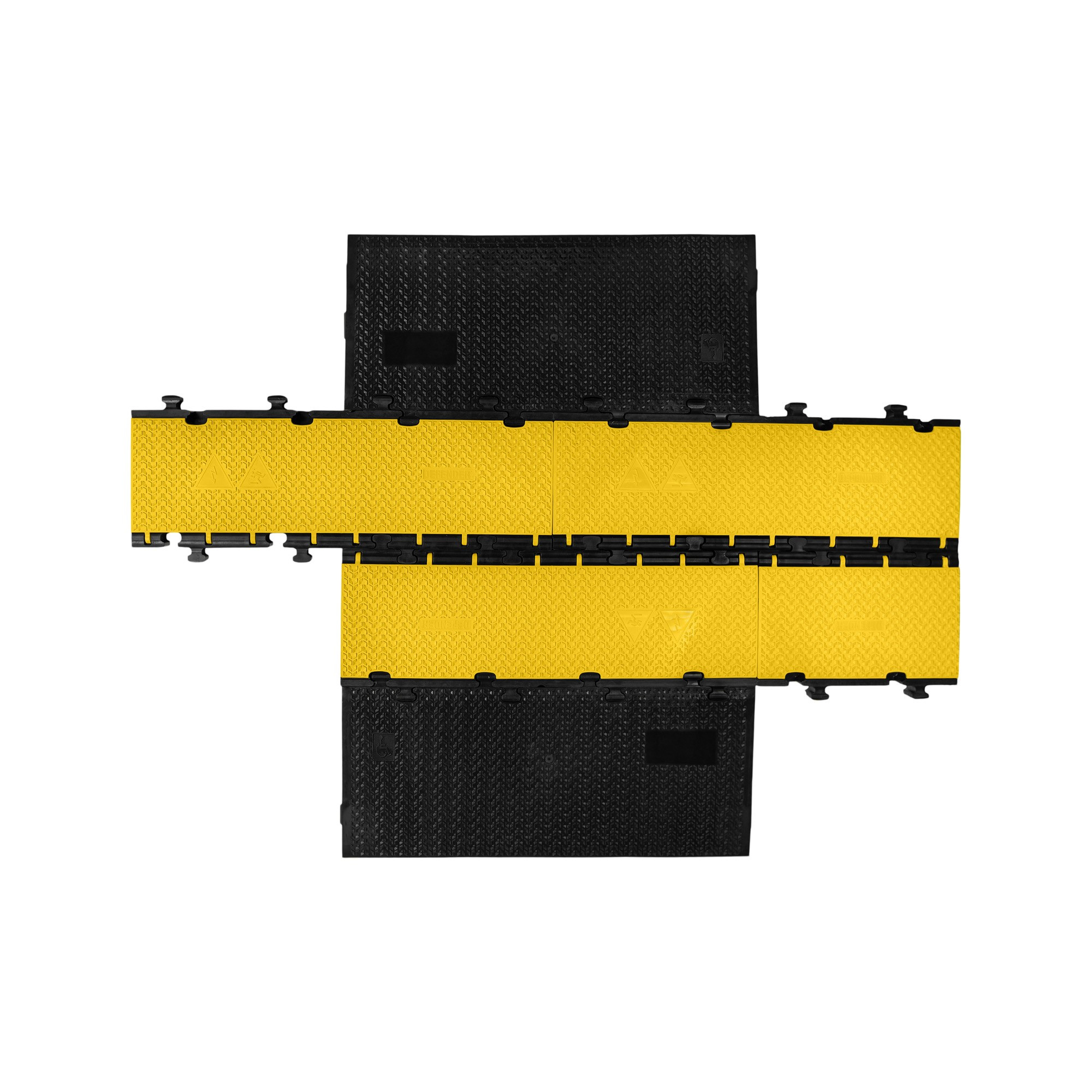

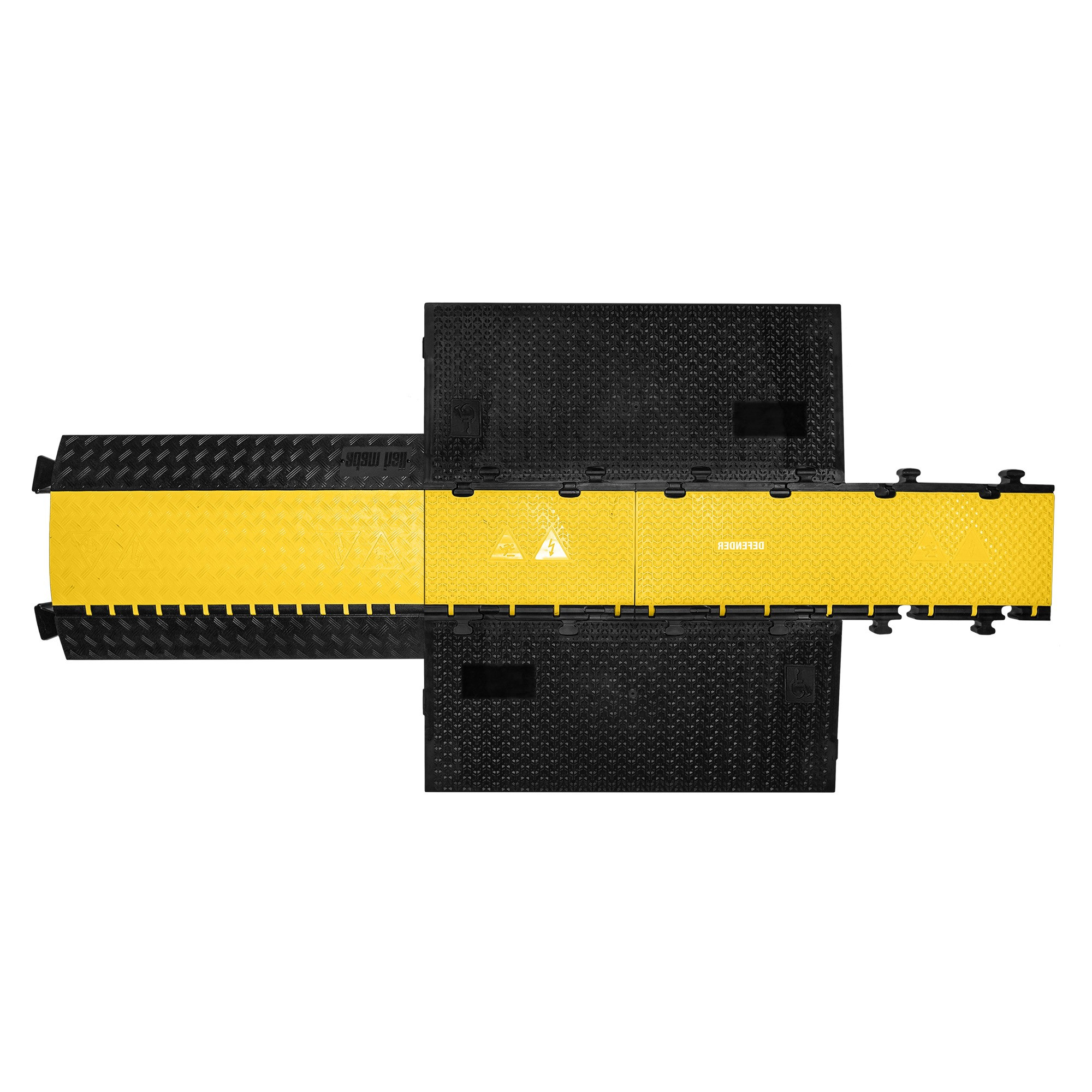

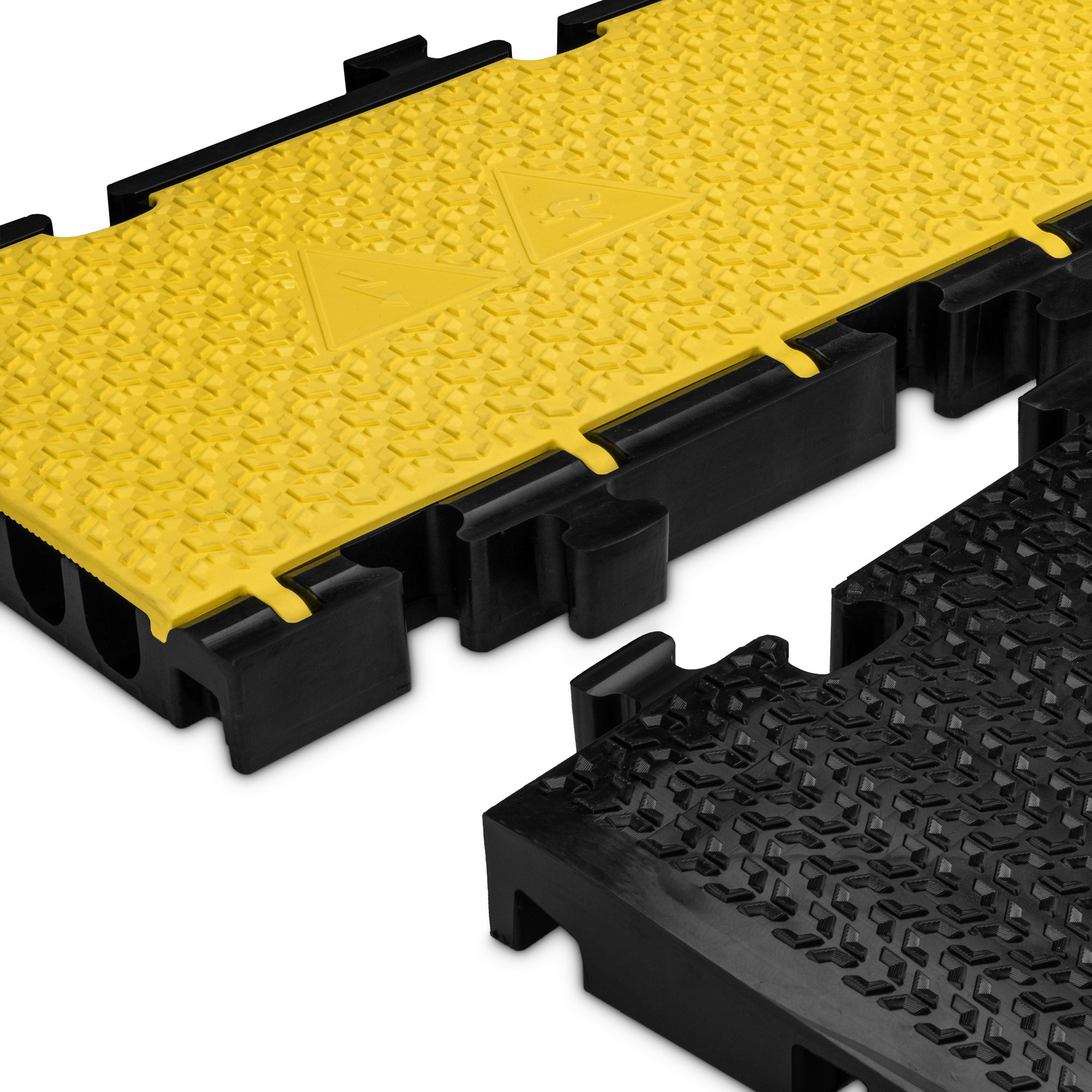

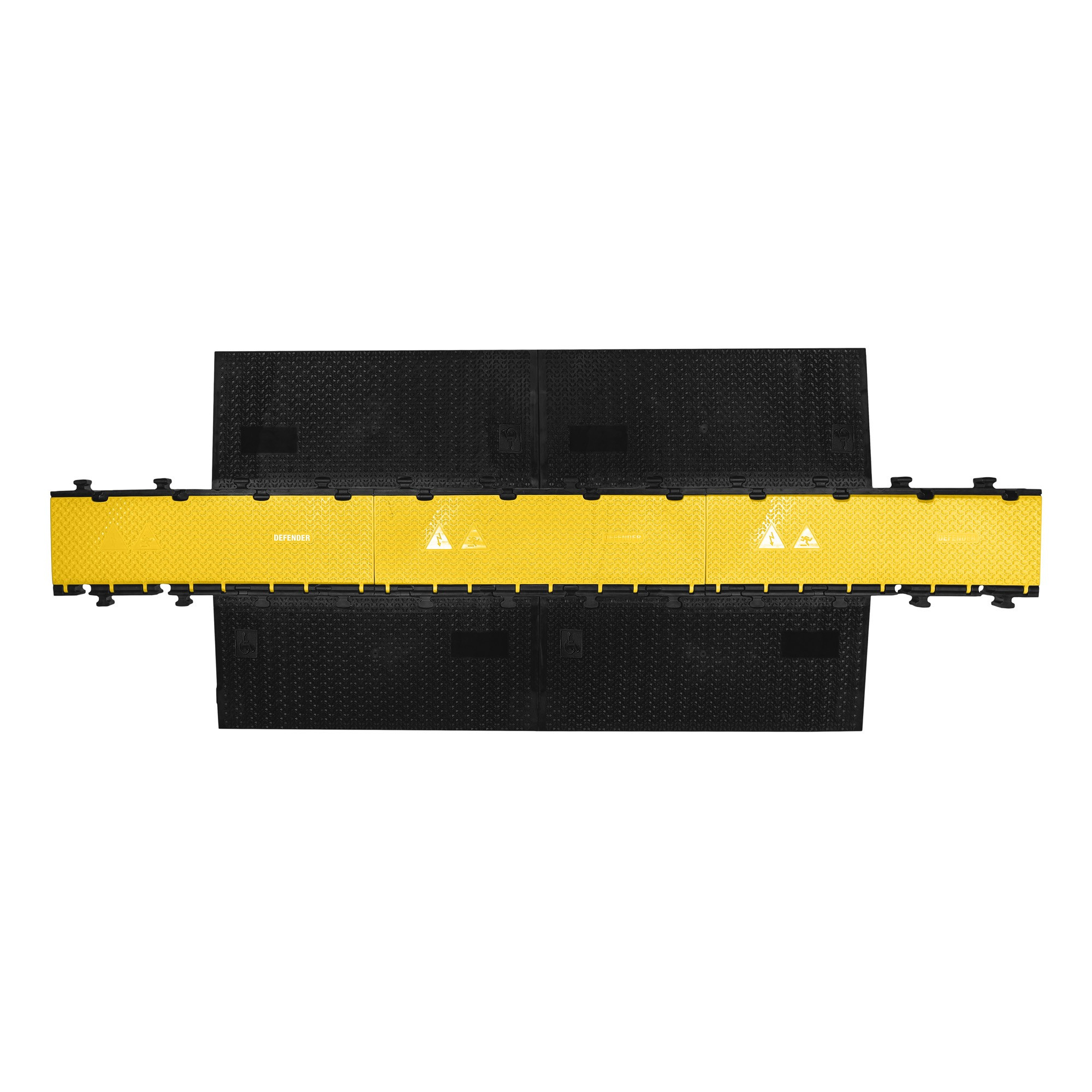

The system length and width can be expanded, and thus guarantee easy access and safety to areas where five channels are typically not enough, for example, near power generators or FOH areas. Sound, lighting and mains cables can be laid out individually, effortlessly and safely. The middle sections are designed to be symmetrical all the way around to facilitate assembly so that you never have to look for the right attachment piece ever again. As such no assembly diagrams are required. The symmetrical set-up makes it possible to achieve excellent longitudinal and lateral stability by arranging middle sections and ramps. It also means there are no loose parts which can easily be lost such as adapters and spanners. The connections were engineered to provide enough room to play around for simple assembly but also to offer a sufficient level of stability. Adapters for joining middle sections longitudinally are also available should the cable protectors need be installed without ramps.

Specifications:

Material: TPU (Thermoplastic polyurethane)
Surface structure: 3D laser grip
Colour: Black
Lid colour: Yellow
Maximum load (on 25 x 30 cm): 5 t
Max. Passing speed: 7 km/h
Chemical resistance: Petrol, Solvents (short-term contact), Oil
Hardness range (±4 Shore A): 88 Shore A
Shape: Flat
Quantity: 5
Cable ducts size (W x H): 34 mm x 38 mm
Fire protection class (EN 13501-1): B2
Inflammability (UL 94): V-2, HB
Ambient temperature: -30 - 60 °C
Length: 1,000 mm
Width: 325 mm
Height: 54 mm
Weight: 11.6 kg



Product code: 869300

Unit of sale: piece
