Radial Engineering Vocoloco

Effects Switch / Preamp

microphone preamp and effects loop switcher for vocalists and instrumentalists.
easily add effects like delay, reverb, distortion, or wah with a footswitch.
features a 2-band EQ, tone adjustment, and volume control.
compatible with dynamic and condenser microphones.
input and output with XLR connectors.

369²⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

1932 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Radial Engineering Vocoloco Add to cart: 369²⁷ €

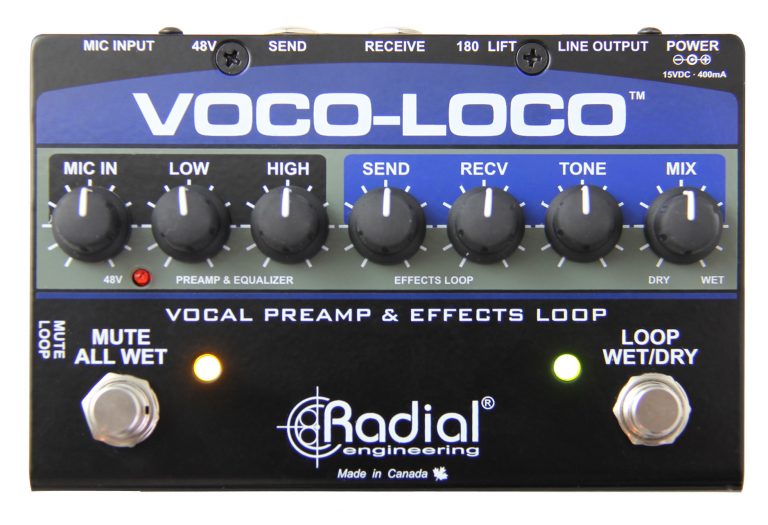

Radial Engineering Vocoloco - Microphone preamplifier and effects loop switcher that allows a vocalist or instrumentalist to incorporate guitar effect pedals into the signal chain. You can easily add delay, reverb, distortion, or wah effects to any acoustic instrument with a pickup system using a dynamic or condenser microphone by simply pressing a footswitch.

Audio circuit type: integrated preamp with Class A FET input circuit.
Frequency response: 20Hz ~ 20kHz
Dynamic range: 100dB
Gain: 52dB
Peak level: +15dBu
Total harmonic distortion: <0.005%
Intermodular distortion: <0.005%
Phase Deviation: 8° @50Hz
Mute button
Mix (Wet / Dry) knob
2-band EQ
Tone adjustment
Volume adjustment
Input impedance: 10K Ohms, 100K (FX Loop)
Output impedance: 300 Ohms, 3000 Ohms (FX Loop)
Functions: input pad, 180-degree reversible polarity, ground lift, effects loop
XLR connector input
XLR connector output
Power supply: 100mA centre positive
