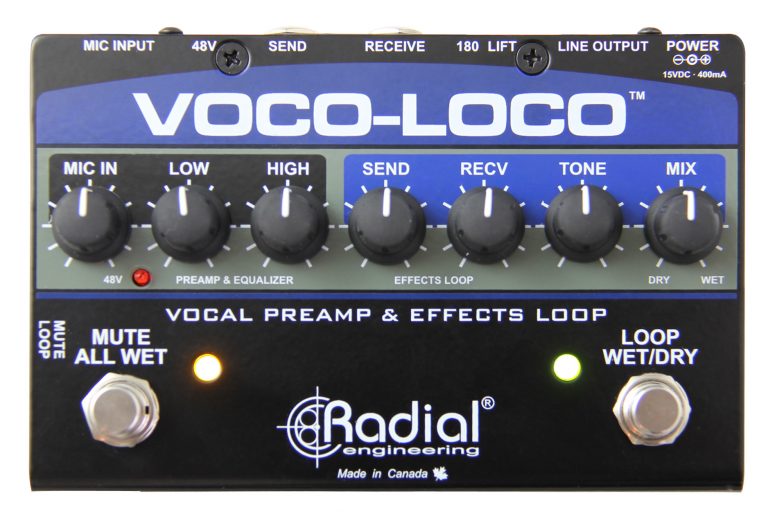

Radial Engineering Vocoloco

Radial Engineering Vocoloco - Microphone preamplifier and effects loop switcher that allows a vocalist or instrumentalist to incorporate guitar effect pedals into the signal chain. You can easily add delay, reverb, distortion, or wah effects to any acoustic instrument with a pickup system using a dynamic or condenser microphone by simply pressing a footswitch.

• Audio circuit type: integrated preamp with Class A FET input circuit.
• Frequency response: 20Hz ~ 20kHz
• Dynamic range: 100dB
• Gain: 52dB
• Peak level: +15dBu
• Total harmonic distortion: <0.005%
• Intermodular distortion: <0.005%
• Phase Deviation: 8° @50Hz
• Mute button
• Mix (Wet / Dry) knob
• 2-band EQ
• Tone adjustment
• Volume adjustment
• Input impedance: 10K Ohms, 100K (FX Loop)
• Output impedance: 300 Ohms, 3000 Ohms (FX Loop)
• Functions: input pad, 180-degree reversible polarity, ground lift, effects loop
• XLR connector input
• XLR connector output
• Power supply: 100mA centre positive
