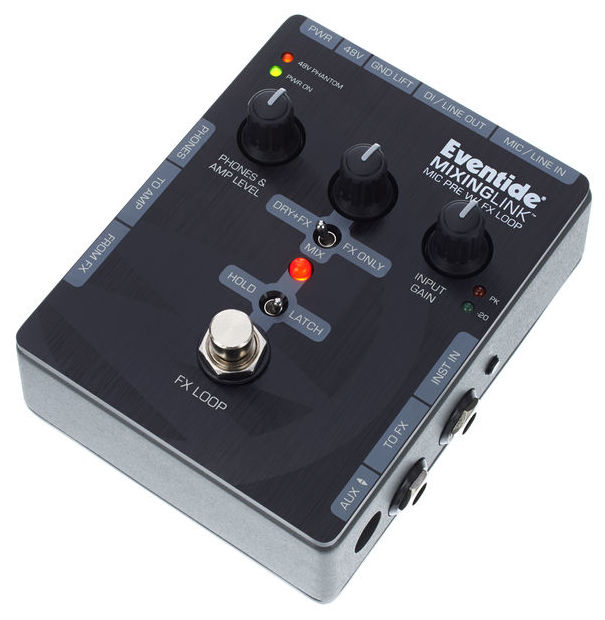

Eventide MixingLink Mic Preamp

Eventide MixingLink - microphone preamplifier in a compact stomp box size, ideal for use on stage, in the studio or in any situation where needed. It includes a silent hi-gain preamplifier, +48V power supply, and inputs/outputs with control for applications such as FX Loop, for microphone signal processing for (vocals, wind instruments or strings), splitting or summing signal, re-amping setup, gain and impedance matching, mixing and many other options.

• The FX Loop function supports both balanced and unbalanced signals, interfaces with consoles or signal from guitar effect pedals.
• Footswitch for controlling the FX Loop function
• Compatible with a wide range of microphone types, from condenser, ribbon, with up to 65 dB of clean gain.
• The AUX input/output supports stereo input signal and send.
• Output for guitar amplifier, and monitoring output on headphones with individual volume control.
• Power supply included
• Operates on battery power but does not provide Phantom power in this mode
• Provides +48V power for condenser microphones
• Balanced XLR output
• Balanced instrument and line input
• Mix control in 3 modes:
• 100% Mic w/FX blended in
• Mic/FX balance control
• 100% FX (no Mic)
• Dimensions 91 x 67 x 38 mm
• Weight 0.43 kg.
