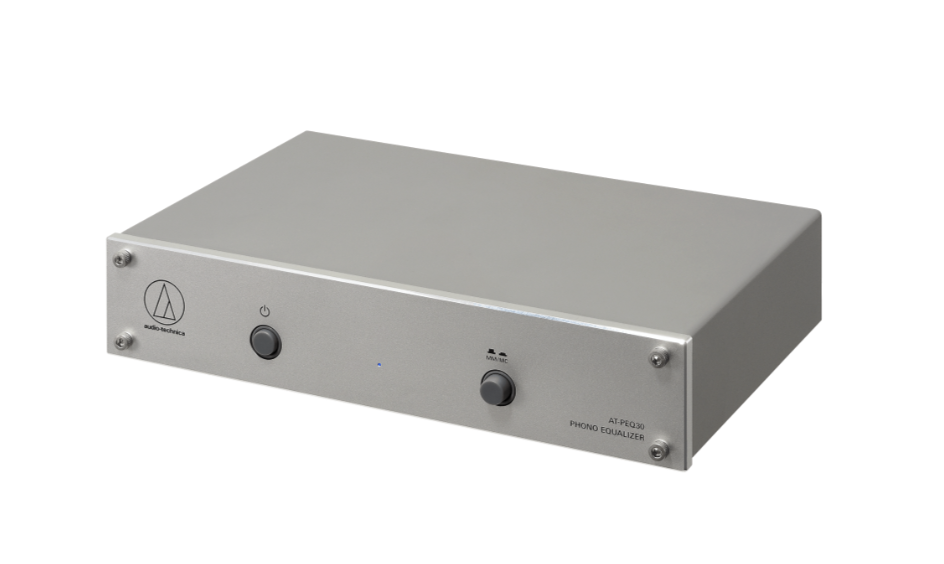

Audio-Technica AT-PEQ30 - Phono equaliser, specially designed to accompany a turntable with a built-in phono preamplifier. It is compatible with VM (dual magnet), MM (moving magnet), and MC (moving coil) turntables. The PEQ30 benefits from Audio-Technica's years of analog audio expertise and uses the highest quality components in an optimised layout for low noise and minimal distortion.
Selectable MM and MC input with fixed gain and impedance allows compatibility with a wide range of combinations
FET inputs ensure a low background noise signal when incorporated into a negative feedback phono equalisation circuit
Precision components provide excellent RIAA response
The metal housing ensures superior isolation from radio interference and electronic noise
The aluminium front panel is equipped with gold-plated RCA input/output connectors
Input impedance MM type: 47 kiloohms MC type: 120 ohms
Input sensitivity MM type: 4.5 mV MC type: 0.28 mV
Nominal output MM type: 250 mV MC type: 250 mV
Gain MM type: 35 dB MC type: 59 dB
Signal-to-noise ratio MM type: 100 dB MC type: 74 dB
