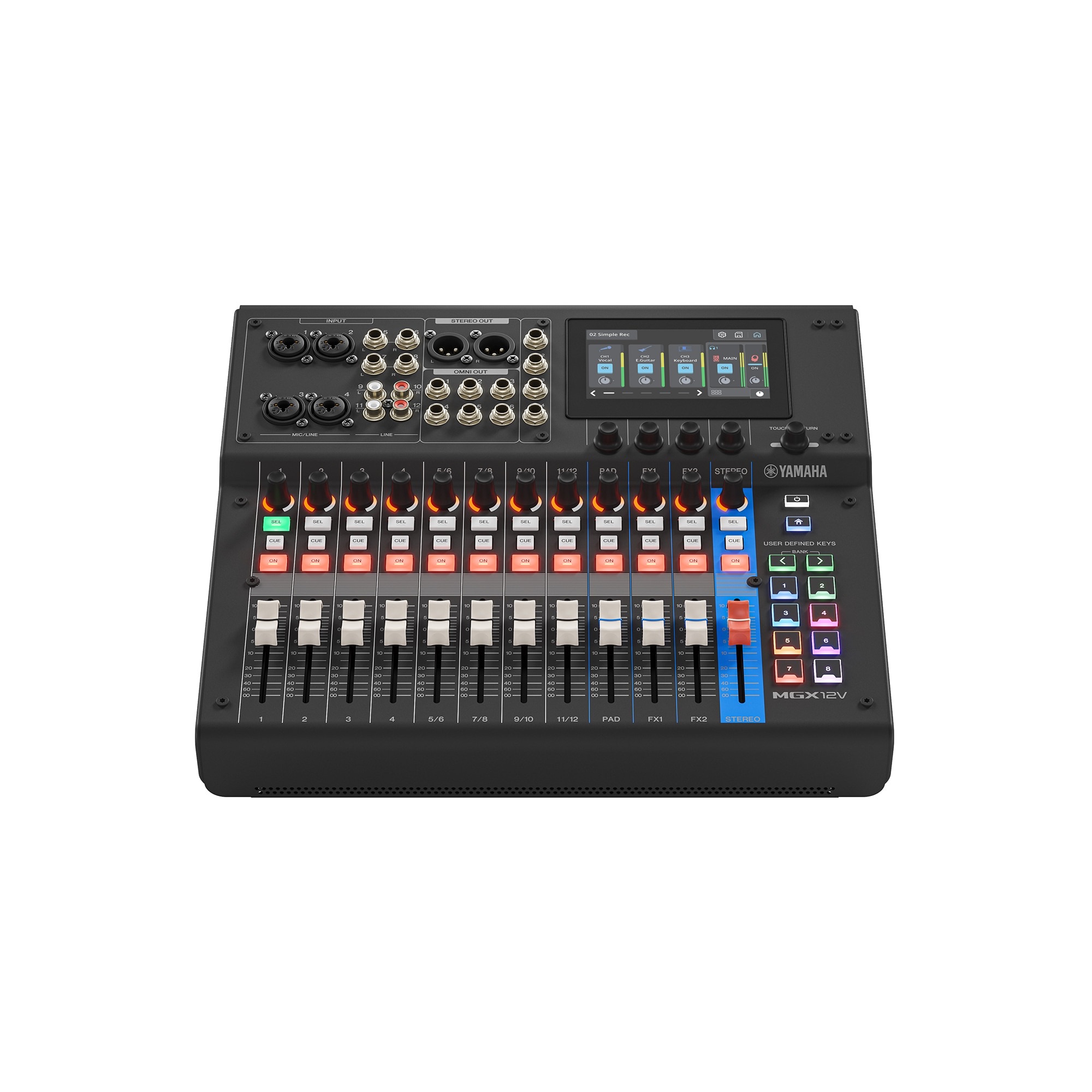

Yamaha MGX12V BK

Yamaha MGX12V BK - Compact digital mixer with integrated HDMI video capture, ideal for live sound, streaming, content creation, audio production, and professional recording. It offers high-quality audio processing, intuitive operation, and advanced recording features in a portable, all-in-one solution.

• Compact digital mixer with integrated HDMI video capture
• 12 input channels: 4 mono, 4 stereo, 1 Sound Pad, 2 FX returns
• Buses: 8 Mix, 2 FX, 1 CUE, 1 Stereo
• 11 + 1 non-motorised faders
• Rotary control per channel with Select, Cue, and On buttons
• 8 assignable function keys, switchable in banks
• Touchscreen Interface
• 4.3" colour touchscreen
• Five rotary encoders for quick navigation and parameter control
• Simple and intuitive workflow with: Simple Mode, Standard Mode, Scene Recall
• Professional Audio Processing
• Integrated DSP processor for latency-free monitoring
• Assistive features: Auto Gain, Clip Safe
• Integrated EQ, dynamic processing, and high-quality effects
• Video and Streaming Integration
• HDMI-to-USB video/audio input
• Integrated recording and capture function
• Real-time HDMI passthrough (HDMI Thru)
• Ideal for live streaming, podcasting, video production, and hybrid AV setups
• Recording and Connectivity
• Integrated USB audio interface: USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz), USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
• MicroSD card slot: 16-track recording, 2-track playback, up to 24-bit / 96 kHz
• Stereo audio input via Bluetooth 5.0 (A2DP)
• Inputs
  • 4 × Combo XLR / 6.3 mm Jack (Mic / Line)
  • 4 × 6.3 mm TRS (Line)
  • 4 × RCA (2 × L/R)
  • Bluetooth Audio (2 channels)
  • HDMI In
• Outputs
  • 2 × XLR (Main Out)
  • 6 × 6.3 mm TRS (Line Out)
  • 4 × stereo headphone outputs (6.3 mm Jack)
  • HDMI Thru
• Others:
  • 2 × USB-C ports
  • External power input
• Dimensions (L × H × D): 335 × 96 × 319 mm
• Weight: 4.46 kg
• Colour: Black
• Included Accessories
  • External power supply 16 V (PA-300C)
  • Steinberg software package: Cubase AI, WaveLab Cast, Steinberg Plus, Basic FX Suite
