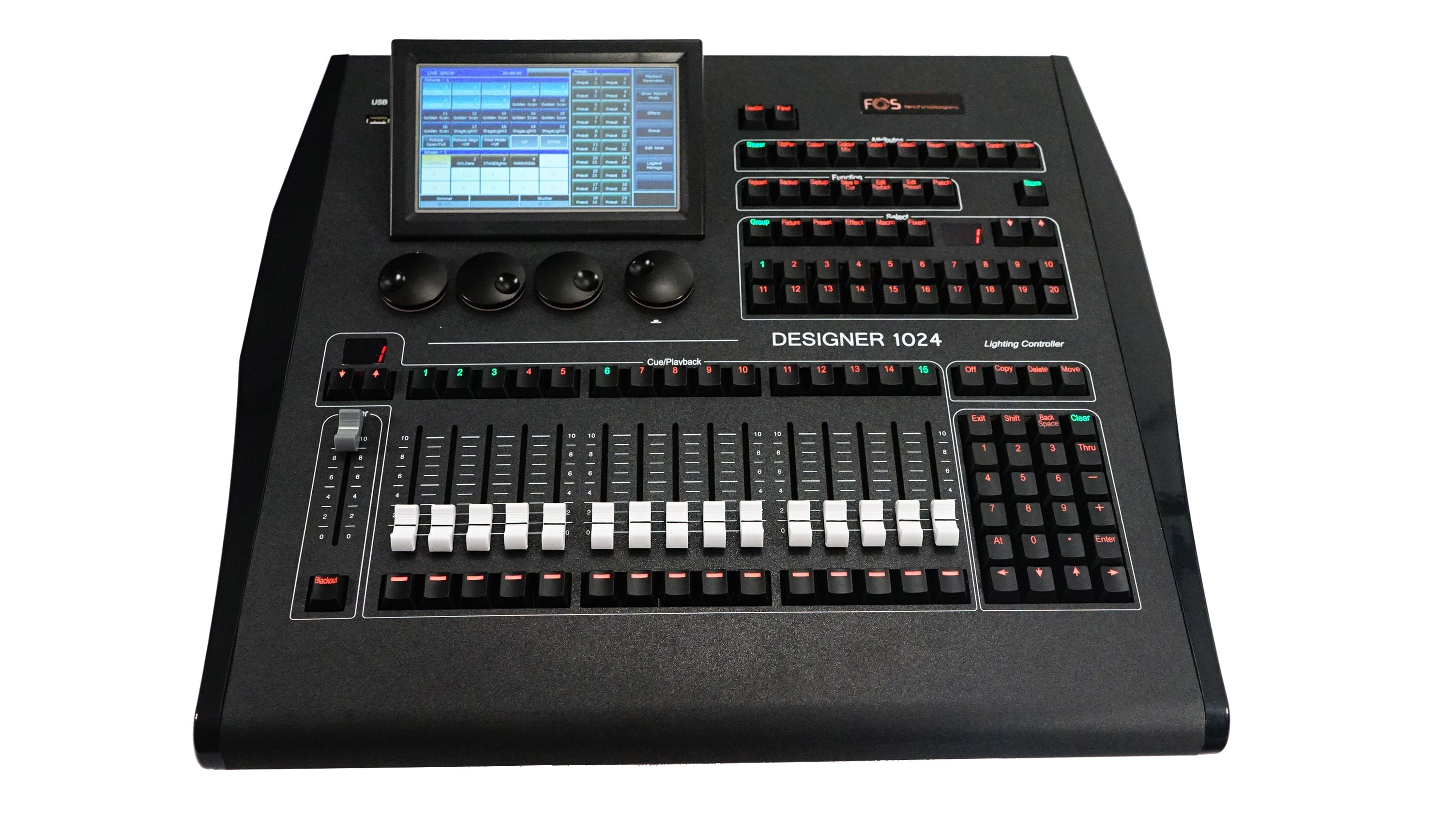

FOS Designer 1024

DMX console

professional DMX controller with 1024 channels across 2 universes.
7" TFT-LCD touch screen for easy operation.
supports up to 400 devices and 600 programmable plays.
includes transport case and MIDI in/out functionality.
over 8000 devices in the library with USB import capability.

1 638¹² €

In stock and deliverable.

Central warehouse: 1

Add to cart

8555 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details better price?

FOS Designer 1024 Add to cart: 1 638¹² €

FOS Designer 1048, professional DMX controller, equipped with 1024 channels divided over 2 universes, 2 optically isolated DMX outputs and network interface, 7" TFT-LCD touch screen for easy operation.

ArtNET output.
7" TFT LCD touch screen.
Backlit buttons with various combinations for highlighting.
Background lighting colours: red, green, yellow.
4 optical decoders for controlling device attributes.
Operation of up to 400 different devices (depending on the number of DMX channels used by each device).
Up to 600 programmable plays, on 15 faders x 40 pages.
15 plays can be active simultaneously.
400 groups, 400 presets, 400 user-defined shape effects, and 400 macro displays.
Macro shows can be triggered via MIDI.
Colour mix palette for fixtures with RGB and CMY mixing system.
Shape generator with various patterns and adjustable parameters.
Over 8000 devices in the library, with library editor and personality import via USB port.
MIDI in/out.
Transport case included: 575 x 575 x 235 mm.
Dimensions: 540 x 480 x 180 mm.
Weight: 10 kg.

Product code: L005366
