Cameo DVC Pro

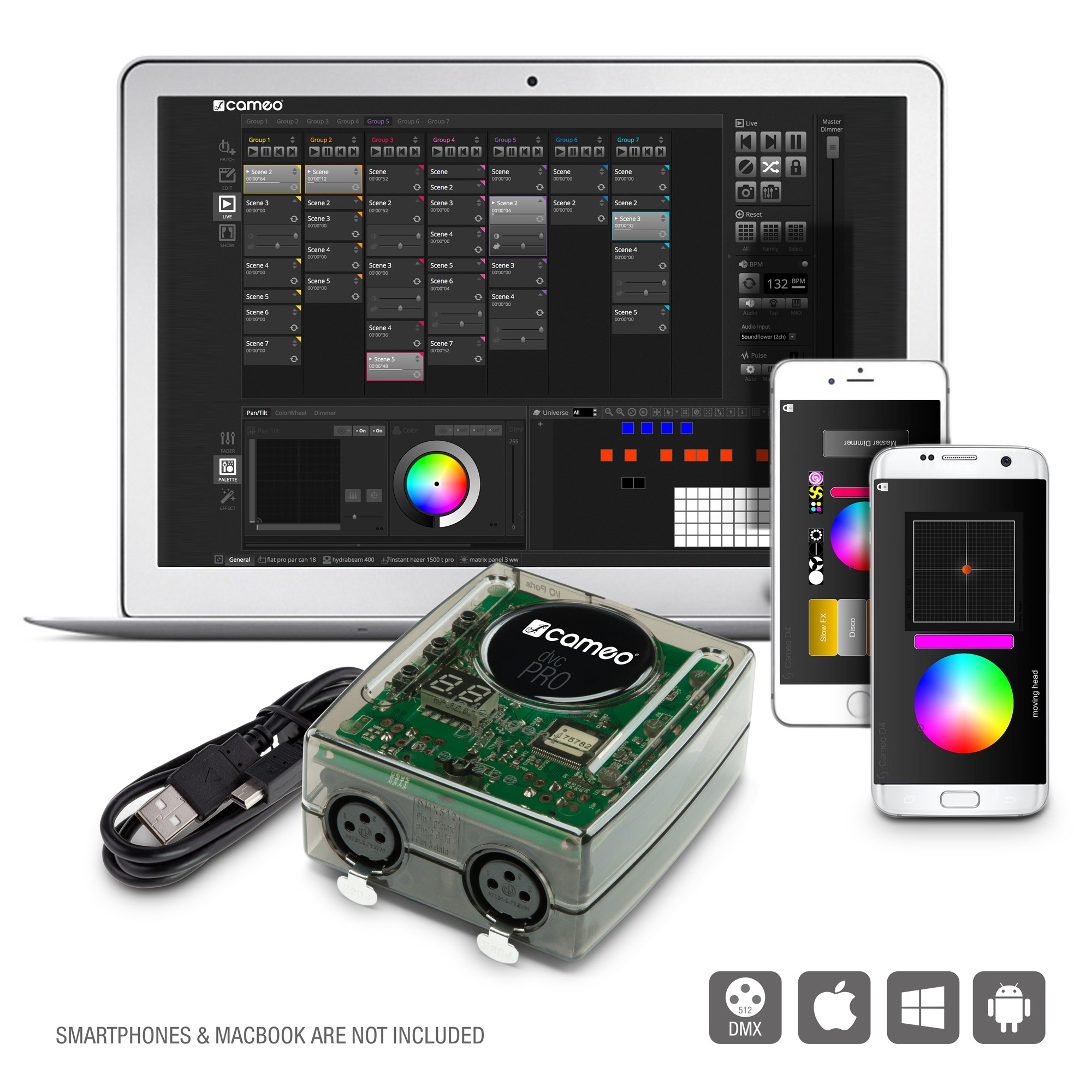

Cameo DVC Pro - DMX control interface with software, "by Daslight" that allows control of lights from a computer or laptop. The plug-and-play interface offers 1024 DMX channels in live mode and includes internal memory for 256 channels in standalone mode. This allows copying of light show programs directly into the interface, enabling them to run without the need for a computer.

It is equipped with a mini-USB connector and a 3-pin DMX output, with power supplied through the USB port. It features 3 control buttons for program selection and dimming in standalone mode, which requires a standard 5V USB power adapter. The Cameo software provides over 15,000 fixture libraries and a scan library editor.

It allows selection of fixture types, grouping them, and creating master layouts with 2D visualization. Create, arrange, and overlay dynamic scenes, use the integrated colour palettes to control lights without the need to move faders, and generate hundreds of impressive effects through the XEEL Engine. The software offers the tools necessary for live editing, an audio analyzer, and MIDI clock for BPM synchronization, along with 3D visualization for pre-rendering your light program.

The layout arrangement is fully customizable, and through the Easy Remote app, you can control the program via an iPhone, iPad, or Android device with a WiFi connection. The DVC4 interface and D4 software were developed for Cameo by Daslight.

• Type: USB to DMX interface
• Live channels: 1024
• Standalone channels: 256
• Software type: full Cameo D4 / full Daslight D4
• Inputs: USB-C
• Outputs: 2 x 3-pin XLR female
• Memory: 120 K
• Dry contact ports: 8
• Power: via USB
• Dimensions (W x H x D): 78 x 27 x 88 mm
• Included accessories: USB to USB-C cable
• Weight: 0.2 kg
