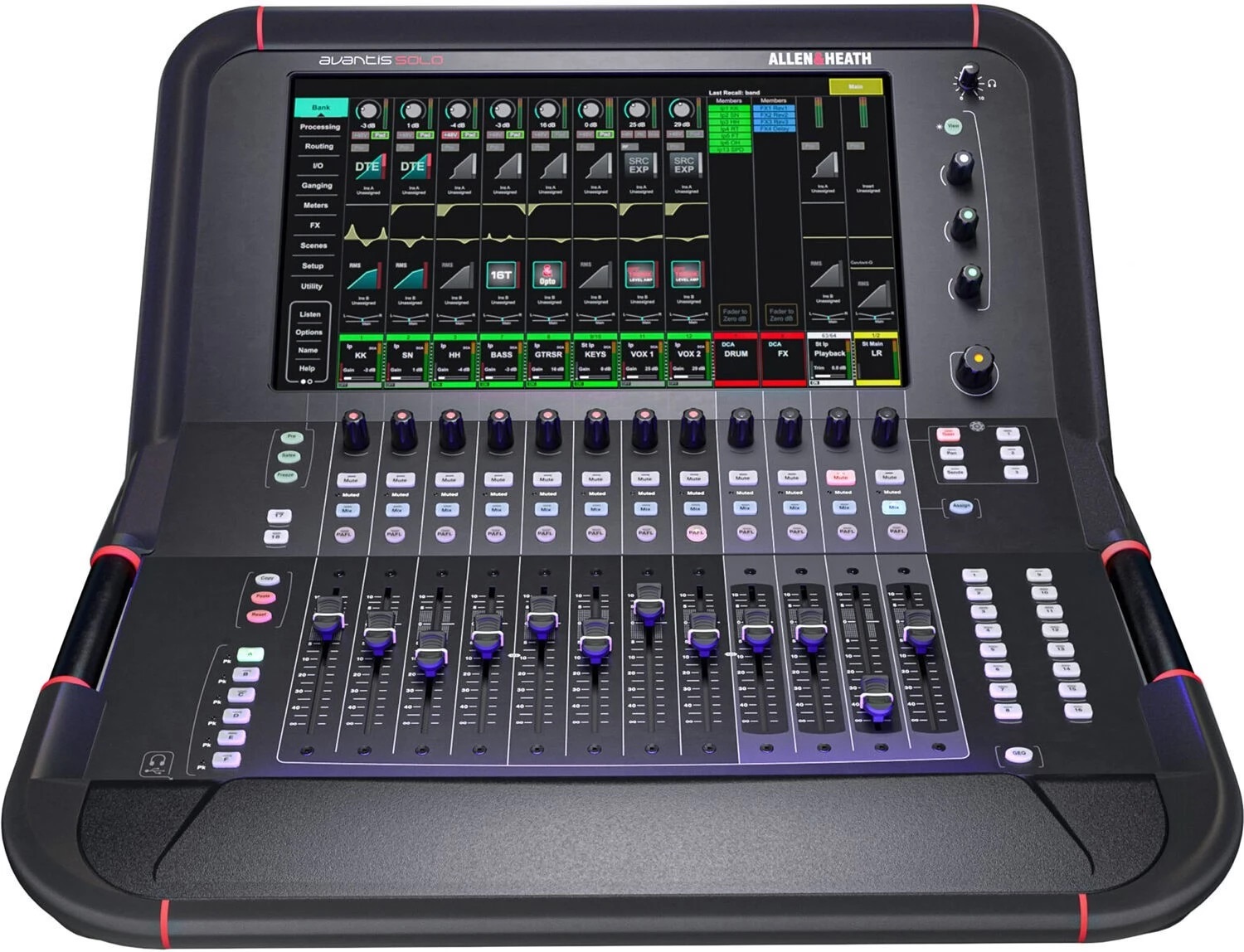

Allen&Heath Avantis Solo Ultra

Allen&Heath Avantis Solo Ultra - digital mixer with 64 channels, based on XCVI FPGA processing at 96 kHz and a configurable mix bus architecture. It features a 15.6-inch Full HD capacitive touchscreen, 12 physical faders, and connectivity for inputs, outputs, and external audio systems. It includes integrated audio processing, effects, metering functions, and stereo recording/playback via USB.

• Digital mixer with 64 channels
• Channels: 64
• Mixing architecture: 42-configurable bus
• Processing: XCVI FPGA, 96 kHz
• Latency: 0.7 ms
• Display: Full HD capacitive touchscreen, 15.6 inches, with gesture control
• Faders: 12 faders, 6 layers, 72 strips
• Analog inputs: 6 × XLR mic/line
• Analog outputs: 6 × XLR
• Digital connectivity: 1 × AES stereo in, 1 × AES stereo out
• Audio expansion: SLink port for remote I/O and ME Personal Mixing system
• I/O expansion ports: 2 × 128 × 128 channels at 96 kHz, compatible with optional cards, including MADI and gigaACE
• Effects: RackExtra FX, with separate stereo returns
• Dynamic processing and mixing: channel processing and mixes, 16 DCA, 8 Mute Groups
• AMM: automatic microphone mixer for up to 64 channels, in 1, 2, or 4 zones
• Control: 18 assignable SoftKeys, configurable rotary controls, and customisable layout
• Monitoring: multi-point peak detection metering, RTA and spectrogram
• Recording/playback: stereo via USB
• Sync: Word Clock BNC
• Construction: metal frame
• Dimensions (L × W × H): 546 × 269 × 627 mm
• Weight: 17.5 kg
• Included: DPack software & RackUltra FX hardware
