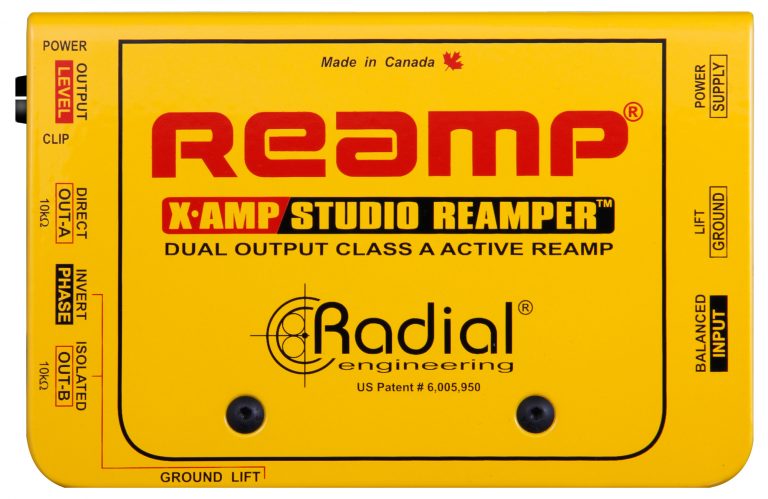

Radial Engineering X-AMP

Re-amplification Unit

100% discrete class A audio circuit for high-quality sound.
frequency response of 20Hz to 15kHz with a dynamic range of 119dB.
equipped with a transformer to eliminate ground loop noise.
includes XLR input and two 6.3 mm jack outputs.
robust metal housing and +15VDC power supply included.

263⁶³ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

1377 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Radial Engineering X-AMP Add to cart: 263⁶³ €

Radial Engineering X-AMP - Active, professional re-amplification unit that allows the transmission of pre-recorded tracks through guitar amplifiers and effects pedals. It is equipped with a transformer that eliminates background noise caused by ground loops, an LED indicator, and easy level control.

Audio circuit type: 100% discrete class A
Frequency response: 20Hz ~ 15kHz (± 1.0dB)
Dynamic range: 119dB
Total harmonic distortion: 0.02% @ -15dBu
Intermodular distortion: 0.02% @ -20dBu
Input impedance: 600Ω
Noise: OUT-1 -110dB; OUT-2 -108dBu
Maximum input: +22dBu
Reversible polarity at 180°
Groundlift
Level control
XLR connector input
2x outputs with 6.3 mm jack connectors
Robust metal housing
Power supply: +15VDC/400mA (power adapter included)
Dimensions: 84 x 127 x 48 mm
Weight: 720 g

Product code: 199233

Unit of sale: piece
