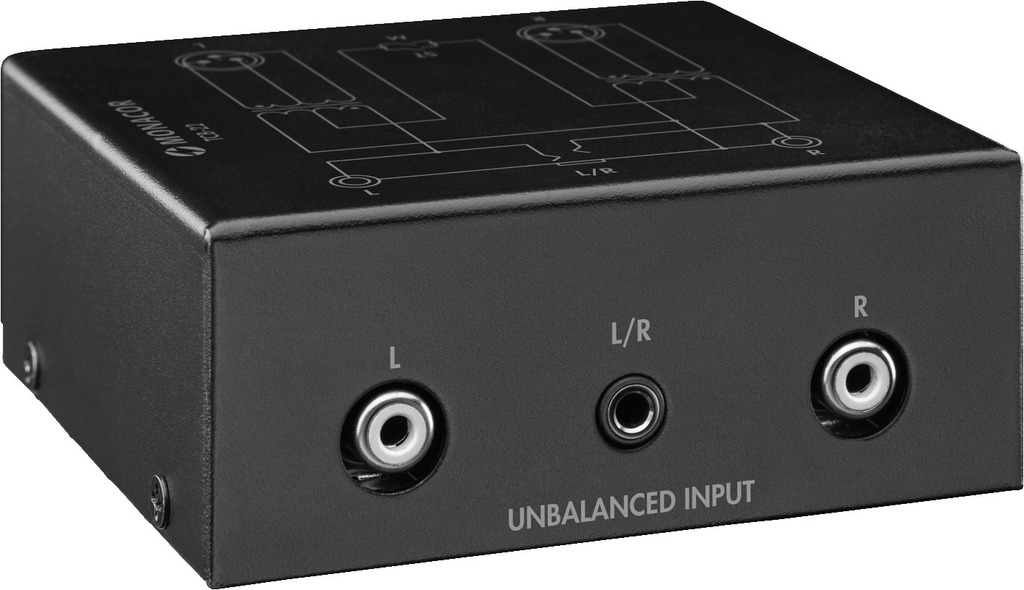

Monacor TCB-22 - A 2-channel audio balancing transformer that converts unbalanced audio signals into a balanced signal through passive conversion (without a power supply).
Additionally, a DIP switch can be used to generate a mono signal (without losses, as it is not coupled through resistors) from two input signals (stereo).
The device can also be used in the opposite direction, meaning unbalanced signals can be generated from balanced signals using an optional XLR/XLR NA-3FF adapter.
2-channel audio balancing transformer
2-pole DIP switches for switching between stereo/mono modes
Frequency range: 6 – 25,000 Hz
Input signal: max. 15 V
Input impedance: 5.3 kΩ / 1 kHz
Output impedance: 5.4 kΩ / 1 kHz
Transmission ratio: 1:1
Permissible ambient temperature: -20 to +50 °C
Inputs:
2 x RCA
1 x 3.5 mm stereo jack (unbalanced)
Outputs:
2 x 3-pin XLR (balanced)
Dimensions: 88 x 36 x 83 mm
Weight: 318 g
Safety Notes and Warnings:
The device is intended for indoor use only. Protect it from dripping or splashing water, high humidity, and heat (permissible ambient temperature range: 0 - 40 °C).
If the device is to be permanently taken out of service, take it to a local recycling centre for environmentally safe disposal.
