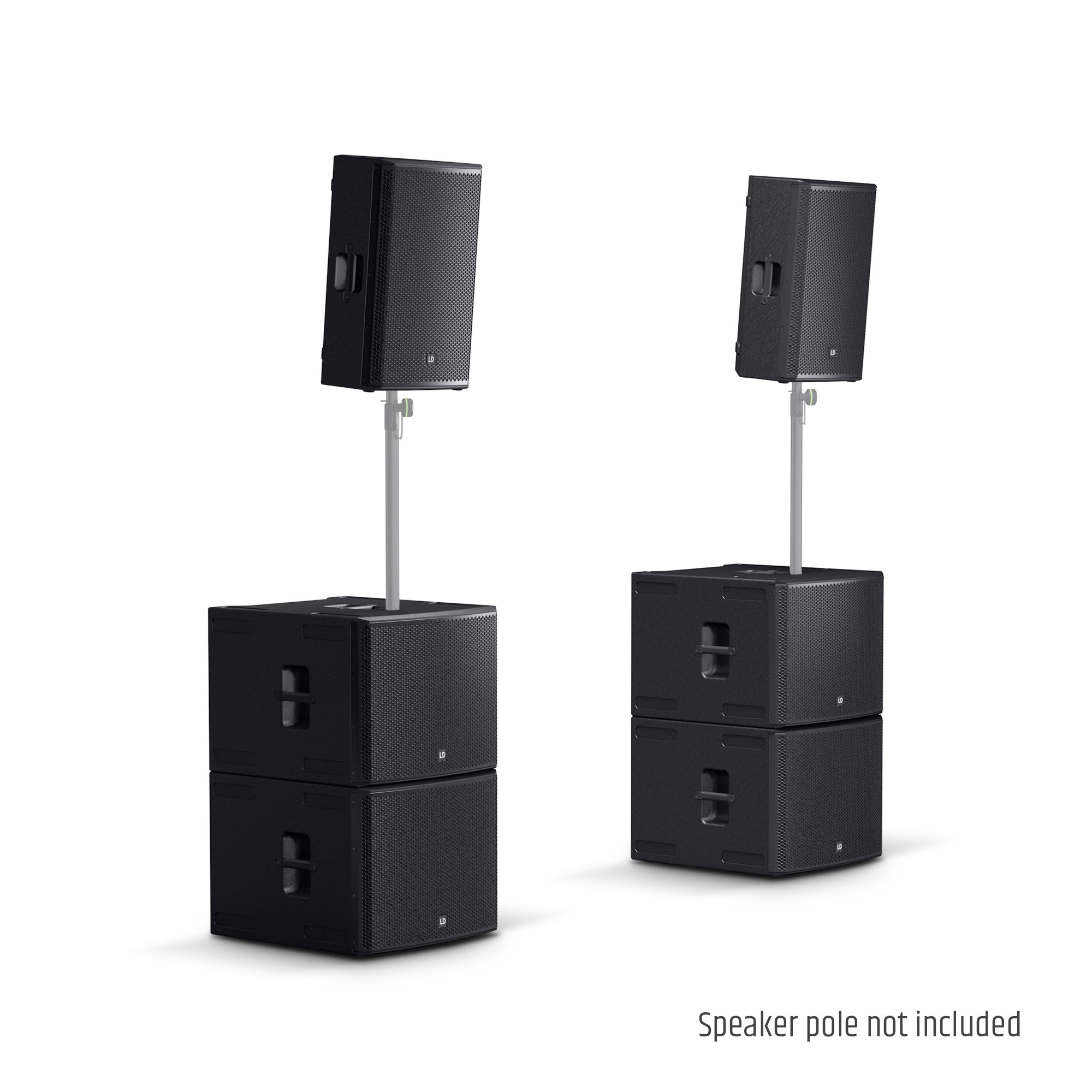

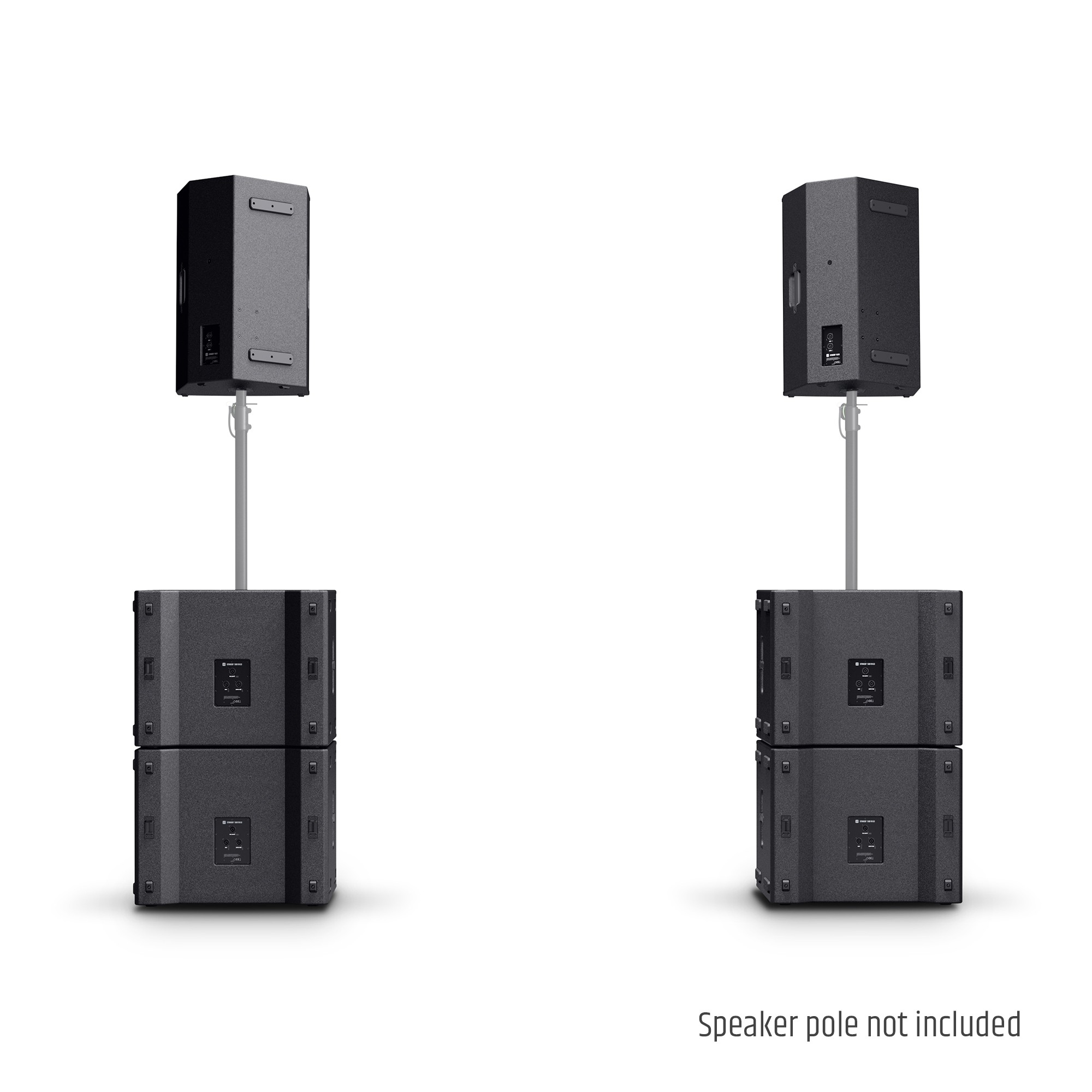

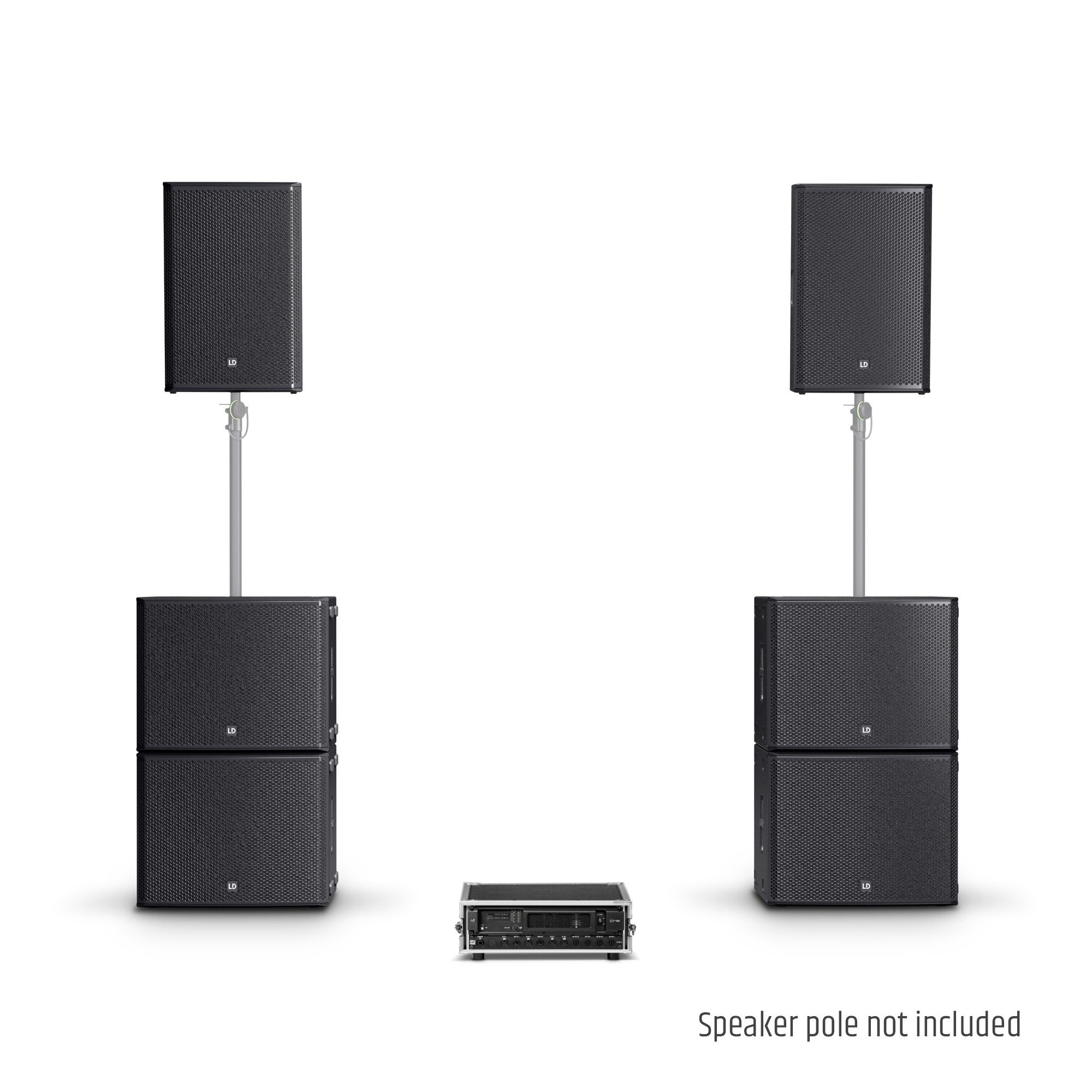

LD Systems Stinger G3 Impact Set Passive - Offering a massive low level, with punch and clarity, this set is ideal for enhancing sound outdoors. With a quartet of subwoofers and two 15-inch tops, it easily covers medium-sized concerts at city fairs, street festivals, and in tents. We recommend this set for the following type of application: DJ, outdoor sound reinforcement for bands. The STINGER G3 IMPACT SET is suitable for an audience of up to 400* people.

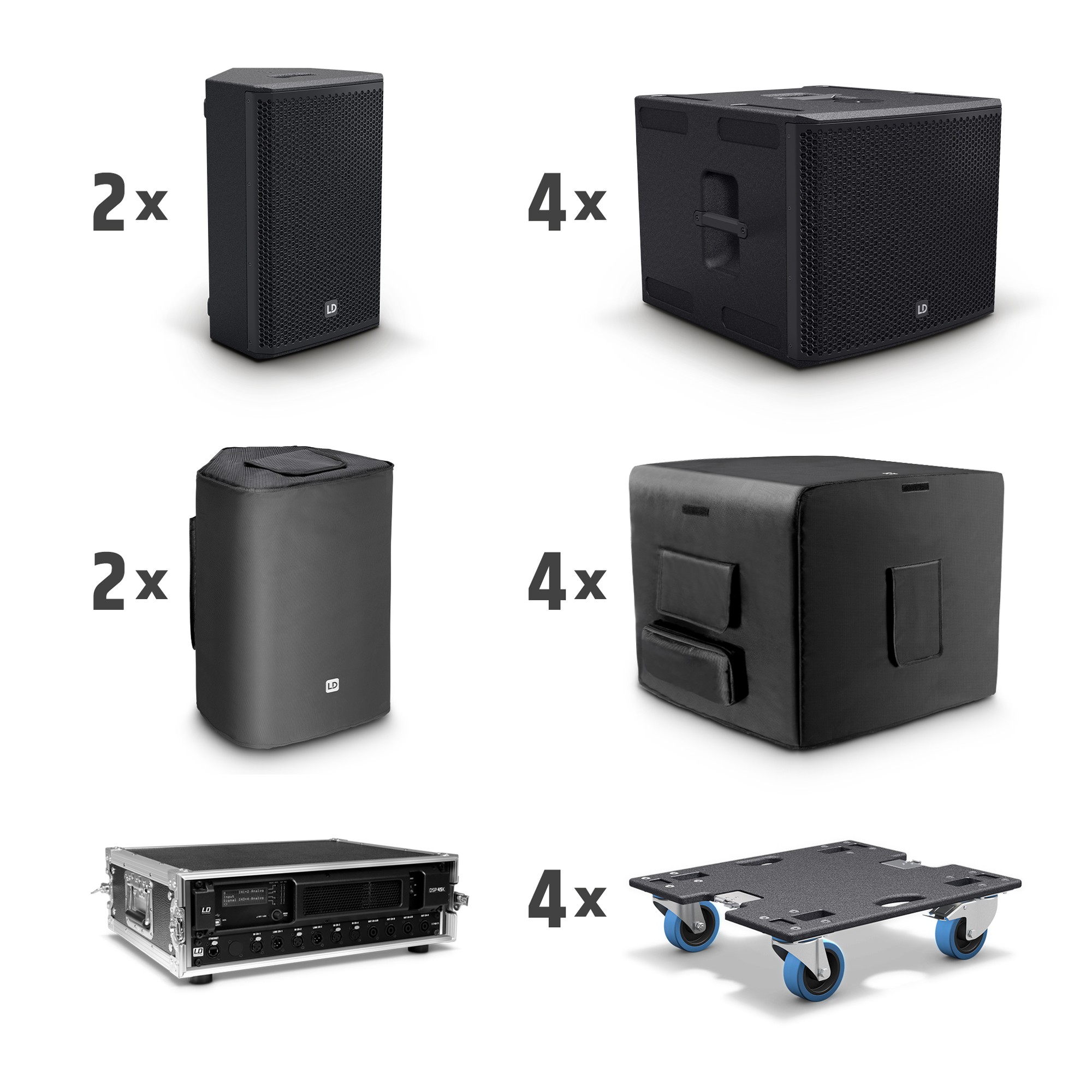

Set composed of:
2 x STINGER 15 G3 – 15” powered speaker
4 x STINGER SUB 18 G3 – 18” powered subwoofer
1 x DSP 45K RACK – Power amplifier with DSP
2 x STINGER 15 G3 PC – Padded protective cover for speaker
4 x STINGER SUB 18 G3 PC – Padded protective cover for subwoofer
4 x STINGER SUB 18 G3 CB – Wheelboard for subwoofer
*NOTE: specifications regarding audience size are approximate only. Actual figures may vary depending on the acoustics of the venue and environment.
Technical Specifications:
General:
System power (RMS): 3,400 W
Frequency response: 35 - 20,000 Hz
Dispersion (H x V): 90 x 50°
Weight: 267.5 kg
Wheelboard for STINGER SUB 18 G3 models:
Material: Birch plywood
Thickness: 15 mm
Width: 540 mm
Length: 650 mm
Colour: Black
Number of wheels: 4
Wheel diameter: 100 mm
Wheel manufacturer: Adam Hall
Weight: 7 kg
Number of traction handles: 2
15-inch passive PA speaker:
Low/mid driver size: 15"
Width: 480 mm
Height: 737 mm
Depth: 455 mm
Woofer magnet: Ferrite
Woofer coil: 3"
Weight: 25.7 kg
Amplifier: Class D
HF driver size: 1"
System power (RMS): 500 W
Peak power: 1000 W
HF driver magnet: Ferrite
Frequency response: 50 - 20,000 Hz
HF driver: BMS brand
SPL (1W/1m): 100 dB
Max. SPL (peak): 127 dB
Dispersion (H x V): 90 x 50 °
Inputs: 1
Outputs: 1
Speaker input connections: Speakon compatible
Speaker output connections: Speakon compatible
Operating voltage: Switching power supply
Speakers per amplifier channel (DSP44/45K): 3
Impedance: 8 Ohms
Cabinet surface: Polyurethane
Cabinet construction: Bass Reflex
Monitor angle: 54 °
Padded protective cover for Stinger® G3 15-inch PA speaker:
Colour: Black
Material: Nylon 1680D
Padded thickness: 8 mm
Height: 700 mm
Width: 510 mm
Depth: 460 mm
Weight: 0.998 kg
18-inch passive Bass Reflex PA subwoofer:
Low driver size: 18"
Woofer size: 457.2 mm
Woofer magnet: Ferrite
Width: 677 mm
Height: 547 mm
Depth: 740 mm
Woofer coil: 4"
Weight: 40.6 kg
Amplifier: Class D
System power (RMS): 800 W
Peak power: 1600 W
Frequency response: 35 - Crossover Hz
SPL (1W/1m) 100 dB
Max. SPL (peak): 129 dB
Impedance: 8 Ohms
Line inputs: 1
Line outputs: 1
Input connections: Speakon compatible
Output connections: Speakon compatible
Speakers per amplifier channel (DSP44/45K): 2
Cabinet surface: Polyurethane
Cabinet construction: Bass Reflex
Padded protective cover for Stinger® G3 18-inch subwoofer:
Colour: Black
Material: Nylon 1680D
Padded thickness: 8 mm
Width: 567 mm
Height: 470 mm
Depth: 625 mm
Weight: 1.5 kg
4-channel DSP power amplifier with patch bay in 19-inch rack case:
