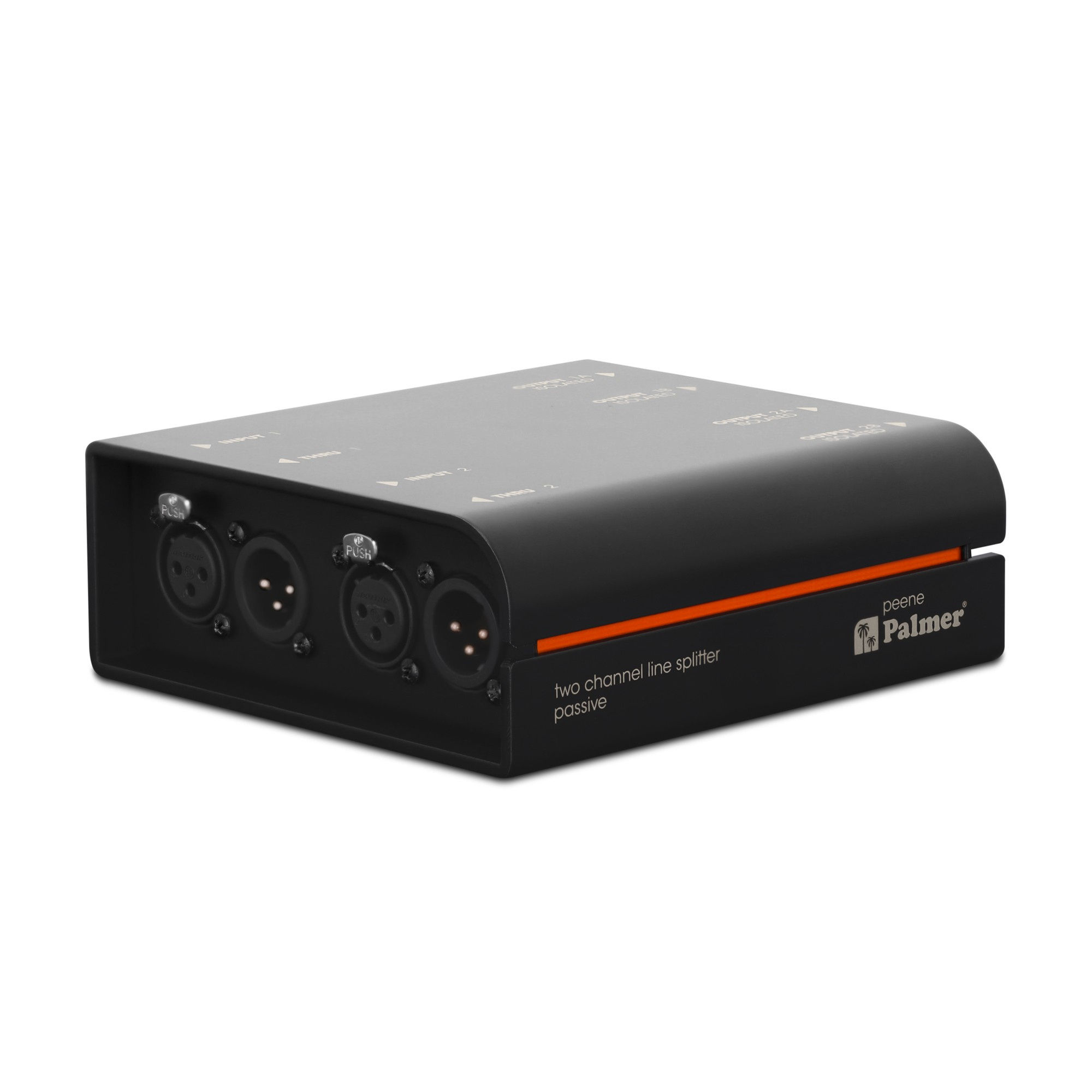

Palmer River Peene Passive 2-Channel Line Splitter

Palmer River Peene Passive 2-Channel Line Splitter - Do you want to send a stereo line signal or dual mono to multiple devices, without interference such as hum? Then the Palmer Peene Line Splitter is the right tool for you. It operates on a purely passive basis with large isolation transformers that can even handle high-level signals without distortion. So, for example, you can send the stereo output signal from a mixer to multiple power amplifiers, without ground loops. The Palmer Peene also includes a ground-lift switch. In addition to the two transformer-isolated outputs, Peene also directs the input signal directly through one output.

Palmer Peene is everything you need to distribute line signals to multiple devices and is a reliable audio tool with ultra-simple handling and professional sound features.

• Type: Line Splitter
• Channels: 2
• Type: Passive
• Isolated Transformer: Yes
• Inputs: 2
• Input Type: Balanced
• Input Connectors: XLR
• Outputs: 4
• Output Type: Balanced
• Output Connectors: XLR
• THRU Outputs per Channel: 1
• Ground Lift Switch: Yes
• Housing: Aluminium
• Dimensions: 140 x 50 x 128 mm
• Weight: 0.805 kg
• Operating Ambient Temperature: -20 - 70 °C
• Relative Humidity: < 80 %, without condensation
• Accessories (included): Inscription label, rubber feet
• Max. Input Level (< 1% THD, 20 Hz): + 20 dBu
• Max. Input Level (< 1% THD, 1 kHz): + 32 dBu
• Frequency Response (±1 dB, relative to 1 kHz): 10 Hz - 30 kHz
• Input Impedance (1 kHz): 6.8 kOhms
• Output Impedance (1 kHz): 500 Ohm(s)
• THD (30 Hz, +4 dBu, unit, unweighted): < 1 %
• THD (1 kHz, +4 dBu, unit, unweighted): < 0.02 %
• IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): < 0.01 %
• Transformer Ratio: 1:1:1
