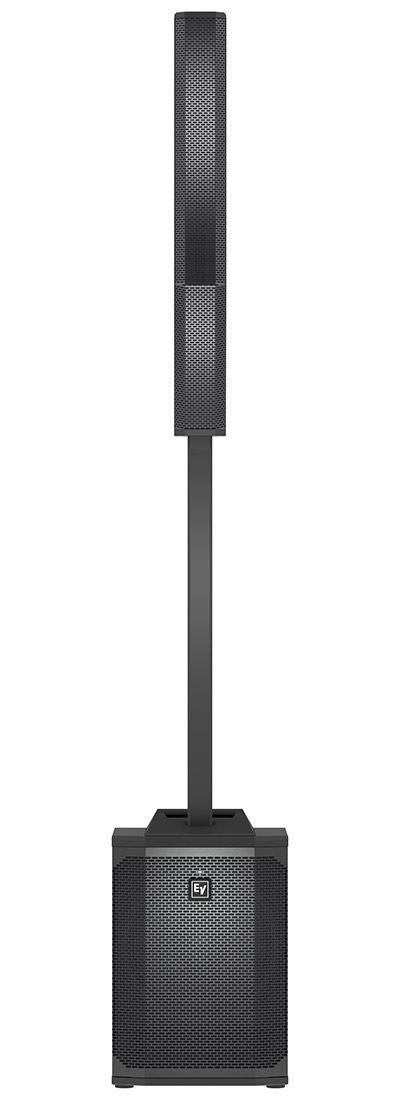

Electro Voice Evolve 50M - Portable PA system composed of a Column Array top with a pole and a subwoofer. It comes equipped with a digital mixer with eight channels, high-quality onboard effects, Bluetooth connectivity, and remote control of all audio functions, effects, and mixing via the Electro-Voice QuickSmart Mobile app compatible with iOS and Android operating systems. Ideal for bands/musicians, A/V rental companies, DJs, or any application requiring professional audio performance in a super compact and portable package.
12” low-frequency speaker, 8 x 3.5” high-frequency speakers
QuickSmart DSP with features such as:
4 presets: Music, Live, Speech, Club
3-band EQ
7-band graphic EQ (in Mixer mode)
5 user-programmable presets
Phantom Power
Visual monitoring of limiter status
Input level control
Master volume control
Effects with 30 presets, such as chorus, delay, flange, and reverb, using two FX channels
Frequency response (-3 dB): 43 Hz - 20 KHz
Frequency range (-10 dB): 37 Hz - 20 KHz
Dispersion: 120° x 40°
Total power: 1000 W
LF channel power: 500 W
HF channel power: 500 W
Crossover frequency: 200 Hz
Connectors:
4 x line inputs with combo XLR/TRS connectors
1 x Hi-Z input with 6.3 mm jack connector
2 x stereo line inputs with combo XLR / TRS connectors
1 x stereo RCA input
1 x stereo input with 3.5 mm jack connector
1 x Bluetooth wireless audio input
1 x Footswitch input with 6.3 mm jack connector
1 x mix output XLR
1 x AUX output XLR
1 x RJ45 QuickSmart Link connector
Subwoofer material: 15 mm plywood
Top material: composite
Pole material: aluminium
Steel grille with black finish
Dimensions:
Subwoofer: 530 x 345 x 471 mm
Top: 825 x 102 x 172 mm
Pole: 929 x 48.5 x 55 mm
Assembled: 2045 x 345 x 471 mm
Weight:
Subwoofer: 20.3 kg
Top: 4.7 kg
Pole: 1.25 kg
Total: 26.25 kg
Power consumption: 100-240 V AC, 50-60 Hz, 1.5-0.6 A
