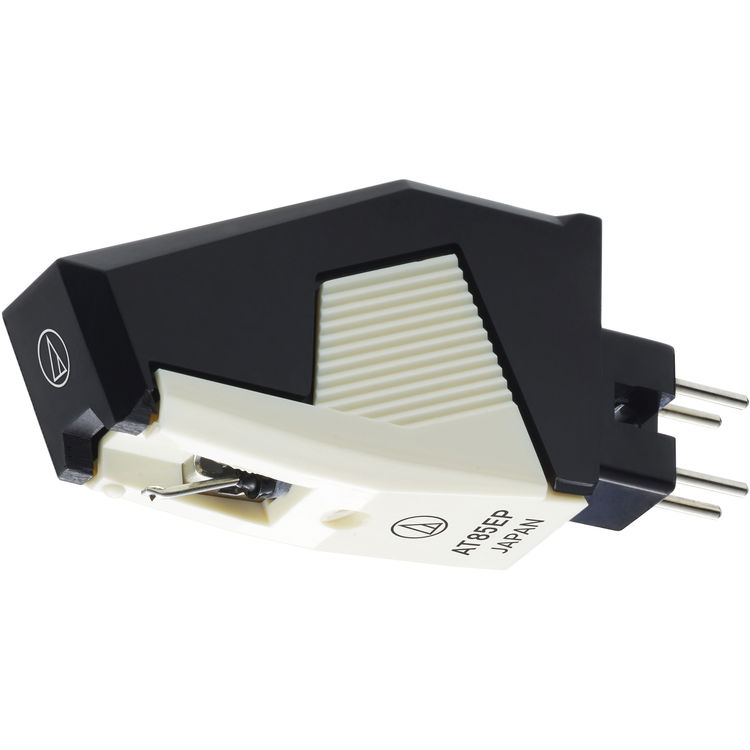

Audio-Technica AT85EP - replacement cartridge for turntables with a P-mount design, featuring an elliptical stylus, specially designed for DJs, clubs, or even home stereo use. It benefits from a bonded round stylus shank with an aluminium tube cantilever. It has a channel separation of 20 dB and a frequency response of 20 Hz to 20 kHz, ensuring detailed and high-accuracy audio reproduction.
Technical specifications:
- Frequency response: 20 Hz to 20 kHz
- Channel separation: 20 dB at 1 kHz
- Tracking force: 1 to 1.5 g (1.25 g standard)
- Stylus construction: Bonded round shank
- Shape: 0.3 x 0.7 mil elliptical
- Cantilever: aluminium tube
- Recommended load impedance: 47 kOhms
- Recommended load capacitance: 100 to 200 pF
- Output: 3.5 mV (1 kHz, 5 cm/second)
- Channel balance: 2 dB (1 kHz)
- Mounting: P-mount
- Replacement stylus: ATN85EP
- Coil impedance: 2.8 kOhms (1 kHz)
- Coil inductance: 400 mH (1 kHz)
- DC resistance: 410 Ohms
- Vertical tracking angle: 20°
- Dimensions (H x W x D): 15.3 x 10.0 x 35.1 mm
- Weight: 6 g
