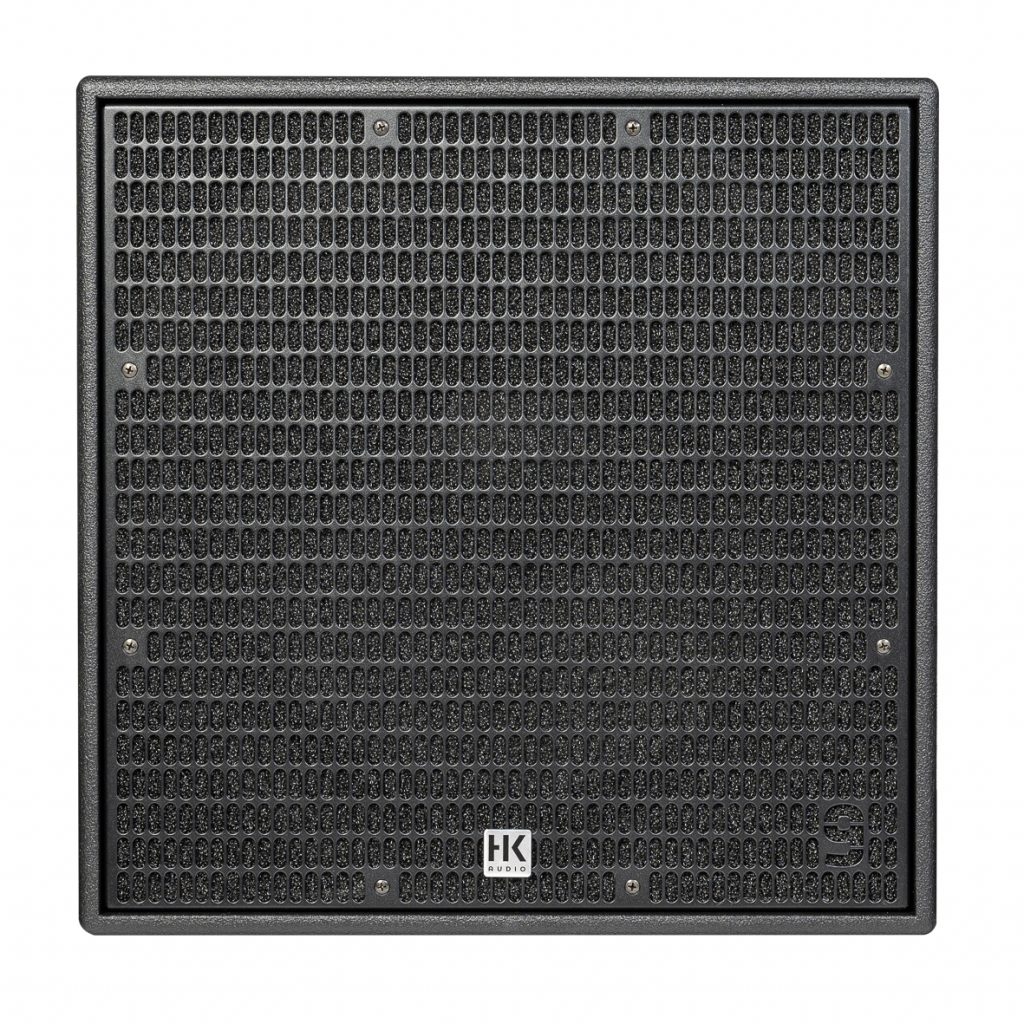

HK Audio Linear 9 118 Sub A

HK Audio Linear 9 118 Sub A - Its bass-reflex construction allows for compact dimensions, and weighing only 42 kilograms, it is extremely easy to transport. A powerful punch, precise reproduction, and impressive performance at low frequencies make this active subwoofer the ideal complement for mid/high units. Additionally, it meets all requirements for the quick and easy implementation of efficient cardioid setups, both mechanically and with the available filter sets. Thanks to its stereo preamplifier, it is also ideal for use in 2.1 systems.

• Max. SPL @ 10% THD: 129 dB half space (42 Hz – 100 Hz on average)
• Max. Peak SPL @ 10 % THD: 131 dB half space
• Frequency response +/-3 dB: 42 Hz – X-over
• Frequency response -10 dB: 38 Hz – X-over
• Power amplifier output (RMS): 1100 W
• Amplifier type: Class D
• LF Driver: 1 x 18", 4" voice coil
• Maximum input level: +20 dBu
• Analog inputs: 2 x balanced XLR combo
• Analog thru: 2 x balanced XLR
• DSP output: 1 x balanced XLR
• Network port: Ethercon RJ45, 1 x In, 1 x Thru
• Preset filters: Front, Cardioid 1:1, Cardioid 2:1, Remote
• Remote software: DSP CONTROL (Windows, macOS)
• DSP functions: Full parametric EQ with 10 bands with variable filter characteristics, low-pass filter, polarity, level, delay, limiter, mute
• Sampling frequency: 96 kHz
• System latency: Less than 2.6 ms
• Network connector: 1 x Powercon NAC3 In, 1 x Powercon NAC3 Thru, 100–240 V
• Power consumption: 1.9 A / 100–240 V nominal according to EN 62368-1
• Pole mount: 1 x M20
• Carrying handles: 2 x MultiGrip
• Housing: Birch multiplex
• Finish: Black PU coating
• Front grille: 2 mm metal grille supported with black acoustic foam
• Dimensions (L x H x D): 55 x 56 x 69 cm
• Weight: 41.5 kg
