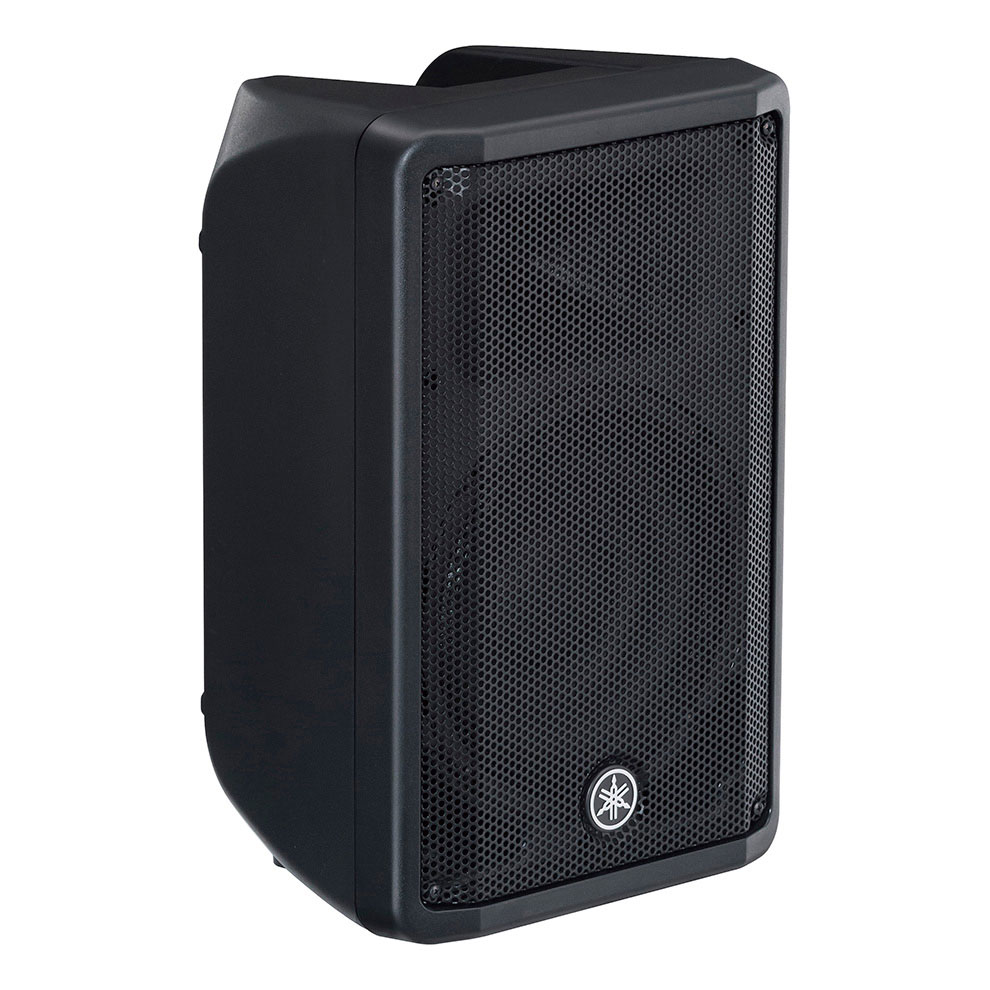

Yamaha DBR 10 - active two-way bass reflex speaker, bi-amplified, equipped with a 10" low-frequency driver and a 1" high-frequency driver. Frequency response 55Hz – 20kHz, power 700WPeak/350WRMS, 129dB SPL Max, built-in 2-channel mixer, with TRS and RCA type inputs.
It is the most compact speaker in the DBR series, capable of delivering sound at an SPL level of 129 dB. Due to its construction, it can be used in a variety of locations and purposes, as a fixed speaker, mobile speaker, or floor monitor.
Type: bi-amplified two-way bass reflex speaker
Frequency response: 50 Hz - 20 kHz (-10dB)
Low-frequency driver: 10" with 2" voice coil (Ferrite Magnet)
High-frequency driver: 1"
Crossover frequency: 2.1kHz: FIR-X tuning™ (Linear phase FIR filter)
Power: 700WPeak/350WRMS
Maximum sound pressure level (SPL): 129dB
Connectors: INPUT1: Combo x1, input2: Combo x 1 + RCA pin x 2 (unbalanced), output: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
