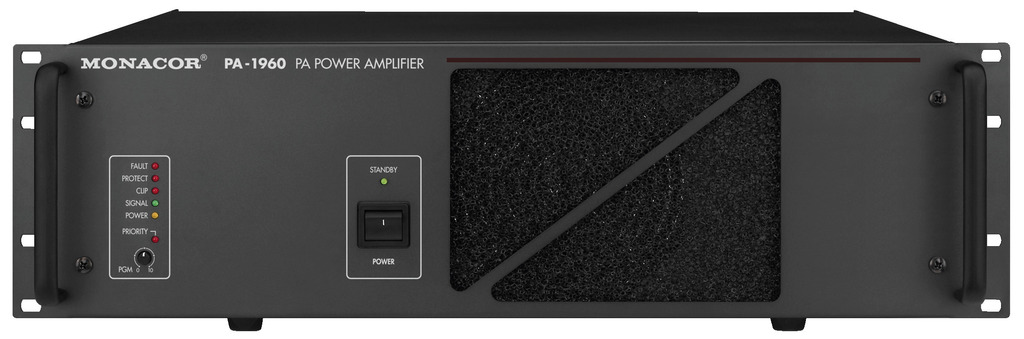

Monacor PA-1960

Monacor PA-1960, power amplifier for 100V systems.

• 960W RMS
• additional input for priority signal
• 100V slave input for daisy chaining amplifiers
• switchable high-pass filter at 400Hz, with 6dB/octave attenuation
• 2 slots for optionally installable modules:
• PA-6FD: fault detection module
• PA-6FM: fault monitoring module
• connection for external on/off switch (remote)
• temperature-controlled active ventilation
• display for clipping, protection, and overheating
• support for 24V safety power supply
• input sensitivity: 0.775V/60kOhm, balanced
• output impedance: 75V/5.6 Ohm, 85V/7.2 Ohm, 100V/10 Ohm
• frequency response: 35-20000Hz, -3dB
• SNR: >100dB, A-weighted
• THD <0.4%
• permissible ambient temperature: 0-40°C
• dimensions: 483x88x374mm, 2U
• weight: 25kg
• terminal input with screw terminals
• screw terminal output
