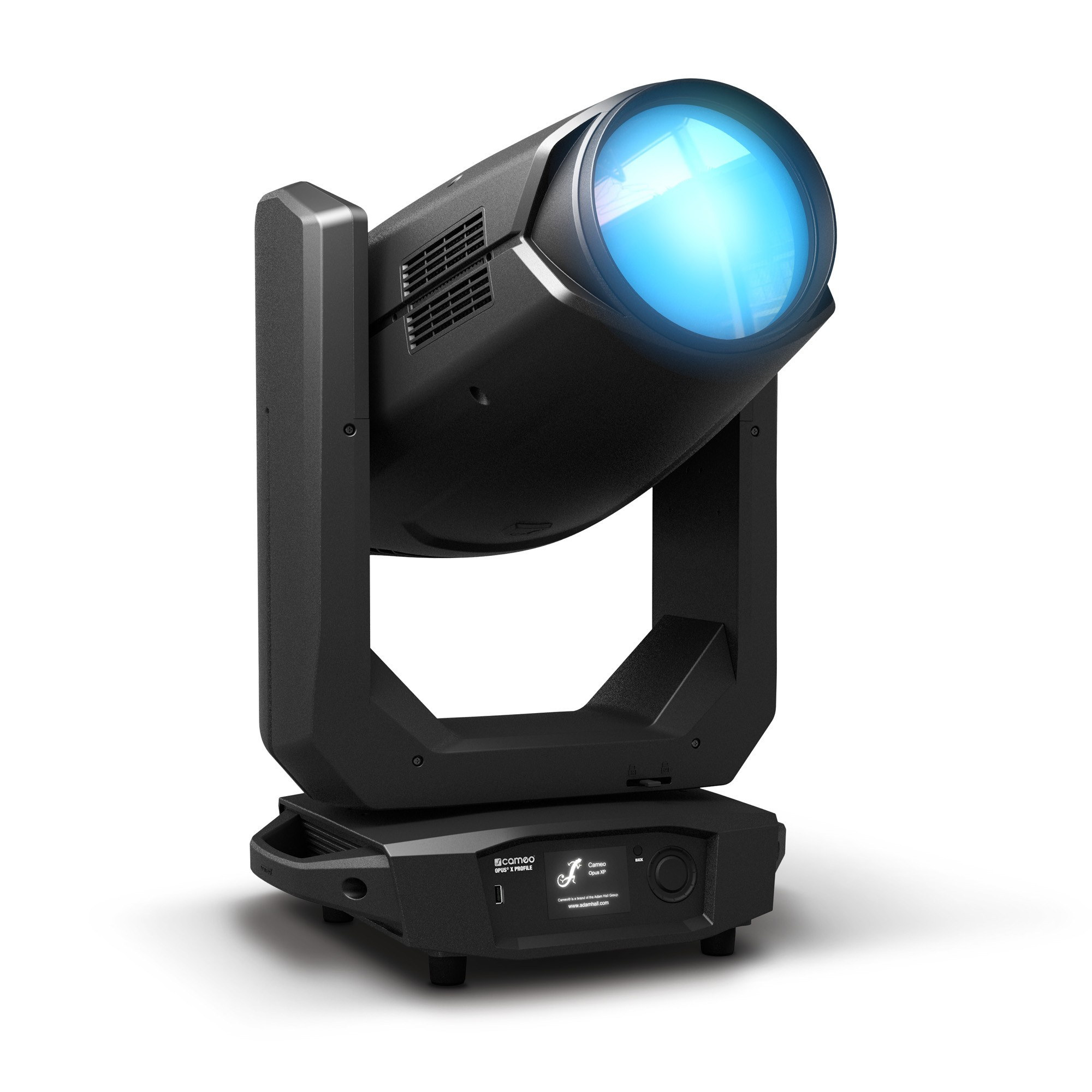

Drawing only 750 W, achieve the same lighting performance that conventional devices require 1000 W for! This is possible thanks to the extremely efficient light engine of this incredibly modern high- power moving head from Cameo: the OPUS® X Profile.
The light engine efficiency of the Cameo OPUS X Profile Moving Head (item no.: CLOXP) can be seen throughout its design philosophy. This makes it possible to achieve 33,000 lm at a lighting power of 72,000 lux @ 5 metres. The complete setup with effects for use as spot and profile in this efficient and modern moving head is further augmented with the additional framing module. The high-quality optic with 170 mm front lens and a remarkably wide zoom range of 6° to 48° offers almost inexhaustible design possibilities. Be inspired by the combination of CMY colour blending and an additional colour wheel with 6 dichroic filters.
Cleverly coordinated and balanced functional features facilitate consistent projection without hotspots. The moving head is equipped with a +/- 45° rotatable, four-blade framing-shutter-system. Flickering in camera images is reliably prevented thanks to selectable PWM frequencies of up to 25 kHz. Light designers appreciate the rotatable animation wheel that doesn't limit their creativity. Fascinating lighting effects are created with the rotating gobo wheel in combination with six indexable, rotatable and exchangeable glass gobos, or optionally open. Alternatively, the static gobo wheel is available with seven exchangeable glass gobos or for open application.

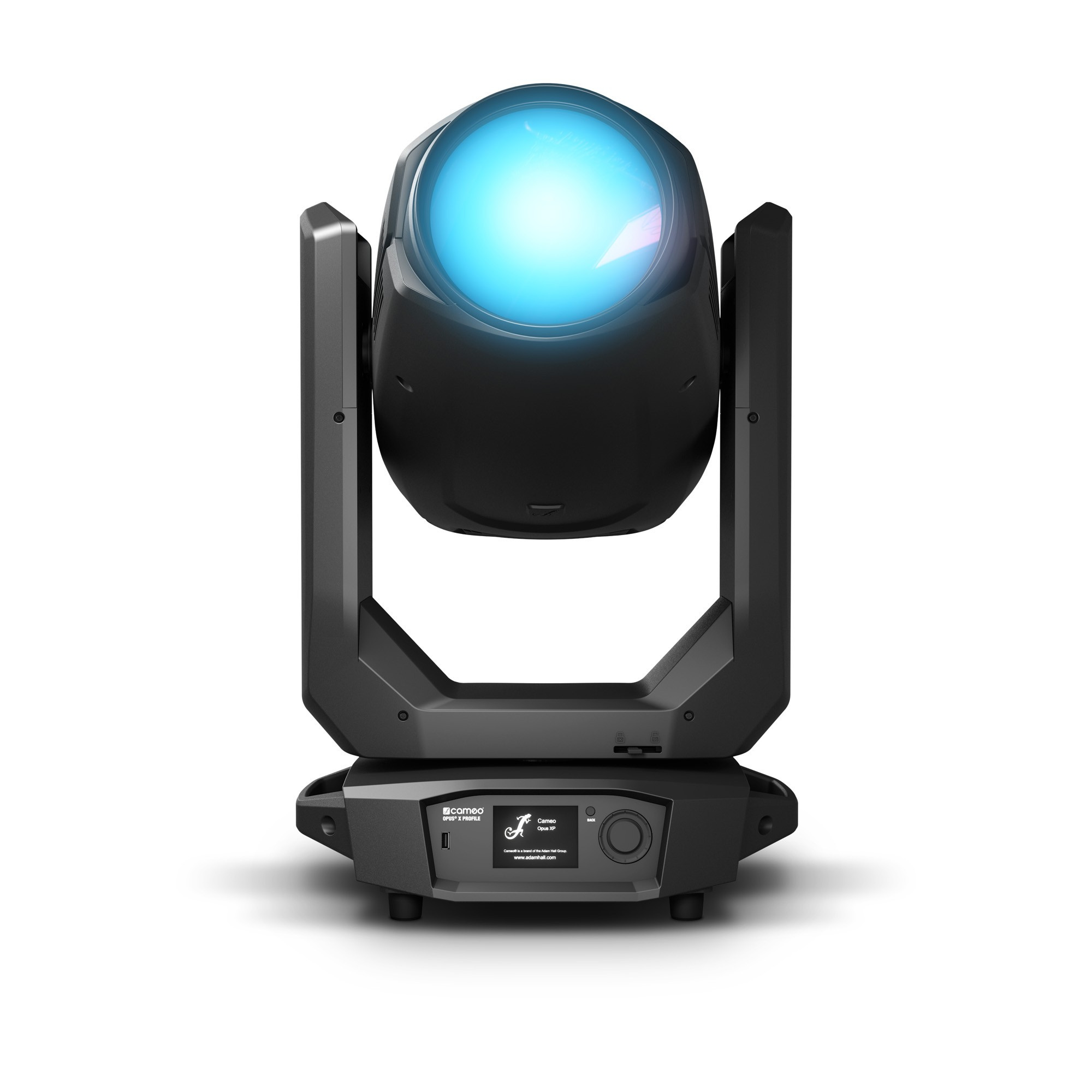

With the circular fivefold prism, which is rotatable and indexable, and the linear sixfold prism, undreamed of possibilities for designing lighting effect sequences open up when used as a spot or profile. The angle and position of each diaphragm slider can be adjusted to achieve complete darkness. Combined with the variable frost filter for wash light effects and the continuously variable iris diaphragm, the creativity potential of this moving head is further multiplied. In standalone operation, control is either in static mode or on a master/slave basis and configured under independent power via the battery-powered touchscreen display with six touch keys. Greater flexibility is provided by the integrated W-DMX™ transceiver, DMX, RDM, Art-Net or sACN for controlling functions such as smooth dimming with 16-bit resolution and four selectable curves.

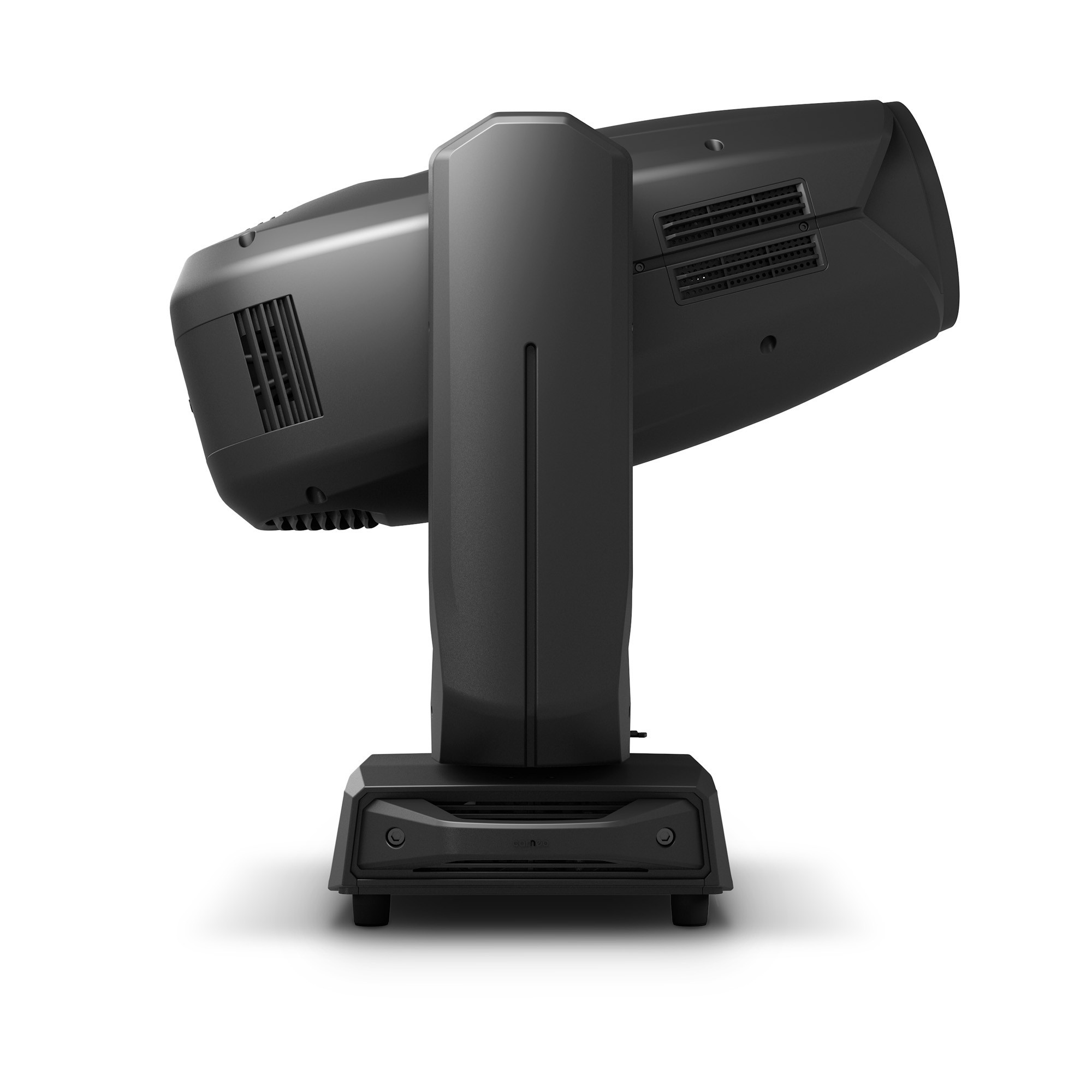

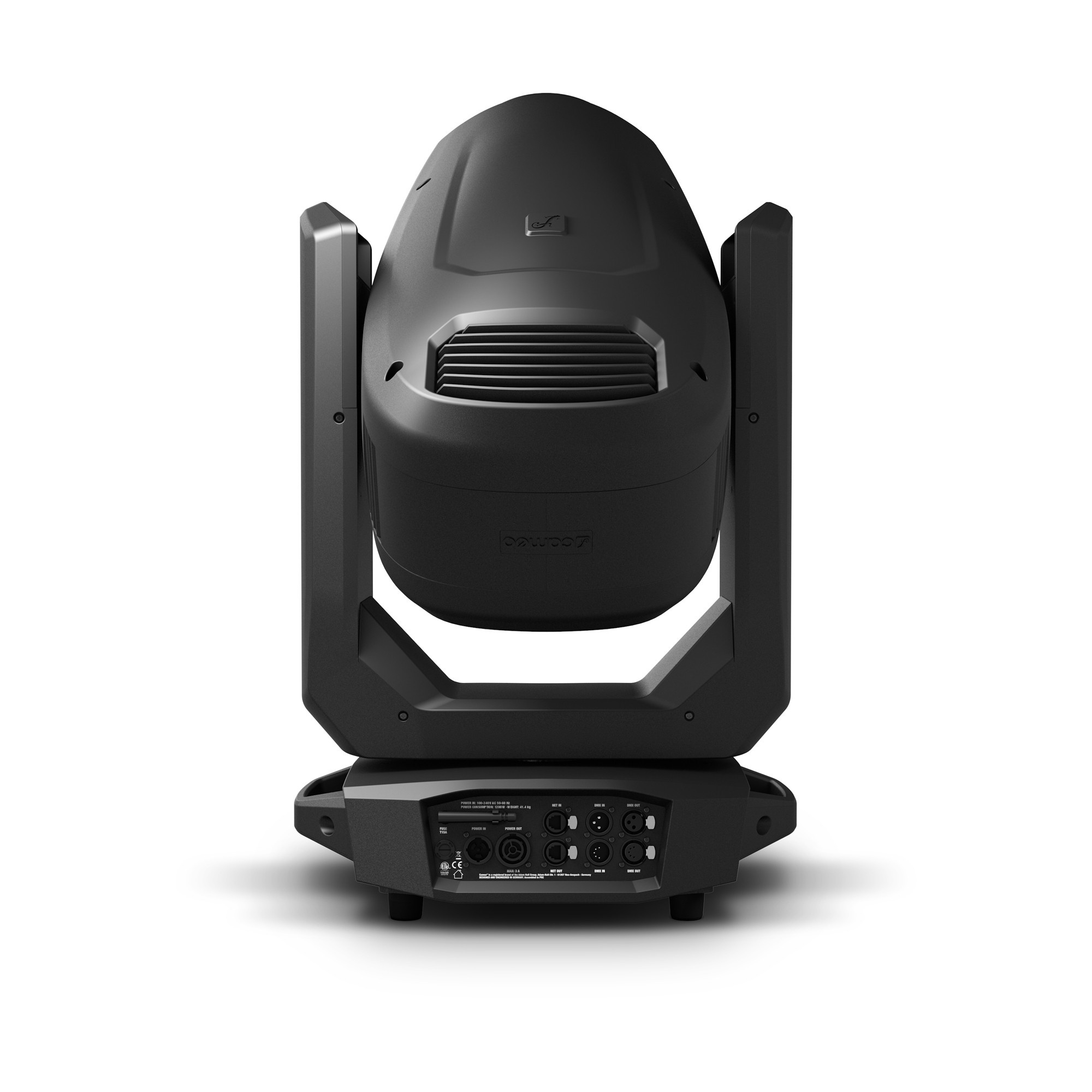

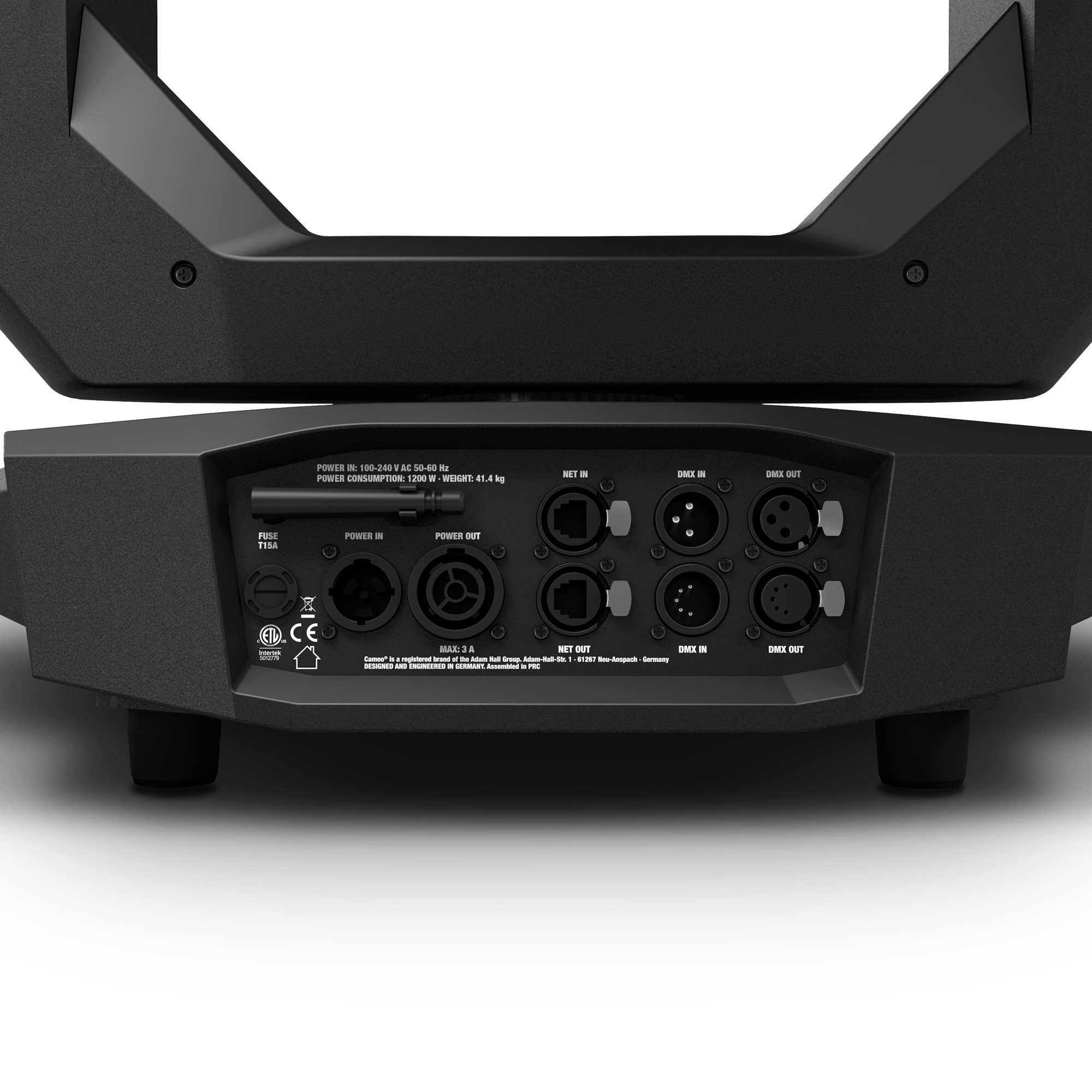

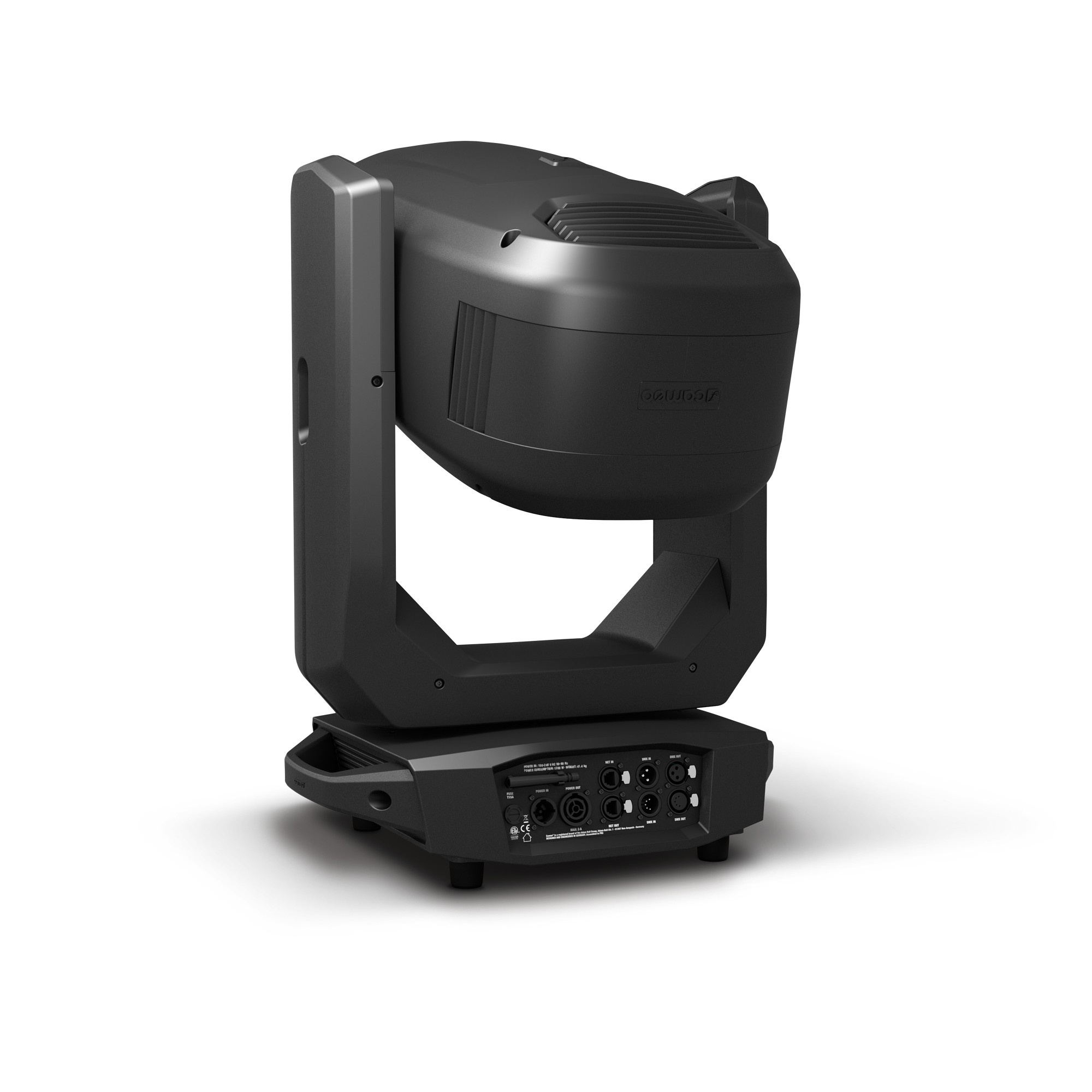

The attractive design of the spot and profile moving head proves itself in everyday use. Inside the robust metal and ABS plastic housing is a temperature-controlled fan working quietly to keep the housing cool. The separate power cable is one metre long and fitted with a Neutrik powerCON TRUE1 connector. The two included Omega mounting brackets allow for flexible installation of the spot/profile moving head.
System settings: Auto Focus, Auto Lock, Blackout functions, Colour/ Gobo wheel, Dimmer Curve, Display Illumination, Display Reverse, fan, Feedback, LED PWM Frequency, Motor Speed, Movement Blackout, pan, Pan Reverse, reset, Scroll / Snap, Signal Fail, Test, Tilt Reverse, User default values
