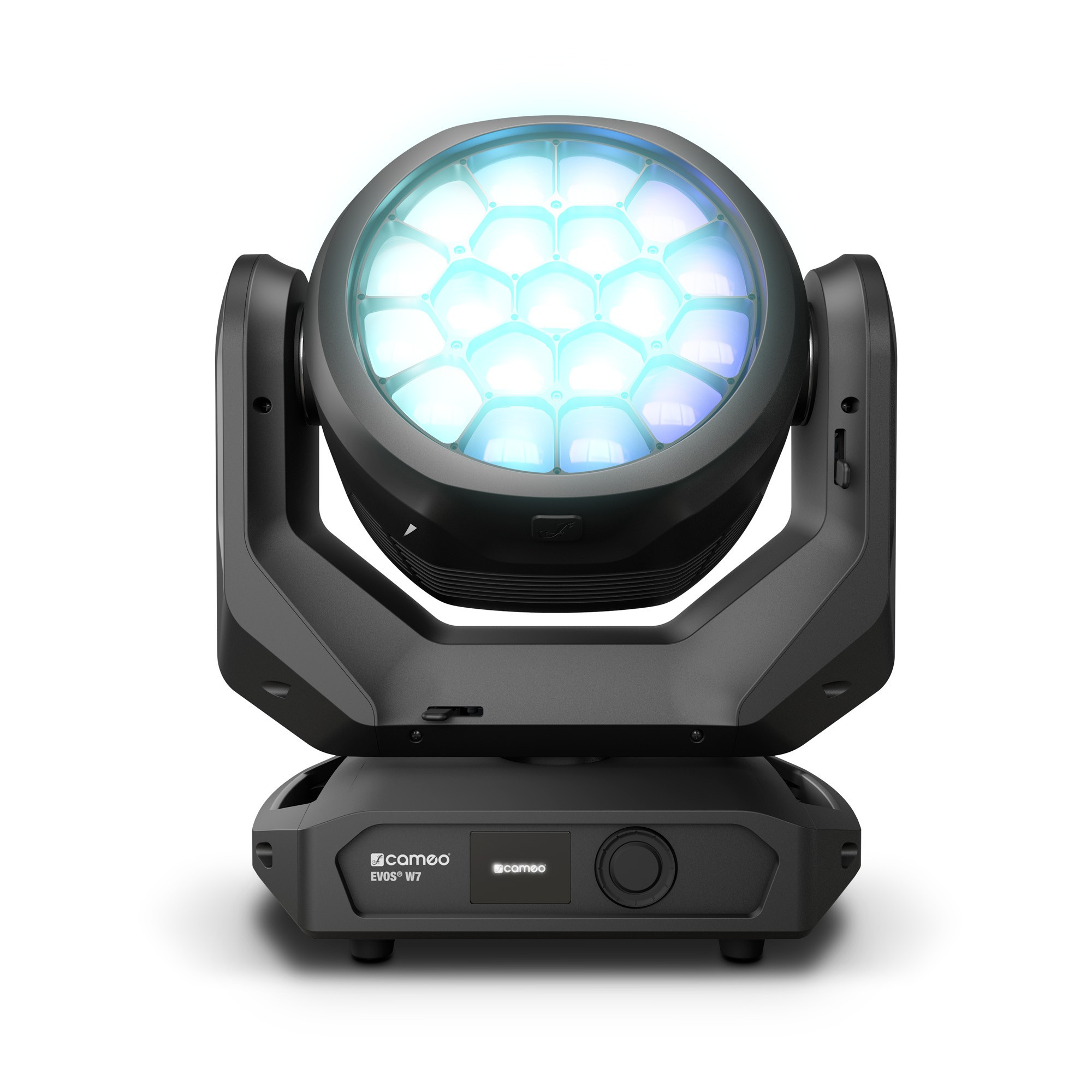

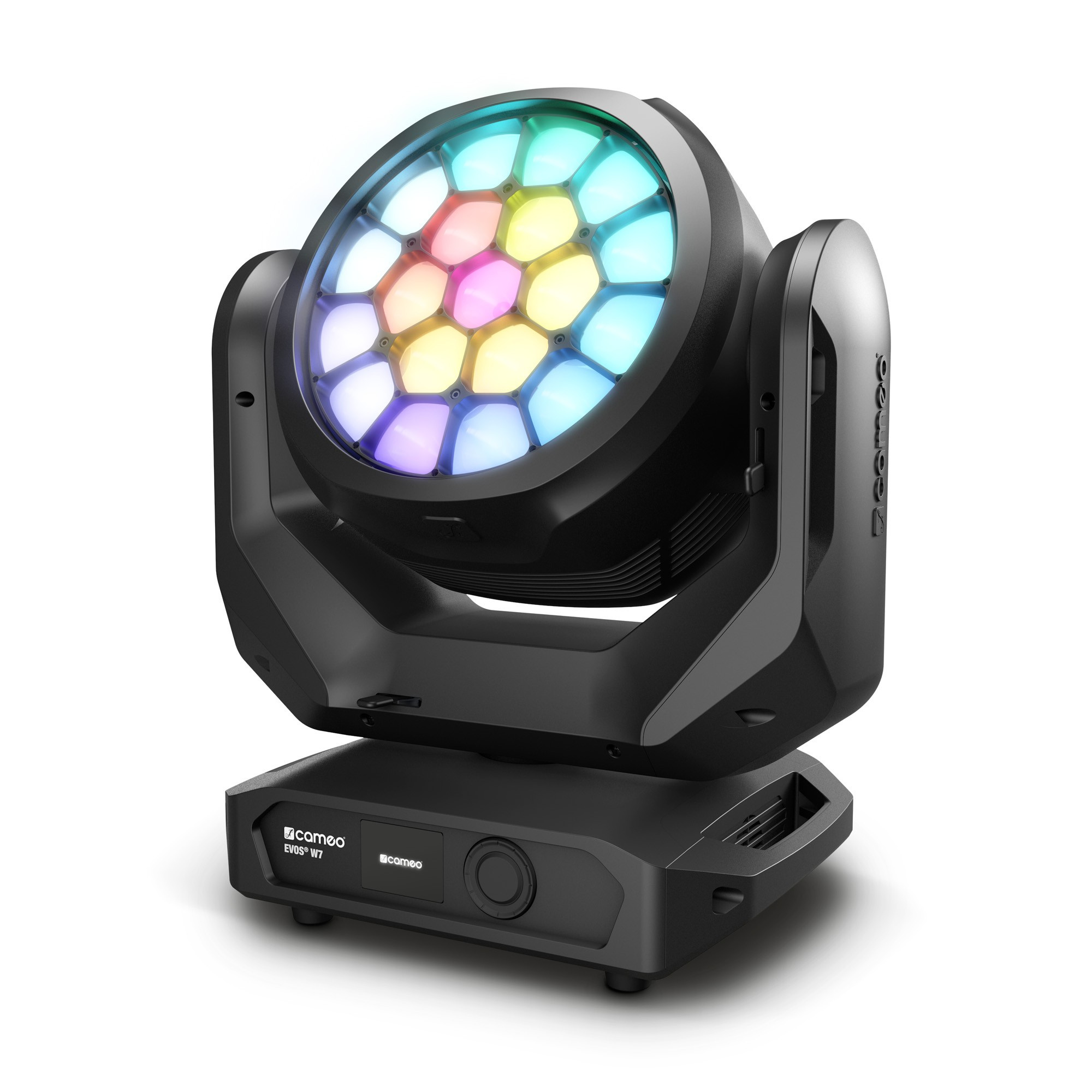

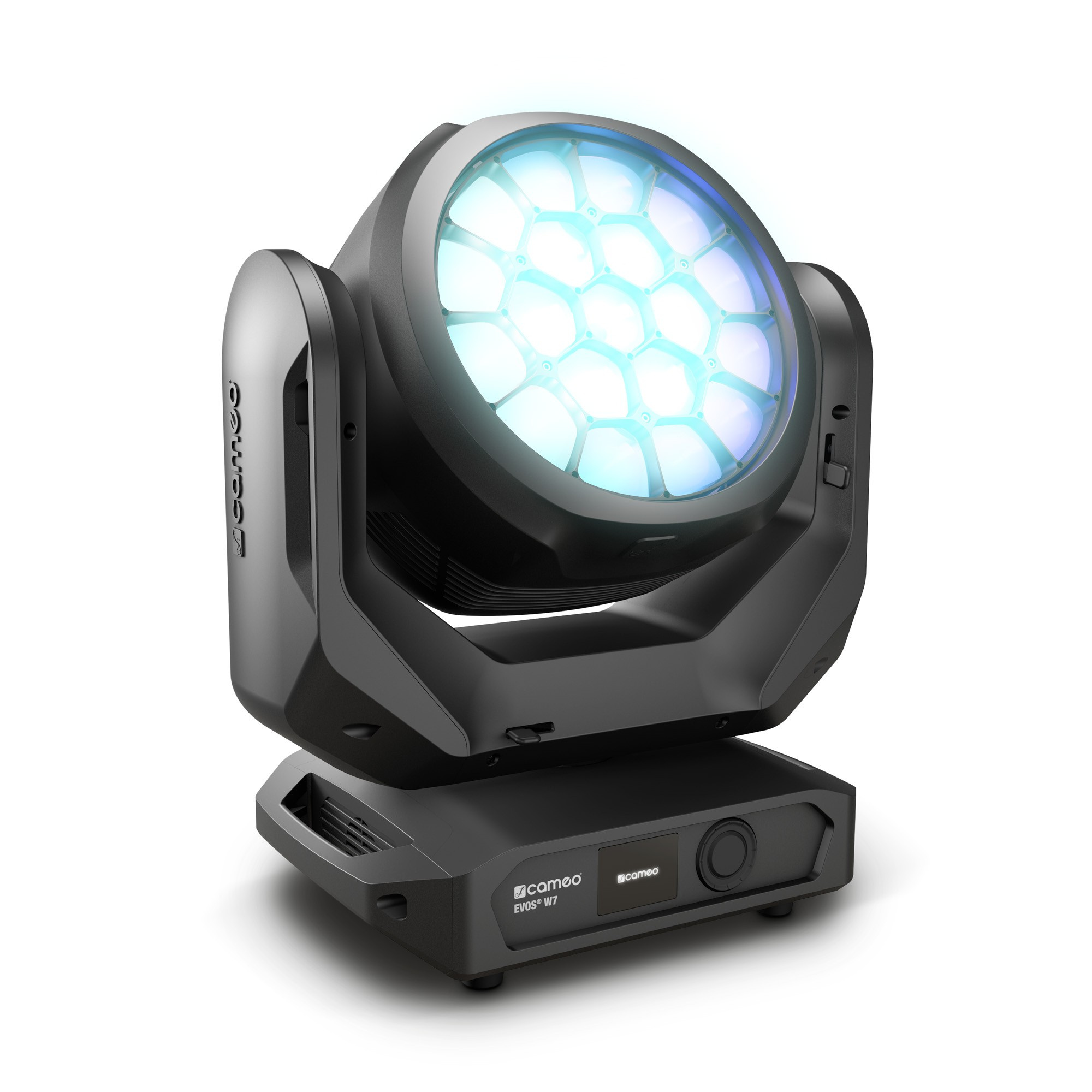

Cameo Evos W7


Moving Head Wash LED

  • 19 RGBW LEDs producing rich colours with a powerful output of 12,500 lumens.
  • versatile zoom range from 4.5° to 55° for strong beams and wash effects.
  • flicker-free operation with adjustable refresh rates up to 25 kHz.
  • flexible control options via DMX, RDM Art-Net3, sACN, or KlingNet.
  • robust housing made from eco-friendly materials with temperature-controlled fans.
Cameo
Variante:
EVOS W7 IP
EVOS W7 IP
The price of this product is not public — for details please ask a SoundCreation consultant.
Central warehouse: 0
Shipping free
Warranty 24 months
Returns 14 days

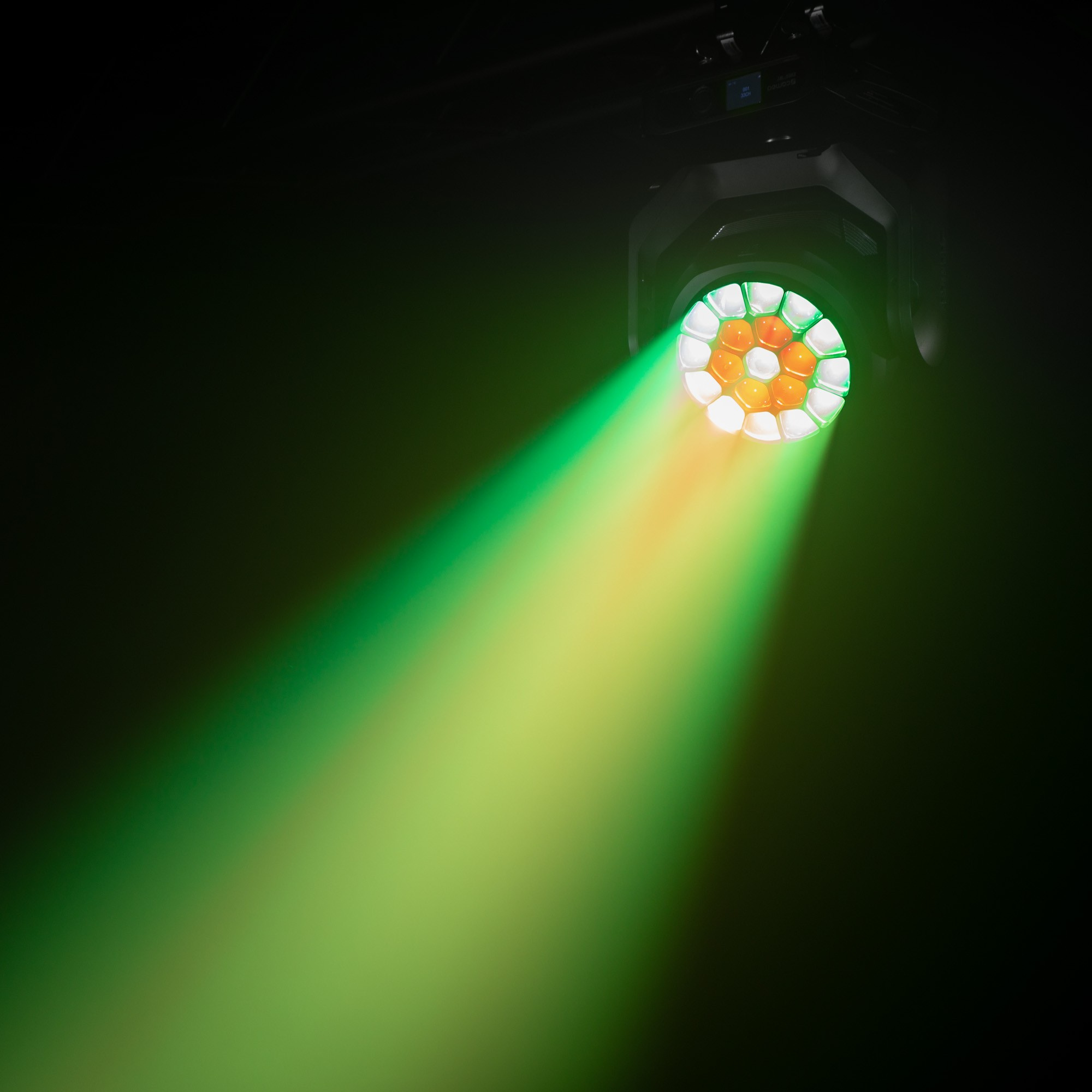

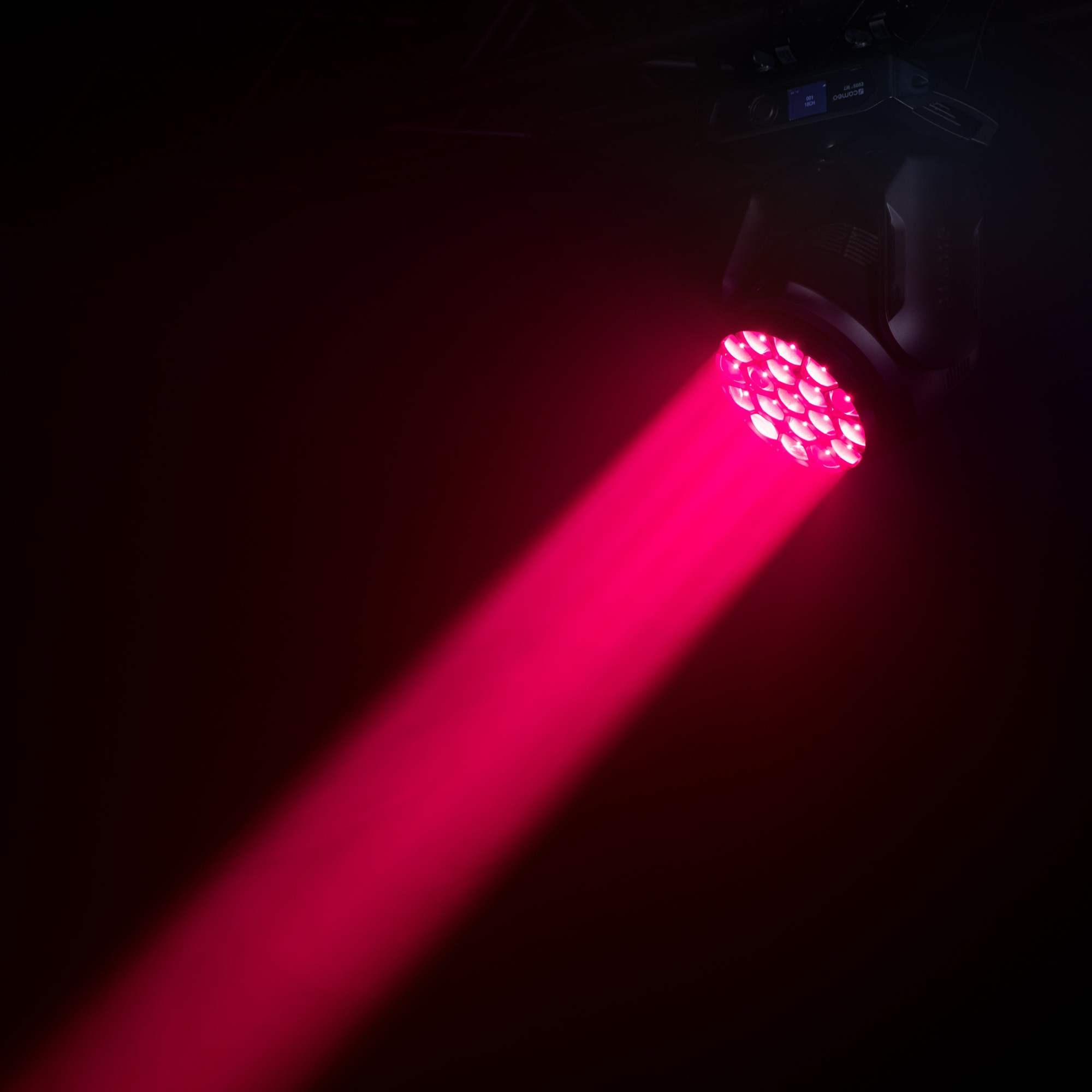

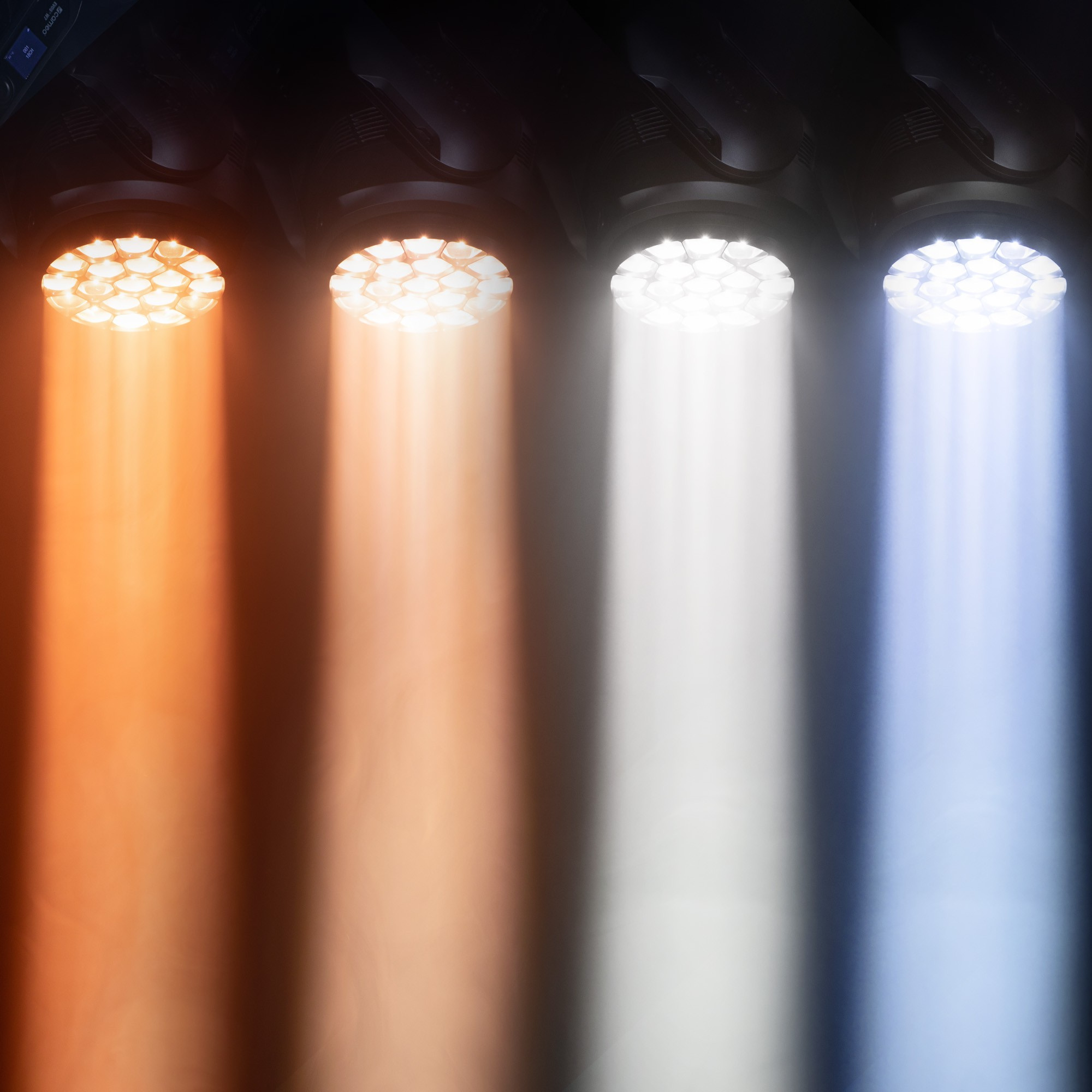

Cameo Evos W7 - If you are looking for an LED light with a remarkably natural appearance for effects and lighting, then this professional WashBeam is the right choice. The warm white LED allows you to mix attractive warm pastel shades and also provides a wonderful warm white light for illuminating people/objects/etc. The Cameo EVOS W7 WashBeam moving head with unique pixel control and Beam Shaper for asymmetric beams is specially designed for rental companies with demanding professional clients. A total of 19 RGBW 40 W LEDs produce rich RGB colours for stunning lighting effects. Compared to other devices, the Cameo EVOS W7 offers an exceptionally high colour rendering index. The warm white chip can be used to illuminate people or objects - either with natural warm white light or as ambient lighting in pastel shades. This versatility results from the unique combination of a colour LED with a WW chip, which generates extremely clearly defined white tones with a CRI over Ra 90.

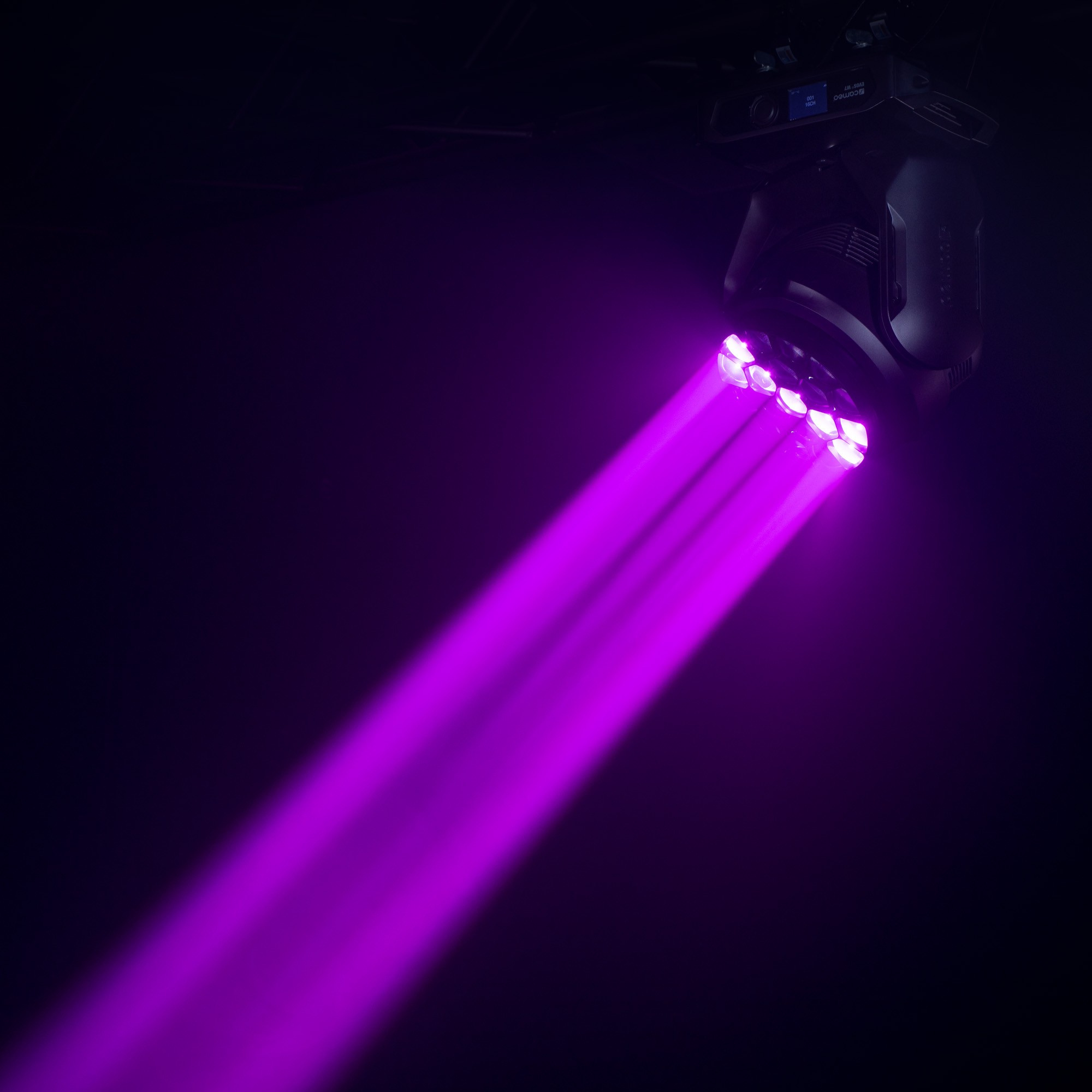

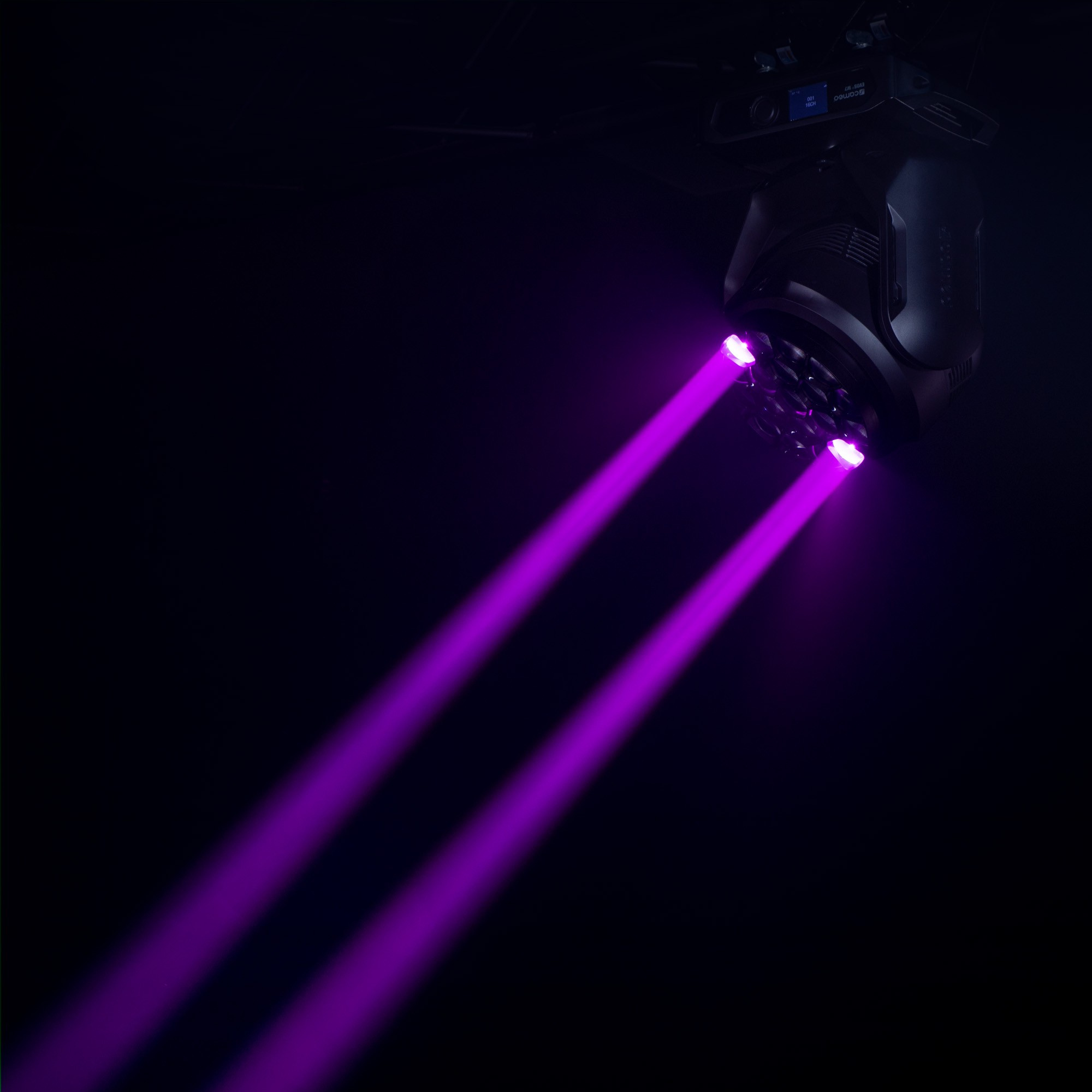

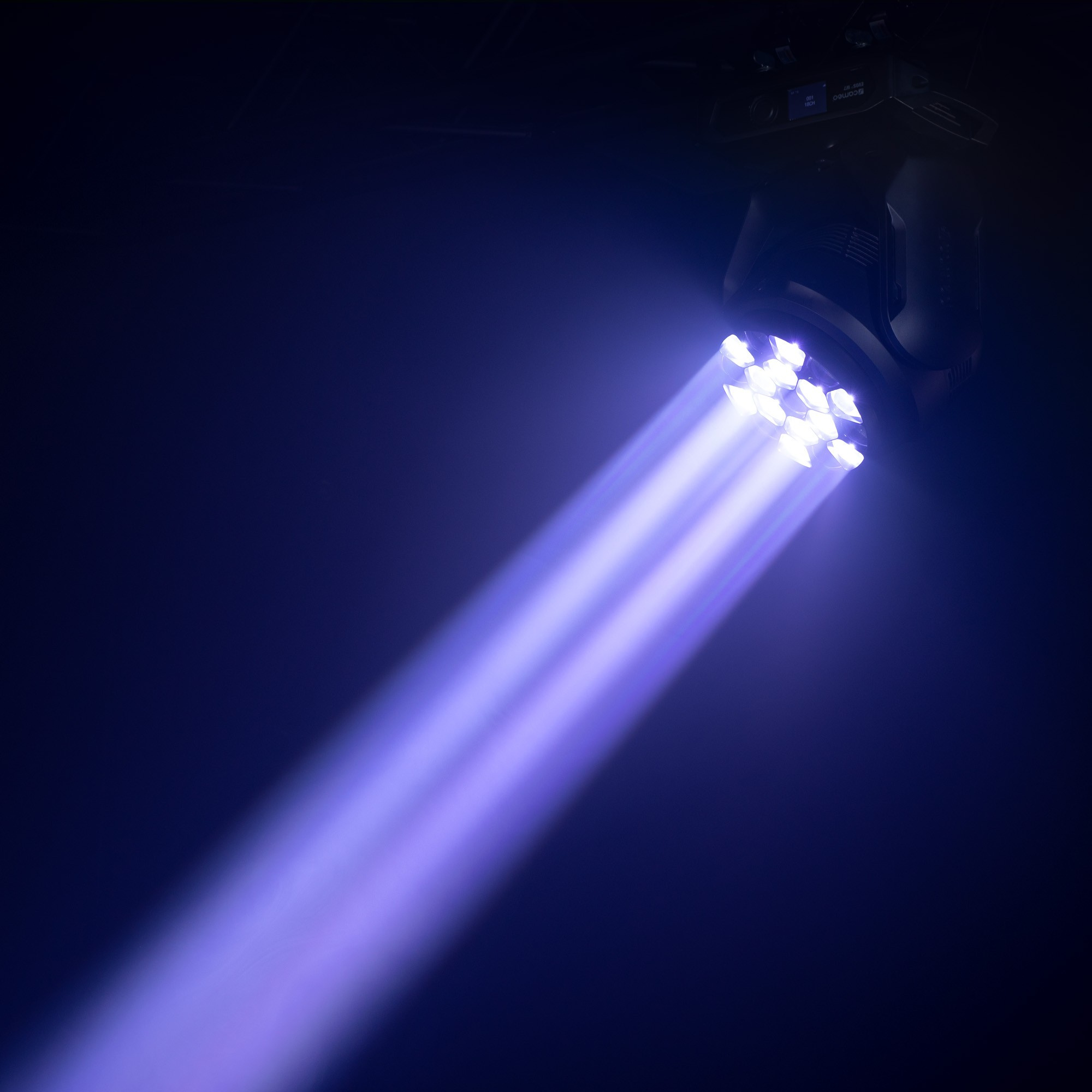

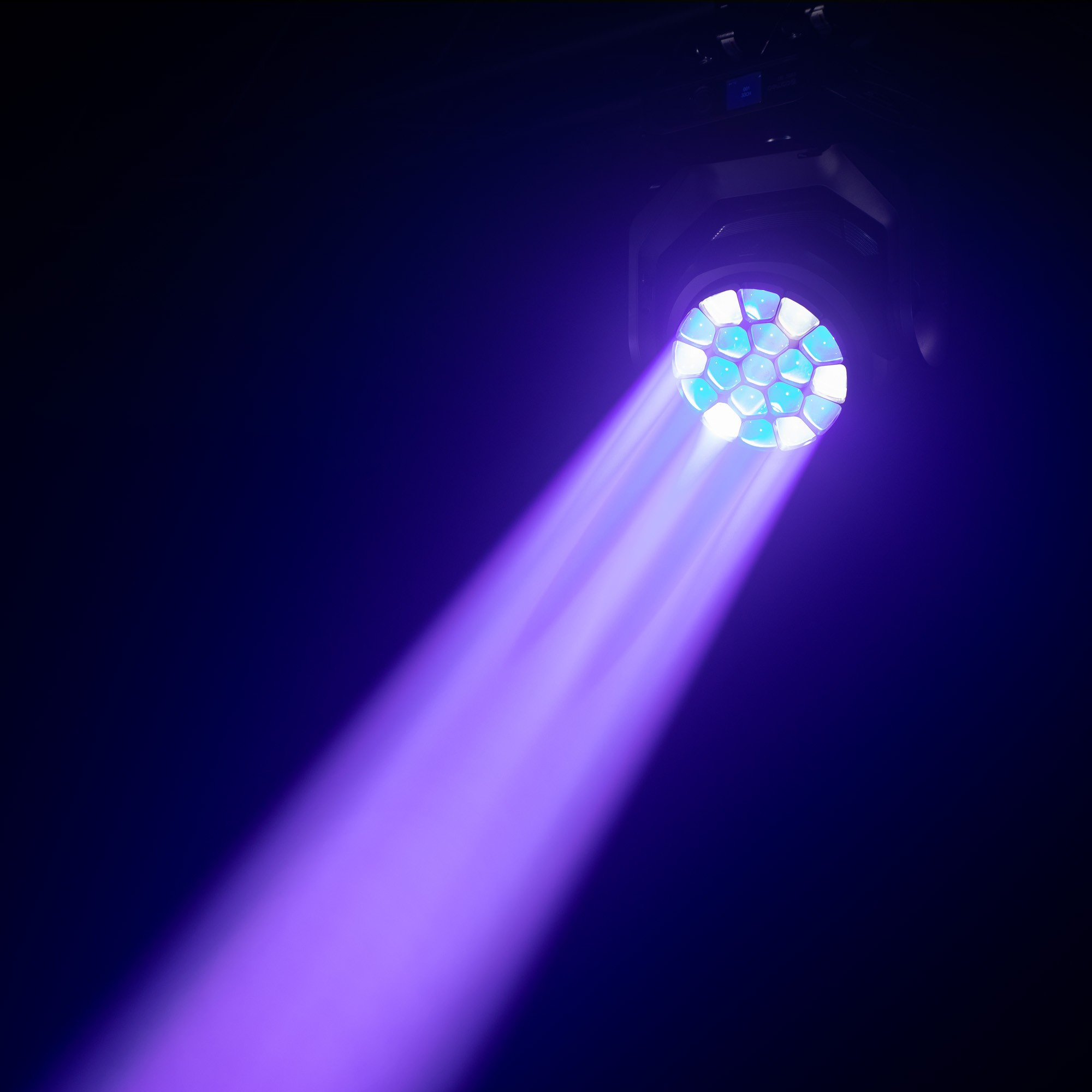

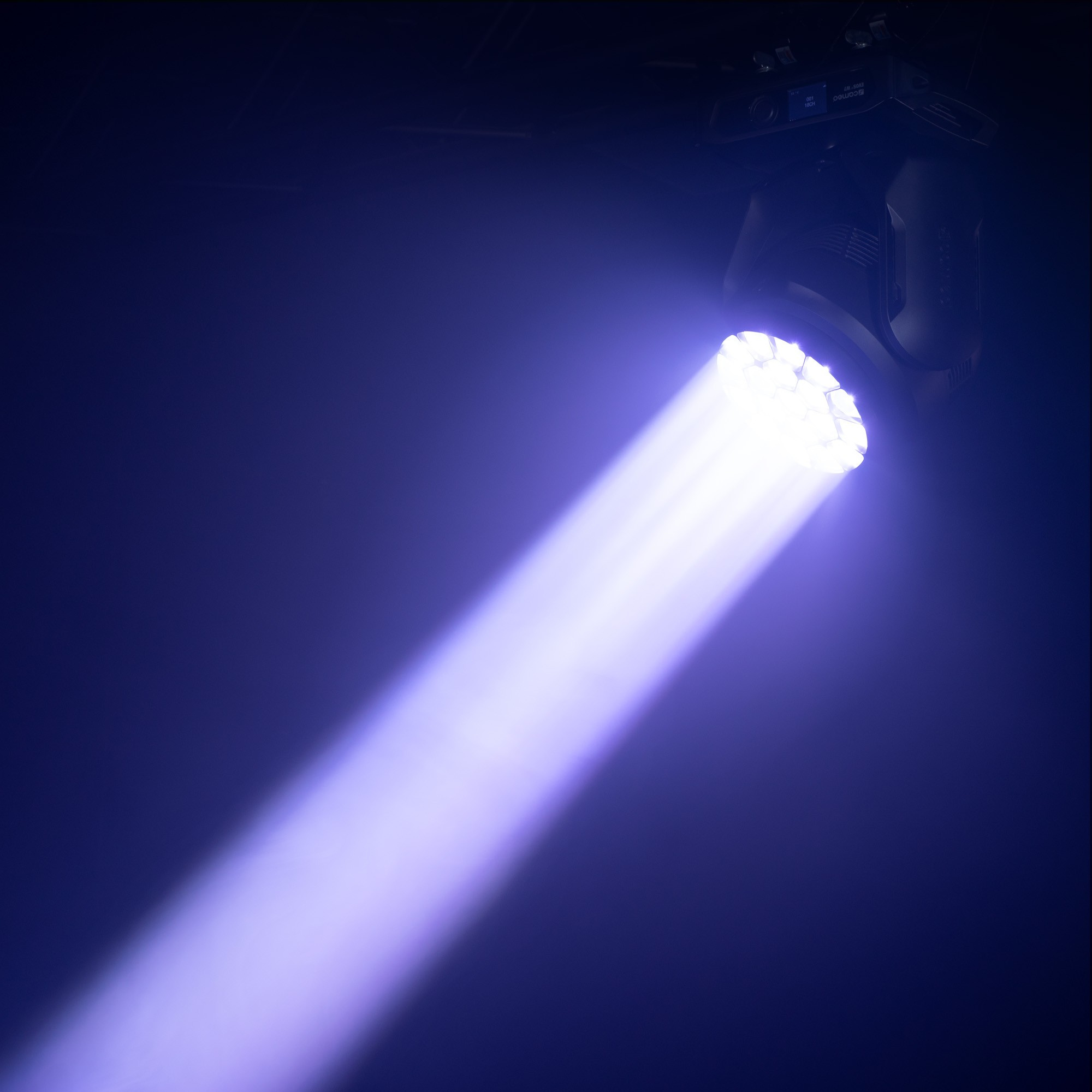

Offering individual control of all LEDs through unique pixel control, the Cameo EVOS W7 WashBeam produces stunning pixel effects. The powerful luminous flux of 12,500 lumens floods any event with warm and bright light in clearly defined colours and provides generous coverage of up to 540° horizontally (pan) and 270° vertically (tilt). Its versatility is further enhanced by an impressive zoom range from 4.5° to 55°, facilitating a strong beam and wash effects over large surfaces. Directional light beams can also be shaped asymmetrically using the included Beam Shaper.

Live images of your event are guaranteed to be flicker-free, as the refresh rate of the WashBeam moving head can be adjusted in six steps between 800 Hz and a maximum of 25 kHz.

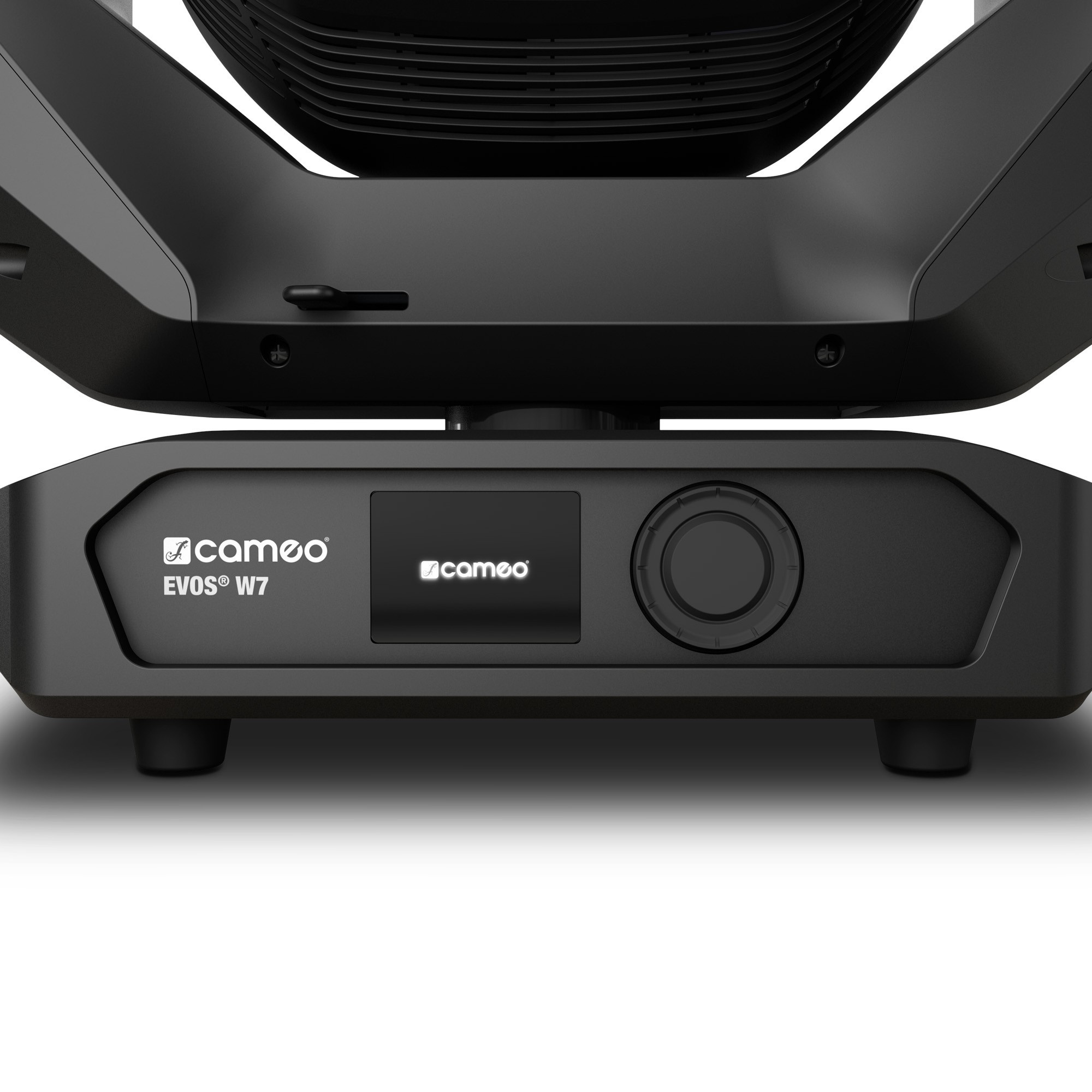

Software control via a network is extremely flexible with DMX, RDM Art-Net3, sACN or KlingNet. Other effect devices from the network are connected via 3 or 5-pin XLR sockets, and the DMX mode is available in versions with 16, 18, 23, 33, 43 and 97 channels to transmit the extremely extensive range of DMX functions: pan/tilt, pan/tilt fine, dimmer, dimmer fine, strobe 0-20 Hz, zoom, zoom fine, single pixel control, pattern, effect pattern, colour presets (LEE filter) and motion macros. Standalone operation and independent network configuration in automatic program and static mode are achieved via the intuitive encoder with a graphic display powered by a rechargeable battery. Pre-set colour filters allow for trouble-free use in combination with conventional headlamps.

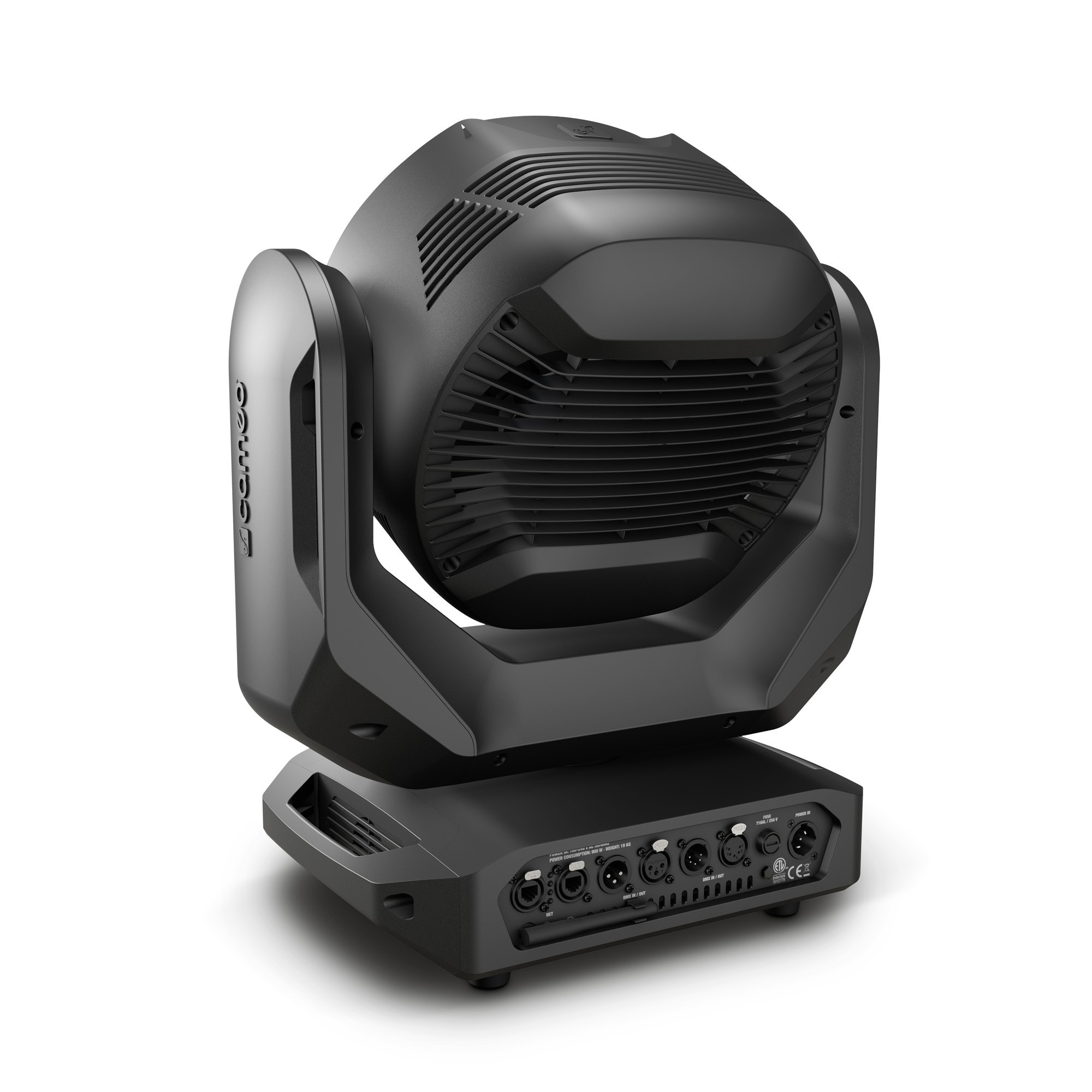

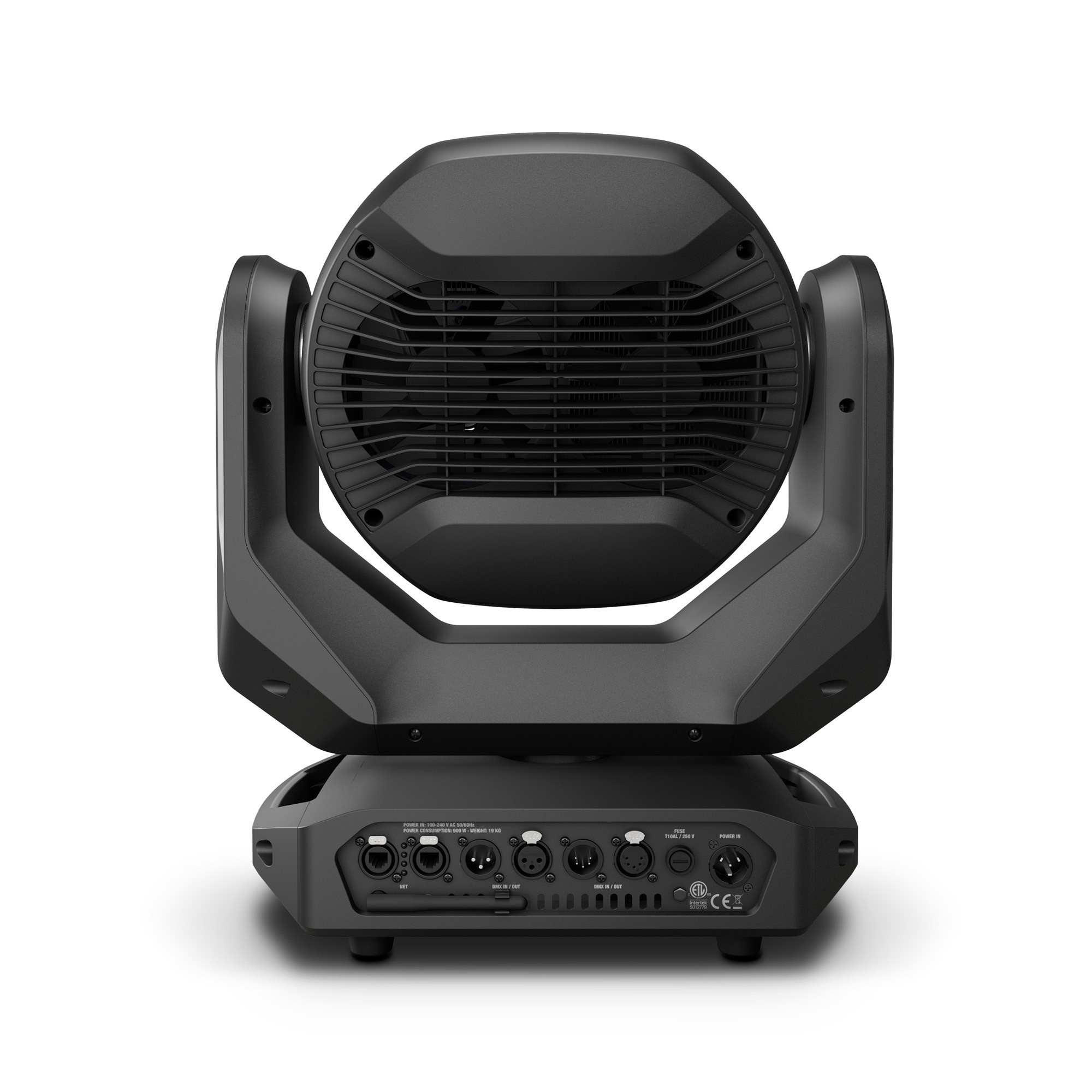

The black housing is made of ABS, nylon and eco-friendly PC plastic, fireproof and has temperature-controlled fans, a network connection with a Neutrik TrueOne socket and an integrated 1 m network cable.

  • Colour spectrum: RGBWW
  • Number of LEDs: 19
  • LED type: 40 W RGBWW
  • Refresh rate: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - Adjustable Hz
  • Dispersion: Beam angle: 4.5 ° - 34 °, Field angle: 7 ° - 55 °

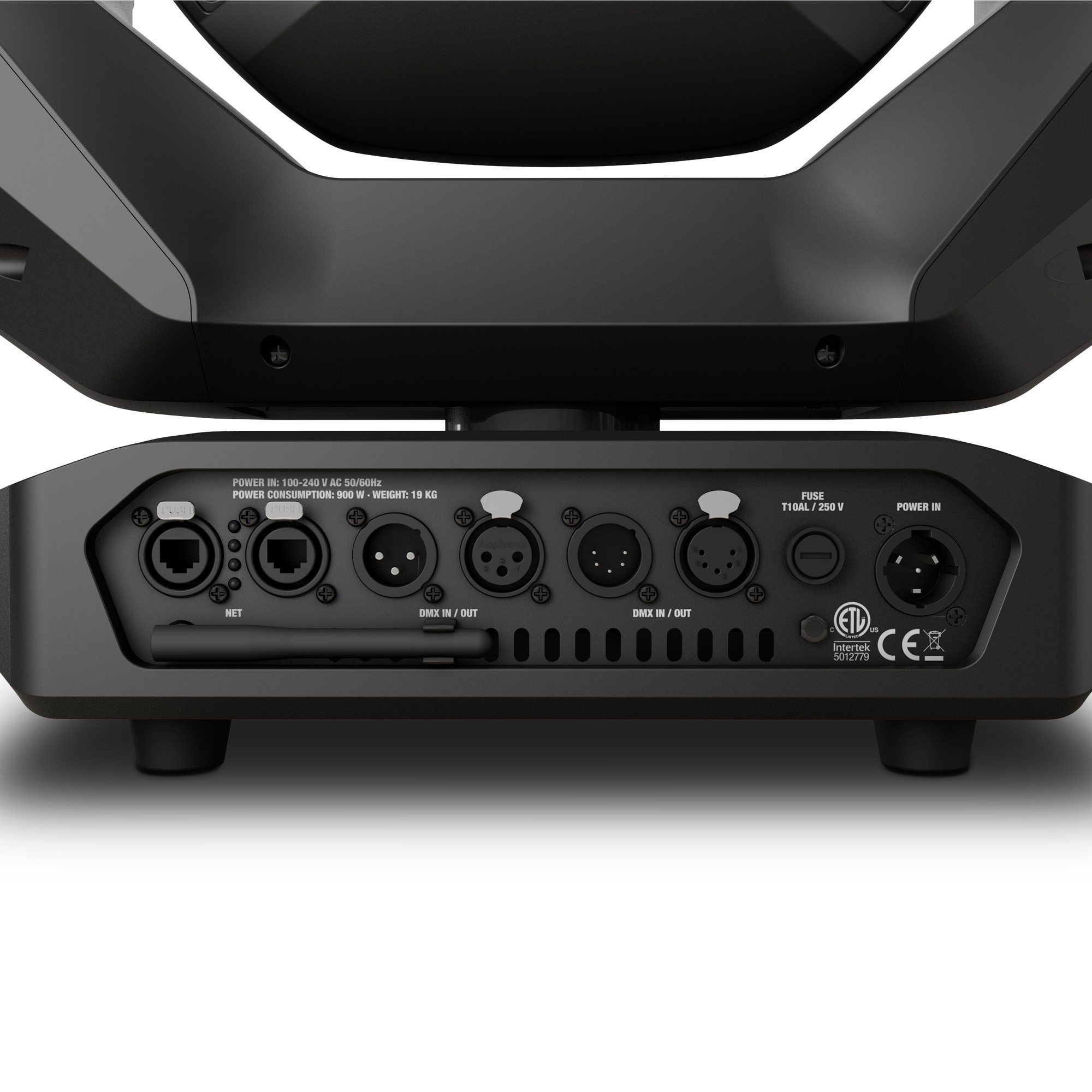

  • DMX input: Network, RJ45 Ethernet In (ArtNET), 5-pin male XLR
  • DMX output: Network, RJ45 Ethernet Out (ArtNET), 5-pin female XLR
  • DMX mode: 16 channels, 18 channels, 23 channels, 33 channels, 43 channels, 87 channels
  • DMX functions: Colour presets, Device settings, Dimmer, Dimmer Fine, Effect patterns, Motion Macro, Pan/Tilt, Pan/Tilt fine, Patterns, Single pixel control, Strobe, Zoom, Zoom Fine
  • PAN movement: 540°
  • TILT movement: 270°
  • Control: Art-Net3, DMX512, KlingNet, RDM enabled, sACN
  • Standalone modes: Auto programs, Static Scene
  • Controls: Encoder Wheel
  • Indicators: Backlit colour LCD display, Battery power for standalone system settings (automatic rechargeable battery)
  • Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
  • Power consumption: 900 W
  • Fuse: T10AL 250 V
  • Connector: Neutrik TrueOne Input
  • Housing material: ABS plastic, nylon, polycarbonate
  • Housing colour: Black
  • Protection class: IP20
  • Certification: CE, ETL, RoHS
  • Cooling: Temperature-controlled fan
  • Brightness: 12,500 lx
  • Dimensions:
    • Width: 421 mm
    • Height: 257 mm
    • Depth: 482.5 mm
  • Weight: 23 kg

Product code: CLEW7

Unit of sale: piece

Specifications:
Number of LEDs: 19
Power per LED: 40 W
Type: Wash
