OPEN BOXEVE Audio SC205

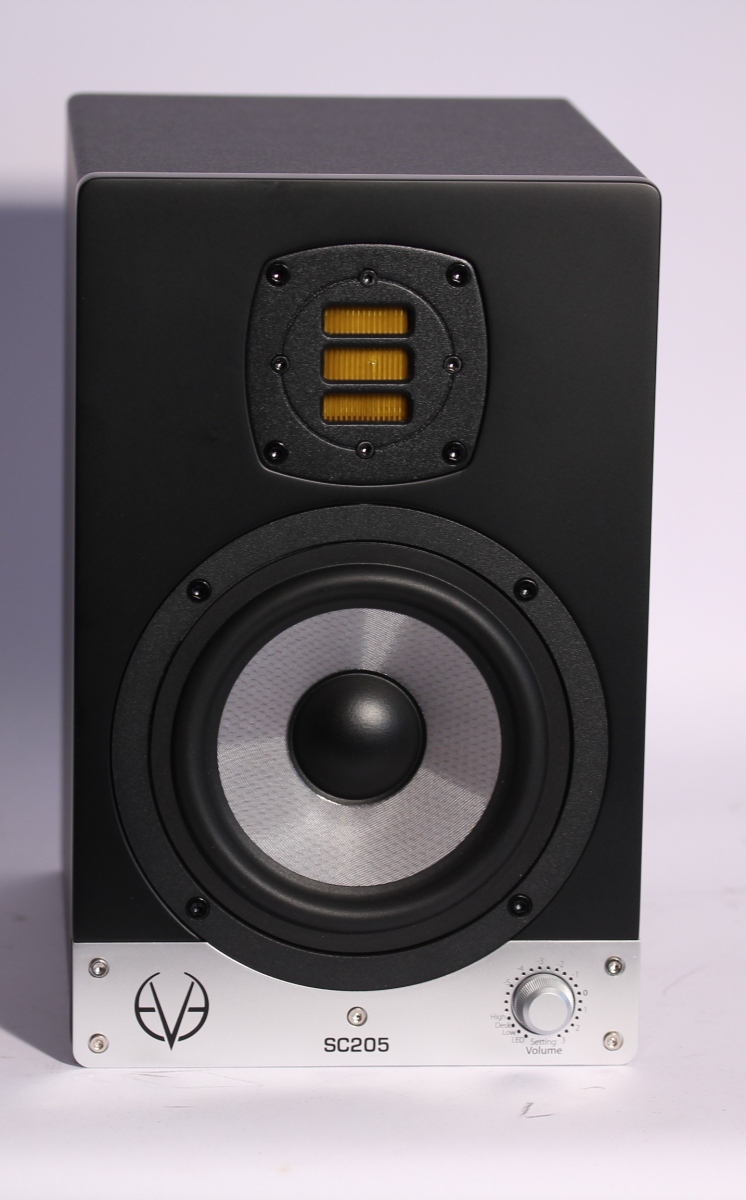

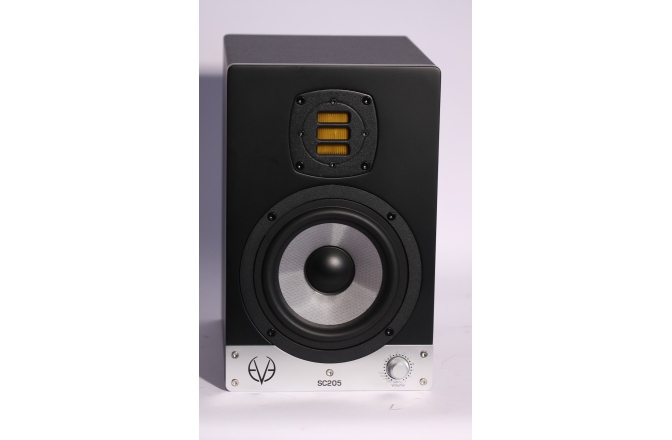

EVE Audio SC205, compact studio monitor with a 5" woofer and AMT ribbon tweeter, recommended for home studios or post-production.

SC205 uses a 5" SilverCone woofer with a honeycomb diaphragm and is powered by a complex system of magnets with a 1" coil. This produces greater dynamics than you might expect from a compact monitor.  The AMT tweeter is a proprietary EVE technology that follows the rule of quality components to achieve superior results.

The DSP is operated by a dedicated and electrically shielded micro-controller, which uses a Burr Brown A/D converter to digitise the analog input, which then transmits the signal directly to the PWM amplifiers.

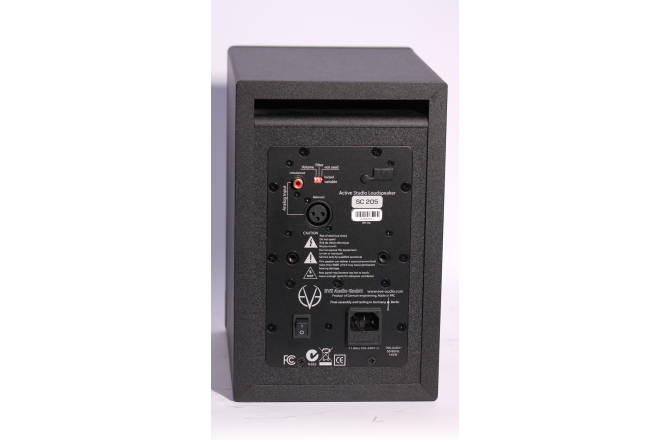

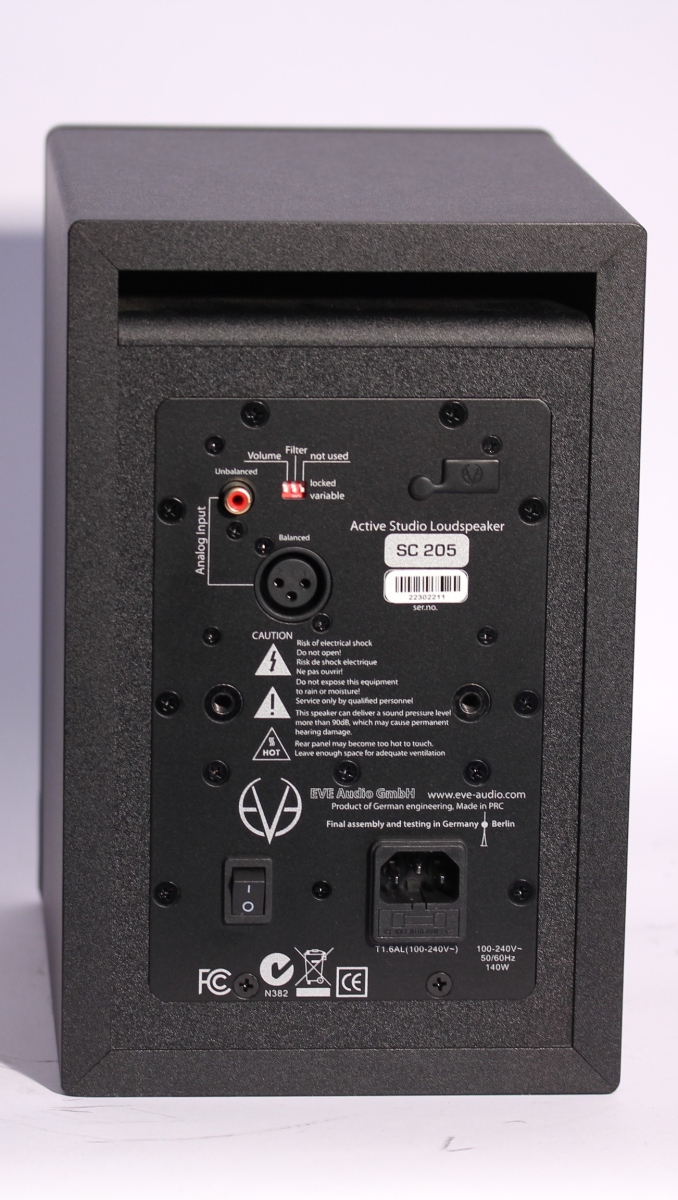

The bass ports are located on the back of the monitor and have been tuned to achieve the best possible impact at low frequencies at all volume levels. To protect the tweeter, a magnetic grille is included that can be easily detached when not needed.

• Type: Active 2-way studio monitor
• Frequency response (-3dB): 53Hz - 21kHz
• Tweeter type: AMT RS1
• Mid-woofer: 130mm/5"
• Crossover frequency: 3000Hz
• Maximum sound pressure level @ 1m: 101dB
• Number of amplifiers: 2
• Amplification power: 100W ~ 50W (woofer), 50W (tweeter)
• Integrated limiter (protection)
• Volume: -infinity to +6dB
• Level-fix dip switch for volume locking
• Filter-fix dip switch for filter locking
• Impedance at XLR input: 10 kOhm
• Impedance at RCA input: 10 kOhm
• Power consumption in standby: < 1W
• Dimensions (W x D x H): 175 x 275 x 233 mm
• Weight: 5 Kg
