Compact, lightweight and practical: the WAMS-10BT2 MK2 is an extremely lightweight yet powerful PA system with a rechargeable battery for mobile use. Whether for street musicians, lectures, family gatherings or in an aerobics group: thanks to versatile connection options, you are flexible on the go. The all-in-one system with great sound, an energy-efficient class D amplifier and an output power of 80 watts, requires no power cables or audio cables. Enjoy music wirelessly from your smartphone or any other Bluetooth device via the integrated Bluetooth audio receiver. The delivery includes 2 license-free wireless microphones for announcements and moderation. A body transmitter is available as an accessory. The latest Bluetooth 5.0 technology with TWS support ensures fast and stable wireless connections and connects two PA systems for stereo setups. The bass reflex system with 2 ways and a 25 cm (10") woofer delivers powerful sound despite its compact size. Equipped with a 3-channel power mixer, the WAMS-10BT2 MK2 also features an MP3 player with SD card slot, USB port and IR remote control. A stereo input channel for line sources (e.g., CD player or notebook) and two mono input channels for instruments or wired microphones provide additional flexibility. The 2-band EQ allows you to control the bass and treble. The powerful 12 V battery allows for continuous playback at maximum volume for up to 4 hours. By mounting an additional battery, the operating time can be doubled. The WAMS-10BT MK2 is easy to transport with its trolley handle and wheels. The lightweight ABS housing allows for tripod mounting.

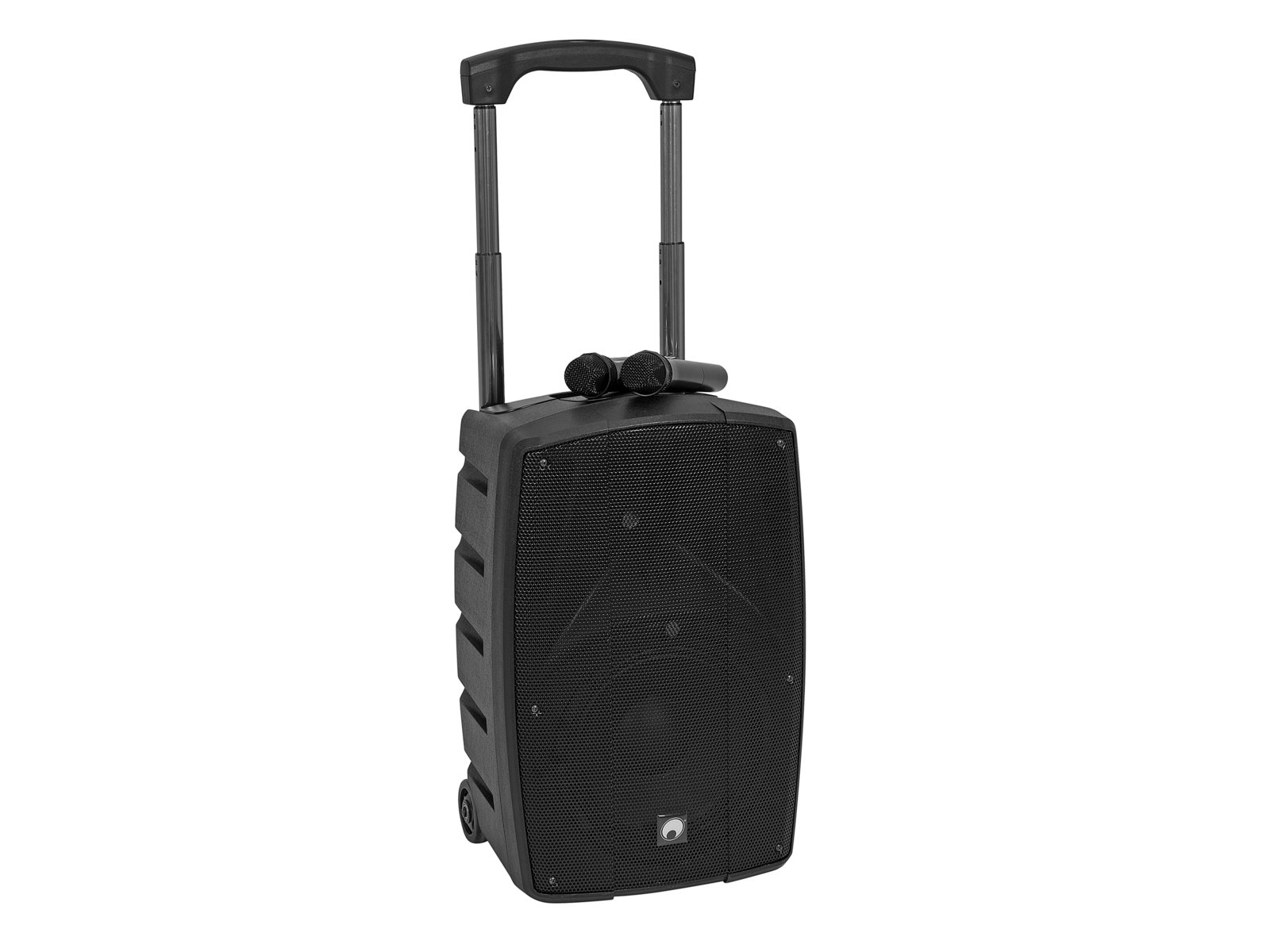

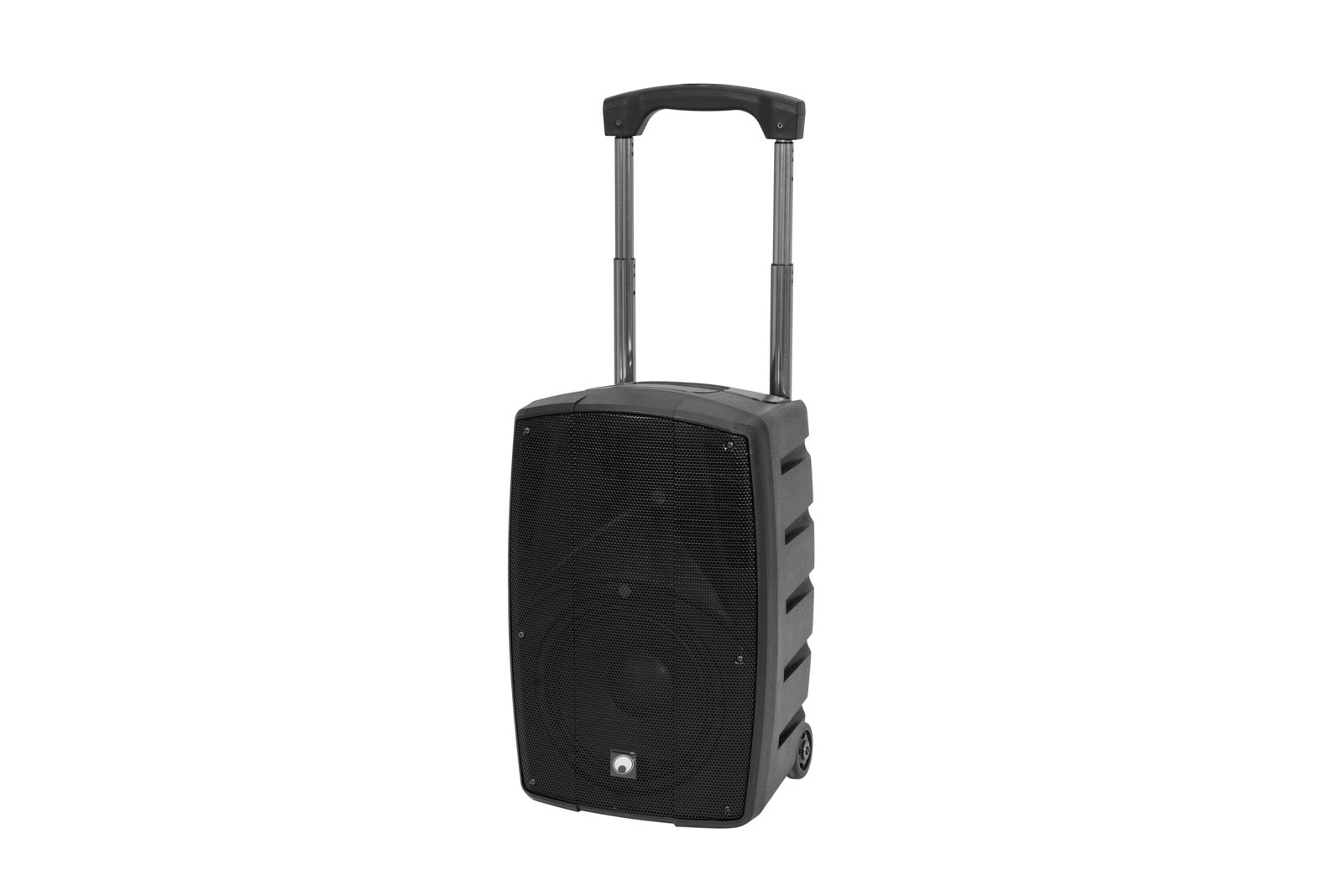

Mobile 10" PA system with battery operation, audio player, Bluetooth and 2 wireless microphones
- Portable all-in-one PA system with an output power of 80 watts
- 3-channel power mixer
- Energy-efficient bi-amplifier with DSP control
- Bass-reflex housing with 2 ways and a 25 cm (10") woofer

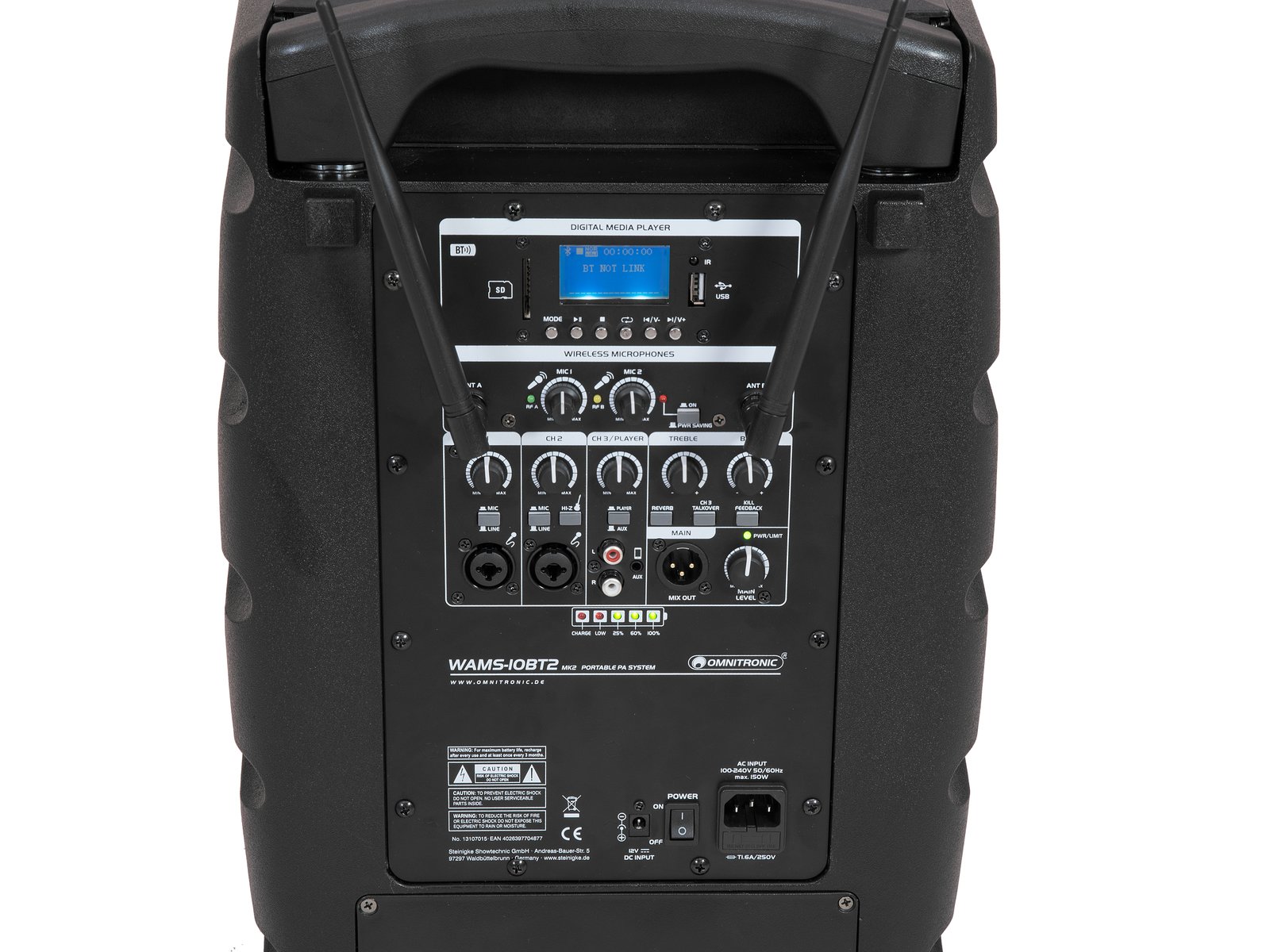

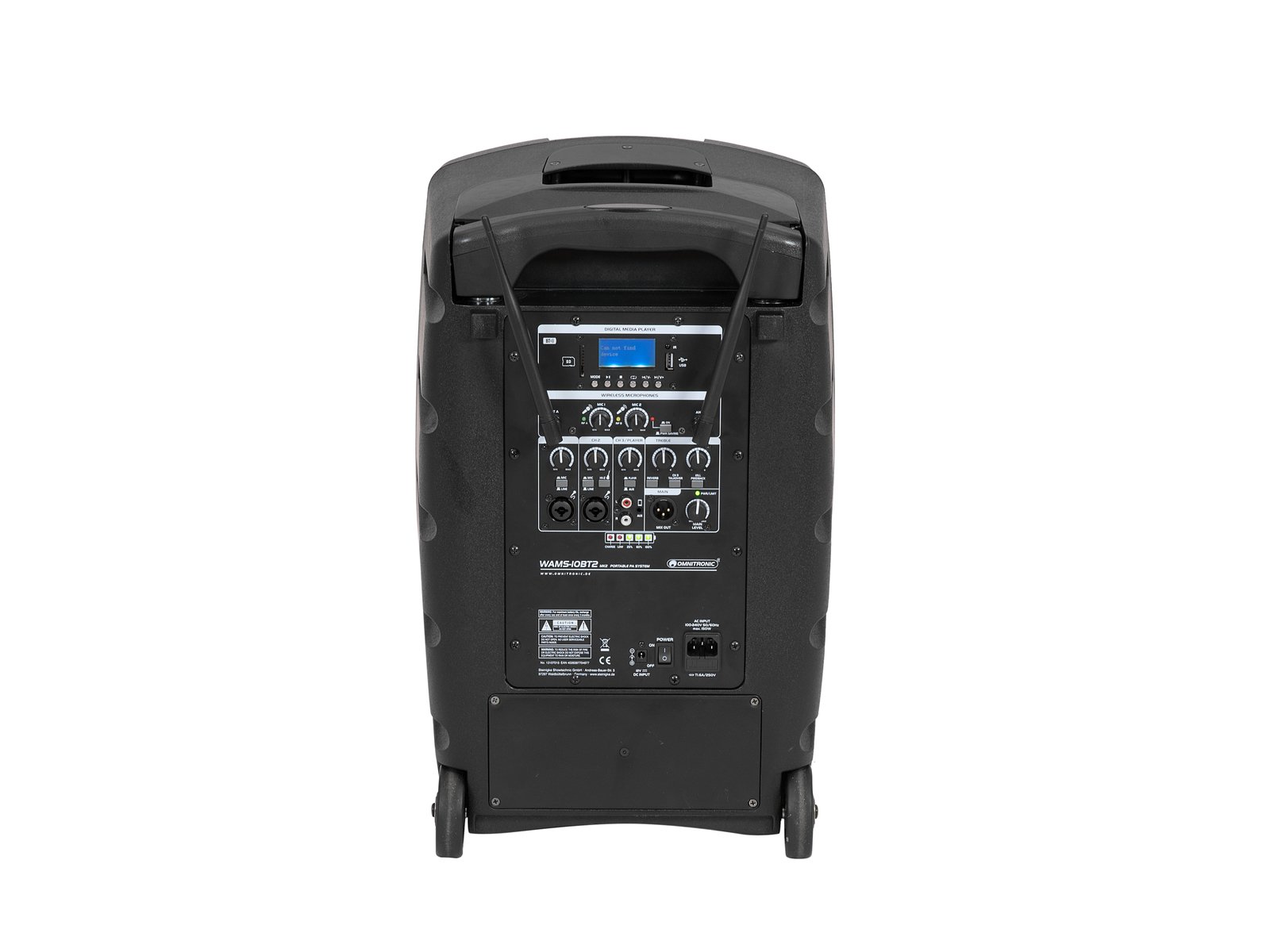

- MP3 player with SD card slot, USB input, LCD and IR remote control
- Integrated Bluetooth audio streaming
- Stereo Bluetooth link for wireless stereo operation with 2 connected systems
- 2 mono mic/line input channels and hi-Z instrument (CH 2) with echo effect and feedback suppression
- 1 stereo input channel for internal audio player and external line signal sources with Talkover switch

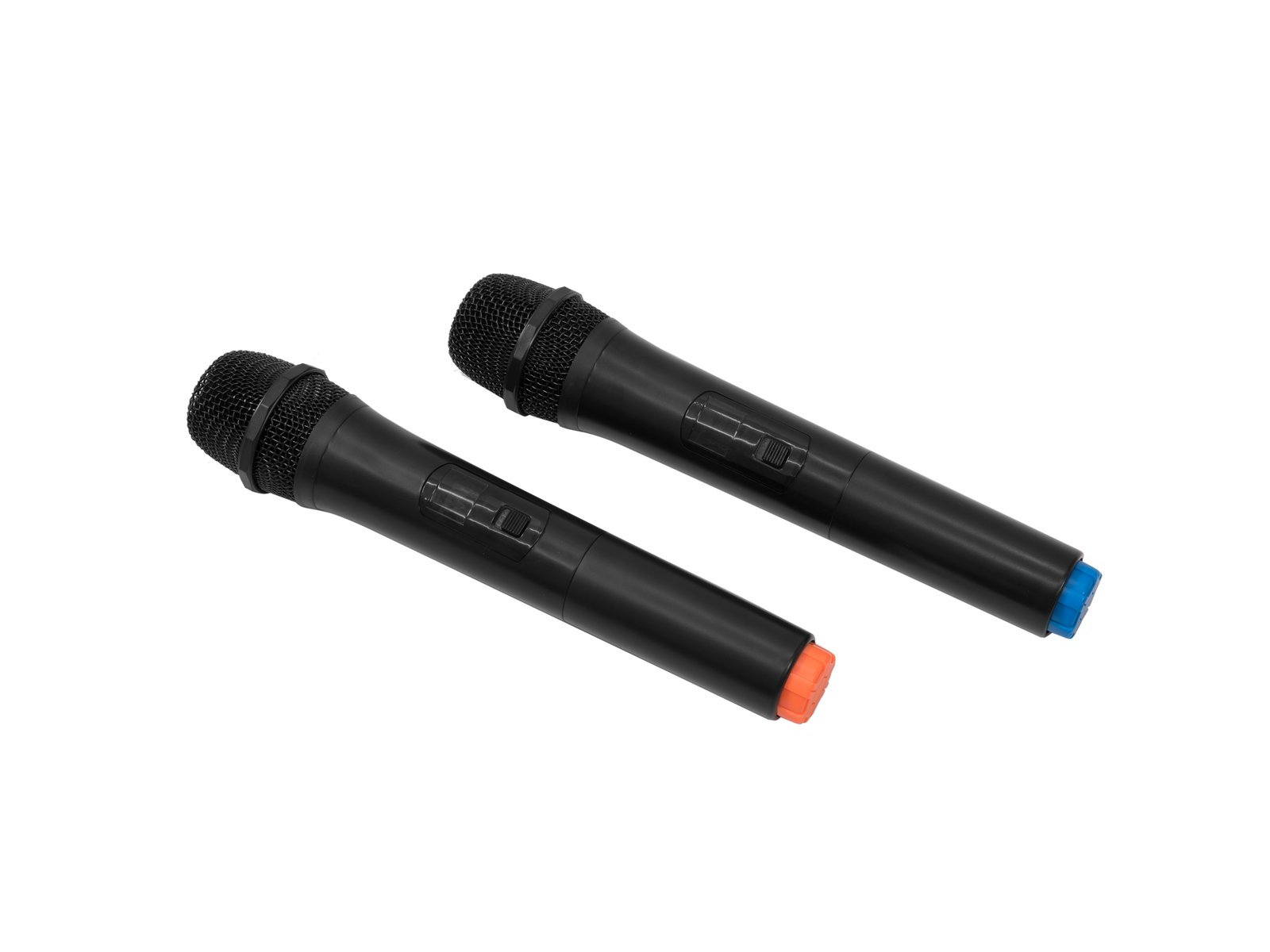

- UHF receiver unit and 2 suitable wireless microphones
- 1 additional battery can be mounted later for up to 8 hours of operation
- Signal limiter and crossover, controlled via DSP
- Common 2-band EQ for treble and bass
- Bluetooth control; IR remote control
- UHF 863 - 865 MHz license-free and approved in Europe
- Bluetooth: operating range up to 20 m
- With accessory compartment
- For applications such as: Theatre; mobile use; Wedding/gala/events; product presentations and lectures
- Integrated automatic battery charging and status indicator
- Black metal grille
- Robust transport handle
- Trolley
- Application possibilities: Stand; monitoring; on tripod
- Wireless, flexible and versatile
Battery
- Battery operation up to 4 hours, depending on the programme used
Cassette player
- 2.4 GHz license-free worldwide
Microphone
- Polar pattern: cardioid
- Operating range up to 30 m
Package contents
- 2 x microphone, 2 x user manual, 1 x power cable, 1 x battery, 1 x compact speaker, 1 x declaration of conformity, 1 x accumulator, 1 x remote control, 2 x antenna
| Power supply: | 100-240 V AC, 50/60 Hz
Or
12 V DC |
| Output power: | 80 W RMS |
| Power connection: | Network input via IEC (M) connector cable mounting version with safety plug (supplied)
Battery/accumulator pack |
| Battery type: | 1 x lithium-ion 12.8 V, 8000 mAh, 51.2 Wh |
| Frequency range: | 50 - 20000 Hz |
| THD: | <0.1 % at 1 kHz |
| Sensitivity: | 96 dB (1W/1m) |
| Max. SPL: | 115 dB |
| Control: | Bluetooth; IR remote control |
| Mounting system: | Bracket: Ø 35mm |
| Control elements: | Channel level control, Echo effect control, Talkover |
| Status LED: | Power, limit, charge level |
| Connections: | Input: line via mounting version 1 x 3.5 mm jack (stereo).
Input: line via 1 x RCA stereo
Input: microphone/line via combined socket 2 x 3-pin XLR/6.35 mm jack (F) (mounting version)
Output: 3-pin XLR |
| Equalizer: | 2-band tone control |
| Frequency band: | UHF 863 - 865 MHz |
| Available storage media: | USB devices/SD cards max. 32 GB (FAT 32) |
| Speaker: | 1 x woofer (10") approximately 25 cm
1 x tweeter (1") approximately 2.5 cm |
| Speaker type: | Wireless PA system |
| Range: | Bluetooth: operating range up to 20 m |
| Transport handle: | 1 piece/piece |
| Transport aid: | Trolley |
| Material: | Acrylonitrile butadiene styrene (ABS) |
| Colour: | Black |
| Dimensions: | Length: 31 cm
Width: 36 cm
Height: 56 cm |
| Weight: | 13.70 kg |
| Battery |
| Battery: | Battery operation up to 4 hours, depending on the programme used
Recharge time 4h |
| Cassette player |
| Cassette player: | USB + SD + Bluetooth |
| Music format: | MP3, WMA |
| Frequency band: | 2.4 GHz |
| Microphone |
| Power supply: | 3 V DC |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Range: | Operating range up to 30 m |
| Dimensions: | Length: 26 cm
Diameter: Ø 4 cm |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
