This product is no longer manufactured or available in our offer.

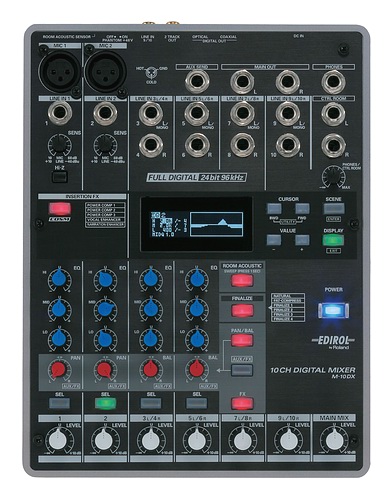

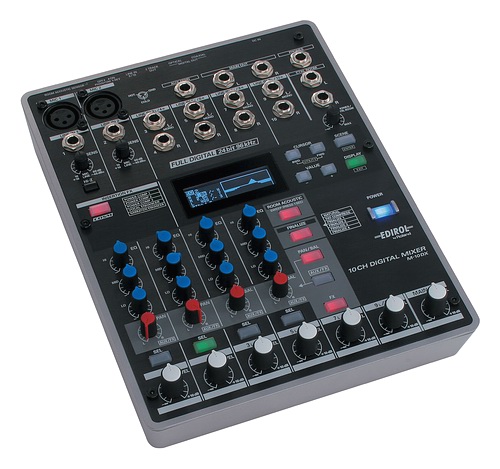

Edirol M-10DX

Name: Edirol M-10DX
Brand: Edirol
SKU: EdiM10DX_3745
Price: 309.51 EUR
Availability: Discontinued

Bazat pe engine ul de inalta rezolutie ca si M-16DX, M-10DX este capabil de procesare 24-bit/96kHz. Mixarea este inlesnita de controale de canal dedicate pentru 3-Band EQ, Pan, Aux, Select, si Level. Pentru portabilitate maxima, M-10DX intruneste cele mai multe functii ale M-16DX intr-un pachet compact mostenind si afisajul LCD iluminat de la acesta.

Edirol M-10DX

Mixer digital de 10-canale, cu functii similare mixerului M-16DX
EQ cu trei canale si LCD grafic
Portabil, design all-in-one
"Room Acoustic Control" regleaza in mod automat boxele pentru a obtine un sound optim
Efecte incorporate (COSM® insert efect, Reverb, finalize efect)
Intrare analogica si iesire de semnal digitala, 2 intrari de microfon preamplificate
Adaptor AC inclus

Bazat pe engine ul de inalta rezolutie ca si M-16DX, M-10DX este capabil de procesare 24-bit/96kHz. Mixarea este inlesnita de controale de canal dedicate pentru 3-Band EQ, Pan, Aux, Select, si Level.
Pentru portabilitate maxima, M-10DX intruneste cele mai multe functii ale M-16DX intr-un pachet compact mostenind si afisajul LCD iluminat de la acesta.

Product code: EdiM10DX_3745

Specifications:

Channels:	10 channels
AD/DA conversion:	96.0 kHz: 20 Hz to 40 kHz (+3/-3 dB), 48.0 kHz: 20 Hz to 22 kHz (+3/-3 dB), 44.1 kHz: 20 Hz to 20 kHz (+3/-3 dB)
Nominal input level:	connectors MIC 1-2: -60 to -10 dBu, LINE IN jacks 1-2: -40 to +10 dBu, * Maximum input level: nominal input level + 22 dB, LINE IN jacks 3-10: +0 dBu, LINE IN jacks 9-10 (RCA pin type): -10 dBu, * Maximum input level: nominal input level + 18 dB
Input impedance:	connectors MIC 1-2: 2.7 kΩ, LINE IN jacks 1-2: 28 kΩ, LINE IN jacks 3-8: 20 kΩ, LINE IN jacks 9-10 (RCA pin type): 20 kΩ
Display:	LCD 122 x 32
Connection:	MIC connectors 1-2: XLR type (balanced / phantom power +48 V), LINE IN jacks 1-10: 1/4 inch TRS phone type (balanced), * LINE IN jack 1: supports use of hi-impedance, LINE IN jacks 9-10: RCA pin type, MAIN OUT jacks L-R: 1/4 inch TRS phone type (impedance balanced), AUX SEND jack: 1/4 inch TRS phone type (impedance balanced), 2 TRACK OUT jacks L-R: RCA pin type, DIGITAL OUTPUT jack/connector: Optical type, Coaxial type, PHONES jack: Stereo 1/4 inch phone type, CTRL ROOM jacks L-R: 1/4 inch phone type (impedance balanced)
DSP processing:	Room Acoustic Control (built-in microphone), Finalize: Enhancer/Multi-band Compressor-Limiter, Insertion effects: Power compressor/Vocal enhancer/Narration enhancer, Echo/Reverb: Short echo/Echo/Room reverb/Small hall reverb/Large hall reverb
Phantom power:	+48 V/5 mA (per input)
