Tascam Sonicview 16


Digital mixer

  • 16-channel digital mixer with dual 7-inch touch screens for intuitive operation.
  • built-in Dante interface with 64 inputs/outputs and supports AES67.
  • ultra-low latency and high-quality 32-bit/96 kHz A/D and D/A conversion.
  • customizable user buttons and motorized faders for enhanced control.
  • internal recording capability with SD card or USB flash drive.
Tascam
4 44703
Currently unavailable. Request details
Central warehouse: 0
Add to cart
23033 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

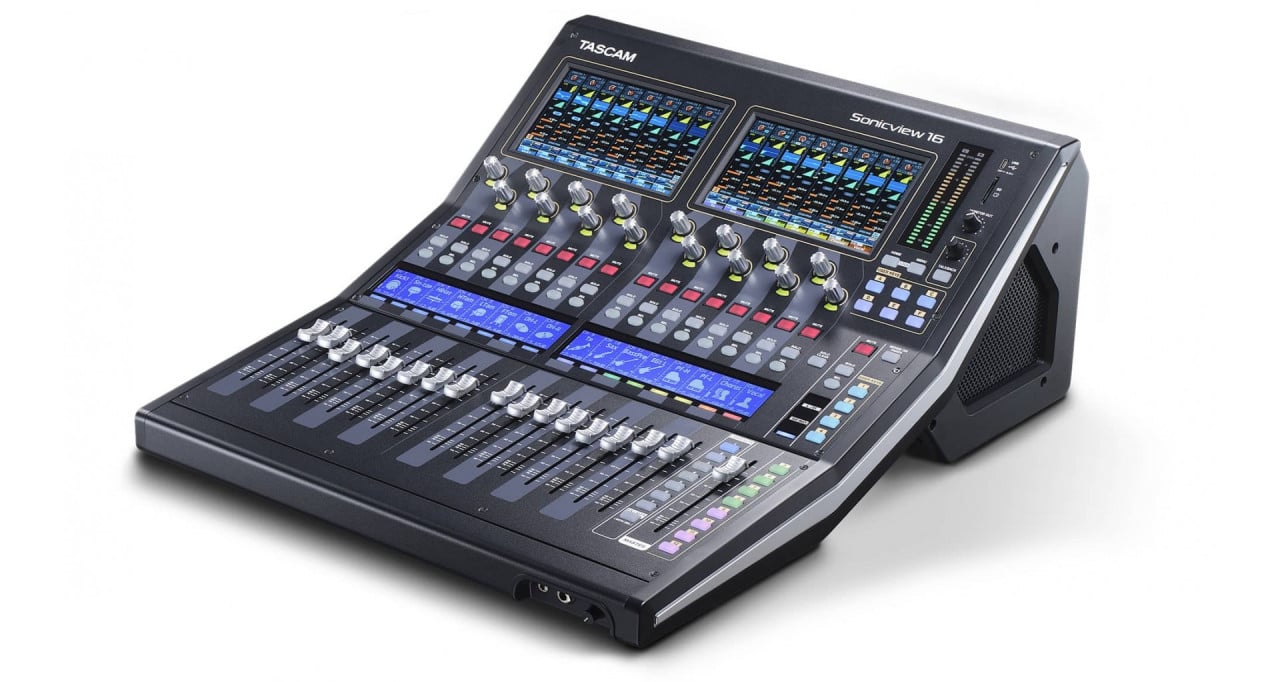

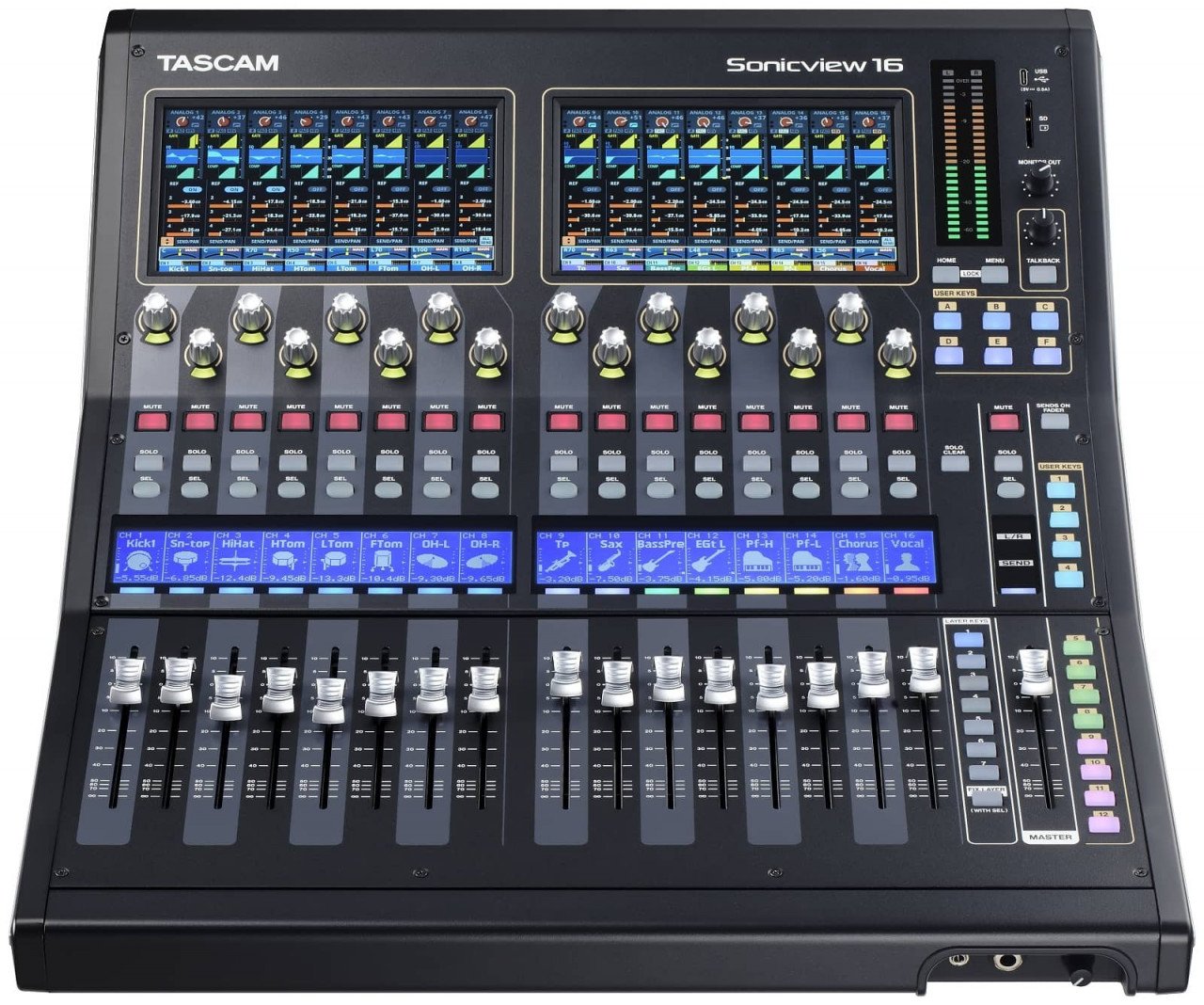

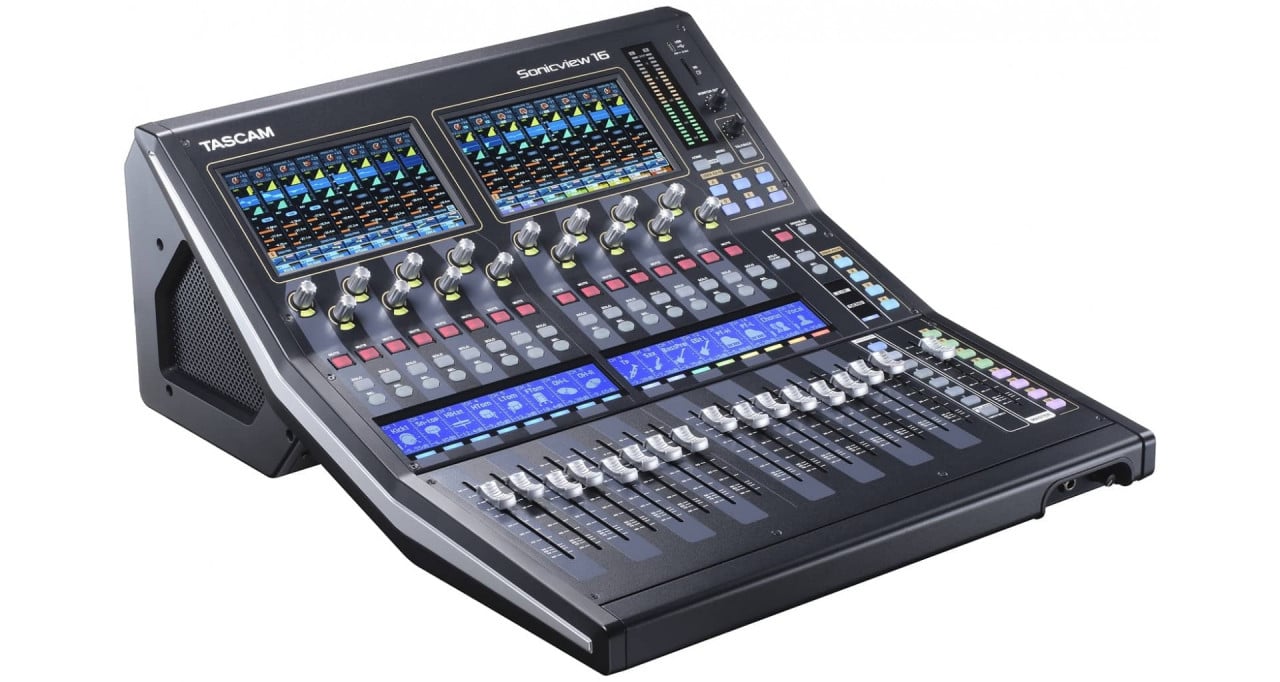

Sonicview 16 is a digital mixer with 2 touch-screen displays, microphone preamplifier on 16 channels, Dante audio interface 44 in / 24 bus, USB and optional multitrack recording capability.

  • Tascam VIEW (Visual Interactive Ergonomic Workflow) interface allowing intuitive operation with three different viewing modes
  • Multiple displays via two 7-inch colour touch-screen displays
  • 44 input channels (40 mono, 2 stereo)
  • 22 flexible output buses plus main L/R bus with 31-band graphic EQ
  • 54-bit float-point FPGA mixing engine, 96 kHz sampling frequency
  • Ultra-low latency: 2× Fs (20.8 μs) in mixing engine, 0.51 ms analog-to-analog
  • 32-bit/96 kHz A/D and D/A conversion
  • Tascam HDIA (High-Definition Instrumentation Architecture) microphone preamplifiers.
  • Built-in Dante interface (64 inputs/outputs); supports redundancy, AES67, DDM and SMPTE 2110
  • 32-bit/96 kHz USB audio interface (32 inputs/outputs)
  • 16 microphone/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing
  • Four multi-effect processors
  • Tascam Sonicview Control software for Windows, macOS and iPadOS allows remote control and offline editing
  • Two Tascam expansion slots
  • SDXC recorder with 32 tracks, MADI, AES/EBU and analogue I/O cards available for the second slot
  • Faders can be removed and replaced individually, the top panel can be disassembled without disconnecting cables for easy maintenance
  • 18 customizable user buttons, 8 DCA groups
  • 16 +1 motorized faders of 100 mm
  • 16 encoders with coloured LEDs
  • 16 LC displays with coloured LEDs for channel name, input level and gain meter
  • Internal recording/playback with 2 tracks using SD card or USB flash drive

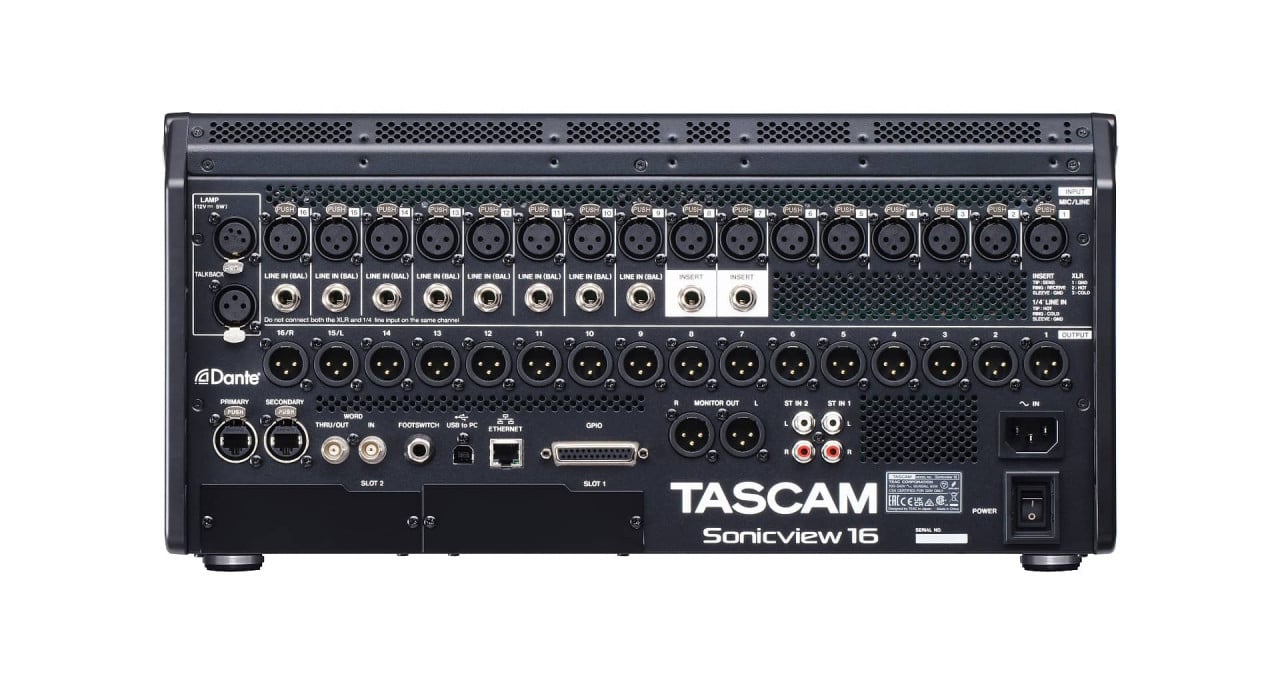

  • 8 TRS line inputs, 2 pairs of RCA stereo inputs, XLR talkback input
  • XLR monitor outputs
  • Standard (6.3 mm) and mini (3.5 mm) headphone outputs
  • Wordclock In, Out/Thru
  • 1000BASE-T gigabit Ethernet
  • GPIO 8-in/8-out on DB25 connector
  • Footswitch TRS connector
  • XLR 4-31 lamp connector

Product code: ZD-046353

Unit of sale: piece

Specifications:
Channels: 44
AD/DA conversion: 32 bit / 96 kHz
