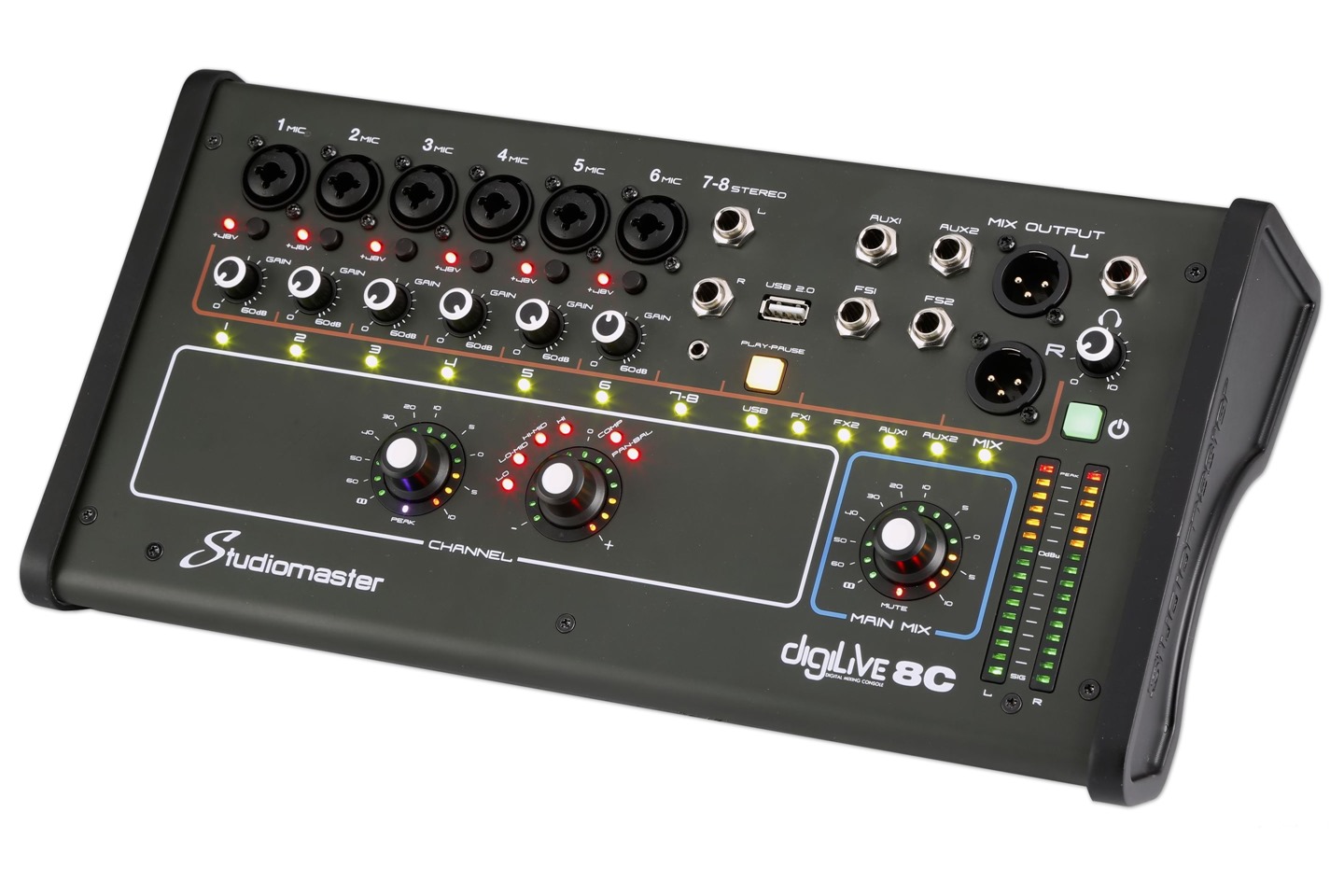

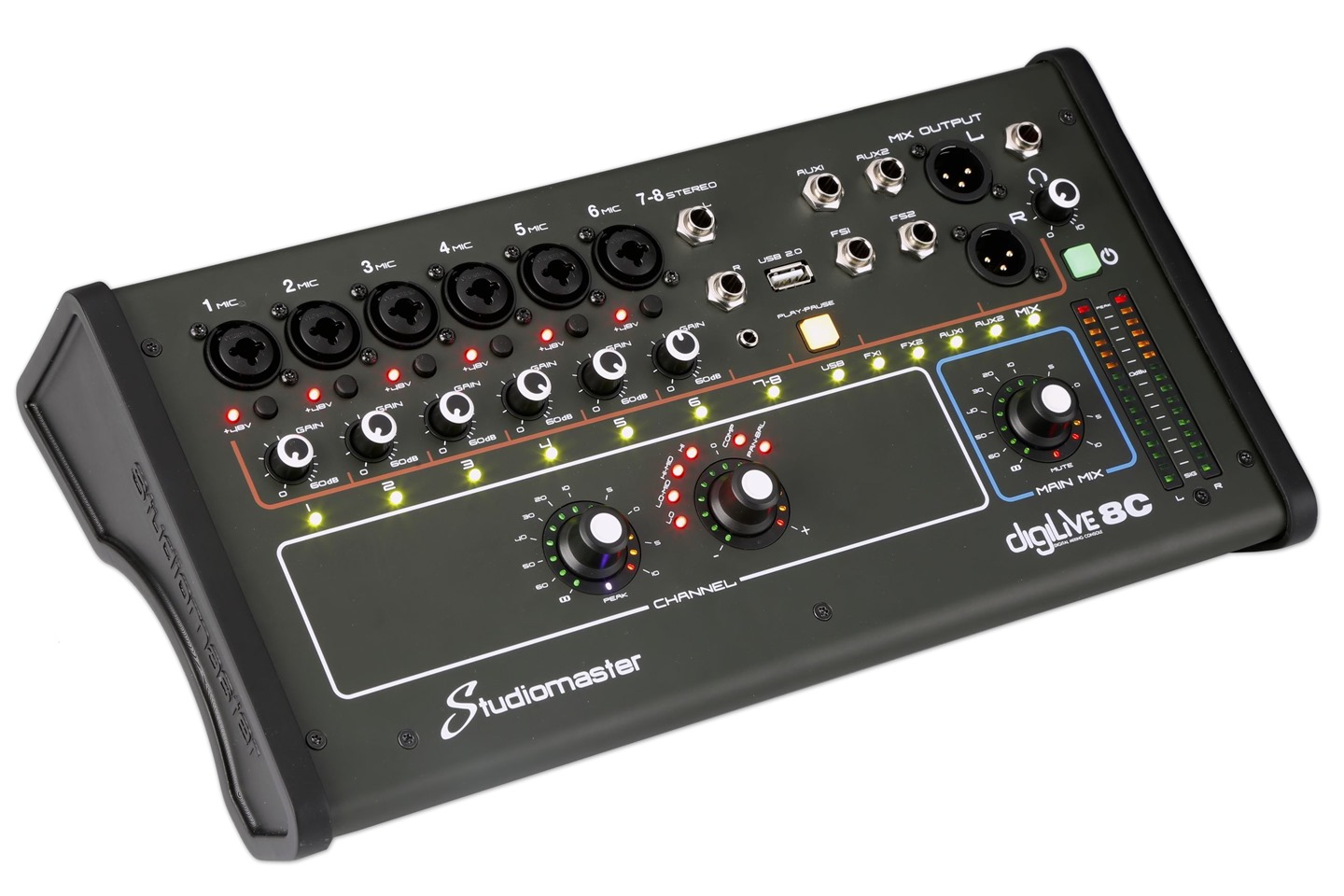

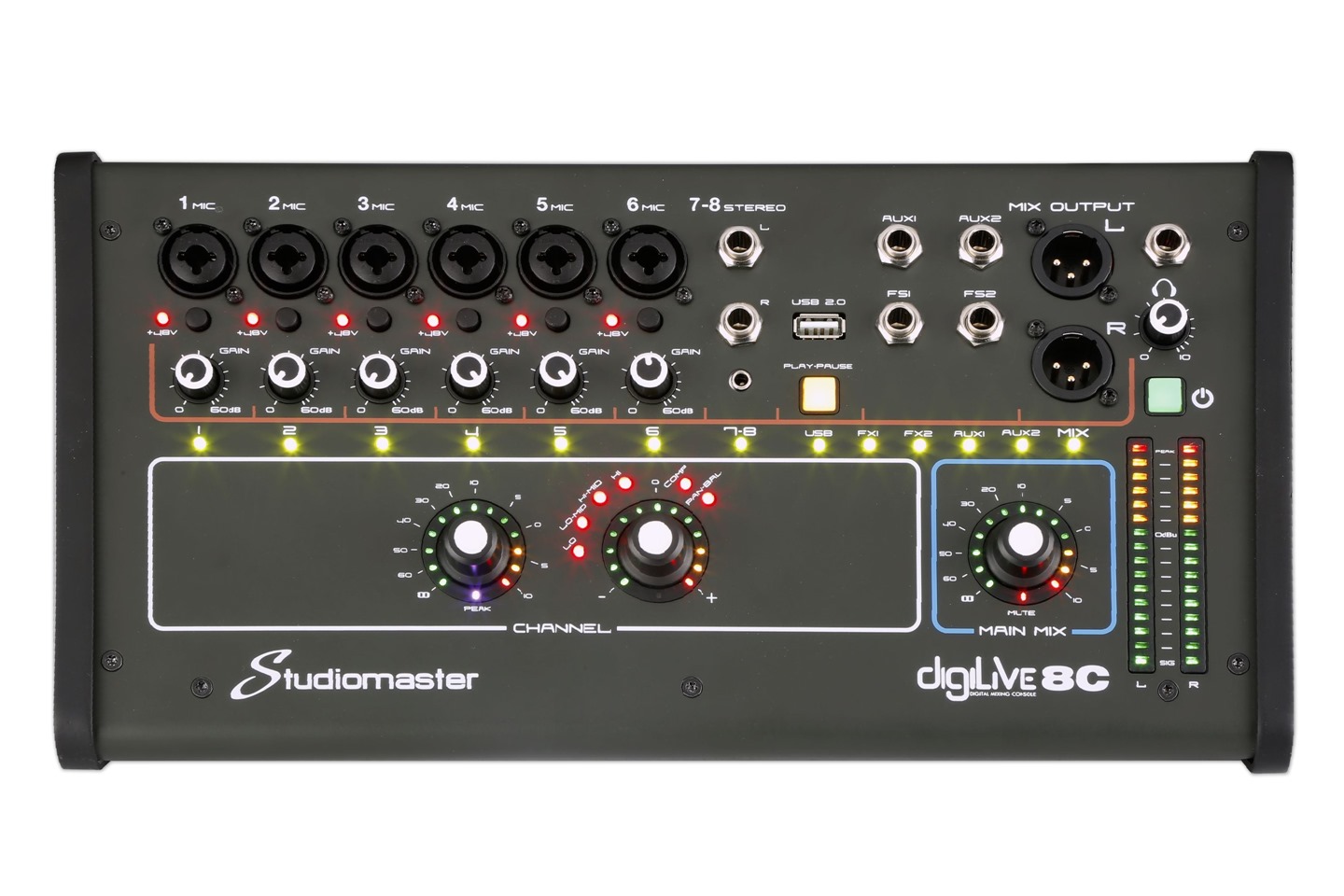

Studiomaster Digilive 8C - Digital mixer with multiple inputs and outputs, ultra-compact and modern design, and operation for multiple platforms being compatible with smartphones, tablets, and laptops.
Inputs: 8 analog inputs
Microphone Inputs: 6x combo XLR / Jack
Line Inputs: 1x stereo jack / mini jack 3.5 mm
2x Main outputs with XLR connectors
Internal Buses: 4 stereo FX / 2 mono AUX / stereo PFL / Main Mix
2x Stereo monitor outputs with TRS connectors
Headphone output with TRS connector
3 rotary knobs for control
Sample rate: 48 KHz
AD / DA: 48KHz, 24-bit
DSP: 40-bit float point, SHARC processor

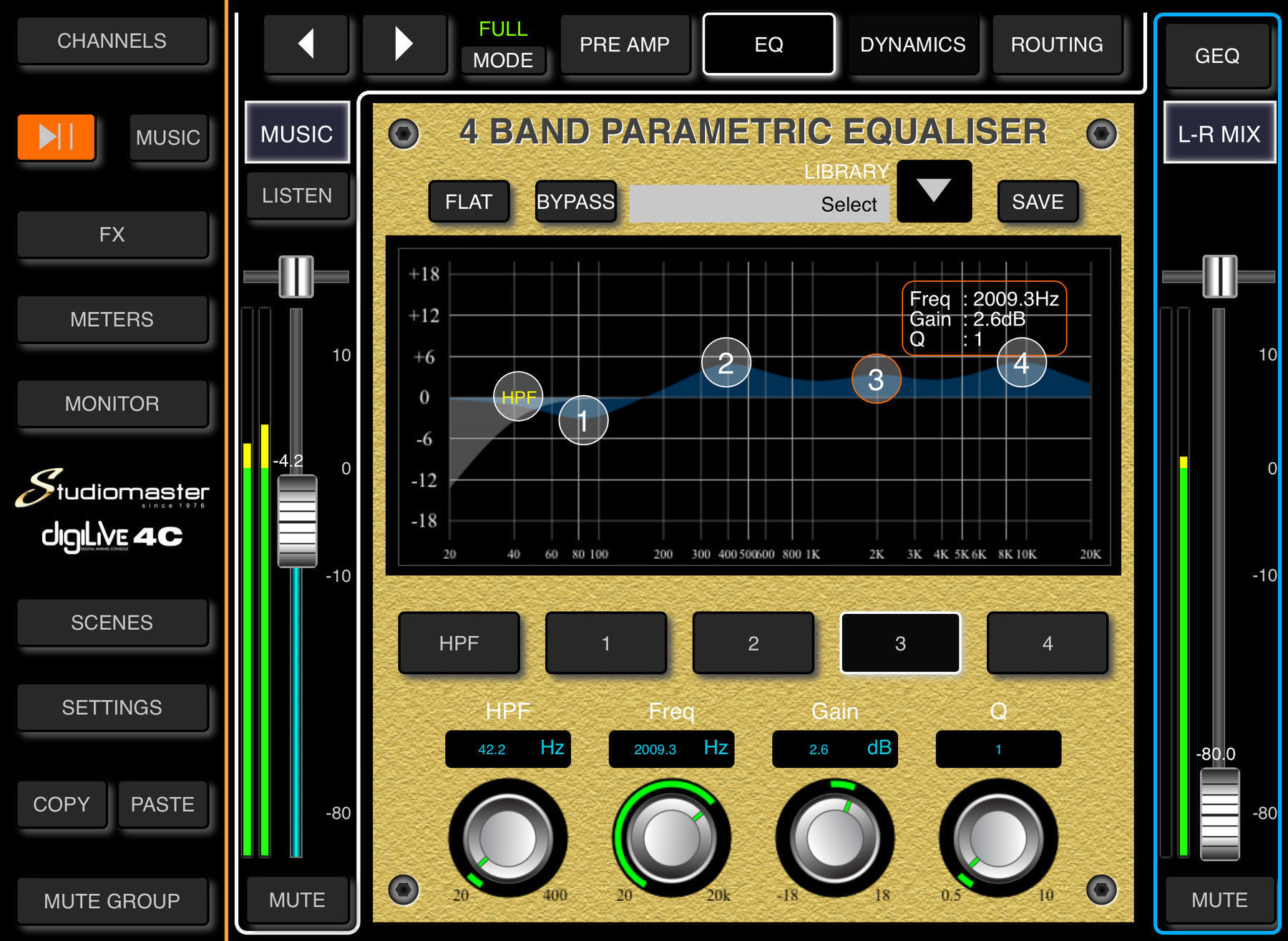

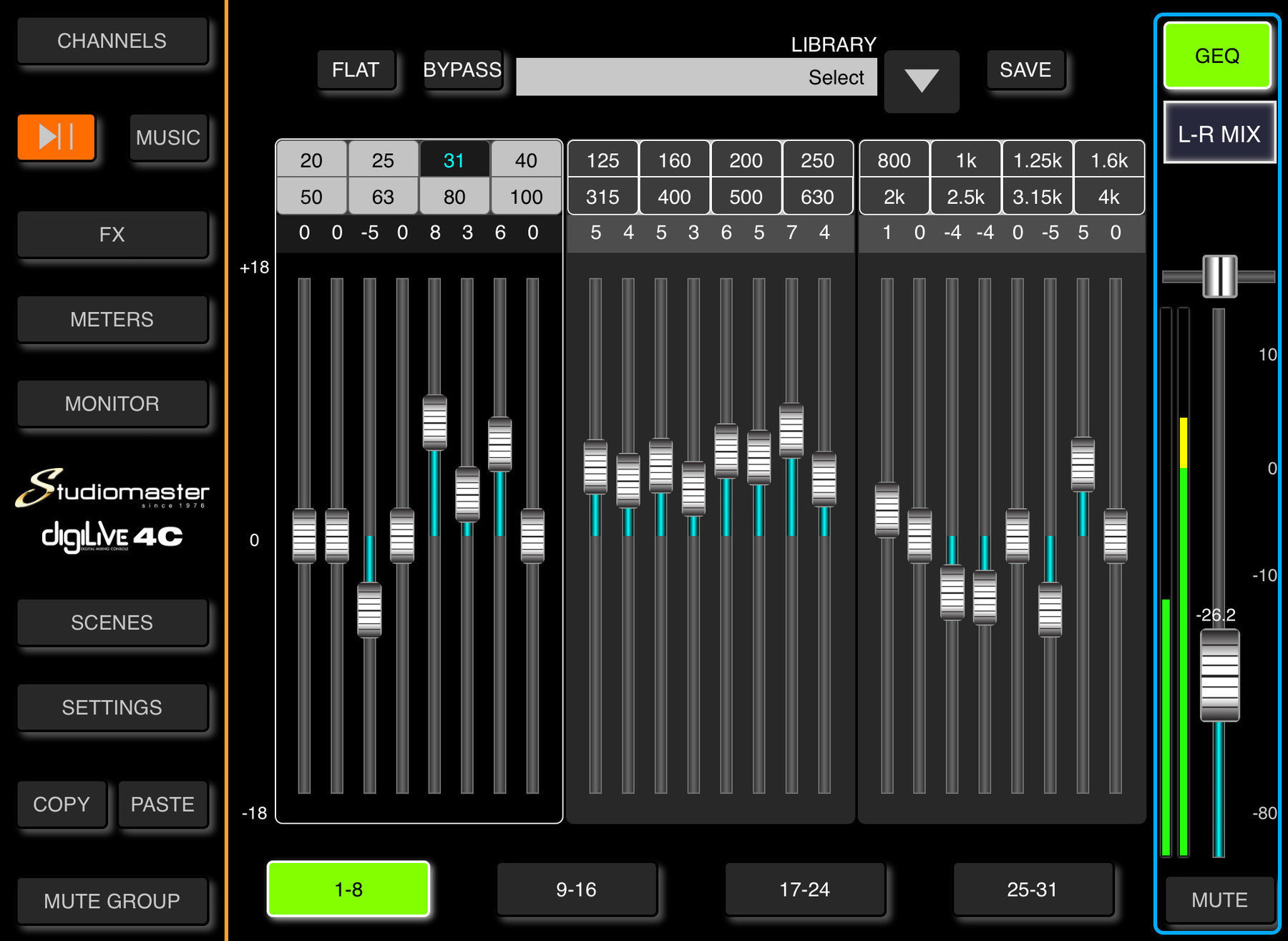

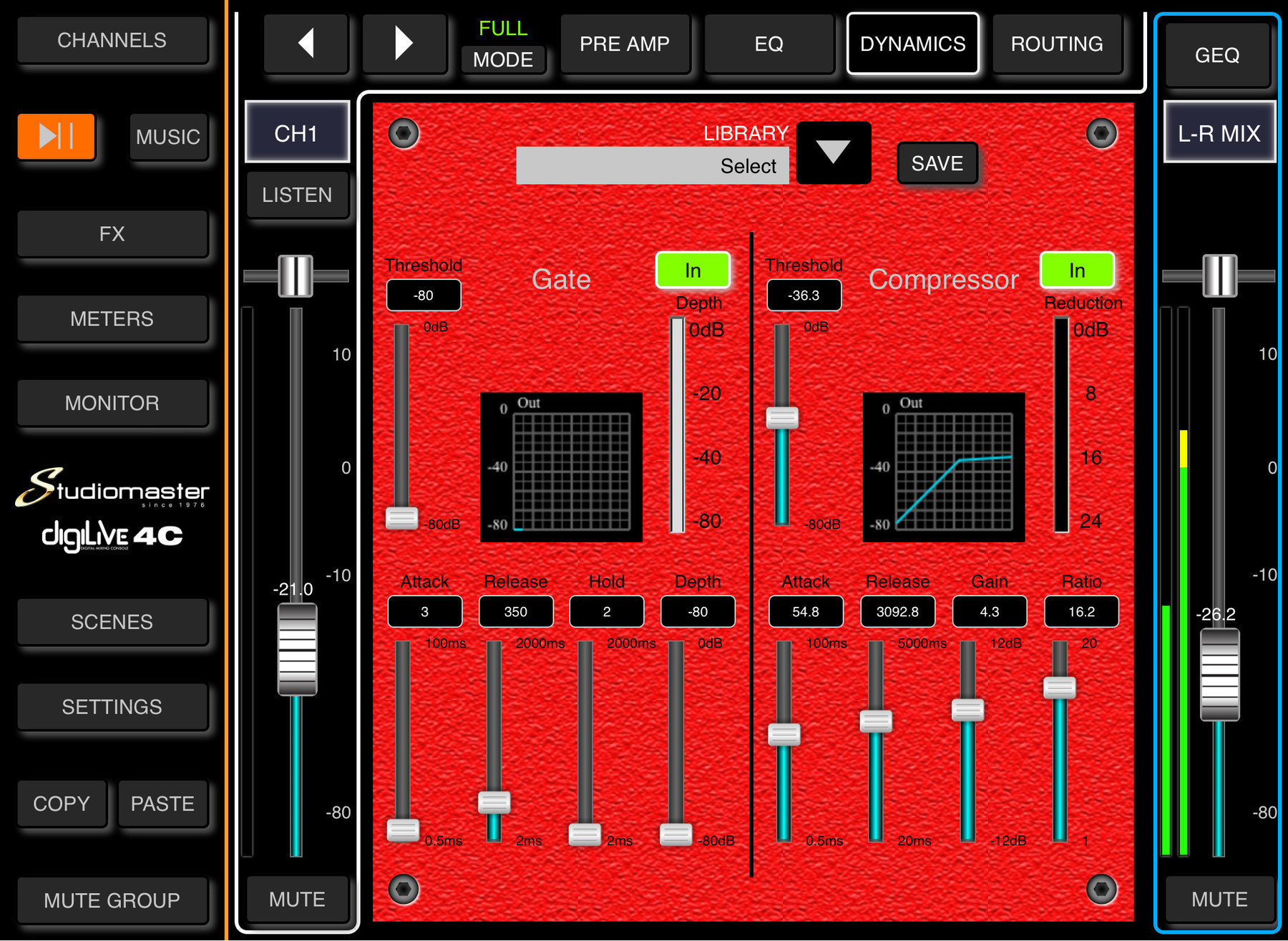

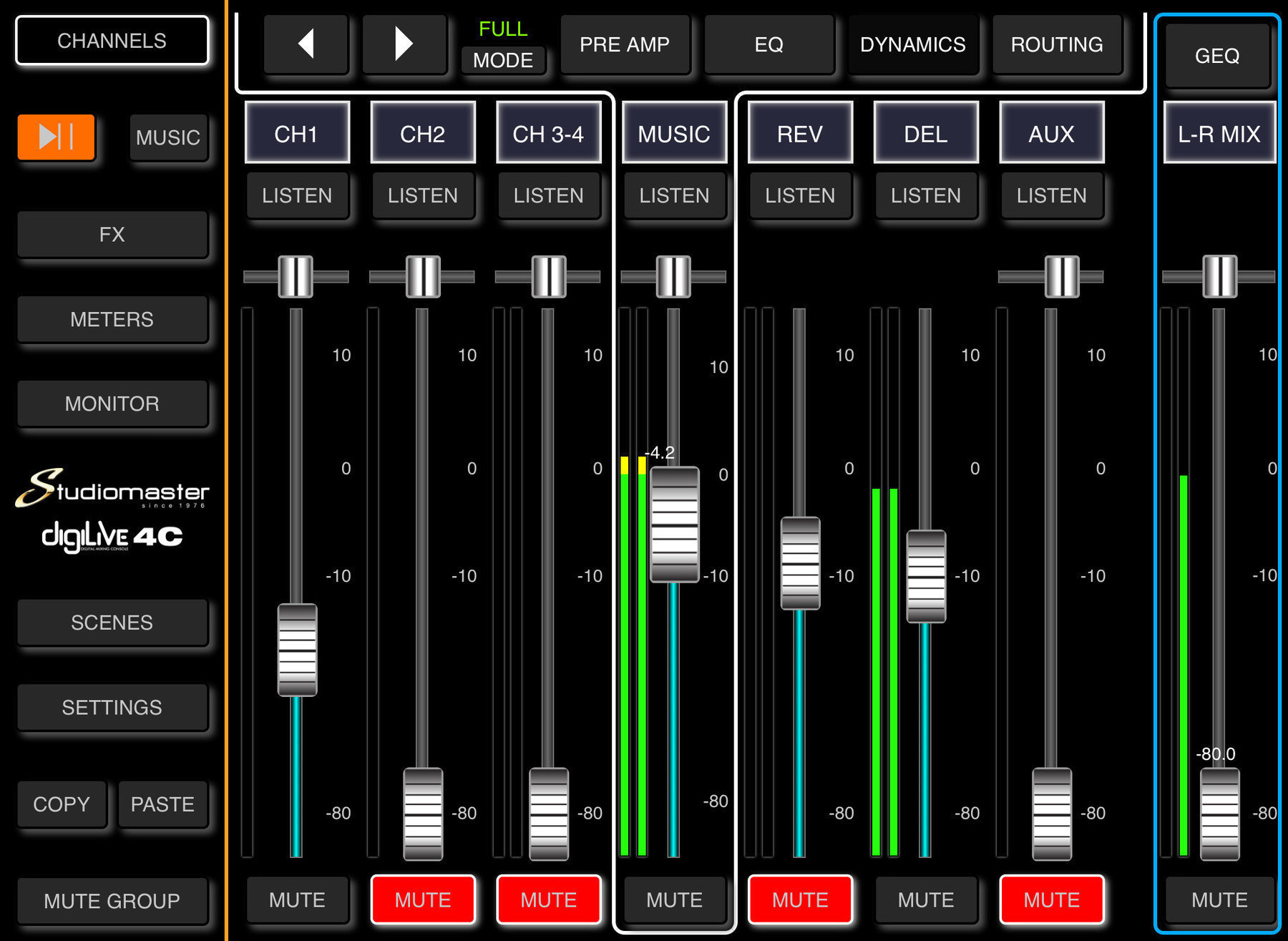

Remote control: Cross platform - Any device with Wi-Fi / Lan and web browser
Effects: 4, with programmable Delay and Reverb
USB interface: 2 for playback / recording, scene storage, and system updates
Network connection via external WIFI module or LAN RJ45 connection
Power supply: 100-240V ~ 50/60Hz, 12VDC, 4.17A, 50W, centre positive polarity
